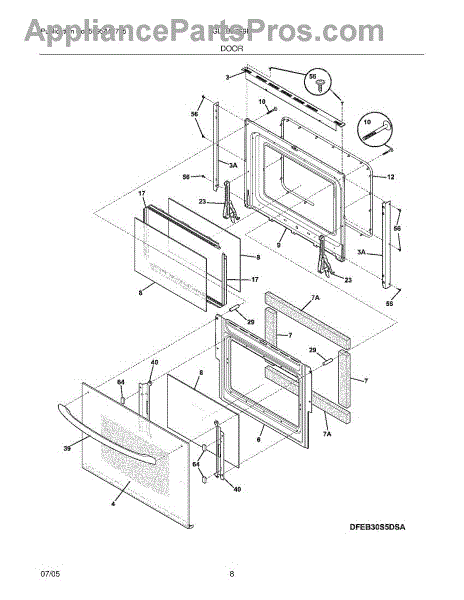

Parts for Frigidaire GLEB27S9DSB: 07 - Door Parts

Frigidaire manufactures this glass outer door assembly. It is designed to fit on the front of ovens, providing visibility into the interior while preventing heat from escaping. The glass is specially treated to provide strength and resilience, and it should last the life of the appliance.The glass outer door assembly may be damaged through impacts with objects. In some instances, the glass may also crack due to temperature extremes. Cold liquid spilled on the glass while hot can cause it to contract and crack. Over time, micro-cracks can also develop. If the glass is cracked or broken, the door assembly will need to be replaced. Replacing the door will require removing the old door, which should only involve a screwdriver and/or socket and ratchet. This OEM part is a genuine replacement that is sold individually and sourced directly from the manufacturer. This glass outer door assembly is compatible with equipment from Frigidaire.

This high-temperature insulation is used in the oven assembly to contain heat and protect nearby components and cabinetry. Replacing damaged insulation helps the appliance maintain set temperatures and keeps exterior surfaces from getting excessively hot. What it does:

• Helps retain heat for stable baking and roasting temperatures
• Reduces heat transfer to the appliance frame and adjacent cabinets
• Replaces insulation that is torn, charred, or saturated with spills/grease

• One insulation piece

• Disconnect power; for gas models, also shut off the gas supply
• Remove the range or wall oven and access the oven body
• Wear gloves, eye protection, long sleeves, and a dust mask; fibers can irritate skin and lungs
• Reinstall in the same orientation/routing as the original; do not compress insulation or block vents

This handle mounting screw is an authentic OEM replacement part sourced directly from the manufacturer for use with oven handles. The oven handle attaches to the oven door with two of these screws. If the washer that goes with the screw is loose or missing, the screw will become loose, and the handle may break away from the door. If this occurs, the door will be difficult to open when not in use and nearly impossible to open when hot. If the mounting screw is loose or missing, the screw should be replaced immediately. Note that the washer needed for the screw is not included and should be purchased separately.Make sure the oven is not hot before replacing the door handle mounting screw. To start, disconnect the power from the oven. Remove the screw and washer from the handle if it is loose and install a new handle mounting screw with a new washer. Tighten the screw until it is flush with the door. Repeat for the remaining screw if necessary.This handle mounting screw is a heavy-duty black metal screw that is sold individually. It is designed for use on ovens manufactured by Frigidaire.

This spacer sets the correct gap between mating parts in your appliance's assembly, preventing rubbing and misalignment. Replace a missing or worn spacer to restore a solid fit, reduce noise, and protect surrounding components.

• Maintains proper spacing between components for correct alignment and operation
• Reduces metal-to-metal contact, squeaks, and premature wear
• Helps fasteners and panels seat securely
• Typical symptoms when failed: loose or rattling parts, uneven gaps, or visible wear marks

• Disconnect power; for gas models, shut off the gas. Allow the appliance to cool completely.
• Access the assembly per your model's diagram; note the original orientation/stack-up before removal.
• Reuse original fasteners if serviceable; hand-start threads and tighten snugly to avoid damaging the spacer.
• Verify alignment and clearances before fully reassembling. Quantity and location vary by model.

Specs: 8 - 18 x 0.500

This is a #8 screw, 0.500 inch long, used to secure panels and components in appliances. It provides a correct-fit fastener for repairs where the original #8 x 1/2" screw was required, restoring proper assembly and stability. What it does:

• Fastens trim, panels, brackets and small components where a #8 x 1/2" screw is specified
• Holds parts securely to prevent rattling, gaps or loose panels
• Replaces worn, stripped or missing screws to restore proper fit
• Appropriate for common interior and exterior appliance mounting points

• Use the correct screwdriver (typically Phillips) and avoid over-tightening to prevent strip or damage
• Disconnect power and follow appliance manufacturer safety instructions when accessing internal parts
