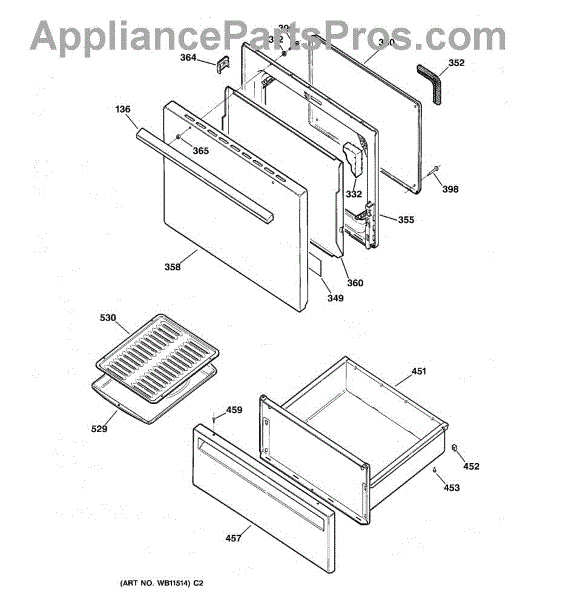

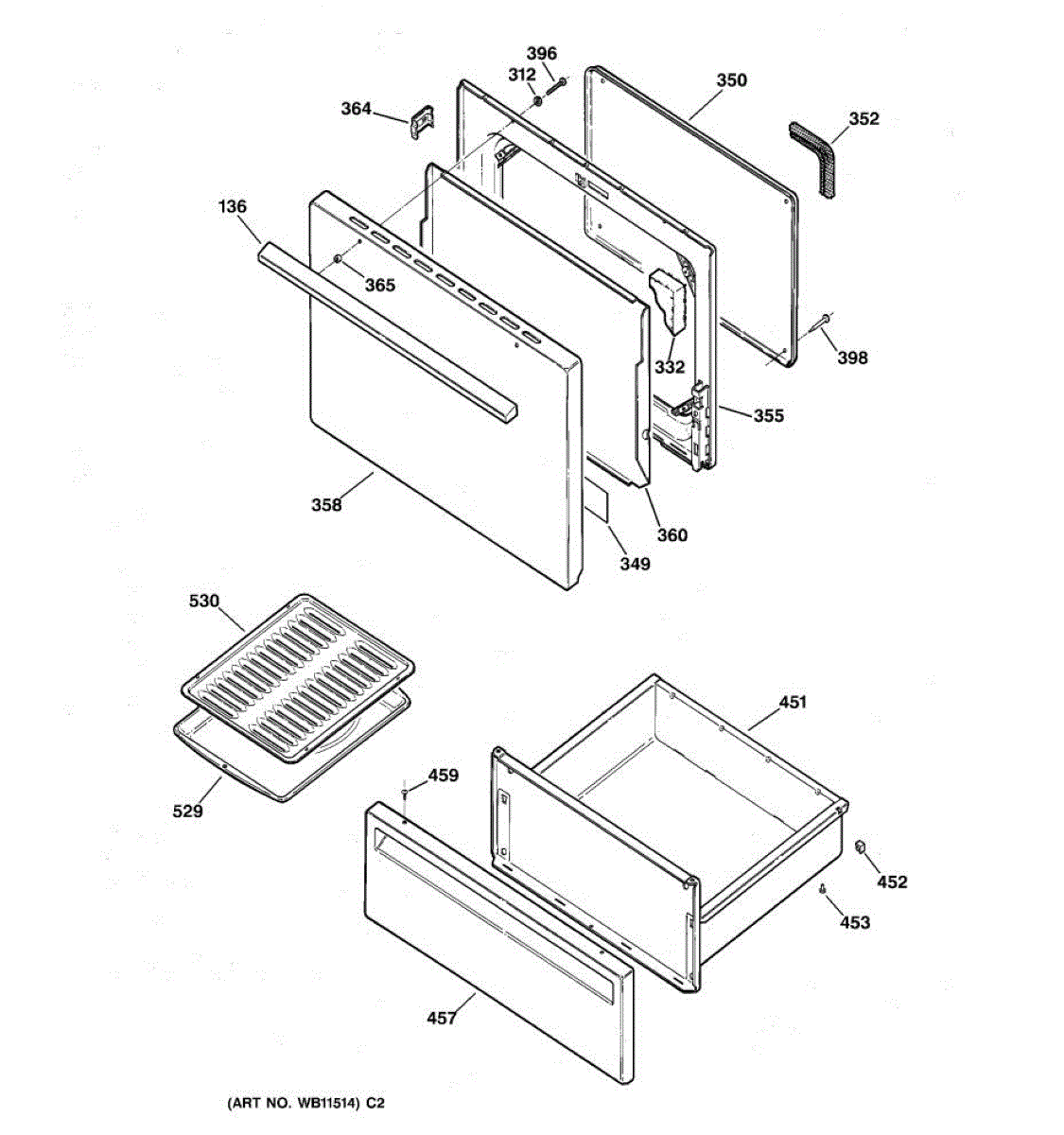

Parts for Ge JBP22V1: 03 - Door & Drawer Parts

This replacement range handle restores a secure, easy-to-grip handle for ranges that use part WB15X10225. It returns normal door operation and improves safety and usability for ovens with a damaged or missing handle. What it does:

• Replaces a cracked, broken or loose range/oven door handle.
• Provides a stable gripping surface for opening and closing the oven door.
• Stops handle wobble and prevents accidental detachment during use.
• Matches the factory-style fit and function for straightforward replacement.

• Disconnect power to the appliance before beginning any repair.
• Follow the range/oven manufacturer's door-removal and reassembly instructions when required.
• Basic hand tools are typically required; handle screws fasten securely to the door.

Includes 12 washers.

The Oven Door Gasket is an OEM replacement part for GE ranges and wall ovens. It provides a secure seal around the oven door to contain heat within the cooking cavity. The gasket is essential for efficient operation as it helps maintain optimal cooking temperatures.

Causes of a bad door gasket can include heat damage over time, warping from repeated door openings and closings, or accidental tears and ruptures.

Symptoms of a bad oven door gasket include:

• Excessive heat loss around the door area
• Inconsistent or inefficient cooking performance
• The door not sealing properly, allowing heat to escape
• Rust or corrosion on interior door parts

This OEM GE part is compatible with GE, Hotpoint, Monogram, and certain Kenmore wall oven models.

This replacement screw is a simple fastener used to secure panels, trim, and internal components on GE appliances, restoring proper fit and preventing loose parts. It's a direct-replacement hardware piece for common mounting and assembly points. What it does

• Secures panels, brackets, and trim to prevent rattling or gaps
• Replaces missing, stripped, or corroded fasteners that compromise fit
• Helps maintain proper alignment of controls and components
• Keeps internal parts fixed for safe, reliable operation

• Screw as shown

• Unplug or disconnect power to the appliance before starting repairs
• Use the correct screwdriver or bit to avoid stripping the head
• Install with moderate torque; do not overtighten to prevent thread or component damage
• If threads are damaged or the mating hole is stripped, replace the mating hardware or repair the thread before reuse

The Broiler Pan Kit is an OEM part for GE ranges. It serves as a secure platform for positioning meats, vegetables, and various foods directly beneath the broiler element, ensuring safe and efficient cooking. The pan is about 17 inches wide by 13 inches deep.

Over time, wear and tear can affect broiler pans, causing issues such as flaking or stripping of the non-stick coating and the development of small ridges or holes that permit grease to drip down.

Symptoms of bad broiler pans include:

• Grease fires caused by dripping grease contacting the heating element
• A burnt or smoky flavor transferring to foods
• Difficulty removing baked-on grease and food deposits
• Pans that are misshapen or developing small cracks

This OEM GE replacement part is also compatible with select Hotpoint, RCA, and some Kenmore ranges

The Broiler Pan Kit is an OEM part for GE ranges. It serves as a secure platform for positioning meats, vegetables, and various foods directly beneath the broiler element, ensuring safe and efficient cooking. The pan is about 17 inches wide by 13 inches deep.

Over time, wear and tear can affect broiler pans, causing issues such as flaking or stripping of the non-stick coating and the development of small ridges or holes that permit grease to drip down.

Symptoms of bad broiler pans include:

• Grease fires caused by dripping grease contacting the heating element
• A burnt or smoky flavor transferring to foods
• Difficulty removing baked-on grease and food deposits
• Pans that are misshapen or developing small cracks

This OEM GE replacement part is also compatible with select Hotpoint, RCA, and some Kenmore ranges
