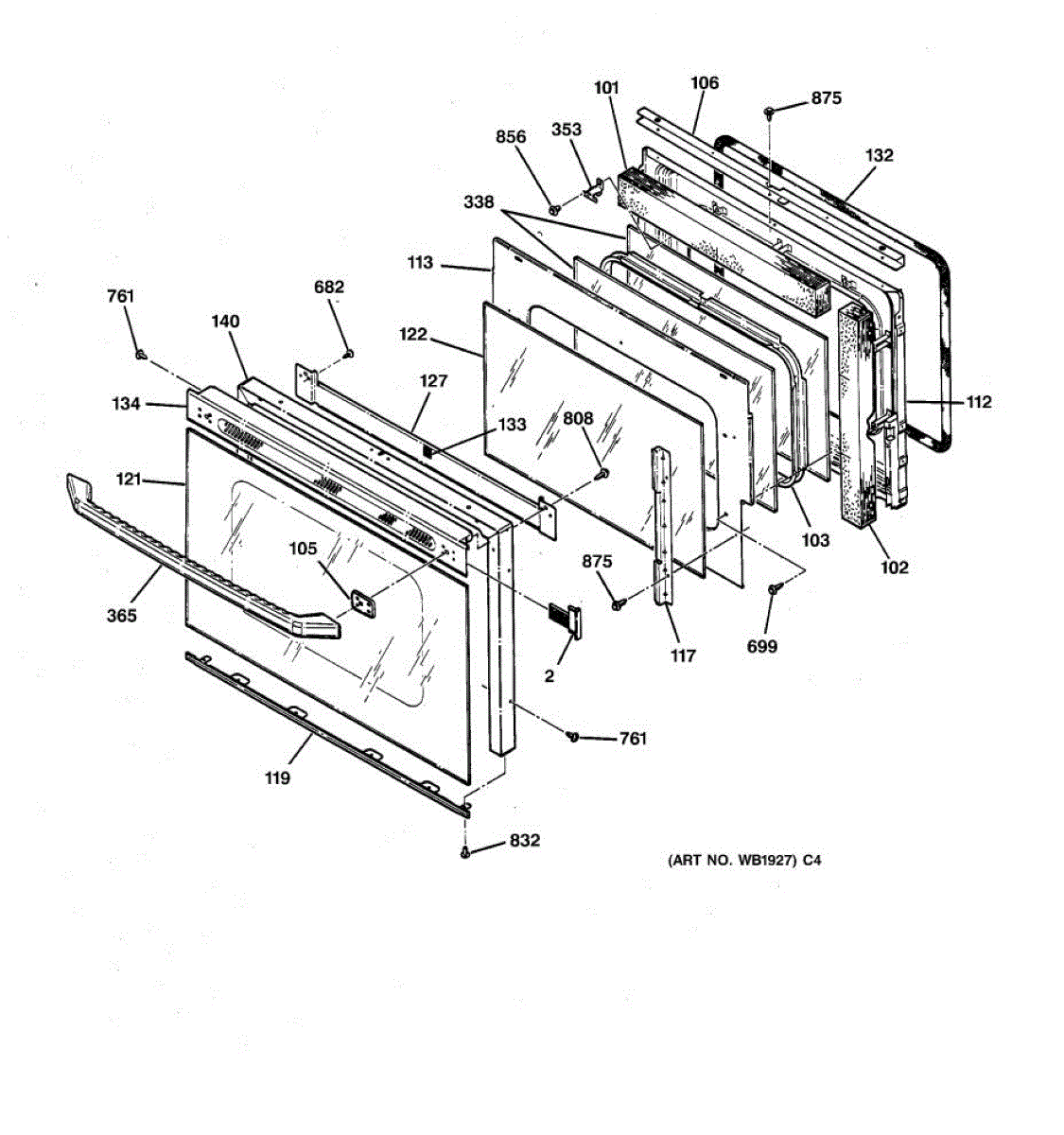

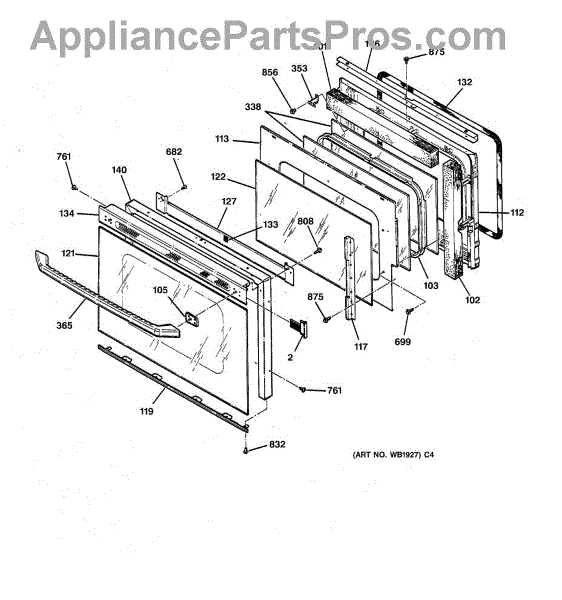

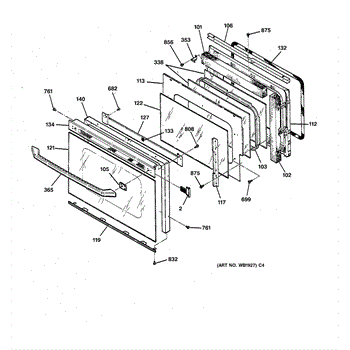

Parts for Ge JCTP16GV3BB: 03 - Door Parts

Door retainer kit secures the oven door glass panels in place. Replace if retainers are cracked, broken, or missing to restore proper door assembly.

This metal structure forms the outer border of the oven door, providing mounting points for the glass panels and handle. Located on the front of the oven door, replace it if the door won't close properly, glass is loose, or the frame is warped or cracked.

Inner oven door glass installs inside the door cavity behind the outer panel. Replace if shattered, cracked, or broken to restore viewing window function.

Felt pad cushions and protects oven components from vibration and heat damage. Replace if worn, compressed, or damaged to prevent noise and part wear.

This metal structure forms the outer border of the oven door, providing mounting points for the glass panels and handle. Located on the front of the oven door, replace it if the door won't close properly, glass is loose, or the frame is warped or cracked.

Oven door glass window pack for viewing food while cooking. Replaces cracked, shattered, or broken glass. Installs inside the oven door frame assembly.

Secures your oven door glass and trim for proper alignment and quiet operation. Replace when clips are cracked, broken, or missing. Verify fit with your model.

Mounting screw secures panels, trim, and brackets inside your oven. Replace if lost, stripped, or damaged during service to keep components aligned.

ST10-16 X 7/16"

Replacement screw for securing oven components, panels, and brackets. Restores tight mounting when original screws are missing, stripped, or lost.

Replacement mounting screw secures panels, brackets, and trim on ranges and cooktops. Install to replace missing, stripped, or rusted fasteners.

Replacement mounting screw for securing panels, brackets, and components inside your range or oven. Restores proper fit when original is missing or stripped.

Mounting screw for gas ranges and ovens. Secures panels, components, or brackets during installation. Replace if missing, stripped, or damaged.

Nickel

Secures the igniter to the burner assembly in gas ranges and ovens. Replace if stripped, missing, or damaged during igniter replacement or repair.

Black. 8-18 AB HXW 3/8
