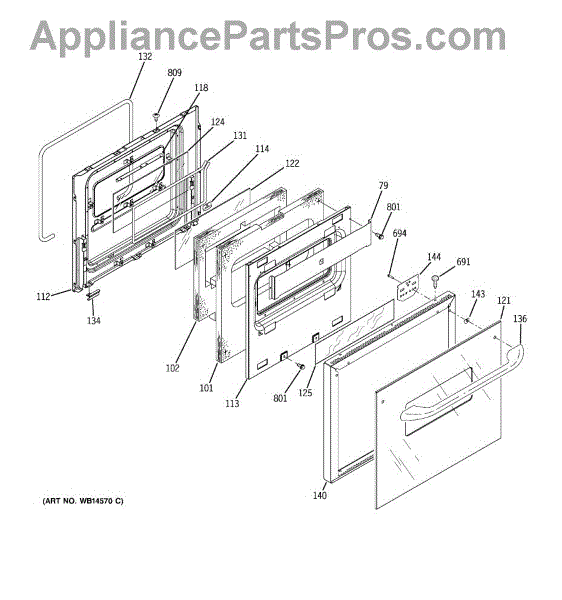

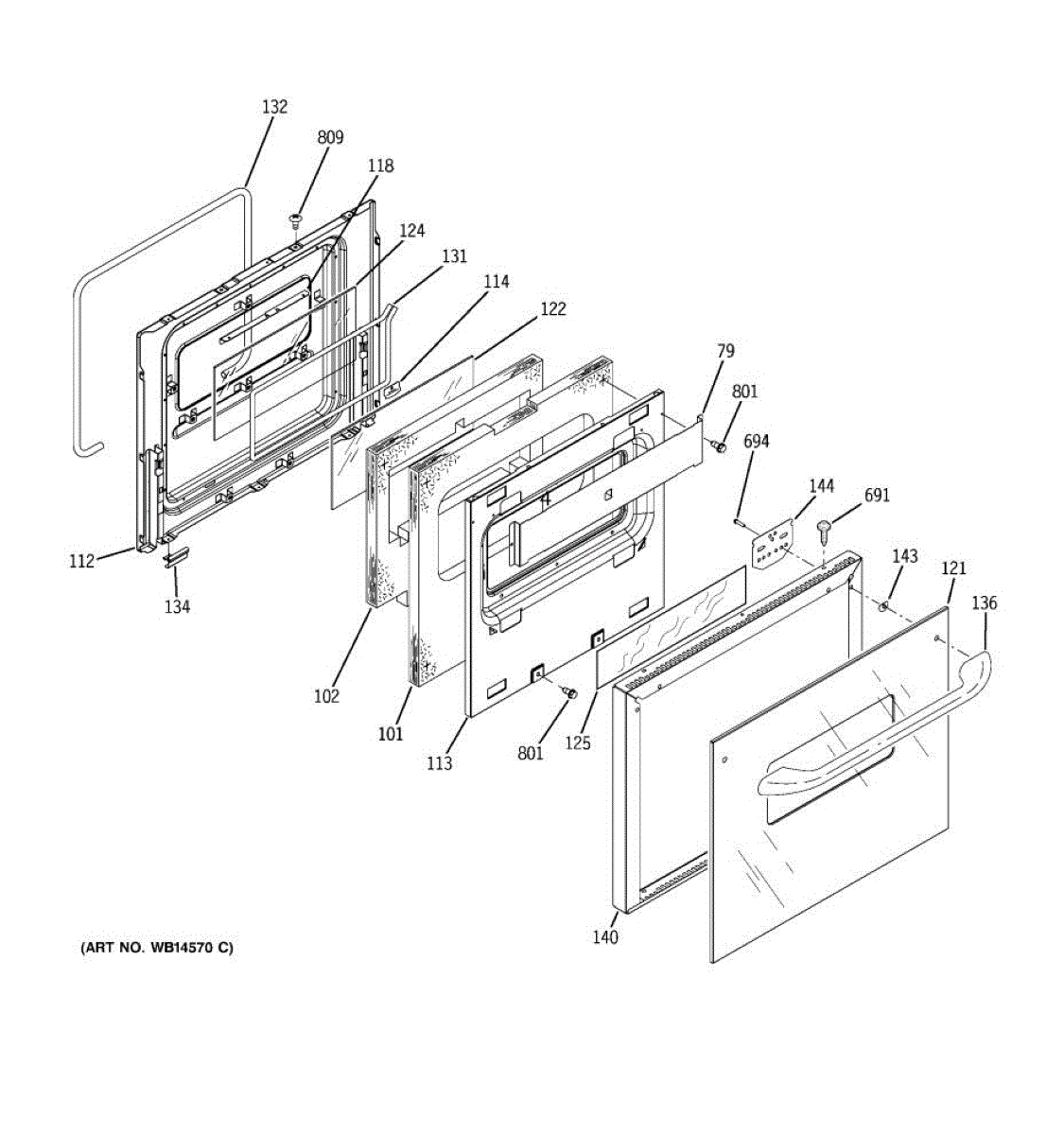

Parts for Ge JGRP20SEN1SS: 04 - Door Parts

This oven cavity insulation helps contain heat inside the oven so cooking stays consistent and nearby cabinetry stays cooler. It replaces worn or damaged insulation that can allow heat loss and disrupt oven performance. What it does:

• Provides thermal barrier around the oven cavity to help maintain set temperatures
• Reduces heat transfer to surrounding panels and control areas
• Helps prevent hot spots and improves overall cooking consistency
• Limits heat leakage that can cause exterior surfaces to feel hot

• Disconnect power (unplug or shut off breaker) and allow the appliance to fully cool before starting.
• Wear gloves and eye protection; insulation can be fibrous and irritate skin.
• Avoid compressing or bunching the insulation when positioning; fit it to the cavity per original placement.
• Follow manufacturer service instructions; replace any fasteners or clips if they are damaged.

This door insulator is a replacement foam insert that fits inside the refrigerator/freezer door to help maintain temperature and reduce air exchange. Installs behind the door panel to restore proper insulation and help prevent condensation. What it does:

• Replaces worn or damaged door cavity insulation to improve thermal performance
• Helps reduce warm-air infiltration when the door is opened or the seal is compromised
• Can reduce or prevent interior condensation and frost buildup on the door
• Restores the original insulation layer that supports the door panel and components

• Designed to install behind the door outer panel; some disassembly of the door may be required
• Handle panels and clips carefully to avoid damage; keep fasteners organized for reassembly
• Disconnect power to the appliance before performing repairs that expose wiring or lights

This inner oven door glass seal cushions and seals the inner glass pane inside the door, helping contain heat and keep the glass stable and quiet. Replace a cracked or flattened seal to maintain safe, consistent oven performance.

• Seats and cushions the inner door glass panel
• Seals the perimeter of the pane to limit heat and air leaks
• Helps prevent debris and moisture between glass layers
• Can reduce rattling or shifting of the inner glass
• When worn, contribute to longer preheat times or temperature inconsistency

• Disconnect power; for gas ranges, also shut off the gas supply. Allow the oven to cool completely.
• Remove the door and separate the inner panel per your service instructions.
• Note the seal's routing and orientation; install the new seal without stretching or twisting.
• Wear cut-resistant gloves and handle glass carefully during reassembly.

This oven door gasket seals the gap between the door and oven frame to keep heat in and temperatures accurate. Replacing a worn door seal restores proper preheat and baking performance and reduces heat escaping around the door.

• Forms a continuous perimeter seal around the oven door opening
• Helps maintain set temperature and proper preheating
• Reduces heat, odors, and smoke leaking from the door edges
• Common signs of failure: frayed or flattened gasket, visible gaps, heat escaping, longer cook times or uneven results

• Safety first: Disconnect power or gas and let the oven cool completely
• Open or remove the door per your model's instructions for access
• Remove the old gasket and clean the channel or mounting points
• Install the new gasket evenly without stretching; confirm the door closes and seals uniformly

This spacer is a small mounting shim used to position and support components inside the appliance for correct alignment and stable operation. It helps maintain part clearance and keeps assemblies seated where intended. What it does:

• Provides spacing between panels or components to ensure proper alignment
• Helps prevent rubbing, binding, or misalignment of moving parts
• Can reduce vibration or noise caused by improperly seated parts
• Useful when replacing or reinstalling components that require precise clearance

• Disconnect power before accessing internal components
• Use basic hand tools; keep track of fasteners and original part locations
• Replace only with the same spacer size and orientation for correct fit

This reinforcement plate restores structural support where the oven/range door or trim attaches, helping stop sagging and keeping panels aligned for proper sealing and appearance. What it does:

• Reinforces the mounting area so door or trim stays securely attached
• Restores alignment to reduce gaps, drafts, or uneven door closing
• Prevents further wear at stressed screw holes and mounting points
• Stops rattling or vibration caused by loose or damaged support

• Disconnect power before servicing and allow appliance to cool completely
• Remove appropriate access panels or door per the manufacturer instructions
• Handle edges carefully; fasten with original hardware and torque to OEM specs
• If mounting holes or surrounding parts are damaged, inspect and replace any worn hardware

This is a replacement trim screw used to secure exterior trim pieces and panels on compatible appliances. It restores proper fit and prevents loose or rattling trim for a finished appearance. What it does:

• Secures appliance trim, bezels, and small panels to the cabinet or frame
• Stops trim from shifting, vibrating, or falling loose during operation
• Matches the original size and finish for a discreet, finished look
• Used where a 10-16 thread size and 3/4" length are specified

• Use the correct screwdriver or bit to avoid stripping the head
• Do not overtighten; snug until trim is secure to prevent thread damage
• For appliances with electrical or gas connections, disconnect power or gas supply before servicing
• If screws are corroded or stripped, replace matching mating hardware as needed

This is a replacement black screw used to secure interior or exterior appliance components. It provides a discrete, color-matched fastener to restore proper fit and stop rattles or loose panels. What it does

• Fastens trim, panels, brackets or control components where a small black screw is required
• Restores secure mounting to eliminate vibration, rattling or misaligned parts
• Matches finished appliance surfaces for a clean, unobtrusive look
• Simple hardware replacement for small fastener loss or damage

• One black screw

• Disconnect power to the appliance before servicing to avoid shock or injury
• Use the correct screwdriver to seat the screw; avoid overtightening to prevent stripping or cracking surrounding material
• Keep track of small fasteners during disassembly and handle with care
• Replace with the exact part number if the original screw is damaged or the thread/length differs

A single replacement screw used to secure appliance components and restore proper fit. This OEM-design fastener replaces a missing or damaged screw so panels, brackets, or small assemblies stay properly attached. What it does

• Fastens panels, brackets, or small assemblies to maintain component alignment and stability.
• Replaces stripped, corroded, or lost screws that cause rattling or loose parts.
• Restores secure connections that can prevent vibration noise or component movement.

• One screw.

• Disconnect power and unplug the appliance before starting any work.
• Match screw head type and length to the original before installation; use the correct driver to avoid stripping.
• Tighten snugly but avoid over-torquing, which can damage threads or parts.

ST10-16 X 7/16"

Replacement fastener used to secure appliance components. If a screw is missing or damaged, panels and brackets can loosen or rattle. Installing a new screw restores a tight fit and helps keep parts properly aligned.

• Fastens panels, brackets, or internal components as designed for the model
• Replaces missing, stripped, or corroded hardware
• Helps reduce vibration/rattling and restores proper fit
• Maintains alignment and a secure assembly after service

• Disconnect power; shut off gas if applicable before servicing
• Support components while removing/installing fasteners
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Replace all required screws in a location for even clamping and proper fit
