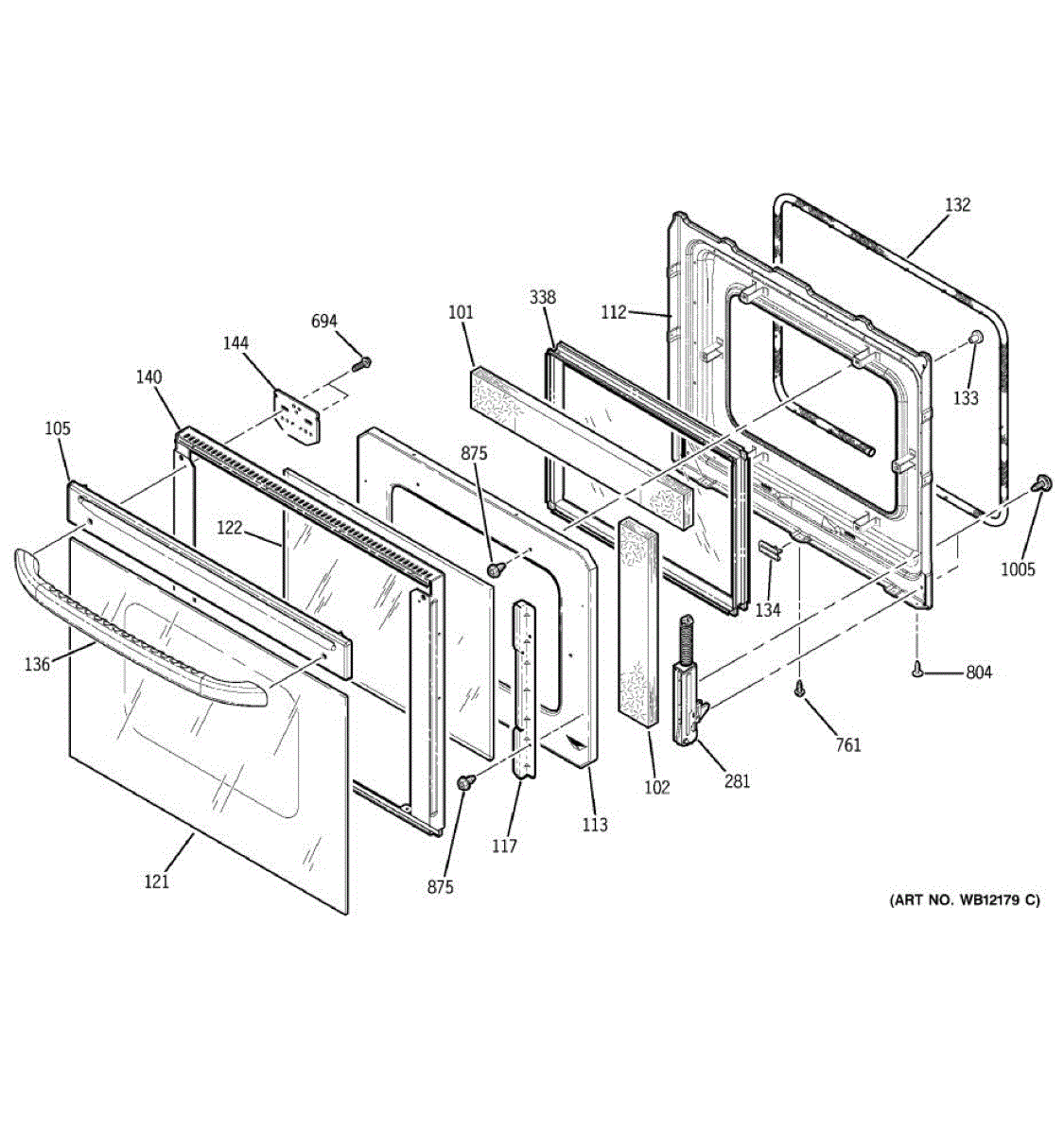

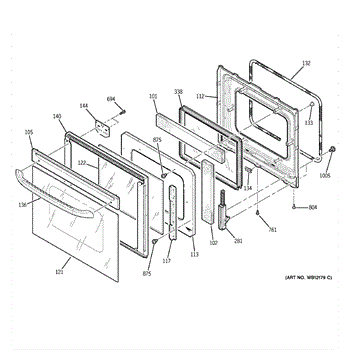

Parts for Ge JKP15CD1CC: 03 - Door Parts

This top oven door insulation replaces the upper thermal liner inside the oven door to help retain heat and improve oven temperature stability for more even cooking. It restores proper door insulation where the original is missing or damaged. What it does:

• Replaces the top section of the oven door insulation to reduce heat loss through the door
• Helps maintain oven temperature for more consistent baking and roasting
• Reduces exterior door heat and minimizes risk of hot spots on the door surface
• Addresses symptoms like excessive oven heat loss, longer preheat times, or a noticeably thin/damaged door interior

• One top oven door insulation piece

• Disconnect power to the appliance and allow the oven and door to cool completely before starting
• Install requires removing the oven door and some fasteners—handle glass and clips carefully to avoid damage
• Wear gloves to protect from sharp edges and insulation fibers
• Verify proper fit and seal after installation

This bottom insulation retainer secures oven/refrigerator insulation in place so the appliance maintains proper thermal protection and reduces heat transfer to surrounding components. It helps keep insulation positioned for reliable operation. What it does:

• Holds lower insulation panels or pads securely against the cabinet or liner
• Prevents insulation sagging or displacement that can cause noise or reduced thermal efficiency
• Helps maintain proper clearances to protect wiring and components from heat exposure
• Commonly replaced when the retainer is cracked, broken, or missing

• Service with the appliance powered off and disconnected from its power source
• Inspect surrounding insulation for damage; replace as needed to restore full protection
• Typically installs with clips or screws—retain existing fasteners unless replacement hardware is specified

This gasket seals the upper oven door to the front frame to keep heat inside the cavity for stable baking and safer, more efficient operation. Replace a worn seal to stop heat leaks and improve temperature consistency.

• Provides a heat-resistant seal around the upper oven door perimeter
• Helps the oven preheat faster and hold the set temperature
• Reduces heat and steam escaping at the door edges
• Common signs of wear: fraying or tears, flattened/hardened sections, visible gaps, longer preheat or uneven baking

• Disconnect power and allow the oven to cool completely before starting.
• Open the door and carefully pull the old gasket from the retainers around the frame.
• Press the new gasket evenly into the retainers without stretching; align corners and ensure the ends meet cleanly.
• Close the door to confirm uniform contact around the seal before heating.

This rubber door bumper cushions and stabilizes the appliance door, reducing noise and preventing metal-to-metal contact for smoother closing and improved door alignment. It restores proper fit where worn or missing bumpers cause rattling or uneven shut. What it does:

• Cushions the door to absorb impact and reduce slamming or rattling
• Helps keep the door flush and aligned for a better seal
• Prevents chipping or wear where the door contacts the frame
• Commonly replaced when bumpers are missing, cracked, or flattened

• One door bumper

• Disconnect power to the appliance before beginning any work
• Usually pushes into a hole or snaps into a retainer; simple hand tools may be sufficient
• If access is limited you may need to open or remove the door — your model's service instructions
• Replace with identical style/location bumpers to maintain proper alignment

This reinforcement plate restores structural support where the oven/range door or trim attaches, helping stop sagging and keeping panels aligned for proper sealing and appearance. What it does:

• Reinforces the mounting area so door or trim stays securely attached
• Restores alignment to reduce gaps, drafts, or uneven door closing
• Prevents further wear at stressed screw holes and mounting points
• Stops rattling or vibration caused by loose or damaged support

• Disconnect power before servicing and allow appliance to cool completely
• Remove appropriate access panels or door per the manufacturer instructions
• Handle edges carefully; fasten with original hardware and torque to OEM specs
• If mounting holes or surrounding parts are damaged, inspect and replace any worn hardware

The Window Pack Assembly is an OEM part for GE ranges. This part allows you to monitor your food while it cooks without opening the door and letting heat escape. The assembly ensures clear visibility and helps maintain the oven's internal temperature for consistent cooking results.

Causes of a bad window pack can include accidental impacts, thermal stress from repeated heating and cooling cycles, or manufacturing defects.

Symptoms of a bad window pack assembly include:

• Cracks or breaks in the glass
• Fogging or condensation between the glass layers
• Difficulty in seeing through the window
• Heat escaping from the door area

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This factory screw secures components within your appliance, keeping panels, brackets, and other parts tight and aligned. Replacing a missing or stripped screw helps eliminate rattles and restores a solid, properly mounted assembly.

• Fastens appliance components to frames, brackets, or cooktop/oven structures
• Replaces missing, rusted, or stripped hardware
• Helps address loose or rattling panels and misaligned trim
• Restores a secure fit after service or cleaning

• Disconnect power; if gas, shut off the gas supply. Allow the appliance to cool completely
• Match the screw to its original location and length for proper fit
• Use the correct driver; start threads by hand to avoid cross-threading
• Tighten snugly without overtightening to prevent stripping metal or plastic

This replacement screw secures appliance components so panels, brackets, and trim stay tight and aligned. Use it to replace a missing, stripped, or rusted fastener and restore a solid, rattle-free fit in the affected assembly.

• Fastens parts to the chassis/frame or mounting brackets
• Replaces lost, damaged, or corroded hardware
• Can help address loose or vibrating panels and minor misalignment
• Maintains a secure attachment during normal operation

• Disconnect power before servicing; for gas appliances, also shut off the gas supply
• Match the screw to the original location and reuse any clips or washers if present
• Start threading by hand to avoid cross-threading; tighten snugly without overtightening
• Repair/replace damaged receiving threads or clip for proper hold

This replacement screw secures appliance panels and components to restore proper fit and prevent rattling or movement. Use it to replace a missing or stripped fastener for a snug, durable connection. What it does:

• Secures trim, panels, brackets, or internal components in place
• Restores proper alignment and reduces vibration or noise
• Replaces missing, worn, or damaged screws that cause loose parts
• Compatible with the original mounting point and fastening method

• Turn off power and unplug the appliance before starting any repair
• Use the correct driver to avoid stripping the head; match thread engagement fully
• If threads are damaged, inspect the mating part and replace or repair as needed

Black. 8-18 AB HXW 3/8

This 10-32 machine screw secures brackets, panels, and other hardware in cooking appliances. Replacing a missing or stripped screw restores a snug, rattle-free fit and keeps components aligned and safely fastened. What it does:

• Fastens panels, brackets, and components using a 10-32 machine thread
• Replaces hardware that is missing, rusted, or stripped
• Helps address loose or rattling parts and minor panel misalignment
• Maintains secure mounting after service or part replacement

• One 10-32 machine screw

• Disconnect power; for gas appliances, also shut off gas before service
• Support the panel or bracket while removing/installing hardware
• Start threads by hand to avoid cross-threading; do not overtighten
• Replace them one at a time to keep alignment
