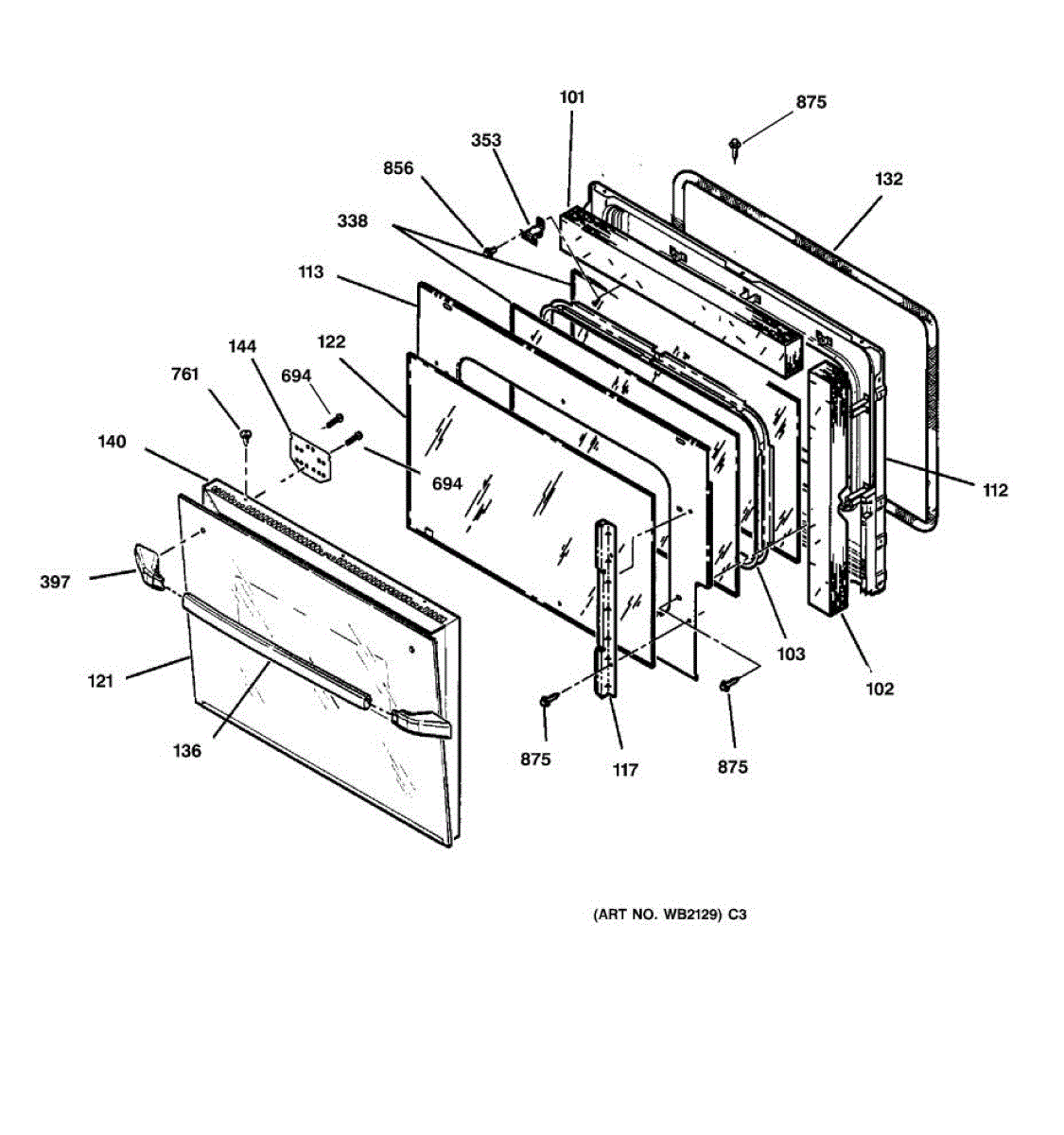

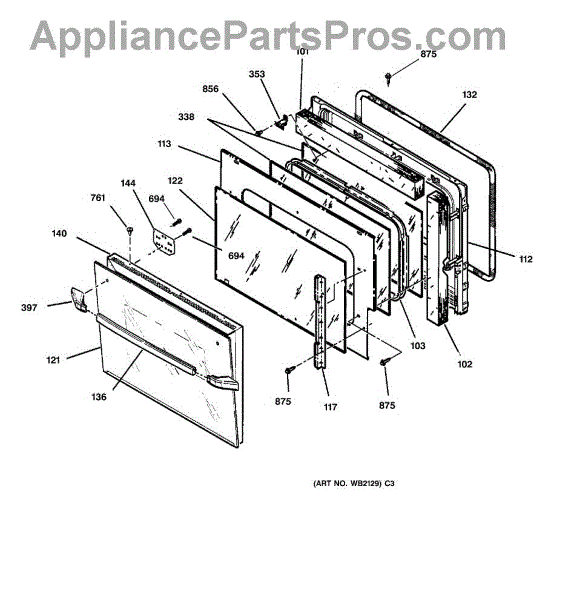

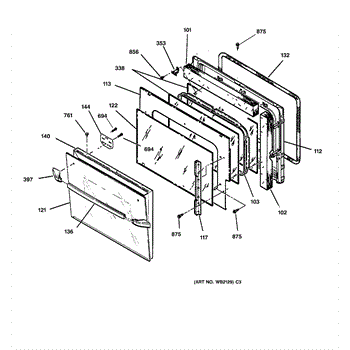

Parts for Ge JMP28BA2AD: 03 - Door Parts

This oven door lining is the inner metal panel that helps protect the door insulation and interior cavity while maintaining proper heat containment and a finished appearance. It restores a secure, clean inner door surface for safe oven use. What it does:

• Forms the inner surface of the oven door, covering insulation and internal components
• Helps retain heat inside the oven cavity for efficient cooking
• Prevents direct contact with insulation and internal door hardware
• Commonly replaced when the lining is dented, cracked, rusted, or warped

• Replacement may require removing the oven door and separating door panels; follow OEM disassembly steps
• Handle edges with care — metal edges can be sharp
• Disconnect power to the appliance before servicing to avoid risk of shock

This oven door gasket forms a heat-resistant seal between the door and the oven frame. It keeps heat inside the cavity to help the oven reach and maintain set temperatures while limiting steam and odor escape.

• Seals the perimeter of the oven door opening to minimize heat loss and drafts
• Supports accurate temperature regulation and more even baking results
• Helps reduce heat transfer to surrounding surfaces and trim
• Common signs of wear: visible tears or flattening, heat leaking at the door, longer preheat, or temperature fluctuations

• Disconnect electrical power; shut off gas supply
• Pull the old gasket straight out of the door's mounting holes, noting corner orientation
• Press the new gasket's end tabs fully into the holes and seat evenly around the frame—do not stretch
• Close the door and check for uniform contact all around

The Oven Door Handle is an OEM replacement part for GE electric ranges. As the primary grip point, the oven door handle allows for safe opening and closing of the oven door.

Causes can be normal fatigue of plastic or metal following extensive heat cycles. Impacts and stresses from loading/unloading also intensify wear and tear.

Symptoms of a bad handle include:

• Loose, shaky or unstable gripping during opening/closing
• Parts cracking, breaking or falling off from wear over time
• Difficulty accessing oven interior or positioning latch mechanisms

This GE OEM replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This reinforcement plate restores structural support where the oven/range door or trim attaches, helping stop sagging and keeping panels aligned for proper sealing and appearance. What it does:

• Reinforces the mounting area so door or trim stays securely attached
• Restores alignment to reduce gaps, drafts, or uneven door closing
• Prevents further wear at stressed screw holes and mounting points
• Stops rattling or vibration caused by loose or damaged support

• Disconnect power before servicing and allow appliance to cool completely
• Remove appropriate access panels or door per the manufacturer instructions
• Handle edges carefully; fasten with original hardware and torque to OEM specs
• If mounting holes or surrounding parts are damaged, inspect and replace any worn hardware

This window clip is a small plastic retainer that secures an appliance door or inner window panel, helping keep glass and trim aligned for a tight seal and quiet operation. Replaces a worn or broken clip to restore proper fit. What it does:

• Holds the door/window trim or inner glass panel in place to prevent movement and rattling
• Helps maintain door alignment for an even seal and consistent temperature control
• Stops loose trim from vibrating or contacting other parts, reducing noise
• Commonly replaced when clips are cracked, broken, or missing

• Disconnect power to the appliance before starting any repair
• Handle any glass or trim carefully to avoid breakage and injury
• Typical installation uses basic hand tools (screwdriver/pry tool) to remove trim and snap the clip into place

Color: Black
Each package includes one end cap. For the white version, order part number WB7K5319.

The Handle End Cap is an OEM part for GE ranges. This part plays a role in capping the ends of the range handle, allowing a seamless and aesthetically pleasing finish while also preventing injuries by covering potentially sharp edges.

Causes of a bad handle end cap include physical impact, frequent cleaning that leads to wear, or degradation due to exposure to kitchen grease and heat.

Symptoms of a bad hand end cap:

• A loose or incomplete look of the range handle, affecting the overall design and functionality.
• Exposed sharp edges that could pose a safety risk to users.
• An unsecured handle, which may affect the ease of opening and closing the oven door.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This hex washer head screw secures appliance panels and brackets. The 10-16 x 0.812 size replaces missing or stripped hardware so components stay properly fastened, helping prevent looseness, rattling, and misalignment.

• Fastens metal panels, brackets, and components in compatible appliances
• Replaces a lost, damaged, or corroded screw to restore proper attachment
• Helps reduce vibration, noise, or loose-fitting parts caused by missing hardware
• Correct 10-16 thread and 0.812-inch length for specified mounting points

• Disconnect power; for gas models, also shut off the gas supply.
• Note the original screw's location and orientation before removal.
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing.
• Use a nut driver or socket that fits the hex head.

This factory screw secures components within your appliance, keeping panels, brackets, and other parts tight and aligned. Replacing a missing or stripped screw helps eliminate rattles and restores a solid, properly mounted assembly.

• Fastens appliance components to frames, brackets, or cooktop/oven structures
• Replaces missing, rusted, or stripped hardware
• Helps address loose or rattling panels and misaligned trim
• Restores a secure fit after service or cleaning

• Disconnect power; if gas, shut off the gas supply. Allow the appliance to cool completely
• Match the screw to its original location and length for proper fit
• Use the correct driver; start threads by hand to avoid cross-threading
• Tighten snugly without overtightening to prevent stripping metal or plastic

The Igniter Mounting Screw is an OEM replacement part for GE ovens and ranges. This screw secures the igniter to the burner assembly, ensuring it remains firmly in place for consistent and reliable ignition. Its precise fit and durable design help maintain the stability and functionality of the igniter.

Over time, mounting screws can become corroded, stripped, or lost during repairs or maintenance. A missing or damaged screw may result in a loose igniter, affecting the appliance's ability to ignite properly.

Symptoms of a bad or missing igniter mounting screw include:

• The igniter becoming loose or misaligned

• Difficulty securing the igniter during installation or repair
• The burner fails to ignite reliably or consistently
• Increased noise or movement of the igniter during operation

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Black. 8-18 AB HXW 3/8
