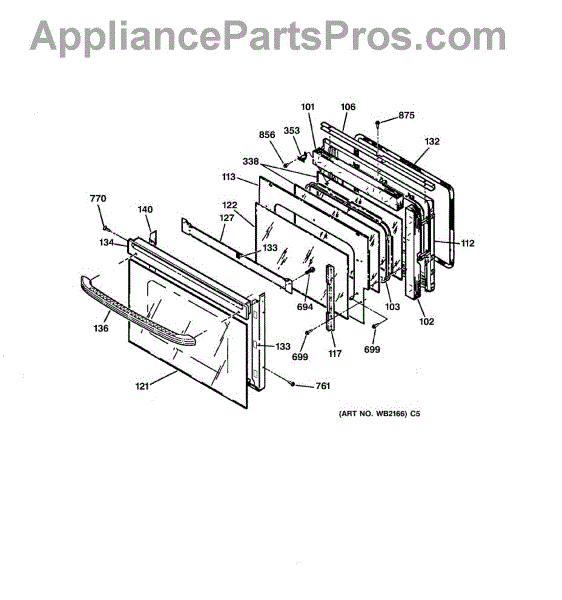

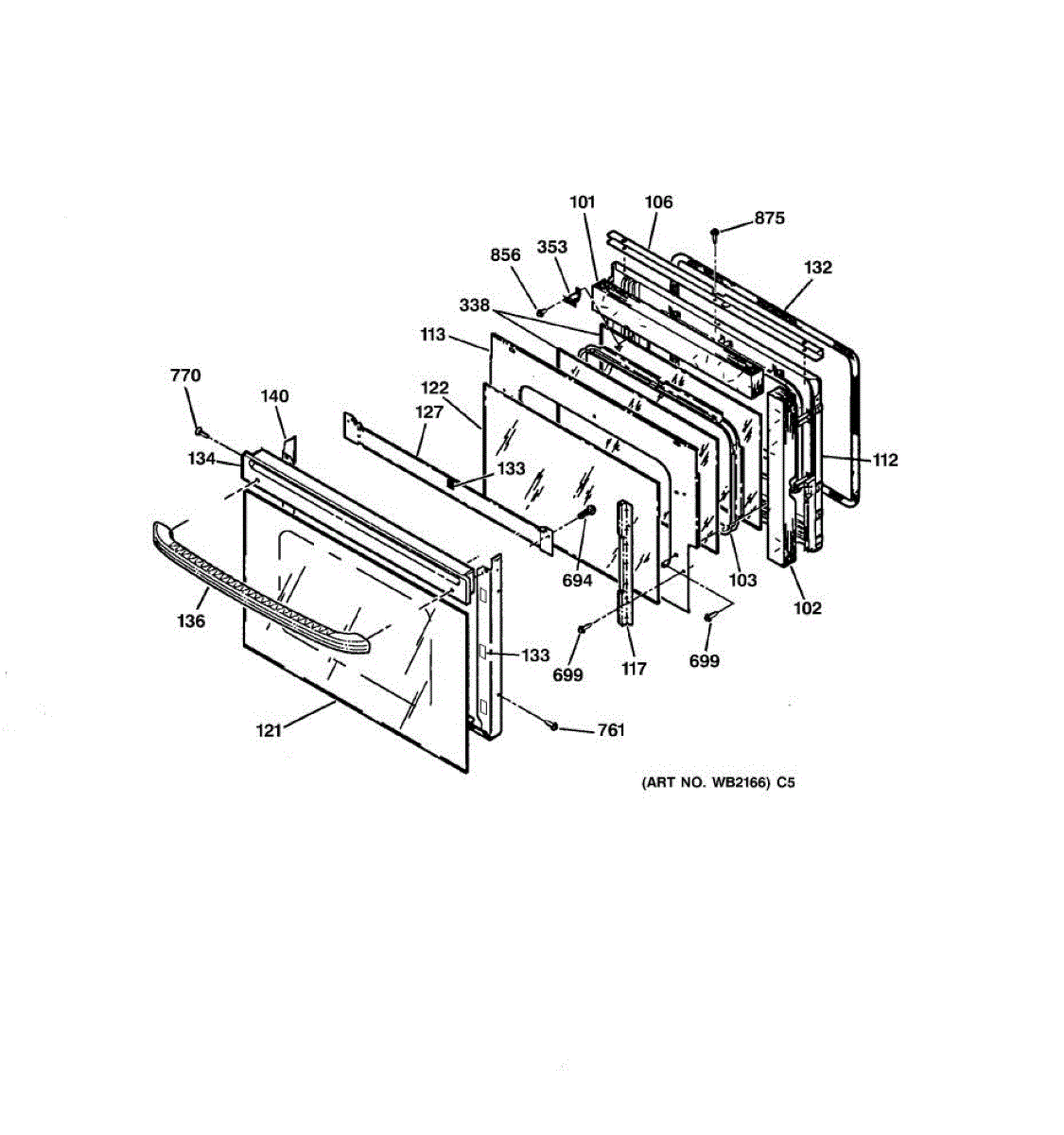

Parts for Ge JTP15WA3WW: 03 - Door Parts

Door trim shield assembly for wall ovens. Covers and protects the door edge area. Replace if cracked, broken, or missing for a complete appearance.

Door retainer kit secures the oven door glass panels in place. Replace if retainers are cracked, broken, or missing to restore proper door assembly.

Inner oven door glass installs inside the door cavity behind the outer panel. Replace if shattered, cracked, or broken to restore viewing window function.

Seals oven door to retain heat and prevent smoke or steam from escaping. Replace when frayed, cracked, or no longer forming a tight seal. Easy install.

Felt pad cushions and protects oven components from vibration and heat damage. Replace if worn, compressed, or damaged to prevent noise and part wear.

Small rubber bumper that cushions contact between oven door and cabinet. Replace if cracked, missing, or worn to reduce noise and protect finishes.

Door pad gasket creates a seal between your oven door and front panel. Replace if worn, cracked, or causing heat loss. Confirm fit with your model number.

White oven door handle that mounts to the front of your oven door. Replace if yours is cracked, broken, discolored, or missing for a complete appearance.

Oven door glass window pack for viewing food while cooking. Replaces cracked, shattered, or broken glass. Installs inside the oven door frame assembly.

Secures your oven door glass and trim for proper alignment and quiet operation. Replace when clips are cracked, broken, or missing. Verify fit with your model.

Hex washer head screw secures oven panels, brackets, and door handles. Replace missing, stripped, or damaged screws to eliminate looseness and rattling.

ST10-16 X 7/16"

White screw secures panels and trim on ovens and ranges. Replace stripped, corroded, or missing fasteners to restore proper fit and stop rattles.

Replacement screw for securing oven components, panels, and brackets. Restores tight mounting when original screws are missing, stripped, or lost.

This is a flat-head screw used to secure panels and components in compatible appliances. It provides a flush finish and reliable fastening for trim, interior panels, and small assemblies. What it does:

• Fastens trim, brackets, and small appliance components with a flat, countersunk head
• Provides a flush surface to prevent snagging and keep panels aligned
• Commonly used where a low-profile finish is needed for aesthetics and clearance

• One screw

• Use the matching Phillips or screwdriver bit; avoid over-tightening to prevent stripping
• Inspect mating threads and replace if damaged; use correct screw length to avoid puncturing internal components
• Disconnect power or follow appliance safety procedures before servicing

Secures the igniter to the burner assembly in gas ranges and ovens. Replace if stripped, missing, or damaged during igniter replacement or repair.

Black. 8-18 AB HXW 3/8
