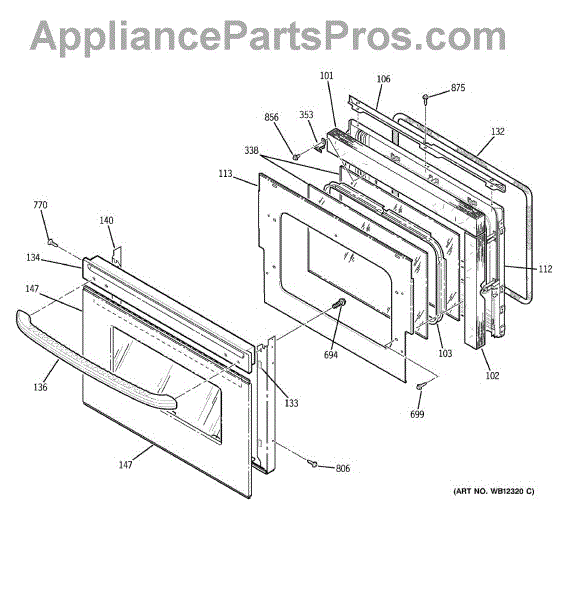

Parts for Ge JTP45SD1SS: 05 - Door Parts

This oven door side insulation sits between the inner and outer door panels to limit heat loss and reduce hot spots along the door edge. Replace when the original is burnt, brittle, or missing to help restore safe thermal performance.

• Provides a thermal barrier along the side of the oven door between panels
• Helps retain oven heat and reduce heat transfer to the outer door surface
• Can help address heat escaping around door edges or a door exterior that feels hotter than normal
• Replace if the insulation is charred, frayed, compressed, or contaminated during service

• Disconnect power at the breaker and allow the oven to cool completely
• Remove the door and disassemble per your model's service instructions; work on a padded surface
• Wear gloves and eye protection; handle insulation carefully and avoid compressing it
• Do not block vents or air passages during reassembly; note orientation for proper fit

Approx. 70" long.

This adhesive-backed foam tape provides cushioning and helps seal small gaps around appliance panels and components to reduce vibration and prevent dirt intrusion. It's a simple maintenance piece that restores proper spacing and fit. What it does:

• Cushions panels and components to reduce rattling and noise
• Helps seal small gaps to limit dust and debris entry
• Protects surfaces from abrasion where parts contact one another
• Adheres to clean, dry surfaces for a secure fit

• Clean and dry the mounting surfaces before applying for best adhesion
• Press firmly along the tape length to ensure full contact
• Trim to fit with scissors or a utility knife; avoid stretching the tape while applying
• Remove old foam gently to avoid damaging surrounding finishes

A small rubber door bumper that cushions the contact point between the appliance door and cabinet to reduce noise, prevent chipping, and help the door close smoothly. Simple replacement restores quiet operation and protects finishes. What it does:

• Cushions the door edge to stop metal-on-metal or door-on-cabinet contact
• Helps the door sit and close more evenly to reduce misalignment symptoms
• Reduces banging, rattling, and scraping noises when the door closes
• Prevents wear and cosmetic damage at the door contact point

• Inspect the door/cabinet contact area to locate the bumper before replacing
• Most installations press the bumper into a hole or recess; use steady, even pressure to seat it
• If the old bumper is glued or fastened, remove residue and check the mounting method in your parts diagram
• Turn off power to the appliance before working near electrical components or wiring

The Window Pack is an OEM replacement part for GE ovens. This assembly includes the glass window for the oven door, allowing users to view the contents of the oven without opening the door and disrupting the cooking process.

The window pack can become damaged due to accidental impact, thermal stress from frequent temperature changes, or general wear and tear over time. A broken or cracked window not only affects visibility but can also pose safety risks and affect oven performance.

Symptoms of a bad window pack include:

• Visible cracks or breaks in the glass
• Heat escaping from the oven
• Difficulty maintaining oven temperature
• The oven door not closing properly

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This window clip is a small plastic retainer that secures an appliance door or inner window panel, helping keep glass and trim aligned for a tight seal and quiet operation. Replaces a worn or broken clip to restore proper fit. What it does:

• Holds the door/window trim or inner glass panel in place to prevent movement and rattling
• Helps maintain door alignment for an even seal and consistent temperature control
• Stops loose trim from vibrating or contacting other parts, reducing noise
• Commonly replaced when clips are cracked, broken, or missing

• Disconnect power to the appliance before starting any repair
• Handle any glass or trim carefully to avoid breakage and injury
• Typical installation uses basic hand tools (screwdriver/pry tool) to remove trim and snap the clip into place

This hex washer head screw secures appliance panels and brackets. The 10-16 x 0.812 size replaces missing or stripped hardware so components stay properly fastened, helping prevent looseness, rattling, and misalignment.

• Fastens metal panels, brackets, and components in compatible appliances
• Replaces a lost, damaged, or corroded screw to restore proper attachment
• Helps reduce vibration, noise, or loose-fitting parts caused by missing hardware
• Correct 10-16 thread and 0.812-inch length for specified mounting points

• Disconnect power; for gas models, also shut off the gas supply.
• Note the original screw's location and orientation before removal.
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing.
• Use a nut driver or socket that fits the hex head.

ST10-16 X 7/16"

The Screw is an OEM part for GE appliances, commonly used in washing machines, dryers, and other household appliances. This screw is designed to secure various components, ensuring they remain properly aligned and fastened during operation. Its precise design and durable construction are tailored to meet the specific requirements of GE appliances.

Over time, screws can become damaged or lost due to regular use, vibration, or during maintenance and repair activities. A missing or damaged screw can lead to loose parts, affecting the overall functionality and safety of the appliance.

Symptoms of a bad or missing screw include:

• Loose or rattling components
• Misalignment of parts
• Noise during operation
• Parts or panels not staying securely in place

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Igniter Mounting Screw is an OEM replacement part for GE ovens and ranges. This screw secures the igniter to the burner assembly, ensuring it remains firmly in place for consistent and reliable ignition. Its precise fit and durable design help maintain the stability and functionality of the igniter.

Over time, mounting screws can become corroded, stripped, or lost during repairs or maintenance. A missing or damaged screw may result in a loose igniter, affecting the appliance's ability to ignite properly.

Symptoms of a bad or missing igniter mounting screw include:

• The igniter becoming loose or misaligned

• Difficulty securing the igniter during installation or repair
• The burner fails to ignite reliably or consistently
• Increased noise or movement of the igniter during operation

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Black. 8-18 AB HXW 3/8
