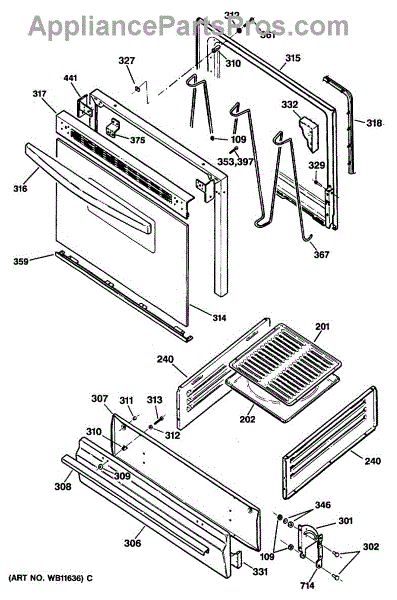

Parts for Ge LGB116GPT1AD: 04 - Section4 Parts

Includes 12 speed nuts.

This broiler pan rack is the slotted grid that rests over the broiler pan, supporting food while drippings drain into the pan during broiling. Replace a worn or missing rack to restore safe, consistent broiling results.

• Supports food above the broiler pan so fat and juices drain away while broiling
• Provides proper spacing to the heat source for searing and even browning
• Replaces a rusted, chipped, warped, or missing broiler grid
• Signs of wear can include flaking finish, bent wires, wobbling food, or uneven broiling

• Allow the oven to cool completely before handling; wear heat-resistant gloves
• Set the rack into the matching broiler pan with the slotted surface facing up; verify a stable fit
• Position the assembled pan and rack as directed in your model's use and care guide

This broiler pin secures the oven's broiler drawer or rack, letting it slide and lock smoothly for even broiling. Replaces a worn or broken pin to restore proper broiler movement and alignment. What it does:

• Acts as the hinge/anchor for the broiler drawer or rack so it opens and closes smoothly
• Prevents the drawer or rack from sagging, binding, or coming loose
• Helps maintain correct broiler alignment for even heat exposure
• Common symptom: drawer or rack won't slide, sits crooked, or falls out

• Disconnect power (and gas if applicable) and allow the appliance to cool before servicing.
• Remove the broiler drawer or rack per the owner's manual to access the pin.
• This part typically installs by sliding or snapping into a bracket; verify fit before final assembly.

Includes 12 washers.

This spacer fits between mating parts in select GE cooking appliances to set correct clearance and alignment. Replacing a worn or missing spacer helps secure the assembly and prevents rubbing or damage to adjacent surfaces during use.

• Maintains proper spacing so hardware tightens squarely and components sit evenly
• Helps prevent metal-to-metal contact that can cause noise, wear, or surface damage
• If missing, broken, or deformed, you may notice looseness, misalignment, rattling, or scraping
• Restores original fit and finish when replaced

• Disconnect power; if applicable, shut off gas. Allow the appliance to cool completely
• Support the part being unfastened (such as a door, handle, or trim) to avoid strain on panels or glass
• Install the spacer in the same location/orientation as the original and reuse existing hardware if serviceable
• Tighten screws evenly; do not overtighten against glass or enameled surfaces

The Bumper is an OEM part for GE ranges. It is located on the sides of the oven drawer and serves as a cushion to prevent noise, vibration, and wear. As time goes on, regular use of the appliance can cause it to become damaged or worn out.

Causes of a bad bumper can include wear and tear from regular use, deterioration of the material over time, or damage from excessive force when closing the door.

Symptoms of a bad Bumper include:

• Excessive noise
• Difficulty in sliding the drawer
• Misalignment
• Wear, and increased friction

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Includes 12 washers.

The Gasket Door Assembly is an OEM replacement part for GE ovens. This gasket provides a seal around the oven door, ensuring that heat is retained inside the oven for efficient cooking and baking. It helps to maintain the correct temperature and prevents heat from escaping, which can affect cooking performance and energy efficiency.

Causes of a bad gasket door assembly can include regular wear and tear, exposure to high temperatures, and physical damage such as cuts or tears. Over time, the gasket can lose its elasticity and sealing capability.

Symptoms of a bad Gasket Door Assembly include:

• Heat escaping from the oven door
• The oven taking longer to preheat or maintain temperature
• Uneven cooking or baking results
• Visible damage or gaps in the gasket

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This speed nut is a clip-on fastener that provides threads for a screw on the appliance. It secures sheet-metal panels, brackets, or trim and helps keep assemblies tight under vibration and repeated use.

• Provides captive threads so a screw can tighten into thin sheet metal
• Helps secure panels, brackets, and trim pieces in place
• Replace if a screw spins without tightening, a panel rattles/feels loose, or the original clip is missing or damaged
• Restores a snug, reliable attachment point without a loose nut

• Disconnect power and, if applicable, shut off gas; allow the appliance to cool before servicing
• Note the clip's orientation; slide it onto the panel edge or stud as designed
• Start the screw by hand to avoid cross-threading; do not overtighten
• Wear cut-resistant gloves when handling sheet-metal parts

Includes 12 screws.

This replacement screw fastens appliance components and panels, restoring a snug, rattle-free fit. Use it to replace a missing or stripped fastener so trim, brackets, and other parts stay properly secured and aligned. What it does:

• Secures panels, brackets, trim, or burner-related parts to the chassis
• Replaces missing, damaged, rusted, or stripped fasteners
• Helps reduce vibration and rattling from loose components
• Restores proper fit and alignment of attached parts

• 1 screw

• Disconnect power; shut off gas before servicing
• Replace one screw at a time to maintain alignment and fit
• Hand-start threads to prevent cross-threading; tighten snugly without overtightening
• Wear cut-resistant gloves and use the correct driver for the head type

The Bottom Door Trim (BLK) is an OEM part for GE ranges. This black trim piece is located at the bottom of the oven door, providing a finished look while also protecting the door's edge from damage and wear.

Causes of a bad bottom door trim can include repeated exposure to high temperatures, accidental impacts, or regular wear and tear from frequent use.

Symptoms of a bad bottom door trim include:

• Visible cracks or breaks in the trim
• The trim becoming loose or detaching from the door
• Sharp edges or warping
• Difficulty in opening or closing the oven door properly

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Size: 10-16 X 0.95 inch.

This insulated wire retainer secures wiring and wiring harnesses inside the appliance to prevent rubbing, chafing, and accidental contact. It helps keep wires routed and protected for safer, more reliable operation. What it does:

• Clips wiring or harness to chassis mounting points to hold wires in place
• Prevents wires from contacting sharp edges or moving parts that can cause wear
• Reduces risk of shorts or intermittent connections caused by chafed insulation
• Keeps wiring neatly routed for easier service and longer component life

• Disconnect power to the appliance before servicing.
• Locate the damaged or missing retainer on the appliance frame or harness mounting tab.
• Route the wire or harness into the retainer and press until the retainer snaps into place; no special tools are typically required.
• Replace any wiring with damaged insulation and secure fit before restoring power.

This drum end cap supports the dryer drum and helps keep it aligned for smooth rotation. Replacing a worn or damaged end cap restores drum positioning to reduce rubbing, noise and uneven wear. What it does:

• Supports and locates the drum at the cabinet end to maintain proper alignment
• Helps the drum rotate smoothly and reduces rubbing or scraping sounds
• Prevents excess wear on the drum edge and adjacent supports
• Common symptom: noisy or wobbling drum that may rub against the cabinet

• One drum end cap

• Disconnect power to the appliance before beginning any repair
• Access typically requires removing the dryer front or cabinet panels; keep track of fasteners
• Inspect adjacent parts (glides, rollers, bearings or seals) and replace if worn
• Test the dryer on a short cycle after reassembly to ensure smooth drum rotation
