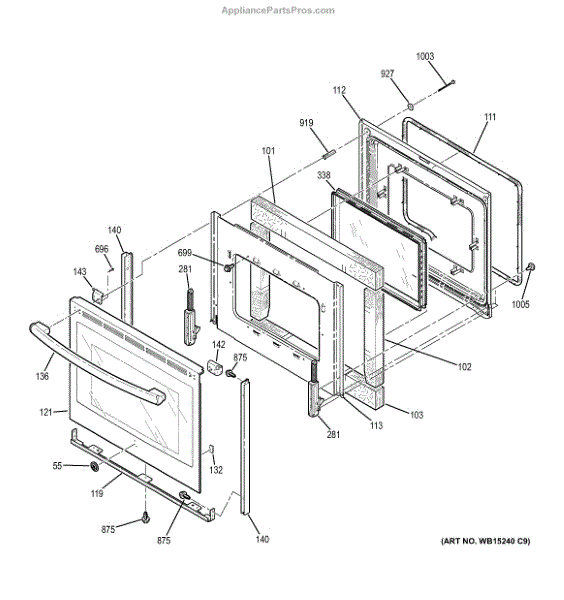

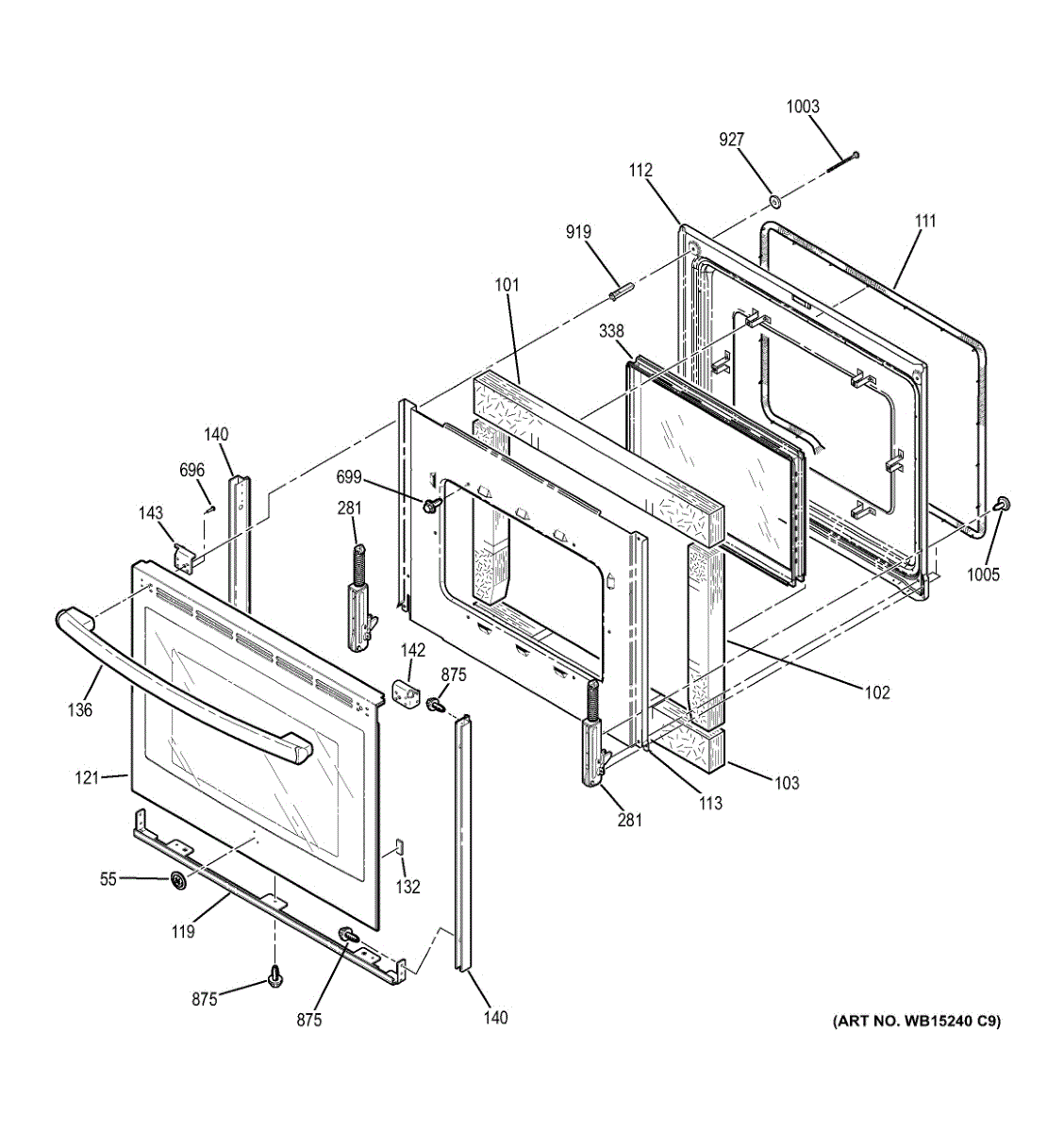

Parts for Ge JB650EF4ES: Door Parts

Replacement badge designed to restore the appliance's exterior appearance and factory look. This decorative emblem replaces a faded, scratched, or missing badge so the control panel or door presents a clean, branded finish. What it does:

• Replaces a worn, cracked, faded, or missing badge to restore original appearance
• Sits on the appliance front where the original emblem was located for accurate visual match
• Helps maintain a factory-fresh look after cosmetic damage or panel repair
• Sold as the individual decorative emblem; intended as a direct-fit cosmetic replacement

• Clean and fully dry the mounting area before installing to ensure proper adhesion and fit
• Align carefully with the original location; press firmly and evenly to secure the badge

This oven door insulation restores the heat barrier inside the door so your oven can reach and maintain temperature while helping keep the exterior cooler. Replace brittle, burned, or grease-soaked insulation to reduce heat loss and odors.

• Provides a thermal barrier between the inner and outer door panels
• Helps the oven reach and hold set temperature by reducing heat transfer through the door
• Common signs it's needed include excessive exterior door heat, lingering odors/smoke from past spills, or visibly deteriorated/missing insulation
• Replacing contaminated insulation can reduce recurring odors during preheat and baking

• Disconnect power at the breaker and allow the appliance to cool completely before servicing
• Remove the oven door per your model's instructions and place it on a padded surface for disassembly
• Wear cut-resistant gloves and eye protection; handle insulation gently to limit airborne fibers
• Note the original orientation and any retainers; install the new insulation the same way without compressing it, then reassemble

This door insulation lines the inside of the oven door to reduce heat loss and help maintain stable temperatures. Replace a torn, burnt, or saturated pad to restore heating performance and keep the outer door cooler.

• Provides a thermal barrier between the oven cavity and the outer door panel
• Helps the oven reach and hold set temperature more consistently
• Helps reduce heat felt on the exterior door and nearby controls
• Replace if insulation is damaged, compressed, burnt, or grease-soaked; common signs include heat escaping at the door, longer preheat, or temperature swings

• Disconnect power/gas and allow the range to cool completely
• Remove the oven door; place it on a padded surface
• Separate door panels; note insulation routing and any cutouts before removal
• Position the new pad without over-compressing; keep clear of the window and latch, reassemble, and ensure hinges are fully seated

This door insulation replaces the inner thermal pad that helps block heat transfer through the oven door, improving temperature stability and reducing exterior door heat. Fits behind the inner door panel to restore proper insulation. What it does

• Replaces the oven door's internal insulation to help maintain oven temperature and improve heating efficiency.
• Reduces exterior door surface heat for safer operation and lower cabinet heat exposure.
• Helps prevent heat loss that can cause longer preheat times or uneven baking.
• Fits behind the inner door panel and works with the door's liners and glass to insulate the cooking cavity.

• One oven door insulation piece as shown.

• Always disconnect power at the breaker and allow the oven to cool completely before servicing.
• Remove the oven door and inner door panel per the manufacturer's instructions to access the insulation.
• Handle insulation with gloves and avoid compressing or tearing the material; position it flat against the inner panel.
• If any mounting clips, screws, or inner door glass were removed, keep parts organized and reassemble.

The Oven Door Gasket is an OEM part for GE ranges. This seal prevents heat from escaping the oven cavity when baking or broiling. The gasket helps maintain temperatures for more efficient cooking and reliable operation. The gasket measures approximately 84" long.

Causes of a bad gasket can include deterioration over prolonged high-heat use, damage due to abrasion or impact, or warping from moisture exposure over time.

Symptoms of a bad oven door gasket include:

• Excessive heat loss from around the oven door when in use
• Difficulty keeping desired baking temperatures
• Cooler/cold air felt escaping around the door seal
• Visible cracks, splits, or gaps in the gasket seal

This GE replacement part is compatible with Hotpoint, RCA, and some Kenmore models.

This over-the-range microwave door panel assembly replaces a damaged, dented, or nonfunctional door panel to restore proper sealing and appearance. It's a direct-fit exterior panel kit designed for factory-style repairs. What it does:

• Replaces a cracked, dented or cosmetically damaged door panel to improve appearance
• Restores proper door fit and edge alignment for reliable closing and sealing
• Helps stop drafts, light leaks, and rattling caused by warped or loose panels
• Replaces worn exterior trim or components included in the OEM kit

• Disconnect power to the appliance before beginning any repair
• Handle glass and painted surfaces with care to avoid chipping or damage
• Installation typically requires basic hand tools; follow the appliance service manual for step-by-step instructions

This is the door pad. Consider replacing both when replacing trim number WB07T10230

The Handle and End Cap Assembly is an OEM part for GE ranges. It includes both the oven door handle as well as the decorative end caps that cover connections on the door frame. This assembly is responsible for providing an accessible and ergonomic solution for opening and closing the oven door.

Causes of a bad Handle and End Cap Assembly can include wear and tear over time, damage due to excessive heat exposure, or cracks/breaks from accidental mishandling of the oven door.

Symptoms of a bad assembly include:

• Difficulty opening or closing the oven door
• Loose, wiggly, or detached door handle
• Exposed frame connections due to missing end caps
• Reduced insulation performance from open connections

This GE replacement part is compatible with Hotpoint, RCA, and Kenmore models. Replacing yours today will restore the reliable and easy operation of your oven door.


This right-side door trim bracket secures the exterior trim to the appliance door, restoring a flush, finished appearance and preventing the trim from coming loose. Designed to replace a damaged or missing right-hand bracket. What it does:

• Holds the door trim in place on the right side to maintain alignment and appearance
• Prevents trim gaps, vibration noise, and rattling caused by a loose or broken bracket
• Restores proper trim attachment after collision, wear, or failed fasteners
• Works with the factory trim assembly to ensure a straight, secure fit

• One right-side door trim bracket

• Use basic hand tools; retain any reusable screws or clips unless damaged
• Power off and unplug the appliance before starting work for safety
• Align the bracket and trim before tightening fasteners to avoid cracking the trim
• Replace missing or damaged clips or screws with OEM-specified fasteners

This left-hand door handle bracket secures the refrigerator door handle to the door, restoring a stable grip and proper handle alignment. Durable replacement part helps stop a loose or wobbly handle and keeps the door operating smoothly. What it does:

• Mounts the door handle to the left side of the refrigerator door
• Provides a secure anchor to prevent handle movement or sagging
• Restores proper handle alignment for comfortable opening and closing
• Helps eliminate rattling or looseness when the door is used

• One left-hand door handle bracket

• Designed for direct replacement; inspect mounting screws and handle for wear before installing
• Use basic hand tools; avoid overtightening fasteners to prevent cracking the bracket
• Disconnect power only when working near electrical components; follow appliance safety guidance
• If screws or handle hardware are missing or damaged, replace those parts as well

Oven doors utilize door hinges to open and close efficiently. There is a door hinge attached to opposite ends of the door, and the part is also connected to the range. With time, the hinges can wear out, get damaged, or break off. When the hinges are no longer functioning correctly, replacement parts are necessary to continue using the appliance.An indication that there is a problem with the door hinge on an oven door is difficulty opening or closing or a door that partially slips on one side or the other out of position. A visual inspection will determine the condition of a door hinge. The replacement of the piece is simple. Unplug the range from its power source before starting the repair. Wear gloves for protection. Check the condition of both hinges before ordering. This door hinge is an authentic OEM replacement part. It is sourced directly from the manufacturer. The piece is sold as an individual unit. The door hinge fits several different models of ranges. The replacement part is compatible with appliances produced by General Electric, Hotpoint, and RCA. It is manufactured using high-quality, durable metal materials.

The Window Pack Assembly is an OEM replacement part for GE electric ranges. It comprises the outer oven window and securing brackets that hold the glass in place.

Causes of failure can include cracks in the glass from impact or thermal stress over time. Mounting brackets may loosen from normal use.

Symptoms of a faulty window pack assembly include:

• Fogging or condensation between panes of glass
• Leaks evident around the perimeter of the oven window
• Window that rocks or wiggles in the frame
• Inability to securely latch the window shut

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore oven models.

A silicon-controlled rectifier (SCR) used on appliance control boards to regulate power to motors, igniters or other loads. Replacing a faulty SCR can restore proper power switching and steady operation of the driven component. What it does:

• Acts as a power-switching semiconductor in appliance electronic control circuits to allow current flow only when triggered.
• Enables controlled delivery of voltage/current to motors, igniters and similar loads on the control board.
• A failing SCR can cause symptoms such as no power to a motor or igniter, intermittent operation, or complete failure of the driven component.
• Match the SCR package and electrical ratings to the control board before replacing.

• Disconnect all power to the appliance before accessing control electronics to avoid shock or damage.
• Take electrostatic-discharge (ESD) precautions; handle the SCR by its body and avoid touching leads.
• Package orientation and electrical ratings on the control board and wiring before installation.

ST10-16 X 7/16"

Black. 8-18 AB HXW 3/8

Includes 12 washers.

This 10-32 threaded screw fastens appliance panels and components, restoring secure attachments and reducing vibration. It's a direct-fit fastener for assemblies that use a standard 10-32 UNC machine screw. What it does

• Secures control panels, brackets, and internal components that use a 10-32 thread.
• Stops loose parts that can rattle, vibrate, or cause misalignment.
• Replaces stripped, missing, or damaged 10-32 screws to restore proper fit.
• Works where a short machine screw with a 10-32 thread is required.

• One 10-32 threaded screw.

• Disconnect power and unplug the appliance before starting any repair.
• Use the correct screwdriver or nut driver for the screw head to avoid stripping.
• Install matching thread engagement; do not force or cross-thread.
• Tighten snugly but avoid over-torquing to prevent damage to mounting holes or plastic parts.
