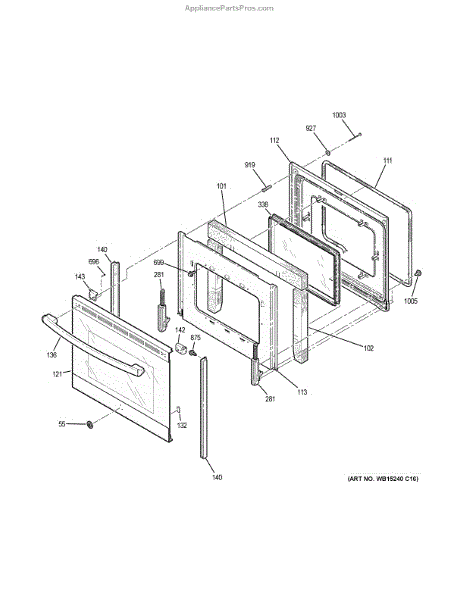

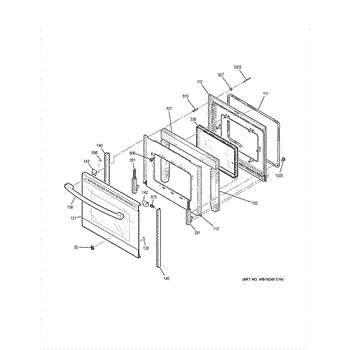

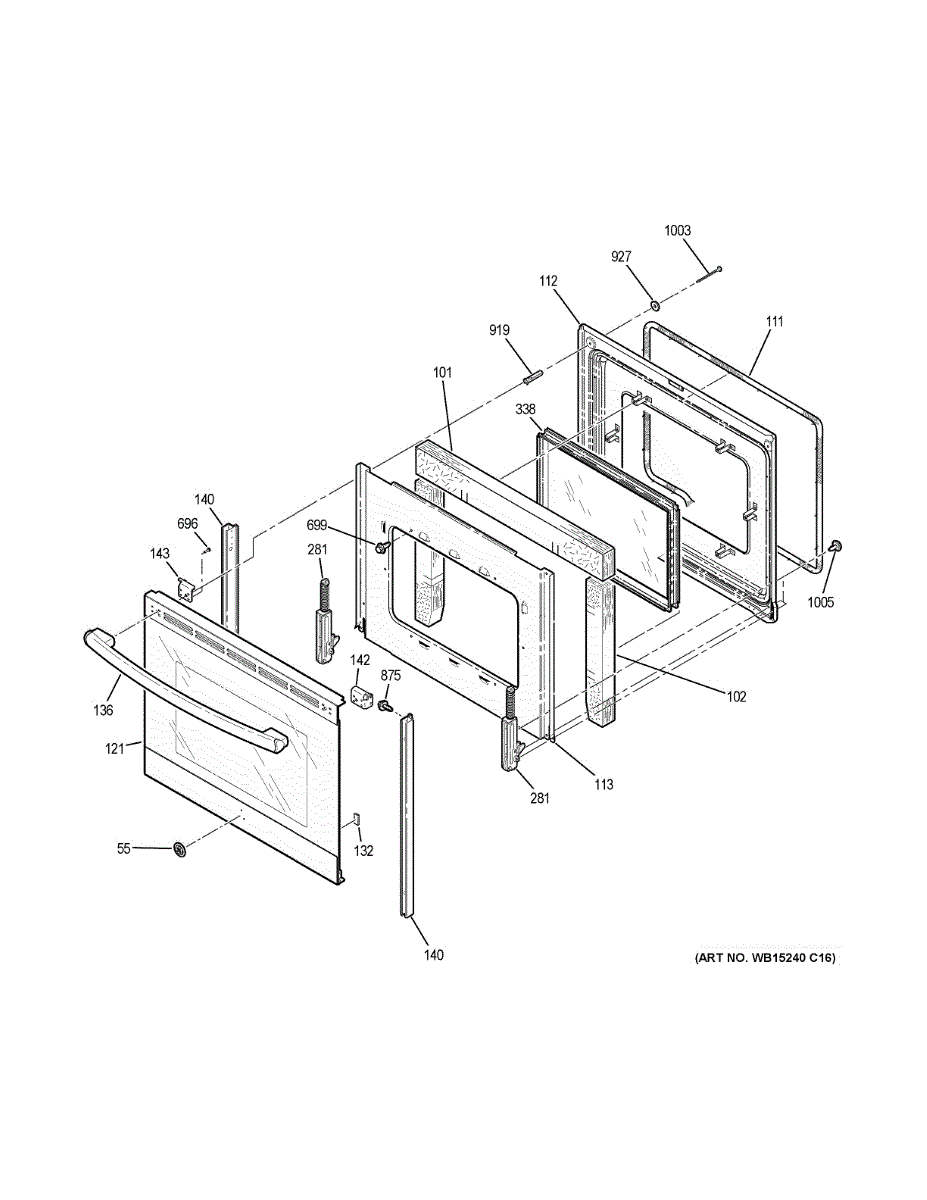

Parts for Ge JBS60RK2SS: Door Parts

The Badge Assembly is an OEM part for GE ranges. It includes the magnetic decorative badge affixed to the front of the range. This badge displays important information such as the brand name, model number, and technical specifications.

Causes of a bad badge assembly can include damage from impacts or abrasions over time, adhesive failure from repeated heat exposure, or normal wear from routine cleaning. On a range, the badge must withstand higher cooking temperatures.

Symptoms of a bad badge assembly include:

• Faded or illegible print on the badge face
• Cracks or breaks in the plastic material
• The badge lifting or peeling away from the surface
• Missing or loose attachment clips/fasteners

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This oven door insulation restores the heat barrier inside the door so your oven can reach and maintain temperature while helping keep the exterior cooler. Replace brittle, burned, or grease-soaked insulation to reduce heat loss and odors.

• Provides a thermal barrier between the inner and outer door panels
• Helps the oven reach and hold set temperature by reducing heat transfer through the door
• Common signs it's needed include excessive exterior door heat, lingering odors/smoke from past spills, or visibly deteriorated/missing insulation
• Replacing contaminated insulation can reduce recurring odors during preheat and baking

• Disconnect power at the breaker and allow the appliance to cool completely before servicing
• Remove the oven door per your model's instructions and place it on a padded surface for disassembly
• Wear cut-resistant gloves and eye protection; handle insulation gently to limit airborne fibers
• Note the original orientation and any retainers; install the new insulation the same way without compressing it, then reassemble

This door insulation replaces the foam insert that helps keep the refrigerator or freezer door properly insulated, improving temperature stability and reducing energy loss. Fits behind the interior door panel. What it does

• Replaces damaged or compressed door foam that can allow cold air to escape
• Helps restore proper temperature retention and reduce frost or condensation on door surfaces
• Matches OEM shape to fit behind the door inner panel

• One door insulation piece as shown

• Disconnect power to the appliance before starting any repair
• Installation typically requires removing the interior door panel and carefully positioning the foam insert; keep clips/screws for reassembly
• Handle the foam gently to avoid tearing; use appropriate trim or adhesive only if specified by the OEM

The Oven Door Gasket is an OEM part for GE ranges. This seal prevents heat from escaping the oven cavity when baking or broiling. The gasket helps maintain temperatures for more efficient cooking and reliable operation. The gasket measures approximately 84" long.

Causes of a bad gasket can include deterioration over prolonged high-heat use, damage due to abrasion or impact, or warping from moisture exposure over time.

Symptoms of a bad oven door gasket include:

• Excessive heat loss from around the oven door when in use
• Difficulty keeping desired baking temperatures
• Cooler/cold air felt escaping around the door seal
• Visible cracks, splits, or gaps in the gasket seal

This GE replacement part is compatible with Hotpoint, RCA, and some Kenmore models.

This outer door panel replaces the decorative exterior panel on your microwave door. It restores a clean, factory appearance and provides proper support for the handle after dents, cracks, or finish damage.

• Forms the visible outer surface of the microwave door
• Provides mounting points for the door handle
• Helps protect inner door components and glass
• Common symptoms: dents, cracks, scuffs/discoloration, or broken handle mounts

• Disconnect power by unplugging the unit or switching off the breaker before service
• Wear cut-resistant gloves; panel edges can be sharp
• Transfer the existing handle and any reusable hardware/trim from the old panel as required
• After reassembly, verify the door closes and latches smoothly

This is the door pad. Consider replacing both when replacing trim number WB07T10230

The Handle and End Cap Assembly is an OEM replacement part for GE ranges. It is a stainless steel colored handle with the mounting encaps already attached.

Causes of a bad handle and end cap assembly can include normal wear from frequent use over many years. Damage from accidental impacts is also possible.

Symptoms of a bad handle and end cap assembly include:

• Difficulty opening or closing the oven door smoothly
• Excessive force required to engage the latching mechanism
• The door not sitting flush or properly sealing when shut
• Weakened hinges or handles prone to breakage
• Scratches, cracks, or deterioration appearing on surfaces

This OEM part is also compatible with some models produced by Hotpoint, Amana, and Sears Kenmore.

This right-side door trim bracket secures the exterior trim to the appliance door, restoring a flush, finished appearance and preventing the trim from coming loose. Designed to replace a damaged or missing right-hand bracket. What it does:

• Holds the door trim in place on the right side to maintain alignment and appearance
• Prevents trim gaps, vibration noise, and rattling caused by a loose or broken bracket
• Restores proper trim attachment after collision, wear, or failed fasteners
• Works with the factory trim assembly to ensure a straight, secure fit

• One right-side door trim bracket

• Use basic hand tools; retain any reusable screws or clips unless damaged
• Power off and unplug the appliance before starting work for safety
• Align the bracket and trim before tightening fasteners to avoid cracking the trim
• Replace missing or damaged clips or screws with OEM-specified fasteners

This left-hand door handle bracket secures the refrigerator door handle to the door, restoring a stable grip and proper handle alignment. Durable replacement part helps stop a loose or wobbly handle and keeps the door operating smoothly. What it does:

• Mounts the door handle to the left side of the refrigerator door
• Provides a secure anchor to prevent handle movement or sagging
• Restores proper handle alignment for comfortable opening and closing
• Helps eliminate rattling or looseness when the door is used

• One left-hand door handle bracket

• Designed for direct replacement; inspect mounting screws and handle for wear before installing
• Use basic hand tools; avoid overtightening fasteners to prevent cracking the bracket
• Disconnect power only when working near electrical components; follow appliance safety guidance
• If screws or handle hardware are missing or damaged, replace those parts as well

This door hinge assembly restores proper pivot and alignment for a refrigerator door, helping the door open and close smoothly and maintain a reliable seal. Designed as a direct-replacement hinge used on compatible GE refrigerators. What it does:

• Re-establishes stable door pivot to prevent sagging or uneven gaps
• Helps the door close fully to maintain proper temperature and seal
• Replaces damaged, bent or worn hinge components that cause binding or noise
• Restores correct door alignment to improve gasket contact and performance

• Disconnect power and remove contents from the door before starting.
• Support the door securely during removal/installation to avoid damage or injury.
• Basic hand tools generally required; follow OEM instructions for torque and alignment.

This replacement pack window assembly restores the door's sealed viewing panel and appearance on compatible GE appliances. Replaces a cracked, chipped or cloudy window to help keep the interior protected and visible. What it does:

• Replaces a damaged or missing pack/window panel that lets you see inside without opening the door
• Restores the exterior finish and helps maintain the door seal where the window mounts
• Stops drafts or moisture intrusion caused by a broken or cracked window surface
• Improves appliance appearance when the original window is scratched, cloudy, or chipped

• Disconnect power to the appliance before starting any repair
• Handle the window carefully — glass or plastic panels can break and cause injury
• Installation typically requires removing the door panel or trim; keep fasteners organized

This silicon controlled rectifier (SCR) is an electrical switching component used to control power to heating or motor circuits, restoring proper on/off control for affected appliance functions. What it does:

• Regulates power flow in heater and motor control circuits to enable correct cycling
• Helps control startup and run voltage to motors and heating elements
• Commonly linked to symptoms like no power to heater or motor, intermittent operation, or erratic cycling
• Works as a replacement component on control assemblies that use a discrete SCR

• Disconnect all power to the appliance before accessing electrical components
• SCRs are static-sensitive and may require careful handling; use ESD precautions
• May be soldered or mounted to terminals; confirm mounting and connector type before installation

ST10-16 X 7/16"

Black. 8-18 AB HXW 3/8

This spacer positions and supports appliance panels and components to maintain correct alignment and clearances, helping reduce panel movement and ensure proper fit. It's a simple replacement that restores intended spacing where worn or missing. What it does

• Provides consistent spacing between panels or components to prevent rubbing or misalignment
• Helps stabilize trim, panels, or assemblies that sit flush against the cabinet
• Used when gaps, loose panels, or misaligned trim are present

• One spacer

• Disconnect power to the appliance before servicing to avoid shock or injury
• Inspect surrounding fasteners and mounting points; replace any damaged screws or clips
• Install in the same orientation and location as the original spacer; do not force into place

Includes 12 washers.

This 10-32 threaded screw fastens appliance panels and components, restoring secure attachments and reducing vibration. It's a direct-fit fastener for assemblies that use a standard 10-32 UNC machine screw. What it does

• Secures control panels, brackets, and internal components that use a 10-32 thread.
• Stops loose parts that can rattle, vibrate, or cause misalignment.
• Replaces stripped, missing, or damaged 10-32 screws to restore proper fit.
• Works where a short machine screw with a 10-32 thread is required.

• One 10-32 threaded screw.

• Disconnect power and unplug the appliance before starting any repair.
• Use the correct screwdriver or nut driver for the screw head to avoid stripping.
• Install matching thread engagement; do not force or cross-thread.
• Tighten snugly but avoid over-torquing to prevent damage to mounting holes or plastic parts.
