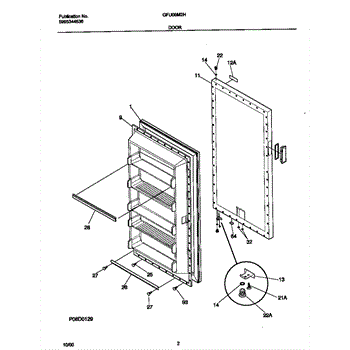

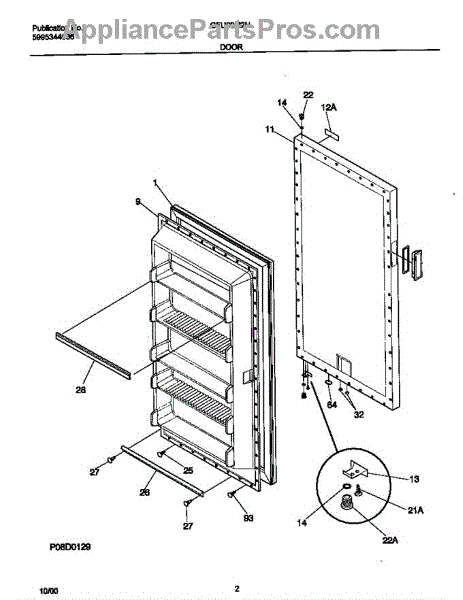

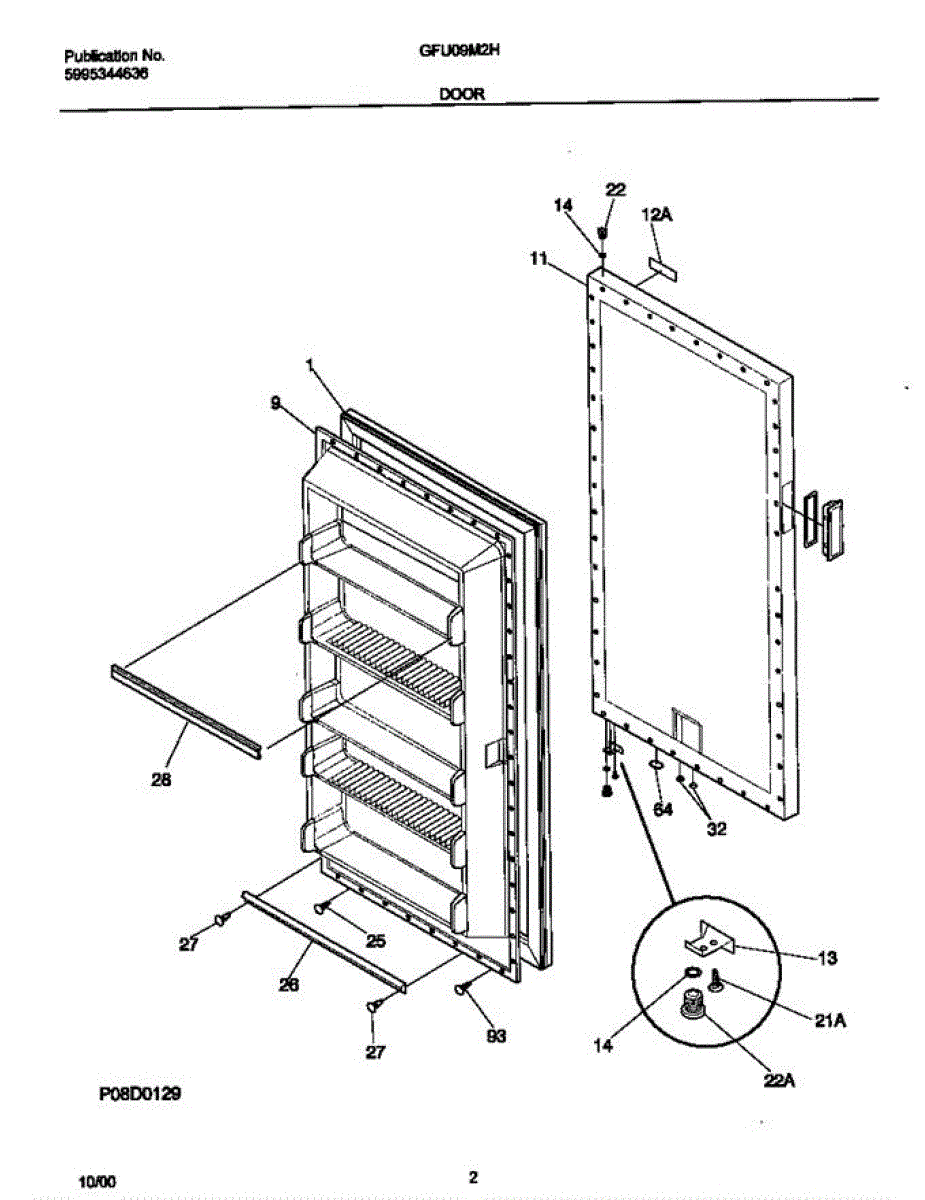

Parts for Gibson GFU09M2HW4: Door Parts

This door gasket seals the perimeter of the refrigerator or freezer door to maintain an airtight closure. Replacing a worn gasket restores a proper seal, helps stabilize temperatures, reduces frost and condensation, and supports efficient operation. What it does:

• Creates a tight seal between the door and cabinet to keep cold air in and warm air out
• Helps reduce frost buildup and moisture around the door opening
• Can address temperature fluctuations, long run times, and doors that won't fully close
• Replace if torn, deformed, brittle, or no longer sealing evenly

• 1 door gasket

• Disconnect power before servicing; open the door and remove the old gasket from its retainer/channel
• Warm the new gasket (soak in warm water) to relax and straighten before installation
• Seat the corners first, then work evenly around the perimeter to fully engage the retainer
• Close the door and check for uniform contact; adjust the gasket/retainer as needed for a complete seal

This nameplate bezel is the exterior trim that surrounds and secures the appliance's front nameplate and control-panel area, restoring a finished appearance and protecting the panel edges from damage. What it does:

• Covers and protects the control-panel/nameplate edge from chips and wear
• Keeps the nameplate aligned and visually flush with the console
• Helps maintain a finished look after panel or nameplate replacement
• Reduces dirt and moisture intrusion at the panel seam

• Disconnect power to the appliance before starting any repair
• Usually installs with screws or snap clips; a screwdriver or trim tool may be needed
• Handle carefully to avoid scratching the finish during installation
• Follow OEM service instructions for proper fit and torque

Quantity of 1 clip.

Note: See kit# 5303922007 and 5304406520.

This replacement screw secures appliance components so brackets, shelves, trim, or panels stay firmly in place. Install a new screw when the original is missing, stripped, or corroded to restore a tight, rattle-free fit.

• Fastens brackets, panels, trim, or covers to the cabinet or liner
• Helps maintain alignment and reduce vibration and noise
• Direct replacement for a missing, rusted, or stripped fastener
• Use wherever your model's parts diagram specifies this screw

• Disconnect power before servicing; shut off water if working near water lines
• Match thread and length to the original location as shown in your model's parts diagram
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening (especially into plastic)
• Retain and transfer any original spacers or clips used with this fastener
