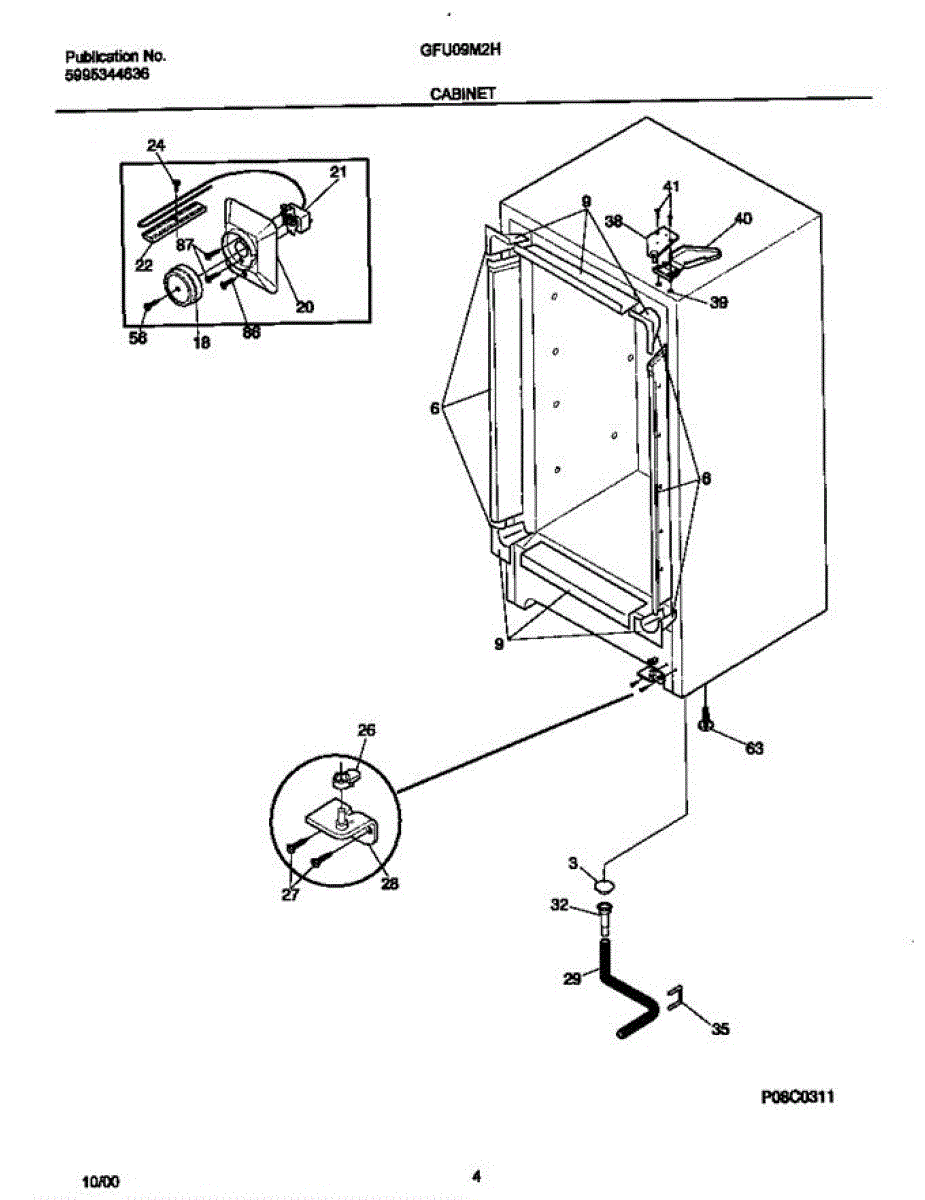

Parts for Gibson GFU09M2HW4: Cabinet Parts

A small metal clamp that secures the refrigerator's capillary (temperature sensing) tube to the cold control so the thermostat reads temperatures accurately. Replaces worn or missing clamps to keep the sensing tube stable and prevent movement-related issues. What it does:

• Holds the capillary/sensing tube firmly against the cold control or cabinet
• Helps maintain accurate thermostat sensing by preventing tube movement
• Reduces vibration or rattling from a loose sensing tube
• Stops intermittent temperature swings caused by a displaced capillary tube

• Disconnect power before servicing the appliance.
• Handle the capillary tube gently; avoid kinks or sharp bends.
• Install clamp over the tube and secure to the control or bracket using the factory hole or fastener; do not overtighten.

This drain hose carries water away from your appliance during draining to help prevent backups and leaks. Replace a cracked, clogged, or kinked hose to restore reliable water removal and protect surrounding floors and cabinets. What it does:

• Directs drain water from the outlet or pump to the designated discharge point
• Maintains proper flow; kinks or blockages can cause slow or no draining
• Helps prevent leaks from splits, pinholes, or loose connections
• Common signs: standing water, water under/around the unit, drain-related error codes, or odors

• Includes 1 drain hose

• Disconnect power and shut off water supply before servicing
• Place towels or a shallow pan to catch residual water when removing the old hose
• Note the original routing; seat connections fully, secure with clamps, and avoid sharp bends or kinks
• Run a brief drain/rinse and check all joints for leaks

This sleeve is a small spacer/bushing used in select Frigidaire-built appliances to keep mating parts aligned and moving smoothly. Replacing a worn sleeve helps eliminate play, reduce friction, and restore proper operation.

• Provides a guided, low-friction surface between parts that slide or rotate
• Maintains correct spacing/alignment to prevent wobble and rubbing
• Helps reduce wear on shafts, pins, or fasteners it interfaces with
• Typical symptoms: looseness or wobble, squeaking/scraping noises, uneven movement, or visible cracking/missing sleeve

• Disconnect power before servicing; shut off gas/water if applicable to your model
• Use your model's diagram to locate the sleeve and note orientation before removal
• Clean and inspect the mating shaft/pin or fastener; replace any severely worn components
• Seat the sleeve fully; avoid over-tightening hardware that passes through the sleeve

This small plastic clip secures the dishwasher drain hose to the pump assembly or discharge fitting, keeping the hose in place and helping prevent leaks or disconnection during operation. What it does:

• Holds the drain hose firmly to the pump or outlet fitting to maintain a watertight connection
• Prevents the hose from slipping free during drain cycles
• Helps stop water leaks and washing chamber flooding caused by a loose hose
• Useful when replacing a cracked or broken retaining clip

• One drain hose retaining clip

• Disconnect power and water supply before accessing the dishwasher lower access area
• Remove the access panel or kickplate to reach the drain hose and pump connection
• Use pliers or a flat tool to remove the old clip and snap the new clip over the hose/fitting until fully seated
• After installation, run a short drain cycle and inspect for leaks; re-secure if necessary

The Adjustable Foot is an OEM part for Frigidaire dryers. This part is located at the bottom of the dryer and allows you to level it, ensuring stability and proper operation.

Causes of a bad adjustable foot can include regular wear and tear, damage from moving the appliance, or breaking due to excessive weight or stress.

Symptoms of a bad adjustable foot include:

• The dryer wobbling or tilting
• Difficulty in adjusting the height of the foot
• Visible damage or deformation of the foot
• Unusual noises or vibrations during operation

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.
