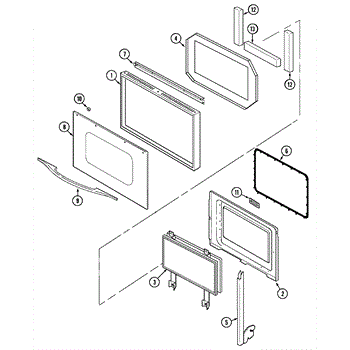

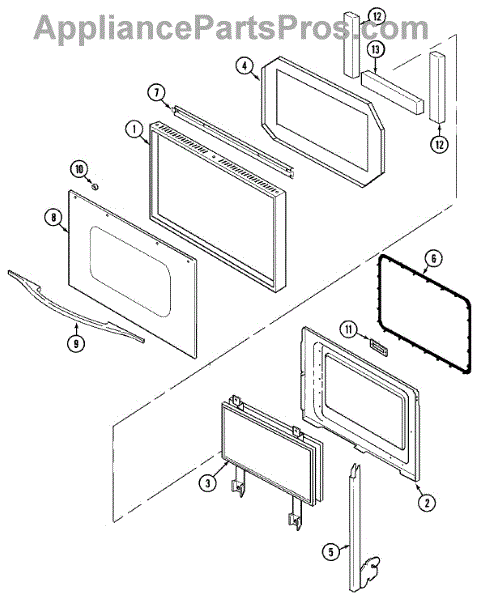

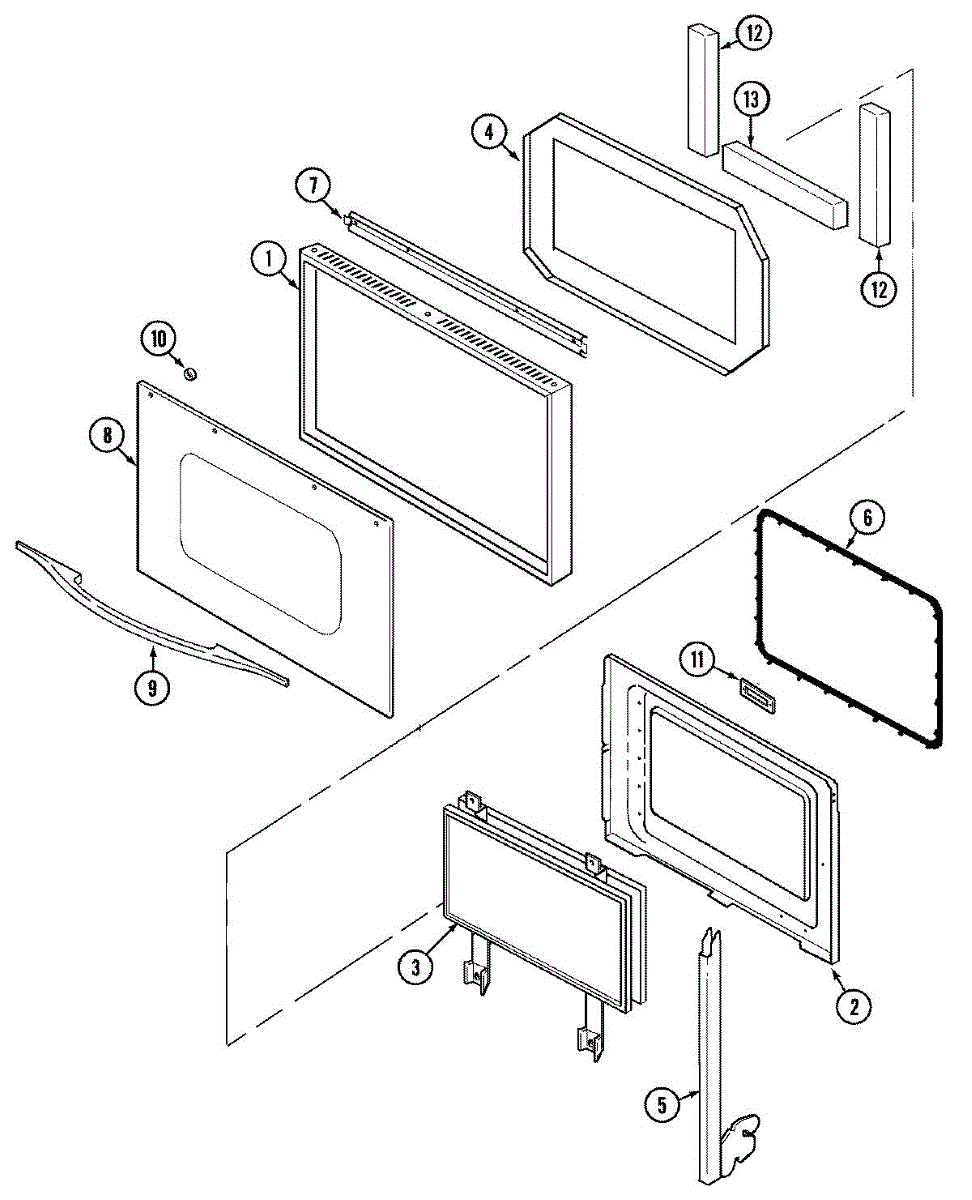

Parts for Jenn-Air W30100BC: 03 - Door Parts

The Screw is an OEM part for Whirlpool appliances. This specific screw is used in various locations within Whirlpool appliances, securing components and ensuring the stability and proper alignment of parts. It is designed to fit precisely and maintain a firm hold, contributing to the overall functionality and safety of the appliance.

Over time, screws can become worn or stripped due to regular use, corrosion, or over-tightening.

Causes of a bad screw include wear and tear, exposure to moisture leading to rust, and over-tightening which can strip the threads.

Symptoms of a bad screw include:

• Loose or wobbly components
• Misalignment of parts
• Noise due to vibrating or loose parts
• Difficulty in securing or removing the screw

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This is a single piece of glass, you must reuse the window frame.

The Oven Door Hinge is an OEM part for Whirlpool wall ovens and ranges. Located on both sides of the oven door frame, these metal hinges provide the pivoting connection that allows smooth opening and closing of the door during cooking cycles.

Causes of failure can include wear of the hinge joints from repeatedly bearing the weight of the heavy oven door over thousands of uses. Exposure to high heat during cooking may gradually deteriorate lubricating grease or materials.

Symptoms of faulty hinges include:

• Door rubbing or sticking during opening/closing
• Off-center alignment when shut or inability to fully latch
• Noisy squeaking or grinding emerging from hinges
• Hinges loosened from screws/fastenings or mechanisms seized

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This high-temperature gasket seals the oven door to the cabinet. Replacing a worn seal helps your oven preheat more efficiently, hold steady temperatures, and reduces heat and vapor escaping around the door edge.

• Maintains a tight seal between the door and oven cavity to retain heat
• Supports accurate, consistent baking and roasting temperatures
• Helps reduce longer preheat or cook times caused by heat loss
• Replaces seals that are torn, brittle, flattened, or frayed

• Disconnect power and allow the oven to cool completely before servicing
• Open the door and remove the old gasket, noting clip/screw locations and orientation
• Clean the mounting channel; press the new gasket in place without stretching it
• After installing, preheat and check for even contact all around the door

Size: 10-32

This screw-and-washer fastener is a factory-size 8-18 x 5/16 hardware piece used to secure appliance panels and components. Replace stripped, rusty, or missing hardware to restore a tight, rattle-free fit and proper alignment. What it does:

• Fastens sheet-metal panels, brackets, and small components in the appliance cabinet
• Replaces lost, stripped, or corroded screws to maintain secure mounting
• Helps reduce vibration, buzzing, or rattling from loose parts
• Useful when the original hardware is missing or no longer holds securely

• Includes 1 screw-and-washer fastener (8-18 x 5/16)

• Disconnect power; shut off gas and water supplies if applicable
• Match the fastener to the original location; sizes can vary by application
• Start threads by hand to avoid cross-threading; use an appropriately sized driver
• Tighten snugly without overtightening to prevent stripping sheet metal
