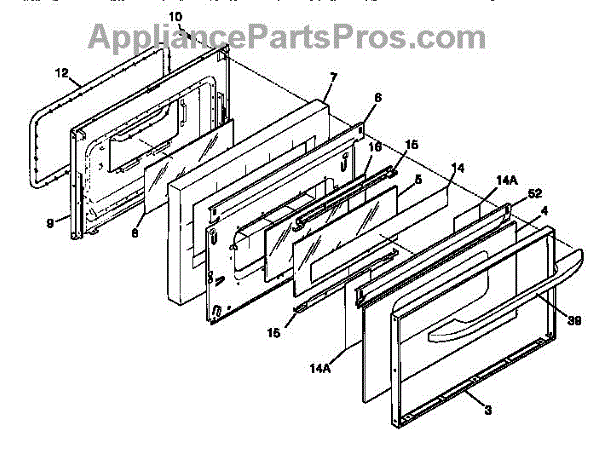

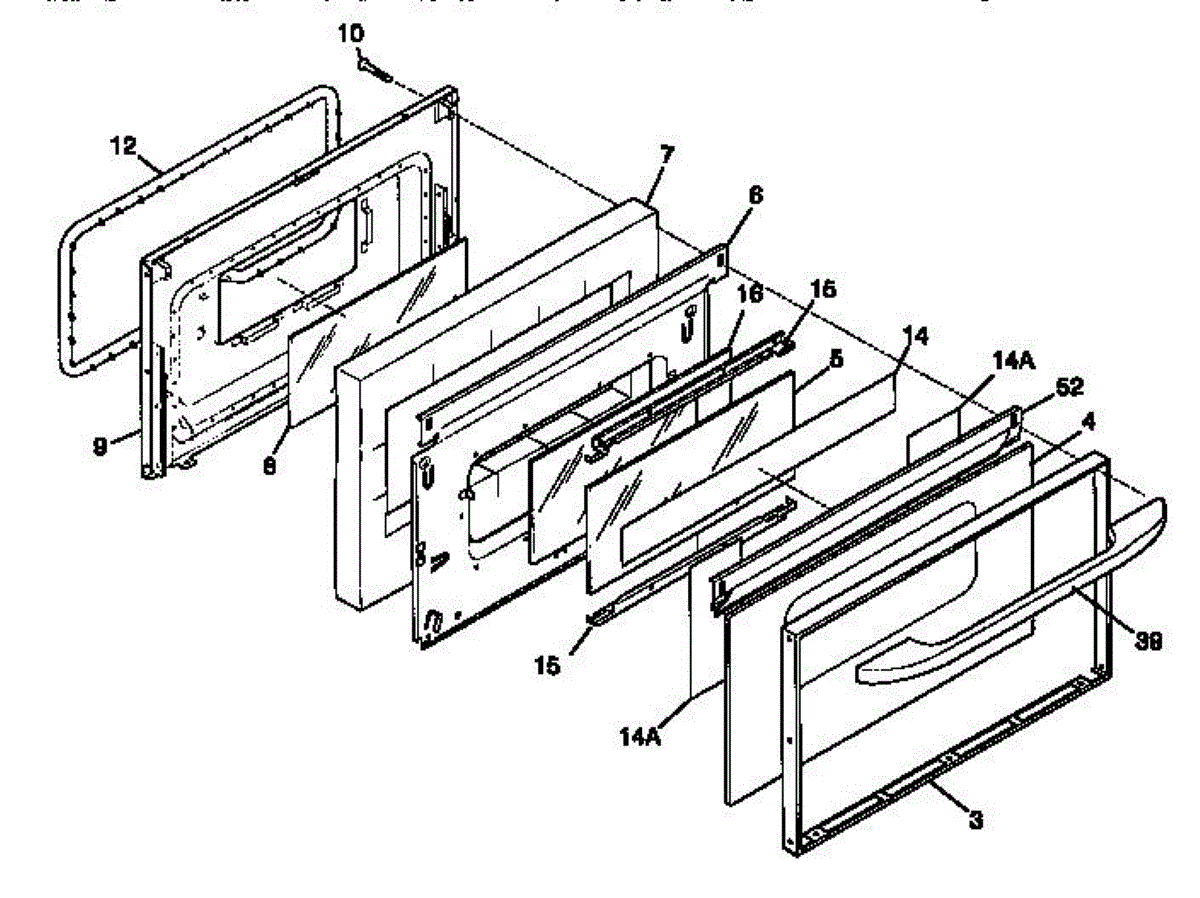

Parts for Kenmore 790.95746890 (79095746890, 790 95746890): Door Parts

Replacement mounting screw for ovens and ranges. Secures internal components and panels. Order this screw if yours is stripped, missing, or damaged.

This is a flexible oven door gasket that fits around the perimeter of the oven opening and includes metal mounting clips for secure attachment. It creates a heat-tight seal between the oven door and the oven cavity to maintain consistent cooking temperatures. Replace this seal if you notice heat escaping around the door, uneven cooking, the oven struggling to reach temperature, or if the gasket is visibly torn, hardened, or compressed.

Size: 3/4 inch od x 1/4 inch id.

This genuine wiring diagram shows the appliance's electrical schematic so DIYers can identify wire routing, connectors, and component locations for accurate troubleshooting. It helps verify circuits before repairs and parts replacement. What it does:

• Displays the complete electrical schematic and wire color codes for the appliance
• Helps locate connectors, terminals, and component wiring for accurate diagnosis
• Useful for tracing shorts, open circuits, or incorrect wiring after service
• Supports safe, informed replacement of electrical components

• Intended for reference only; do not use the diagram as a safety barrier—disconnect power before servicing
• Keep the diagram dry and flat; fold carefully to avoid tearing the print
• Use alongside OEM service manuals and schematic legends for full context

Hex flange nut with 10-32 thread secures components in appliances. Replace if stripped, missing, or damaged. Flange provides broader bearing surface.

Phillips head mounting screw for dishwashers and ranges. Secures internal components and panels. Replace if stripped, rusted, or missing during repairs.

Size: 8-18ab x 0.5 inch.

Push-in plug button that covers openings in the oven bottom panel. Replace if cracked, missing, or broken to keep debris out and maintain a clean finish.

This is a replacement mounting screw used to secure the dual safety valve assembly on compatible gas ranges and ovens. It restores proper fastening so the valve stays firmly in place during operation. What it does

• Secures the safety/dual gas valve to the appliance chassis or manifold
• Prevents valve movement that can interfere with burner operation or alignment
• Commonly replaced when original screw is missing, stripped, or damaged
• Matches OEM thread size and length for correct fit and retention

• One (1) screw, size 10-16 x 0.486

• Disconnect power and shut off gas supply before starting work; follow all safety procedures
• Thread carefully to avoid cross-threading; do not overtighten — snug to OEM torque specification
• Inspect surrounding mounting holes and hardware; replace any stripped or damaged parts for a secure fit

Size: 10-32 x 0.312 inch. Color: Black.

Size: 8-32t x 0.500 inch. Color: Black.

Size: 10 fl. oz. Used on glass, ceramic and porcelain cooktops.
