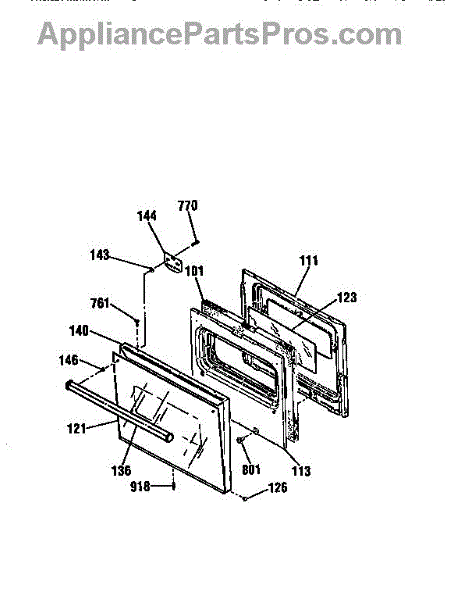

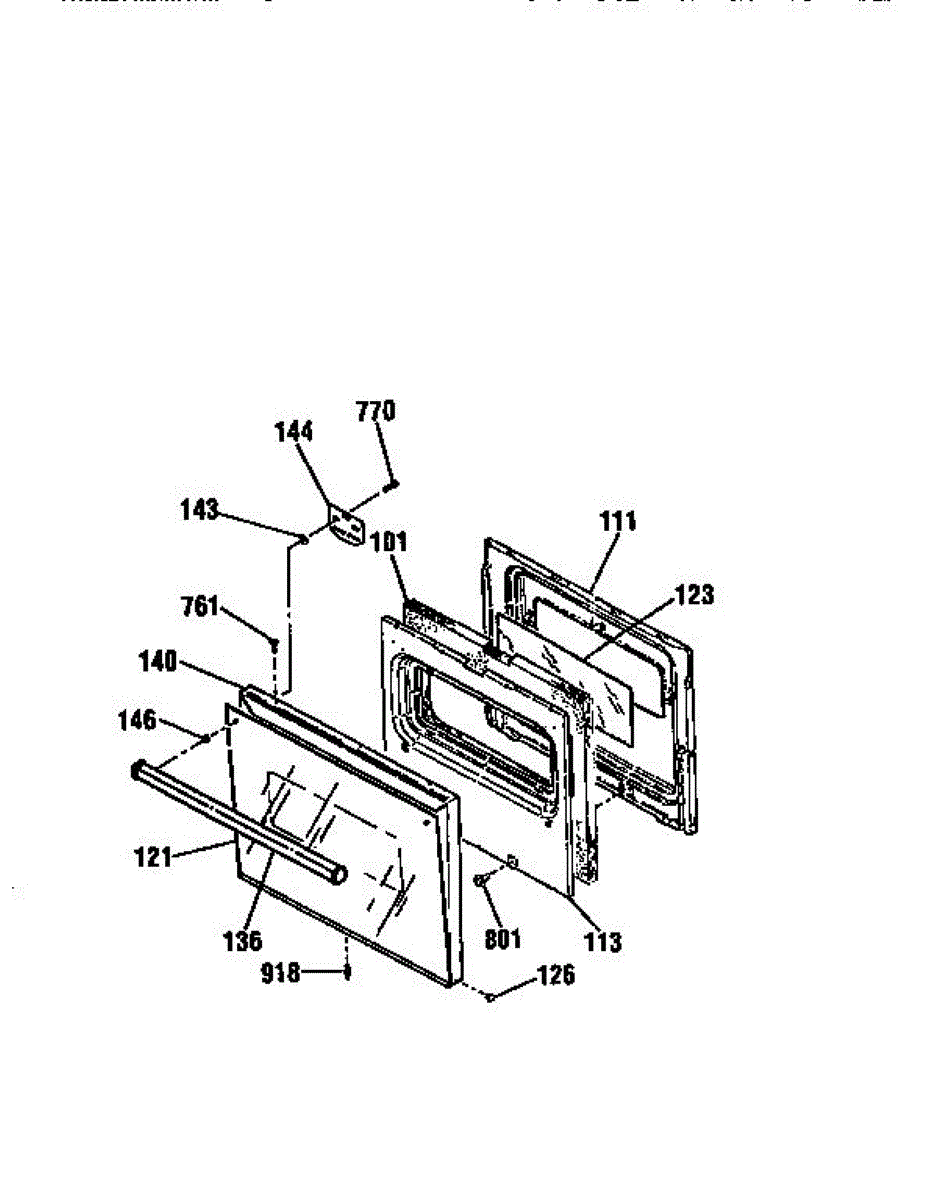

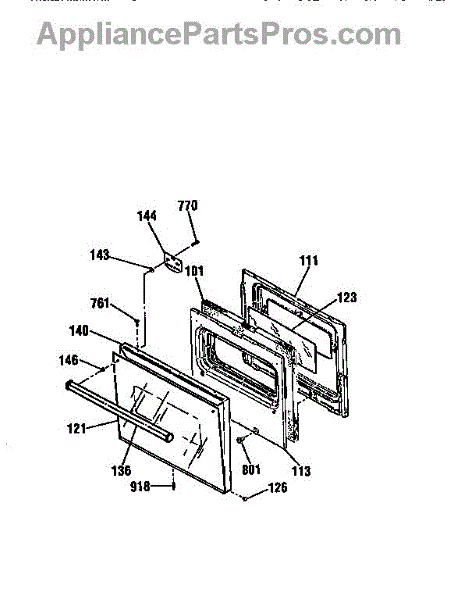

Parts for Kenmore 911.47169791 (91147169791, 911 47169791): Door Parts

This spacer is a small mounting shim used to position and support components inside the appliance for correct alignment and stable operation. It helps maintain part clearance and keeps assemblies seated where intended. What it does:

• Provides spacing between panels or components to ensure proper alignment
• Helps prevent rubbing, binding, or misalignment of moving parts
• Can reduce vibration or noise caused by improperly seated parts
• Useful when replacing or reinstalling components that require precise clearance

• Disconnect power before accessing internal components
• Use basic hand tools; keep track of fasteners and original part locations
• Replace only with the same spacer size and orientation for correct fit

This reinforcement plate restores structural support where the oven/range door or trim attaches, helping stop sagging and keeping panels aligned for proper sealing and appearance. What it does:

• Reinforces the mounting area so door or trim stays securely attached
• Restores alignment to reduce gaps, drafts, or uneven door closing
• Prevents further wear at stressed screw holes and mounting points
• Stops rattling or vibration caused by loose or damaged support

• Disconnect power before servicing and allow appliance to cool completely
• Remove appropriate access panels or door per the manufacturer instructions
• Handle edges carefully; fasten with original hardware and torque to OEM specs
• If mounting holes or surrounding parts are damaged, inspect and replace any worn hardware

This hex washer-head screw secures sheet-metal panels, brackets, and assemblies in your appliance. Replacing a missing, stripped, or rusted fastener restores a tight, rattle-free fit and helps keep components properly aligned during everyday use.

• Fastens panels, brackets, and assemblies to the chassis
• Helps maintain alignment and stability under normal vibration and heat
• Direct replacement for lost, damaged, or stripped hardware
• Common signs include loose or rattling panels, gaps/misalignment, or a rounded screw head

• Disconnect power; if servicing a gas appliance, also shut off gas and allow surfaces to cool
• Match the new screw to the original location; start threads by hand to avoid cross-threading
• Tighten snugly without overtightening to prevent stripping sheet metal
• Use an appropriate nut driver or socket for the hex head

This factory screw secures components within your appliance, keeping panels, brackets, and other parts tight and aligned. Replacing a missing or stripped screw helps eliminate rattles and restores a solid, properly mounted assembly.

• Fastens appliance components to frames, brackets, or cooktop/oven structures
• Replaces missing, rusted, or stripped hardware
• Helps address loose or rattling panels and misaligned trim
• Restores a secure fit after service or cleaning

• Disconnect power; if gas, shut off the gas supply. Allow the appliance to cool completely
• Match the screw to its original location and length for proper fit
• Use the correct driver; start threads by hand to avoid cross-threading
• Tighten snugly without overtightening to prevent stripping metal or plastic

This is a replacement screw used to secure appliance components and restore proper fit and function. Installing the correct screw prevents loose panels and noisy operation and keeps parts aligned for safe use. What it does:

• Secures panels, brackets, or small assemblies to prevent movement and vibration
• Helps stop rattling or vibration caused by missing or stripped fasteners
• Restores secure fit where a screw has been lost or damaged
• Matches the OEM fit so adjoining parts align correctly

• One replacement screw as pictured

• Disconnect power to the appliance before starting any repair
• Use the correct screwdriver or bit to avoid stripping the head
• Thread by hand first, then snug; do not overtighten to avoid cracking plastic or stripping threads
• Replace only with the same type and size screw to ensure proper fit

ST10-16 X 7/16"

This plastic rivet is a push-in fastener used to secure trim and panels on compatible appliances, helping keep exterior pieces firmly in place for proper fit and finish. It's a small, inexpensive part that prevents rattling and loose trim. What it does:

• Acts as a push-in fastener to hold trim pieces, panels or liners together
• Keeps exterior parts aligned and reduces vibration or rattling noises
• Replaces worn or missing rivets that allow panels to sit loose
• Works where a simple snap-in plastic retainer is required

• One plastic rivet

• Disconnect power to the appliance before starting any repair that exposes wiring or components
• Typically installs by pushing into the mounting hole until the head seats; may require pliers for removal
• Inspect mating hole and surrounding trim for damage before installing replacement
