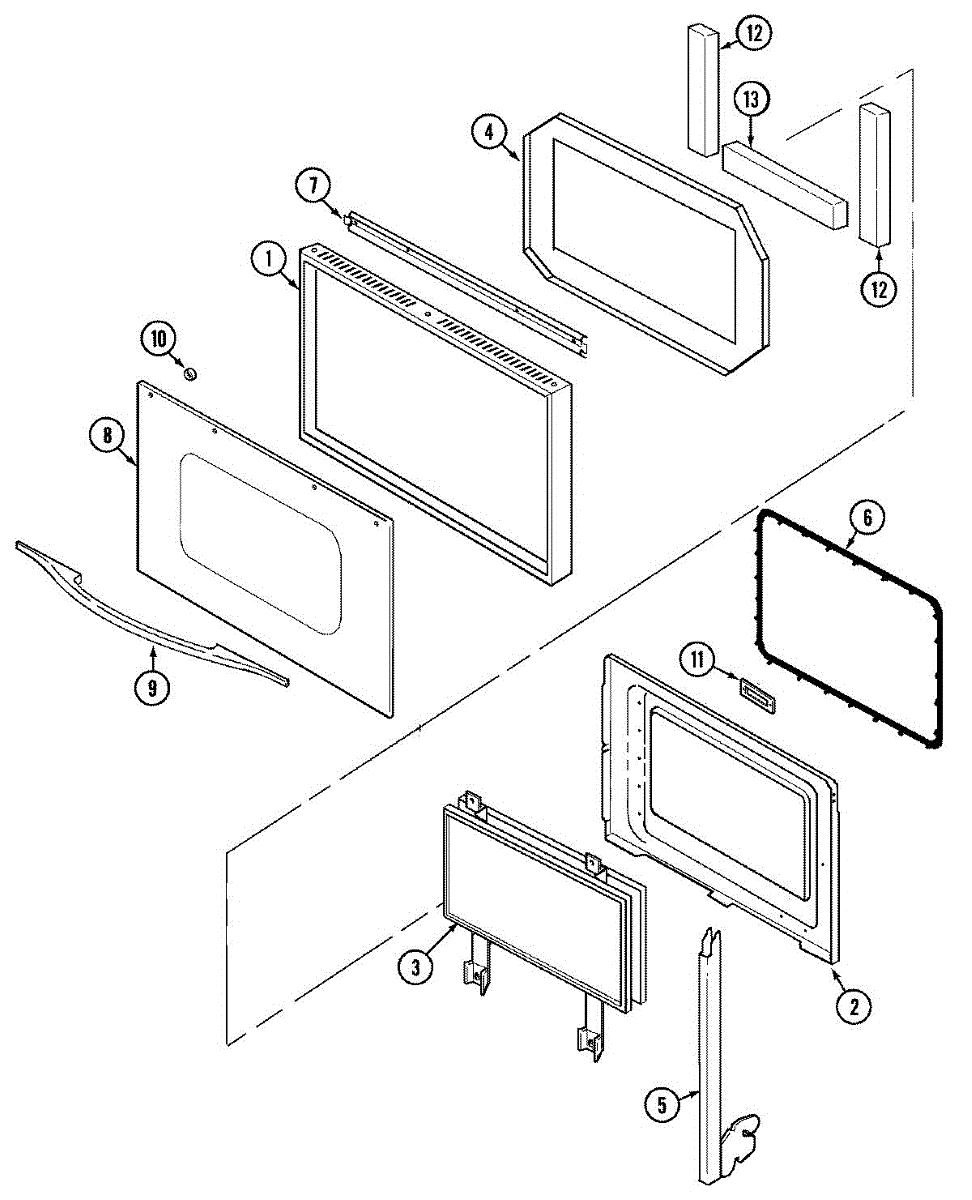

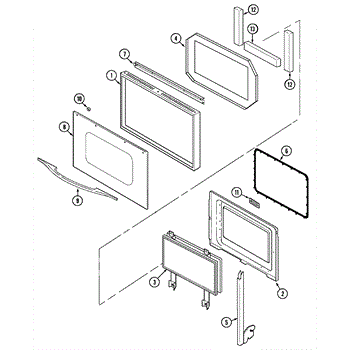

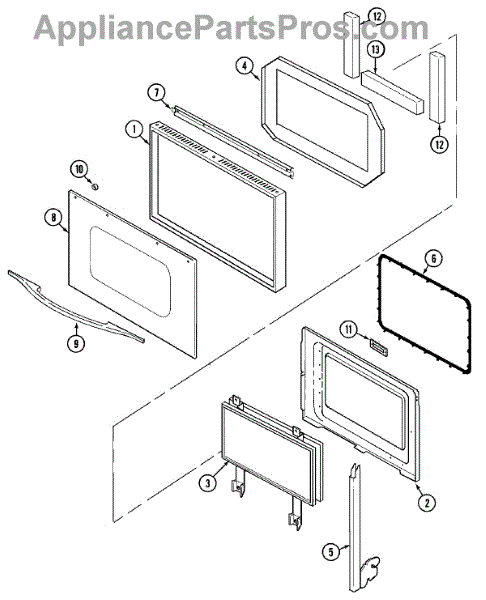

Parts for Magic Chef 9855XVB: 03 - Door Parts

The Screw is an OEM part for Whirlpool appliances. This specific screw is used in various locations within Whirlpool appliances, securing components and ensuring the stability and proper alignment of parts. It is designed to fit precisely and maintain a firm hold, contributing to the overall functionality and safety of the appliance.

Over time, screws can become worn or stripped due to regular use, corrosion, or over-tightening.

Causes of a bad screw include wear and tear, exposure to moisture leading to rust, and over-tightening which can strip the threads.

Symptoms of a bad screw include:

• Loose or wobbly components
• Misalignment of parts
• Noise due to vibrating or loose parts
• Difficulty in securing or removing the screw

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This inner oven door glass replaces a cracked or cloudy panel to restore a clear view into the oven and help maintain proper door sealing. Fits models that use the WP7902P444-60 / 208970 assembly. What it does:

• Replaces damaged, cracked, or fogged inner oven door glass to improve visibility and appearance.
• Helps maintain the oven door's barrier between the cooking cavity and room air.
• Can reduce heat loss from a compromised door glass when properly installed.
• Safe, durable glass designed for oven-door use per OEM specification.

• One inner oven door glass panel

• Disconnect power to the appliance before starting any repair.
• Remove the oven door per the manufacturer's instructions to access the inner glass; follow OEM guidance for disassembly/reassembly.
• Handle glass with care and wear cut-resistant gloves and eye protection.
• If screws, clips or gaskets appear damaged during disassembly, replace them with matching OEM parts.

The Oven Door Hinge is an OEM part for Whirlpool wall ovens and ranges. Located on both sides of the oven door frame, these metal hinges provide the pivoting connection that allows smooth opening and closing of the door during cooking cycles.

Causes of failure can include wear of the hinge joints from repeatedly bearing the weight of the heavy oven door over thousands of uses. Exposure to high heat during cooking may gradually deteriorate lubricating grease or materials.

Symptoms of faulty hinges include:

• Door rubbing or sticking during opening/closing
• Off-center alignment when shut or inability to fully latch
• Noisy squeaking or grinding emerging from hinges
• Hinges loosened from screws/fastenings or mechanisms seized

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

A replacement oven door seal that restores a tight gasket between the oven and door. It helps prevent heat loss, reduce uneven cooking and keep the exterior cooler for safer, more consistent results. What it does:

• Creates an airtight seal between the oven cavity and door to reduce heat escape.
• Helps maintain stable cooking temperatures to minimize hot spots and uneven baking.
• Stops smoke or fumes from leaking around the door during use.
• Visible signs of failure include tears, compressed or brittle material, and gaps along the door edge.

• Disconnect power (or gas supply) and allow the oven to fully cool before starting work.
• Handle the gasket gently to avoid tearing; align and seat it into the door channel per the OEM pattern.
• Some models require removing the oven door or retaining clips — keep and reuse any factory fasteners when possible.
• Refer to the appliance's OEM service instructions for model-specific removal and reinstallation guidance.

Size: 10-32

This screw-and-washer fastener is a factory-size 8-18 x 5/16 hardware piece used to secure appliance panels and components. Replace stripped, rusty, or missing hardware to restore a tight, rattle-free fit and proper alignment. What it does:

• Fastens sheet-metal panels, brackets, and small components in the appliance cabinet
• Replaces lost, stripped, or corroded screws to maintain secure mounting
• Helps reduce vibration, buzzing, or rattling from loose parts
• Useful when the original hardware is missing or no longer holds securely

• Includes 1 screw-and-washer fastener (8-18 x 5/16)

• Disconnect power; shut off gas and water supplies if applicable
• Match the fastener to the original location; sizes can vary by application
• Start threads by hand to avoid cross-threading; use an appropriately sized driver
• Tighten snugly without overtightening to prevent stripping sheet metal

This factory fastener secures appliance components and panels. Replacing worn, stripped, or missing screws restores a tight, rattle-free fit and keeps parts properly aligned for dependable performance.

• Fastens brackets, panels, and internal parts in the specified location
• Helps maintain alignment and reduces vibration or rattling
• Direct replacement for a missing, damaged, or stripped screw
• Symptoms include loose or shifting parts, gaps, or buzzing/rattle noises

• Disconnect power; turn off water or gas supply if applicable
• Use the correct driver; start threads by hand to avoid cross-threading
• Tighten until snug—do not overtighten
• Inspect/repair stripped threads or damaged mating hardware before installation
