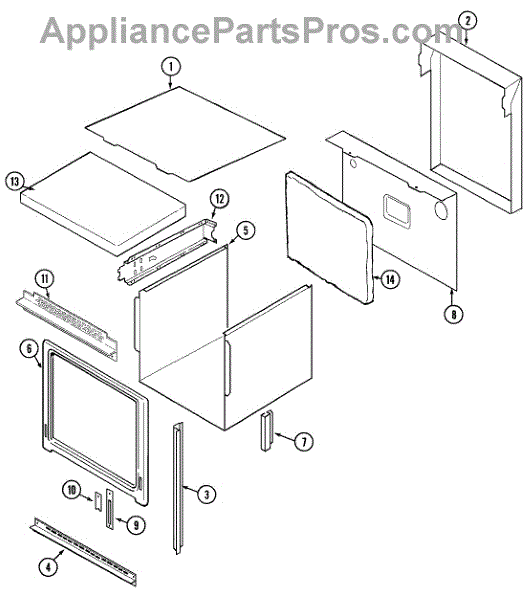

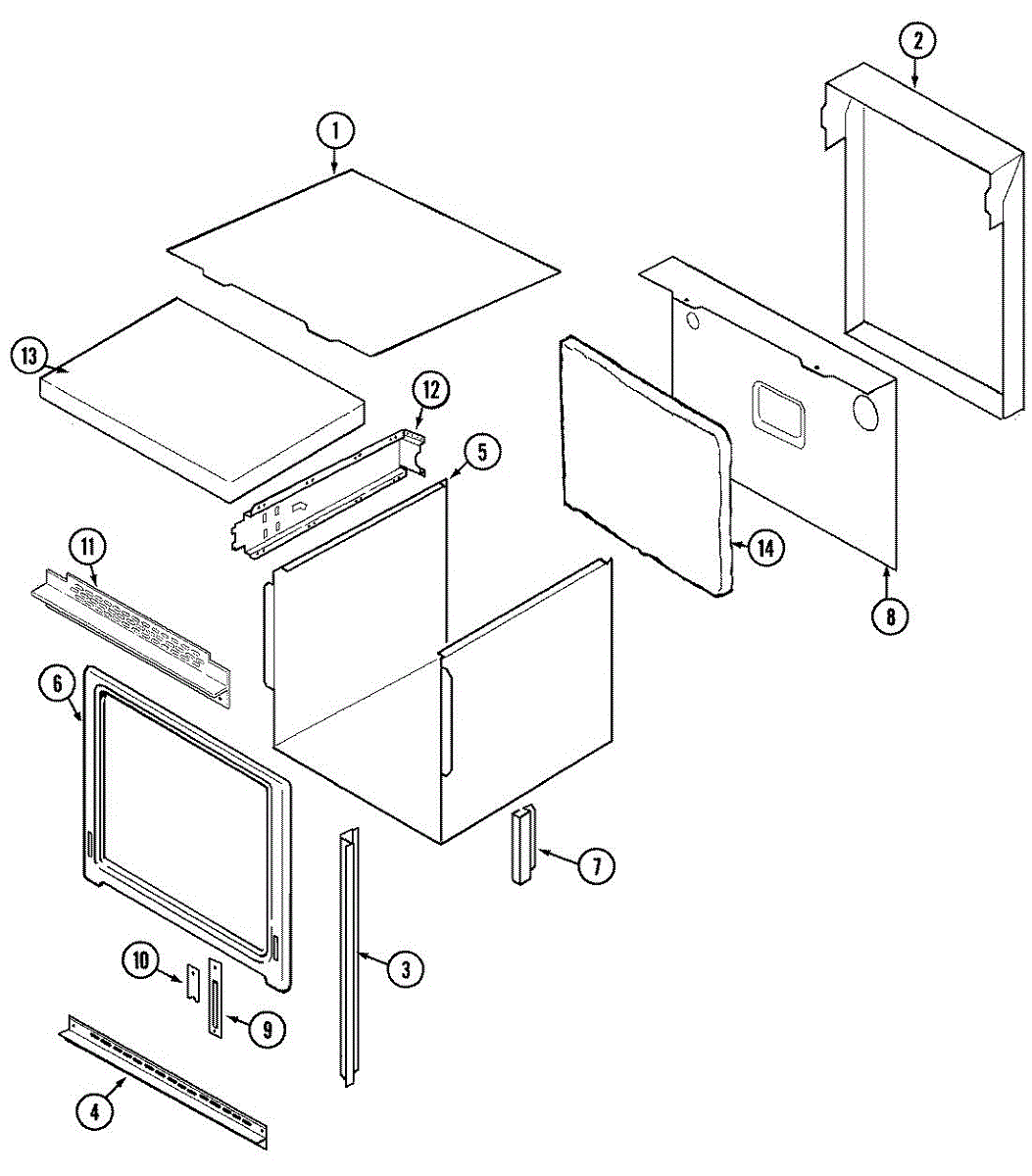

Parts for Magic Chef 9855XVB: 01 - Body Parts

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Screw is an OEM part for Whirlpool appliances. This specific screw is used in various locations within Whirlpool appliances, securing components and ensuring the stability and proper alignment of parts. It is designed to fit precisely and maintain a firm hold, contributing to the overall functionality and safety of the appliance.

Over time, screws can become worn or stripped due to regular use, corrosion, or over-tightening.

Causes of a bad screw include wear and tear, exposure to moisture leading to rust, and over-tightening which can strip the threads.

Symptoms of a bad screw include:

• Loose or wobbly components
• Misalignment of parts
• Noise due to vibrating or loose parts
• Difficulty in securing or removing the screw

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This oven door hinge receptacle mounts in the cabinet frame and receives the door hinge arm. Replacing a worn receptacle restores proper door support and closure for a consistent seal and safe, reliable oven operation.

• Secures the door hinge arm to the oven/range frame
• Maintains door alignment to help the gasket seal properly
• Supports smooth opening/closing and prevents the door from disengaging
• Common symptoms: door won't close fully, door sags or feels loose, hinge won't engage or the door detaches easily

• Disconnect power (and gas, if applicable) and allow the appliance to cool completely
• Remove the oven door and support it to prevent damage
• Access the receptacle at the frame; remove mounting screws, install the new receptacle using existing hardware, and tighten securely
• Check door alignment and operation before returning the unit to service
