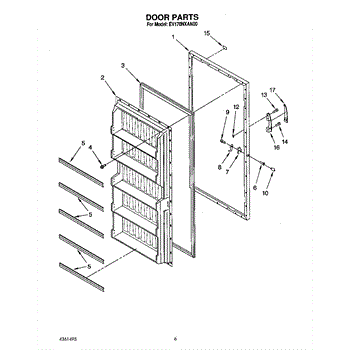

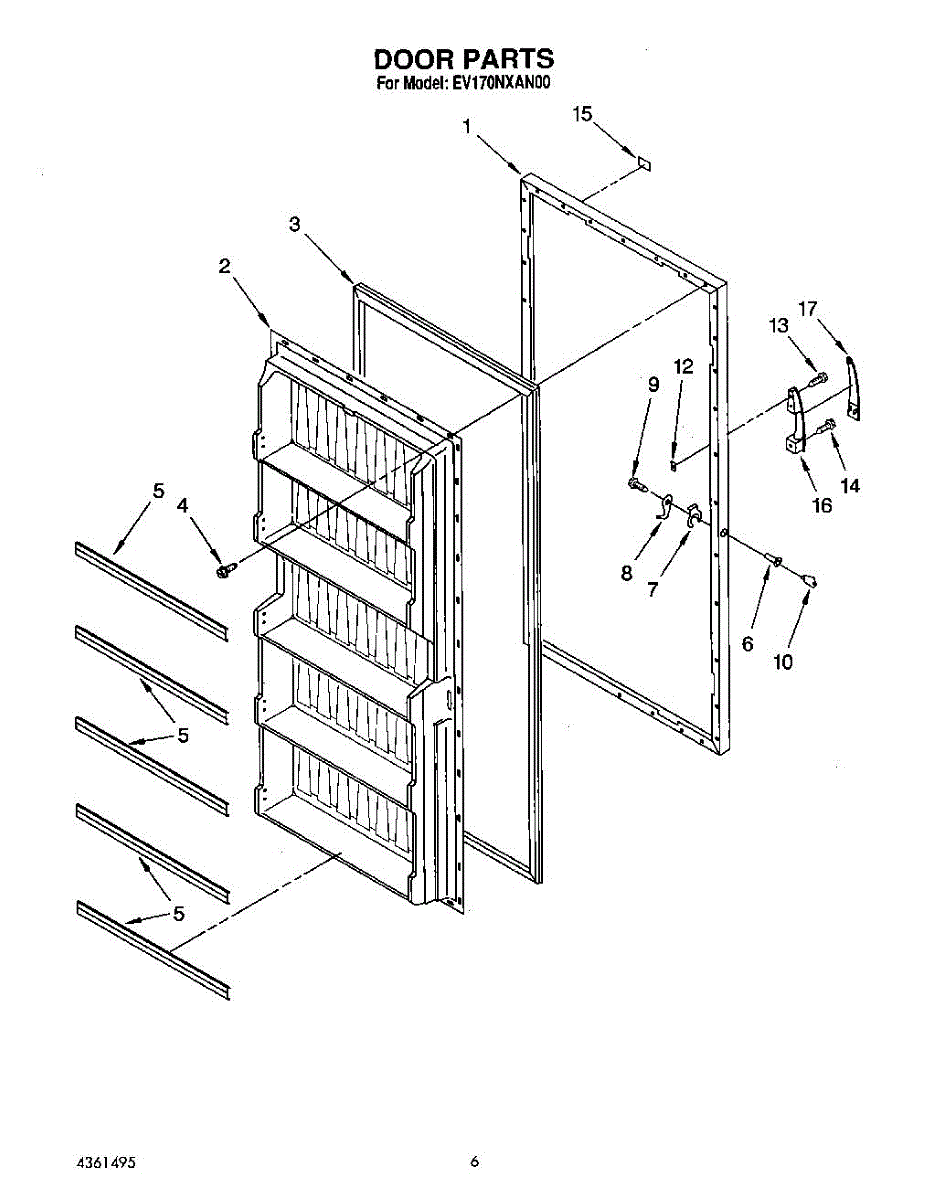

Parts for Whirlpool EV170NXAN00: 03 - Door Parts

Size: 8 x 1/2 ab.

This lock assembly secures the appliance door/lid and enables normal cycle starts by engaging the latch. Replaces a worn or broken lock to restore proper door closure and allow the unit to begin and complete cycles reliably. What it does

• Physically latches the door/lid so the appliance can start and run
• Provides the mechanical engagement the control checks before permitting operation
• Common symptom: door won't stay closed or latch does not engage
• Common symptom: appliance won't start, won't advance or shows a door/lock fault

• Disconnect power (and water supply for washers) before beginning any service
• Handle small parts carefully and note their orientation for reassembly
• If wiring is present, disconnect and reconnect matching connectors only; do not force

Size: 8 x 1/2 ab.

This is the keyed lock insert for select appliance doors. It lets you lock or unlock the door to secure contents and prevent unintended opening.

• Engages the door's lock mechanism to secure or release the door
• Helpful when the door won't lock/unlock or the original key is lost
• Restores proper locking function without replacing the whole lock assembly

• Unplug the appliance before service
• Verify the key profile matches your existing lock before use
• Insert fully and turn gently; do not force if resistance is felt
• Keep a spare key in a safe location away from the appliance

Size: 63-1/2 x 35-1/2 x 2-5/8 inch.
