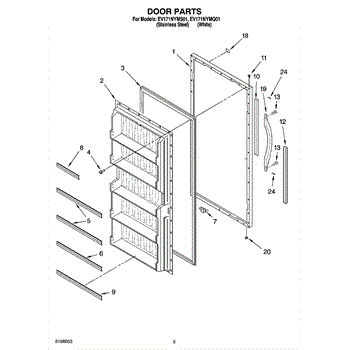

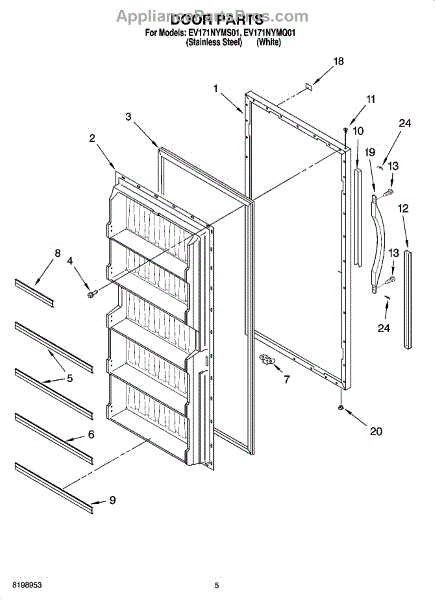

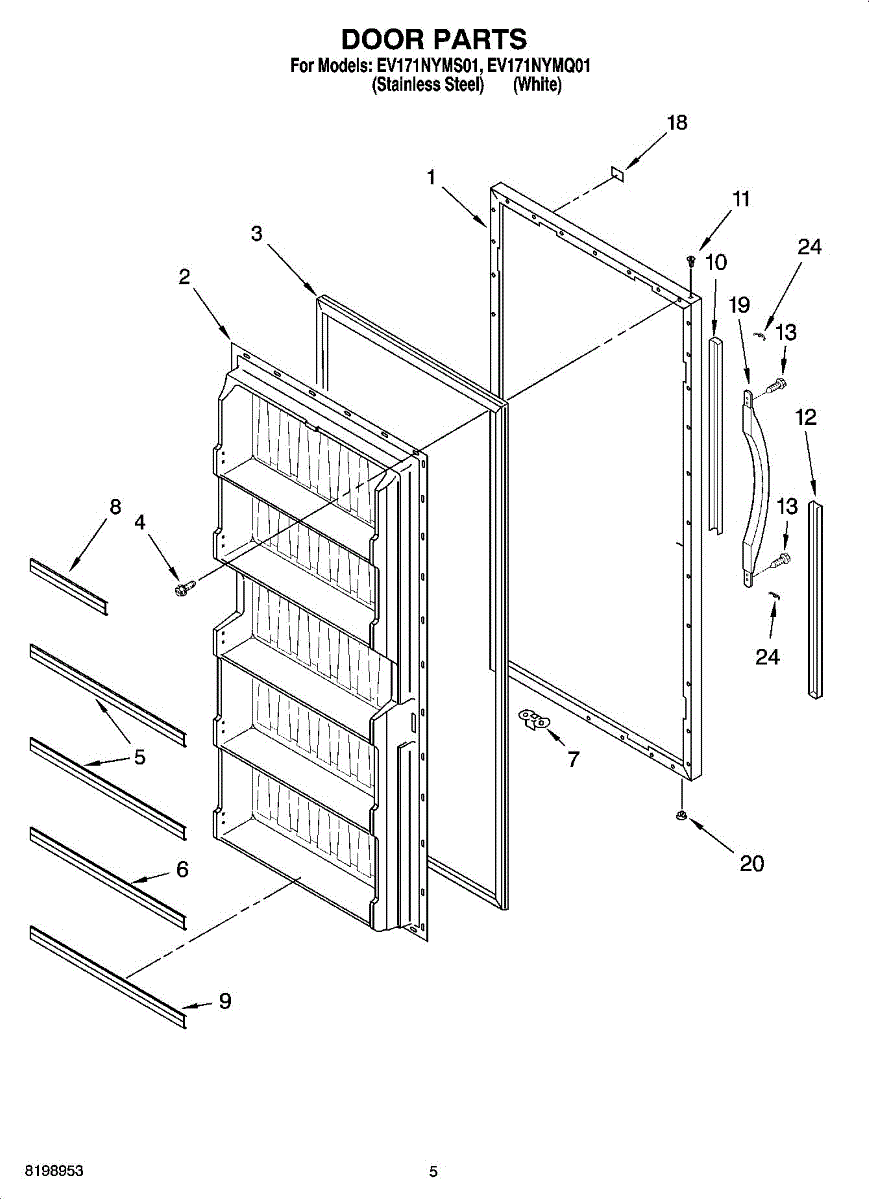

Parts for Whirlpool EV171NYMS01: 03 - Door Parts

White. No longer made in stainless. Includes the inner and outer door panel.

This replacement OEM part is a door gasket for refrigerators. The door gasket, sometimes called the door seal, is the rubber piece that fits around the interior door of the refrigerator, creating a seal that prevents warm air from entering the refrigerator. Over time, the door gasket can become damaged after continuous use. If the gasket becomes cracked or is no longer able to tightly secure the door, it might be time to replace it. To replace the seal, begin by opening the refrigerator door. Locate the least secure part of the seal and begin to pull it out from its groove. Pull firmly from one corner to the other until the entire seal has been removed. After removal, proceed to place the new seal into its proper position by pushing it down into the groove of the refrigerator door that attaches it. Start from one corner until the seal completely covers the perimeter of the door. Once secured, close the refrigerator door.This genuine replacement part is sold individually and is compatible with Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, Sears, and Kenmore brand refrigerators.

This door gasket restores a tight seal between the door and cabinet opening, helping keep cold air in and warm air out. Replacing a worn or damaged seal helps maintain temperature, reduce frost, and improve efficiency.

• Creates a continuous seal around the door perimeter to prevent air leaks
• Helps maintain proper internal temperature and humidity control
• Reduces frost and condensation caused by gaps or a deformed gasket
• Typical symptoms: torn or brittle gasket, visible gaps, door not sealing, excess frost or moisture

• Disconnect power before beginning work
• Soften the new gasket in warm water to relax folds; use only gentle heat if needed
• Seat the gasket fully in the channel or under retainers as designed by your model
• After installation, check contact all around and adjust hinges/latch if necessary; allow time for the gasket to conform

This white hinge sleeve cap covers and protects the exposed hinge bushing/pin area, providing a clean, finished look while helping keep debris out of the hinge mechanism.

• Covers the hinge sleeve to improve appearance and protect the hinge area
• Helps prevent dirt and moisture from entering the hinge bushing
• Common failure signs include a missing/broken cap or a loose cap that won't stay in place
• May be used on door hinge locations where a sleeve/bushing is present

• Unplug the appliance or shut off power before starting
• Open the door and support it if working near a hinge
• Gently pry off the old cap; press the new cap firmly onto the hinge sleeve
• Do not force—align carefully to avoid cracking the cap

This replacement screw secures appliance panels, brackets, and components. Using the correct size restores a snug fit to reduce vibration, prevent loosening, and keep assemblies properly aligned during operation. What it does:

• Fastens sheet metal and component brackets in designated locations
• Replaces missing, stripped, or corroded hardware
• Helps eliminate rattling and vibration from loose panels
• Maintains proper alignment of covers and assemblies

• 1 screw

• Disconnect electrical power; shut off water or gas supplies if applicable
• Match length/thread to the original; replace one fastener at a time to preserve alignment
• Start by hand to avoid cross-threading; use the correct driver size
• Snug firmly but do not overtighten to prevent stripping

This vent plug seals the designated vent port on the appliance assembly to maintain the intended seal and containment. Replacing a worn or missing plug helps prevent nuisance leaks and odors from an open or damaged vent.

• Seals a factory vent opening on the specified assembly
• Helps prevent moisture or drips from escaping at the vent area
• Helps keep dust and debris from entering through an open port
• Replace if the plug is cracked, hardened, shrunken, loose, or missing
• Typical signs include moisture around the vent, visible damage, or a plug that won't stay seated

• Disconnect power and shut off water or gas supplies (as applicable) before servicing
• Allow appliance surfaces to cool and dry; wear protective gloves
• Remove the old plug, clean the vent port, and press the new plug fully flush in the same orientation
• Restore power and run a brief test; inspect the vent area for leaks
