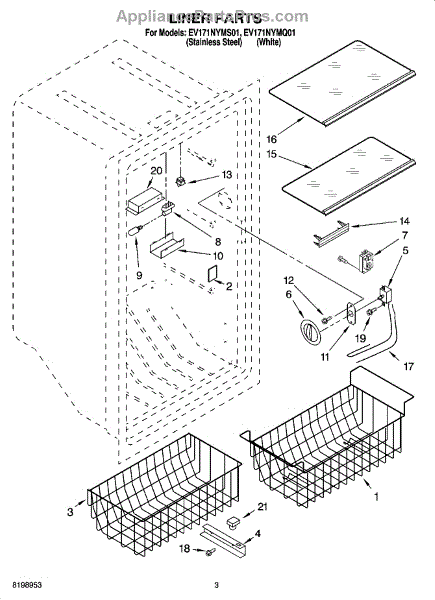

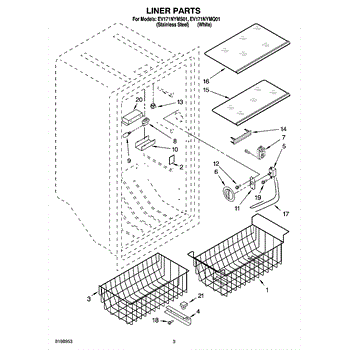

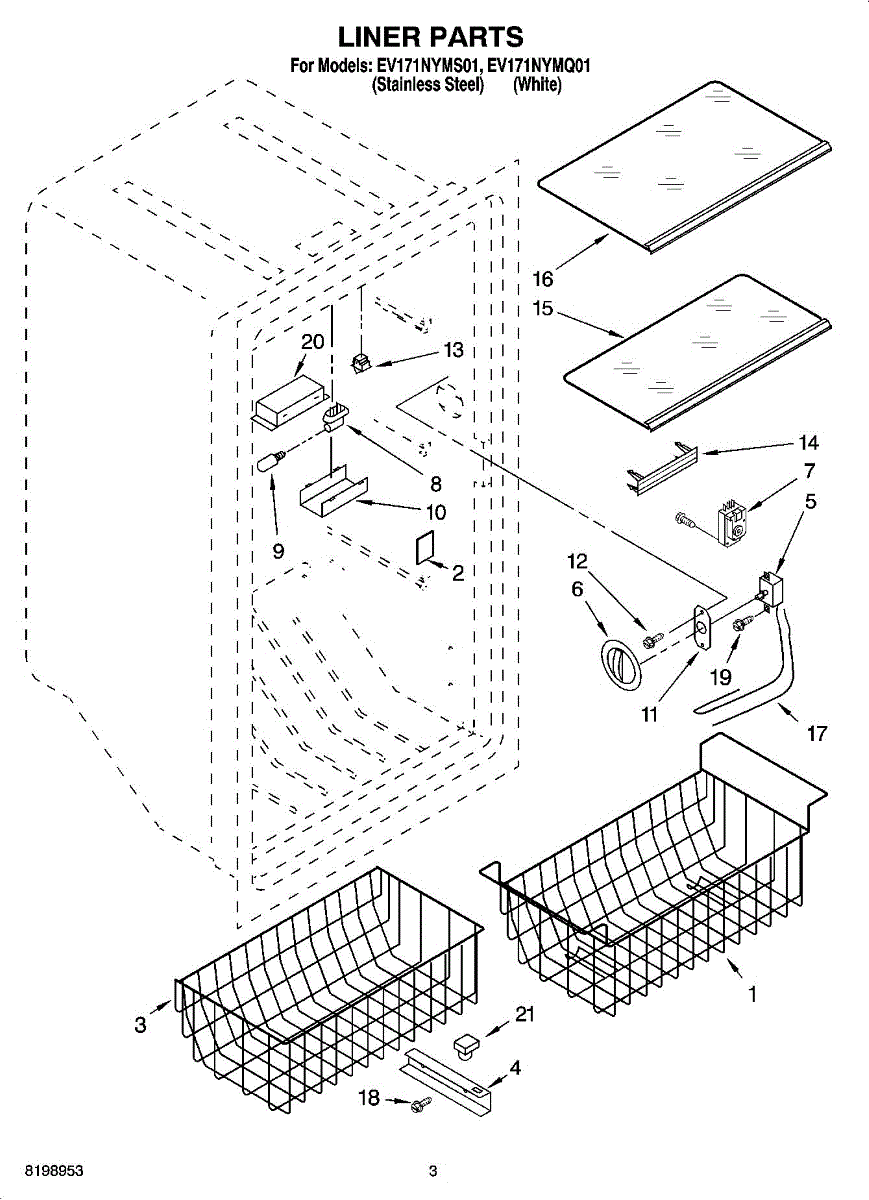

Parts for Whirlpool EV171NYMS01: 02 - Liner Parts

This control housing cover protects the appliance's control components and wiring while providing a finished look. Replacing a damaged cover helps prevent dirt, moisture, and accidental contact with controls and wiring. What it does:

• Shields control board, switches, and wiring from dust, spills, and debris
• Prevents accidental contact with electrical components for safer operation
• Restores a secure, finished appearance to the control area
• Helps keep buttons and knobs aligned and functioning properly

• One control housing cover

• Disconnect power before servicing to avoid electric shock
• Remove any knobs or trim necessary to access mounting fasteners
• Handle gently to avoid cracking plastic; replace any broken clips or screws

This thermostat regulates the appliance's internal temperature by cycling the cooling or heating circuit on and off to maintain your set point. Replacing a failing thermostat restores accurate temperature control and consistent performance.

• Monitors temperature and opens/closes electrical contacts to maintain the selected setting
• Helps resolve symptoms like temperatures that drift, nonstop running, or failure to start/stop at the set point
• Can address an unresponsive or erratic control knob and irregular cycling
• Restores stable, predictable operation after a worn or stuck thermostat

• Disconnect power before servicing; work in a cool, dry area
• Note wire positions; transfer leads one at a time to the new control
• Mount the control securely and align the control shaft with the knob
• Restore power and verify proper cycling with a thermometer

This defrost timer controls when your refrigerator or freezer enters and exits the automatic defrost cycle to clear frost from the evaporator coils. Replacing a failed timer restores reliable defrosting to help maintain airflow, cooling performance, and stable temperatures.

• Advances on a timed schedule to initiate and end the defrost cycle
• Sends power to the defrost heater during defrost, then returns the system to cooling
• Helps prevent heavy frost buildup that restricts airflow and cooling
• Common symptoms of a bad timer: unit not defrosting or warming over time, heavy ice on the evaporator/cover, stuck running or stuck in defrost, or a timer that won't advance

• Disconnect power before servicing
• Access the timer (commonly in the control housing or machine compartment)
• Note/photograph wire positions and move leads one at a time to the new timer; mount securely
• Restore power and monitor for proper cycling; some models allow using the timer's advance slot to start a test defrost

Original Whirlpool light bulb, 40 watt.

Symptoms of needing to replace the light bulb include:

• Dimming or flickering light
• Complete lack of illumination inside the appliance
• Visible signs of damage or burnout on the bulb itself

Causes of a faulty light bulb can include normal burnout over time, electrical issues, or physical damage due to impact or vibrations.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Kenmore, Frigidaire, GE, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore appliances.

The Door Switch is an OEM part for Whirlpool refrigerators. This switch plays a crucial role in monitoring the status of the refrigerator door. It detects when the door is open and closed and signals the refrigerator to suspend or resume cooling operations accordingly.

Causes of a bad door switch can include general wear and tear over time, exposure to moisture, or impact damage. Please check for proper connection and that the wires are intact before replacing the switch.

Symptoms of a bad door switch include:

• The refrigerator fails to resume cooling after closing the door
• The inside light fails to turn on when the door is opened
• Abnormal energy usage due to improper door monitoring

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


Air duct baffle that seals and directs airflow between freezer and fresh-food compartments, helping maintain even temperatures and reduce temperature fluctuations. Replaces a worn or broken vent plug to restore proper airflow. What it does:

• Directs cold air through the refrigerator air duct to help balance temperatures between compartments.
• Seals the duct opening to limit warm air intrusion and reduce uneven cooling.
• Common symptom: refrigerator or fresh-food compartment feels warmer than expected or shows inconsistent cooling.
• Plastic replacement part; use when the existing vent plug is cracked, warped, or missing.

• Disconnect power before servicing the appliance to avoid electrical shock.
• Access typically requires opening the refrigerator interior; remove shelves or bins as needed for clearance.
• Part generally snaps or slides into the duct opening—minimal tools may be required; handle clips and plastic gently to avoid breakage.

The Thermostat Tube Shield is an OEM part for Whirlpool refrigerators. It functions as a barrier that covers and insulates the temperature control thermostat capillary tube. This shield ensures accurate temperature sensing and regulation by protecting the capillary tube from physical damage and external temperature influences.

Over time, the thermostat tube shield can become worn out or damaged due to factors like regular wear and tear, accidental impact, or environmental conditions such as humidity and temperature fluctuations.

Symptoms of a bad thermostat tube shield include:

• Inconsistent or inaccurate refrigerator temperatures
• The refrigerator running continuously or cycling on and off frequently
• Visible damage or wear to the shield
• Difficulty in maintaining the desired temperature settings

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This replacement screw secures appliance panels, brackets, and components. Using the correct size restores a snug fit to reduce vibration, prevent loosening, and keep assemblies properly aligned during operation. What it does:

• Fastens sheet metal and component brackets in designated locations
• Replaces missing, stripped, or corroded hardware
• Helps eliminate rattling and vibration from loose panels
• Maintains proper alignment of covers and assemblies

• 1 screw

• Disconnect electrical power; shut off water or gas supplies if applicable
• Match length/thread to the original; replace one fastener at a time to preserve alignment
• Start by hand to avoid cross-threading; use the correct driver size
• Snug firmly but do not overtighten to prevent stripping

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal
