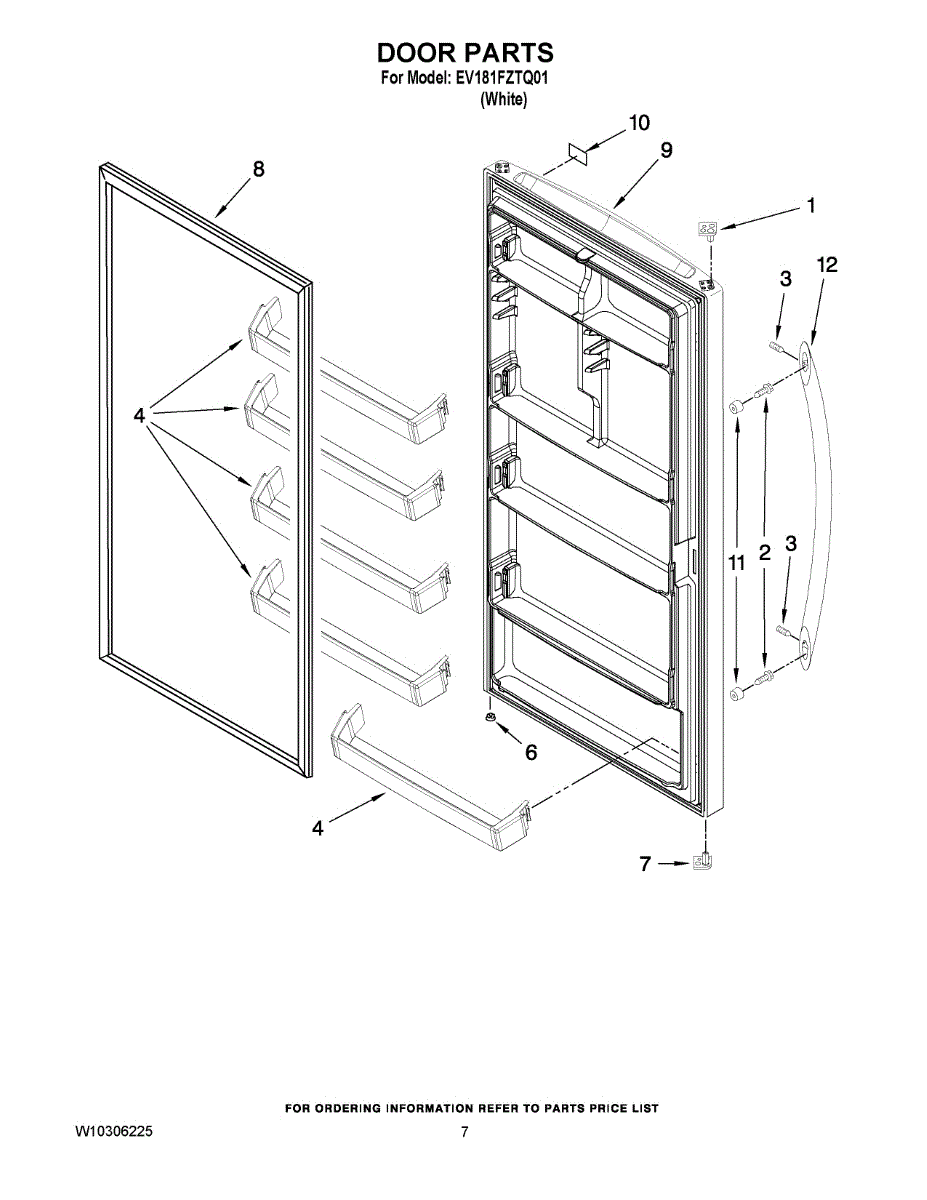

Parts for Whirlpool EV181FZTQ01: 04 - Door Parts

This door stop replaces the worn or broken stop that limits door travel and keeps the door aligned for smooth opening and closing. Restores proper door positioning to prevent over-travel and edge wear. What it does:

• Acts as the mechanical stop that limits the door's range of motion
• Helps keep the door aligned and prevents the door from swinging past the designed stop
• Reduces stress on hinges and adjacent trim from over-travel
• Commonly replaced when the door binds, catches, or does not sit flush

What's included:

• One door stop (stop-door) as shown

Install notes:

• Disconnect power and follow the appliance manufacturer's safety instructions before servicing
• Removal typically requires basic hand tools; keep fasteners for reassembly
• Inspect surrounding hinge and trim for wear; replace as needed

This replacement screw secures appliance panels, brackets, and components to the cabinet or chassis. The #8-15 x 1/2 in. size restores a snug, reliable hold when original hardware is missing, stripped, or corroded.

• Fastens panels, brackets, and trim to the appliance cabinet or chassis
• Helps reduce rattling, vibration, or looseness caused by missing/stripped hardware
• Restores proper alignment of parts that have shifted due to loose fasteners
• Size/spec: #8-15 thread, 1/2-inch length; use where this size is specified

• Disconnect power and shut off gas/water supplies before servicing
• Replace one screw at a time to maintain alignment of parts
• Start threads by hand to prevent cross-threading; do not overtighten
• Use a matching driver/bit type for the screw head used in your appliance

This vent plug seals the designated vent port on the appliance assembly to maintain the intended seal and containment. Replacing a worn or missing plug helps prevent nuisance leaks and odors from an open or damaged vent.

• Seals a factory vent opening on the specified assembly
• Helps prevent moisture or drips from escaping at the vent area
• Helps keep dust and debris from entering through an open port
• Replace if the plug is cracked, hardened, shrunken, loose, or missing
• Typical signs include moisture around the vent, visible damage, or a plug that won't stay seated

• Disconnect power and shut off water or gas supplies (as applicable) before servicing
• Allow appliance surfaces to cool and dry; wear protective gloves
• Remove the old plug, clean the vent port, and press the new plug fully flush in the same orientation
• Restore power and run a brief test; inspect the vent area for leaks

This door stop replaces the worn or broken stop that limits door travel and keeps the door aligned for smooth opening and closing. Restores proper door positioning to prevent over-travel and edge wear. What it does:

• Acts as the mechanical stop that limits the door's range of motion
• Helps keep the door aligned and prevents the door from swinging past the designed stop
• Reduces stress on hinges and adjacent trim from over-travel
• Commonly replaced when the door binds, catches, or does not sit flush

What's included:

• One door stop (stop-door) as shown

Install notes:

• Disconnect power and follow the appliance manufacturer's safety instructions before servicing
• Removal typically requires basic hand tools; keep fasteners for reassembly
• Inspect surrounding hinge and trim for wear; replace as needed

This magnetic door gasket seals the perimeter of the refrigerator or freezer door to keep cold air in and humidity out. Replacing a worn gasket restores a tight seal, stabilizes temperatures, and helps reduce frost and energy use. What it does:

• Creates an airtight magnetic seal between the cabinet and door liner
• Helps maintain proper interior temperature and efficiency
• Reduces condensation, frost, and ice buildup around the door opening
• Resolves gaps, torn or hardened gasket edges, doors not sealing, or frequent cycling

• 1 magnetic door gasket

• Disconnect power and clear door bins/shelves for access
• Warm the new gasket in hot water or with low heat to relax and straighten before installation
• Seat the gasket evenly around the perimeter; ensure the lip is fully engaged in the channel (loosen retainer screws if your model uses them)
• Close the door and check for uniform contact; re-seat corners or adjust hinges as needed. Allow up to 24 hours for the gasket to fully conform.

The Screw (Shoulder Bolt) is an OEM part for Whirlpool refrigerators. This part secures the refrigerator handle to the door, ensuring it remains firmly attached and functions correctly. The shoulder design of the bolt allows for proper spacing and alignment of the handle, providing stability and ease of use.

Causes of a bad handle screw can include regular wear and tear, over-tightening, or accidental damage during use or maintenance.

Symptoms of a bad handle screw include:

• Loose or wobbly refrigerator handle
• Handle detaching from the door
• Difficulty opening or closing the refrigerator
• Visible damage or wear on the screw

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.
