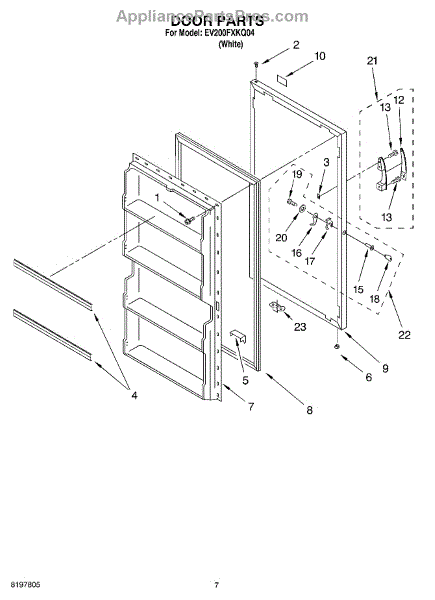

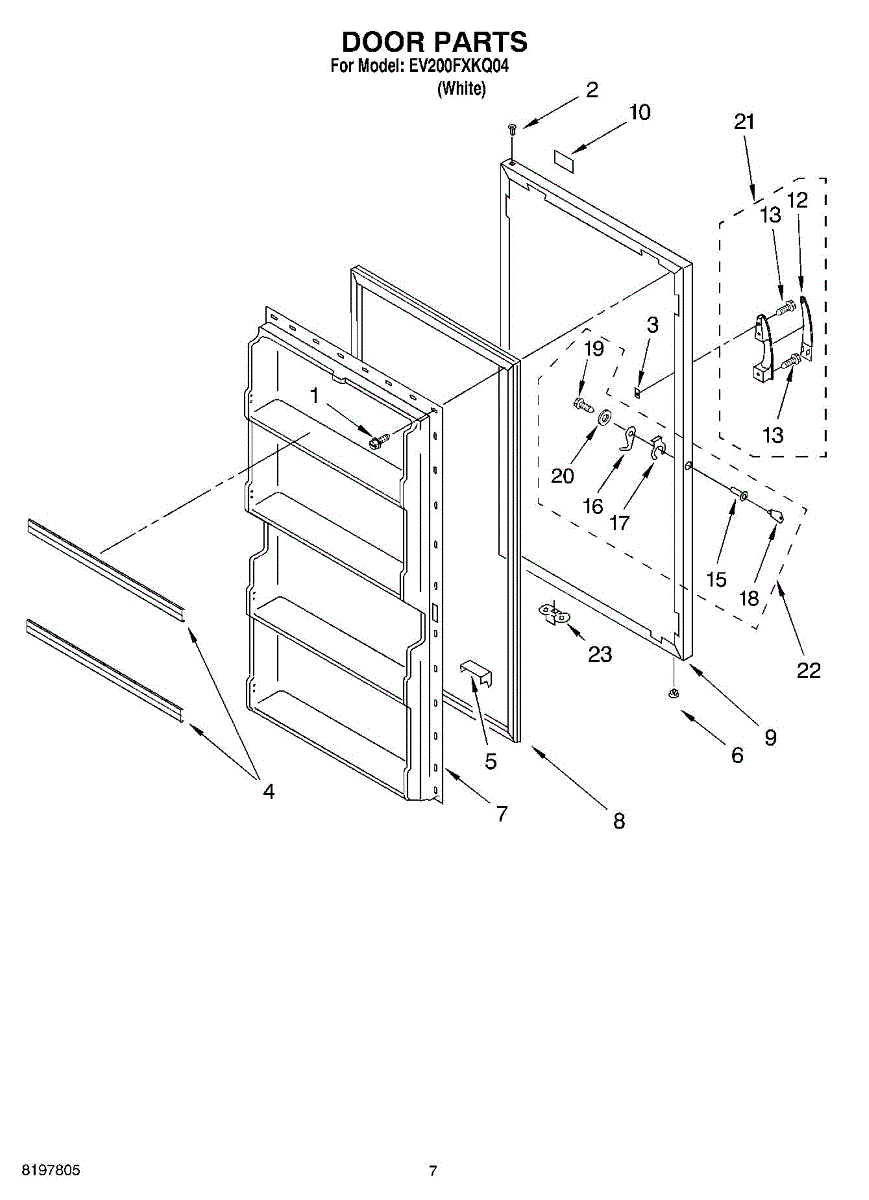

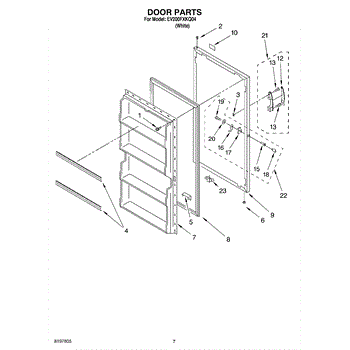

Parts for Whirlpool EV200FXKQ04: 04 - Door Parts

This white hinge sleeve cap covers and protects the exposed hinge bushing/pin area, providing a clean, finished look while helping keep debris out of the hinge mechanism.

• Covers the hinge sleeve to improve appearance and protect the hinge area
• Helps prevent dirt and moisture from entering the hinge bushing
• Common failure signs include a missing/broken cap or a loose cap that won't stay in place
• May be used on door hinge locations where a sleeve/bushing is present

• Unplug the appliance or shut off power before starting
• Open the door and support it if working near a hinge
• Gently pry off the old cap; press the new cap firmly onto the hinge sleeve
• Do not force—align carefully to avoid cracking the cap

This vent plug seals the designated vent port on the appliance assembly to maintain the intended seal and containment. Replacing a worn or missing plug helps prevent nuisance leaks and odors from an open or damaged vent.

• Seals a factory vent opening on the specified assembly
• Helps prevent moisture or drips from escaping at the vent area
• Helps keep dust and debris from entering through an open port
• Replace if the plug is cracked, hardened, shrunken, loose, or missing
• Typical signs include moisture around the vent, visible damage, or a plug that won't stay seated

• Disconnect power and shut off water or gas supplies (as applicable) before servicing
• Allow appliance surfaces to cool and dry; wear protective gloves
• Remove the old plug, clean the vent port, and press the new plug fully flush in the same orientation
• Restore power and run a brief test; inspect the vent area for leaks

The Refrigerator Door Gasket is an OEM part for Whirlpool refrigerators. It creates an airtight seal around the refrigerator door, preventing warm air from entering and cold air from escaping, which helps maintain the internal temperature and improve energy efficiency.

Causes of a bad door gasket can include normal wear and tear, frequent opening and closing of the refrigerator door, or damage from cleaning chemicals or rough handling.

Symptoms of a bad refrigerator door gasket include:

• Warm spots inside the refrigerator
• Excessive condensation or frost buildup
• The refrigerator running more frequently or constantly
• Visible cracks, tears, or deformations in the gasket

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This replacement screw secures appliance panels, brackets, and components. Using the correct size restores a snug fit to reduce vibration, prevent loosening, and keep assemblies properly aligned during operation. What it does:

• Fastens sheet metal and component brackets in designated locations
• Replaces missing, stripped, or corroded hardware
• Helps eliminate rattling and vibration from loose panels
• Maintains proper alignment of covers and assemblies

• 1 screw

• Disconnect electrical power; shut off water or gas supplies if applicable
• Match length/thread to the original; replace one fastener at a time to preserve alignment
• Start by hand to avoid cross-threading; use the correct driver size
• Snug firmly but do not overtighten to prevent stripping

This lock assembly secures the appliance door/lid and enables normal cycle starts by engaging the latch. Replaces a worn or broken lock to restore proper door closure and allow the unit to begin and complete cycles reliably. What it does

• Physically latches the door/lid so the appliance can start and run
• Provides the mechanical engagement the control checks before permitting operation
• Common symptom: door won't stay closed or latch does not engage
• Common symptom: appliance won't start, won't advance or shows a door/lock fault

• Disconnect power (and water supply for washers) before beginning any service
• Handle small parts carefully and note their orientation for reassembly
• If wiring is present, disconnect and reconnect matching connectors only; do not force

This is the keyed lock insert for select appliance doors. It lets you lock or unlock the door to secure contents and prevent unintended opening.

• Engages the door's lock mechanism to secure or release the door
• Helpful when the door won't lock/unlock or the original key is lost
• Restores proper locking function without replacing the whole lock assembly

• Unplug the appliance before service
• Verify the key profile matches your existing lock before use
• Insert fully and turn gently; do not force if resistance is felt
• Keep a spare key in a safe location away from the appliance

Size: 8 x 1/2 ab.

This lock assembly secures the appliance door/lid and enables normal cycle starts by engaging the latch. Replaces a worn or broken lock to restore proper door closure and allow the unit to begin and complete cycles reliably. What it does

• Physically latches the door/lid so the appliance can start and run
• Provides the mechanical engagement the control checks before permitting operation
• Common symptom: door won't stay closed or latch does not engage
• Common symptom: appliance won't start, won't advance or shows a door/lock fault

• Disconnect power (and water supply for washers) before beginning any service
• Handle small parts carefully and note their orientation for reassembly
• If wiring is present, disconnect and reconnect matching connectors only; do not force
