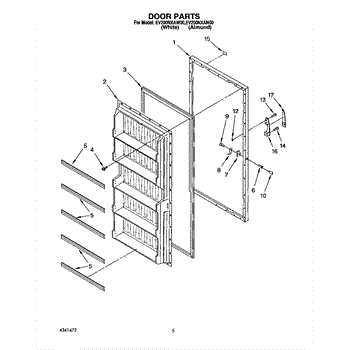

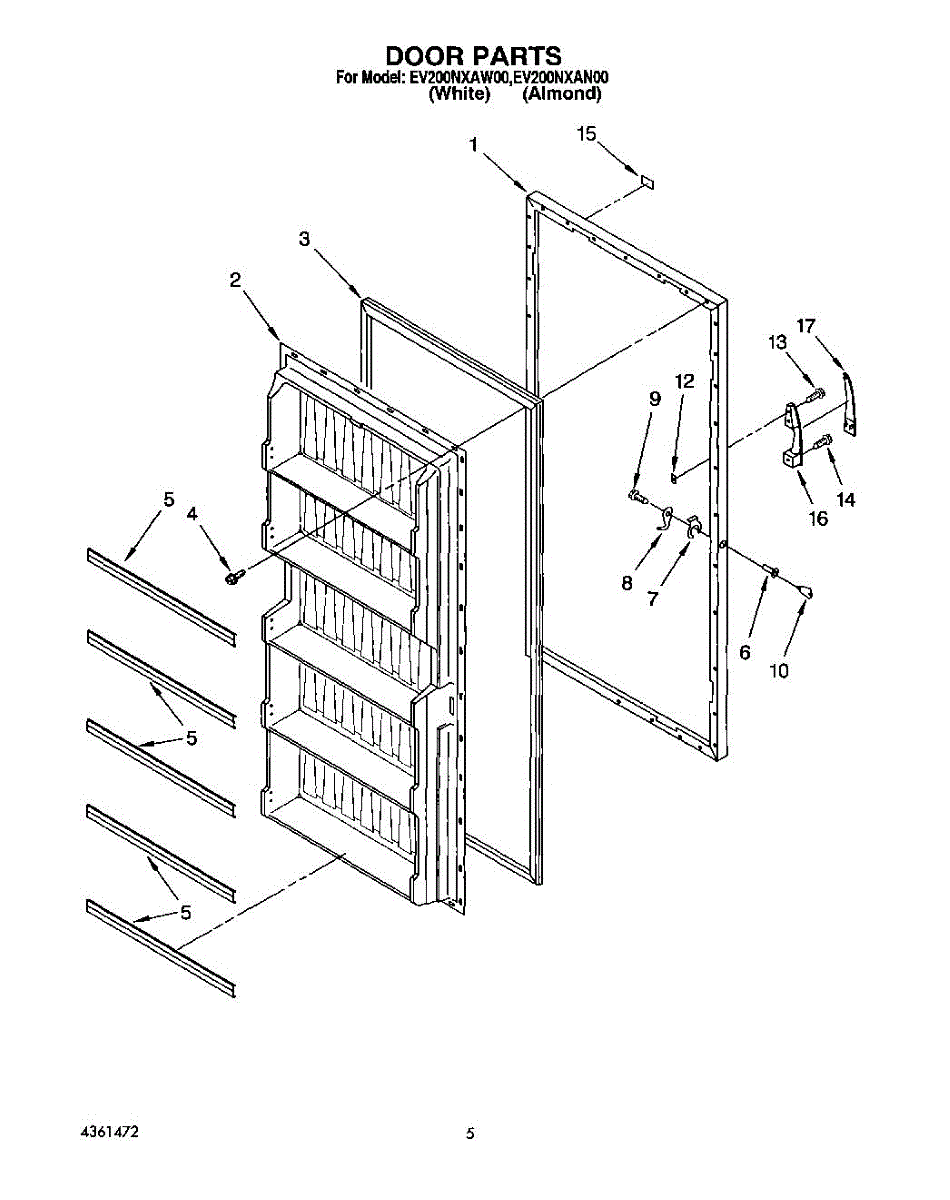

Parts for Whirlpool EV200NXAN00: 03 - Door Parts

The Refrigerator Door Gasket is an OEM part for Whirlpool refrigerators. It creates an airtight seal around the refrigerator door, preventing warm air from entering and cold air from escaping, which helps maintain the internal temperature and improve energy efficiency.

Causes of a bad door gasket can include normal wear and tear, frequent opening and closing of the refrigerator door, or damage from cleaning chemicals or rough handling.

Symptoms of a bad refrigerator door gasket include:

• Warm spots inside the refrigerator
• Excessive condensation or frost buildup
• The refrigerator running more frequently or constantly
• Visible cracks, tears, or deformations in the gasket

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Size: 8 x 1/2 ab.

This lock assembly secures the appliance door/lid and enables normal cycle starts by engaging the latch. Replaces a worn or broken lock to restore proper door closure and allow the unit to begin and complete cycles reliably. What it does

• Physically latches the door/lid so the appliance can start and run
• Provides the mechanical engagement the control checks before permitting operation
• Common symptom: door won't stay closed or latch does not engage
• Common symptom: appliance won't start, won't advance or shows a door/lock fault

• Disconnect power (and water supply for washers) before beginning any service
• Handle small parts carefully and note their orientation for reassembly
• If wiring is present, disconnect and reconnect matching connectors only; do not force

Size: 8 x 1/2 ab.

This is the keyed lock insert for select appliance doors. It lets you lock or unlock the door to secure contents and prevent unintended opening.

• Engages the door's lock mechanism to secure or release the door
• Helpful when the door won't lock/unlock or the original key is lost
• Restores proper locking function without replacing the whole lock assembly

• Unplug the appliance before service
• Verify the key profile matches your existing lock before use
• Insert fully and turn gently; do not force if resistance is felt
• Keep a spare key in a safe location away from the appliance
