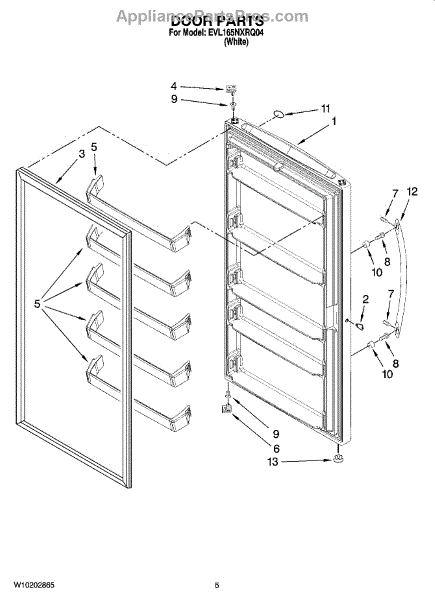

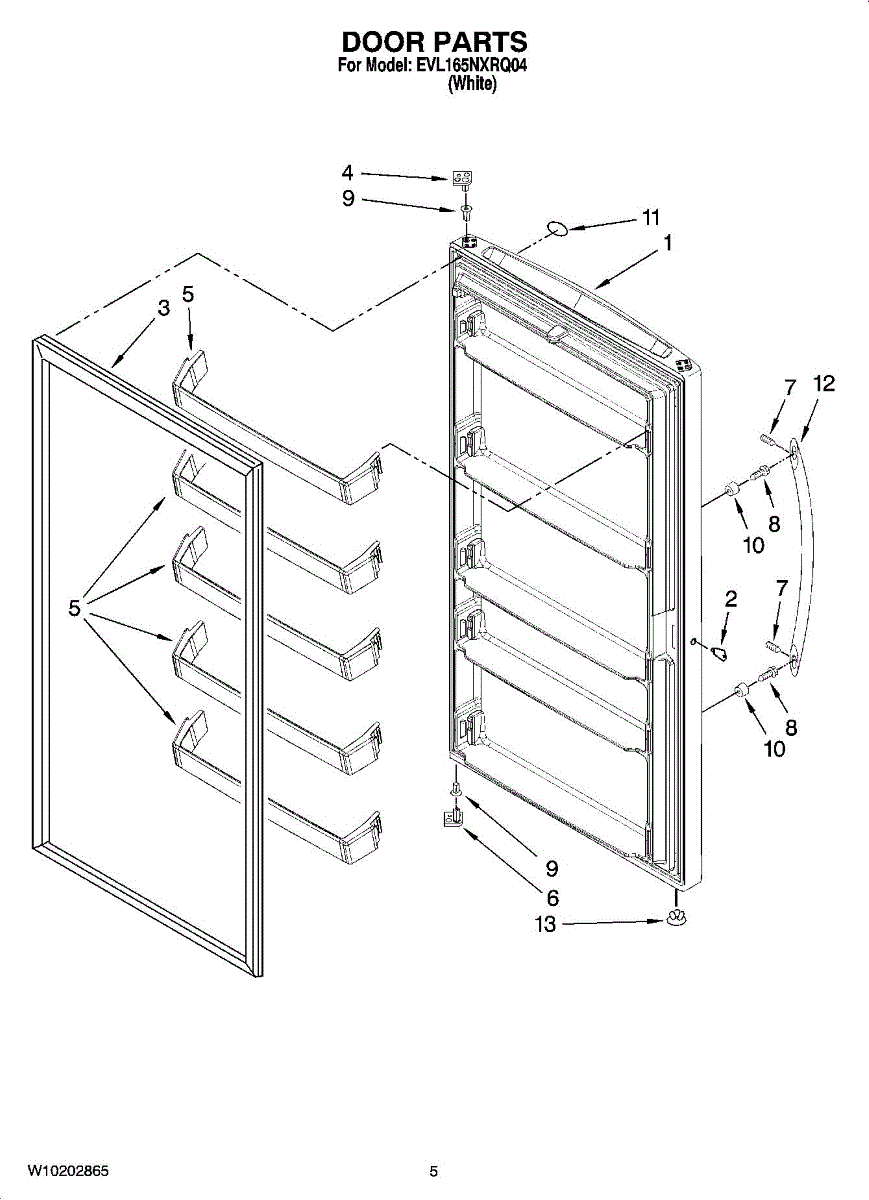

Parts for Whirlpool EVL165NXRQ04: 03 - Door Parts

This is the keyed lock insert for select appliance doors. It lets you lock or unlock the door to secure contents and prevent unintended opening.

• Engages the door's lock mechanism to secure or release the door
• Helpful when the door won't lock/unlock or the original key is lost
• Restores proper locking function without replacing the whole lock assembly

• Unplug the appliance before service
• Verify the key profile matches your existing lock before use
• Insert fully and turn gently; do not force if resistance is felt
• Keep a spare key in a safe location away from the appliance

This magnetic door gasket creates an airtight seal around the perimeter of your refrigerator/freezer door. Replacing a worn gasket restores proper sealing to help maintain temperature, reduce frost and condensation, and improve overall efficiency.

• Seals the door to minimize air leaks and temperature swings
• Helps reduce frost buildup and moisture around the door perimeter
• Supports consistent cooling and quieter, shorter run times
• Common failure signs: tears, gaps, hardened/compressed areas, or persistent condensation

• Disconnect power before servicing.
• Warm the new gasket (room temp; briefly in warm water or with a hair dryer on low) to relax bends.
• Seat the gasket evenly in the door's retainer/channel; align corners for uniform contact.
• Adjust retainer/door alignment as needed.

This door stop replaces the worn or broken stop that limits door travel and keeps the door aligned for smooth opening and closing. Restores proper door positioning to prevent over-travel and edge wear. What it does:

• Acts as the mechanical stop that limits the door's range of motion
• Helps keep the door aligned and prevents the door from swinging past the designed stop
• Reduces stress on hinges and adjacent trim from over-travel
• Commonly replaced when the door binds, catches, or does not sit flush

What's included:

• One door stop (stop-door) as shown

Install notes:

• Disconnect power and follow the appliance manufacturer's safety instructions before servicing
• Removal typically requires basic hand tools; keep fasteners for reassembly
• Inspect surrounding hinge and trim for wear; replace as needed

This door stop replaces the worn or broken stop that limits door travel and keeps the door aligned for smooth opening and closing. Restores proper door positioning to prevent over-travel and edge wear. What it does:

• Acts as the mechanical stop that limits the door's range of motion
• Helps keep the door aligned and prevents the door from swinging past the designed stop
• Reduces stress on hinges and adjacent trim from over-travel
• Commonly replaced when the door binds, catches, or does not sit flush

What's included:

• One door stop (stop-door) as shown

Install notes:

• Disconnect power and follow the appliance manufacturer's safety instructions before servicing
• Removal typically requires basic hand tools; keep fasteners for reassembly
• Inspect surrounding hinge and trim for wear; replace as needed

This replacement screw secures appliance panels, brackets, and components to the cabinet or chassis. The #8-15 x 1/2 in. size restores a snug, reliable hold when original hardware is missing, stripped, or corroded.

• Fastens panels, brackets, and trim to the appliance cabinet or chassis
• Helps reduce rattling, vibration, or looseness caused by missing/stripped hardware
• Restores proper alignment of parts that have shifted due to loose fasteners
• Size/spec: #8-15 thread, 1/2-inch length; use where this size is specified

• Disconnect power and shut off gas/water supplies before servicing
• Replace one screw at a time to maintain alignment of parts
• Start threads by hand to prevent cross-threading; do not overtighten
• Use a matching driver/bit type for the screw head used in your appliance

This white hinge sleeve cap covers and protects the exposed hinge bushing/pin area, providing a clean, finished look while helping keep debris out of the hinge mechanism.

• Covers the hinge sleeve to improve appearance and protect the hinge area
• Helps prevent dirt and moisture from entering the hinge bushing
• Common failure signs include a missing/broken cap or a loose cap that won't stay in place
• May be used on door hinge locations where a sleeve/bushing is present

• Unplug the appliance or shut off power before starting
• Open the door and support it if working near a hinge
• Gently pry off the old cap; press the new cap firmly onto the hinge sleeve
• Do not force—align carefully to avoid cracking the cap

The Screw (Shoulder Bolt) is an OEM part for Whirlpool refrigerators. This part secures the refrigerator handle to the door, ensuring it remains firmly attached and functions correctly. The shoulder design of the bolt allows for proper spacing and alignment of the handle, providing stability and ease of use.

Causes of a bad handle screw can include regular wear and tear, over-tightening, or accidental damage during use or maintenance.

Symptoms of a bad handle screw include:

• Loose or wobbly refrigerator handle
• Handle detaching from the door
• Difficulty opening or closing the refrigerator
• Visible damage or wear on the screw

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This face-mount handle assembly replaces a worn or broken appliance door handle and restores a solid, easy-to-grip surface for opening the door. It provides a direct-fit replacement designed to match the original mounting style and function. What it does:

• Replaces a cracked, bent, or broken face-mounted door handle
• Restores secure grip and normal door operation
• Prevents metal edges or sharp fragments from catching hands or clothing
• Helps eliminate wobble or looseness caused by damaged mounting points

• For safety, unplug the appliance or disconnect power before starting work
• Typically mounts with exposed screws or fasteners; use appropriate screwdriver or nut driver
• Align handle over mounting posts, then install and snug fasteners—do not overtighten
• Replace hardware before use

This vent plug seals the designated vent port on the appliance assembly to maintain the intended seal and containment. Replacing a worn or missing plug helps prevent nuisance leaks and odors from an open or damaged vent.

• Seals a factory vent opening on the specified assembly
• Helps prevent moisture or drips from escaping at the vent area
• Helps keep dust and debris from entering through an open port
• Replace if the plug is cracked, hardened, shrunken, loose, or missing
• Typical signs include moisture around the vent, visible damage, or a plug that won't stay seated

• Disconnect power and shut off water or gas supplies (as applicable) before servicing
• Allow appliance surfaces to cool and dry; wear protective gloves
• Remove the old plug, clean the vent port, and press the new plug fully flush in the same orientation
• Restore power and run a brief test; inspect the vent area for leaks
