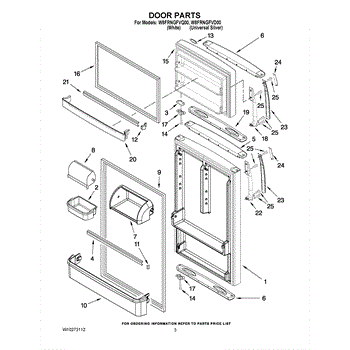

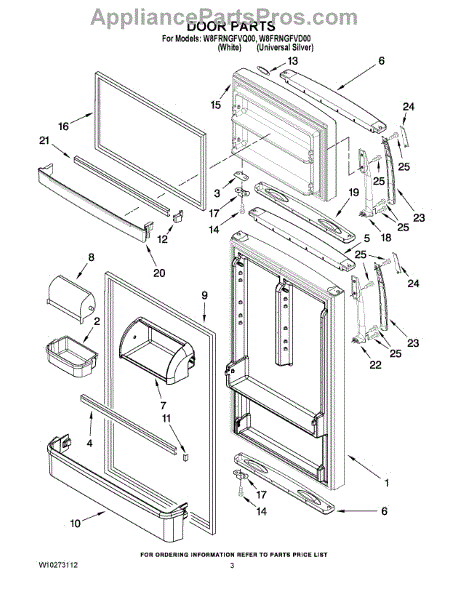

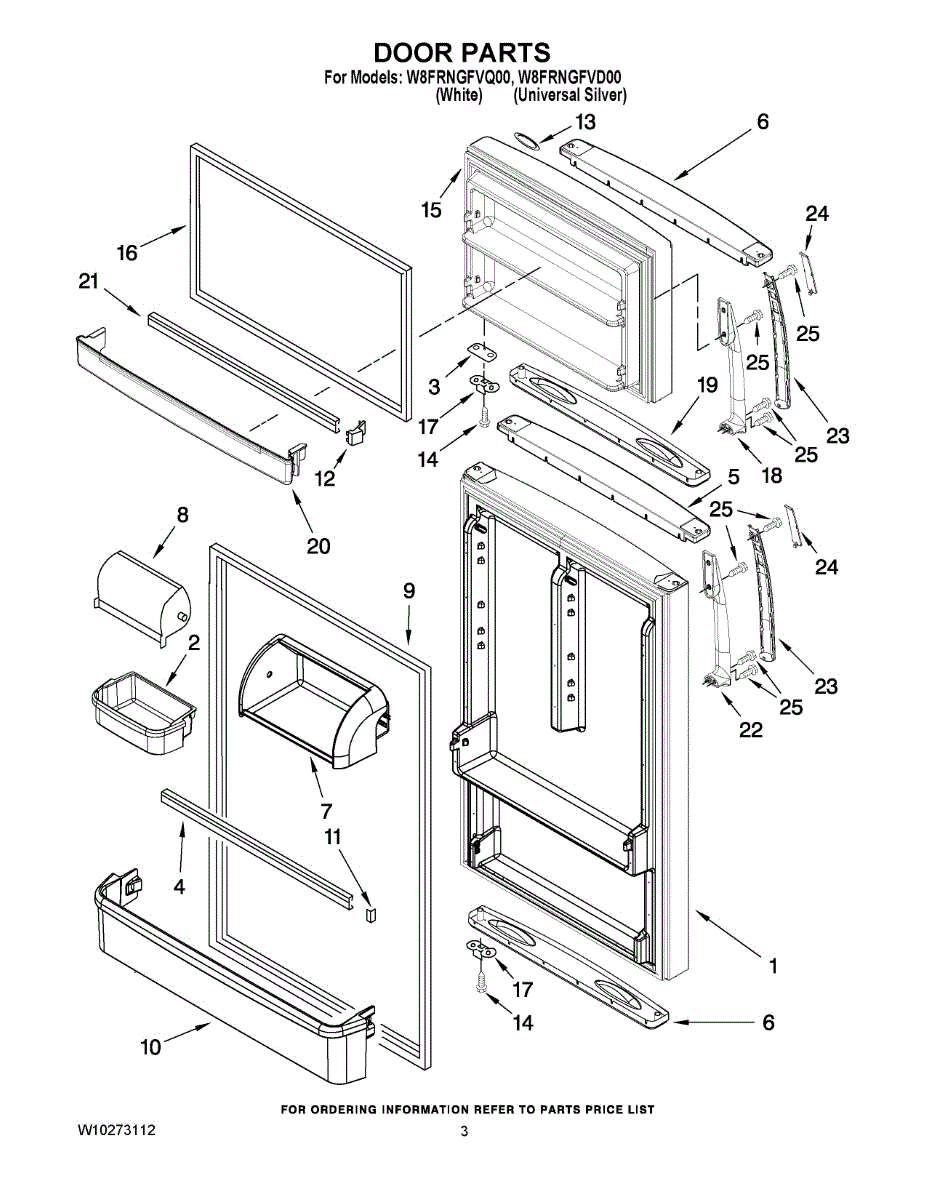

Parts for Whirlpool W8FRNGFVD00: 02 - Door Parts

The door stop shim positions the stop flush and fine-tunes the door's opening limit. Replacing a worn or missing shim helps restore smooth door operation and protects nearby surfaces from over-travel or rubbing.

• Provides correct spacing behind the door stop for proper alignment
• Helps limit the door swing to the intended stop position
• Can reduce wobble, play, or clicking at the stop point
• Replaces cracked, deformed, or missing shim components

• Disconnect power and support the door as needed to prevent strain
• Remove the door stop fastener(s) and note the original shim orientation
• Place the new shim behind the stop; reinstall hardware and tighten without overtightening
• Open and close the door to confirm stop angle and clearances

Color: White

The Door Shelf is an OEM replacement part for Whirlpool refrigerators. This component is designed to fit into the door of your refrigerator, offering additional storage space for items such as condiments, bottles, and other small or medium-sized items that need to be readily accessible.

Causes of damage to the door shelf can range from overloading it with too much weight, accidental impacts from moving items in and out of the refrigerator, or simply the age of the refrigerator contributing to wear and tear over time.

Symptoms of a bad Door Shelf include:

• Cracks or breaks in the shelf
• The shelf becoming loose or failing to fit securely in the door slots
• Signs of warping or deformation

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Door Shelf End Cap is an OEM part for Whirlpool refrigerators. This part secures the door shelf bar in place, ensuring that items stored in the door bins are properly supported and contained. The end cap attaches to the ends of the door shelf bar, providing stability and a finished look.

Causes of a bad end cap can include wear and tear from frequent use, heavy loads in the door bins causing stress and fractures, and accidental impacts or mishandling leading to cracks or breaks.

Symptoms of a bad door shelf end cap include:

• The door shelf bar becoming loose or falling off
• Cracks or breaks in the end cap
• Door bins not staying in place
• Difficulty in securing the door shelf bar

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Door Shelf Retainer End Cap is an OEM replacement part for Whirlpool refrigerators. This component is designed to secure and support the end of the door shelves, providing a clean and finished look while preventing items from falling off the edges.

Symptoms of needing to replace the door shelf retainer end cap include:

• Visible cracks, damage, or missing pieces
• Loose or wobbly door shelves
• Items falling off the ends of the door shelves

Causes of a faulty door shelf retainer end cap can include normal wear and tear over time, accidental impact or mishandling, or exposure to excessive moisture or temperature fluctuations.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore refrigerator models.

Color: White

The Bracket-Door Stop is an OEM replacement part for Whirlpool appliances. This zinc-finished bracket is designed to prevent the appliance door from opening beyond its intended range, protecting both the door and surrounding components from potential damage. It ensures the door stays secure and functions smoothly during regular use.

Symptoms of a bad Bracket-Door Stop include:

• The door overextending when opened
• Difficulty in maintaining the door's position
• Visible bending, cracking, or damage to the bracket

Causes of a failing Bracket-Door Stop can include repeated stress from excessive force when opening the door, normal wear over time, or accidental impacts. A damaged bracket can compromise the door's alignment and overall functionality.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This genuine-style door handle restores a damaged or worn refrigerator door pull so you can open and close the door easily and safely. It replaces a broken or cracked handle to improve grip and appearance. What it does:

• Provides a secure grip for opening and closing the refrigerator door
• Stops further damage and prevents sharp edges or weak points from catching
• Restores original fit and operation when the original handle is cracked, split, or loose
• Matches the OEM mounting location and secures with existing fasteners

• One door handle

• High-level swap: remove the old handle fasteners and secure the replacement with the factory screws or clips
• Keep power off to nearby powered components; no electrical disconnection typically required
• Check alignment and tightness after installation to avoid stress on mounting tabs
• If the old fasteners are damaged, replace them with OEM hardware for a secure fit

This outer door trim restores the finished edge and appearance of a refrigerator door while helping cover the door's structural edge. It provides a clean, factory look when replacing a damaged or worn trim piece. What it does:

• Replaces a cracked, dented or peeled outer door trim to restore appearance
• Covers and protects the exposed door edge and fasteners
• Helps maintain a uniform seal area and door alignment visibility
• Matches factory fit and finish for a seamless exterior look

• Designed for direct replacement; use existing mounting screws and clips unless damaged
• Handle and gasket removal may be required to access fasteners—refer to your model's service diagram
• Disconnect power and empty door contents before removing the door trim to prevent injury or damage
• If clips or screws are missing or broken, replace with OEM fasteners for secure fit

This replacement screw secures appliance panels, brackets, and components. Using the correct size restores a snug fit to reduce vibration, prevent loosening, and keep assemblies properly aligned during operation. What it does:

• Fastens sheet metal and component brackets in designated locations
• Replaces missing, stripped, or corroded hardware
• Helps eliminate rattling and vibration from loose panels
• Maintains proper alignment of covers and assemblies

• 1 screw

• Disconnect electrical power; shut off water or gas supplies if applicable
• Match length/thread to the original; replace one fastener at a time to preserve alignment
• Start by hand to avoid cross-threading; use the correct driver size
• Snug firmly but do not overtighten to prevent stripping
