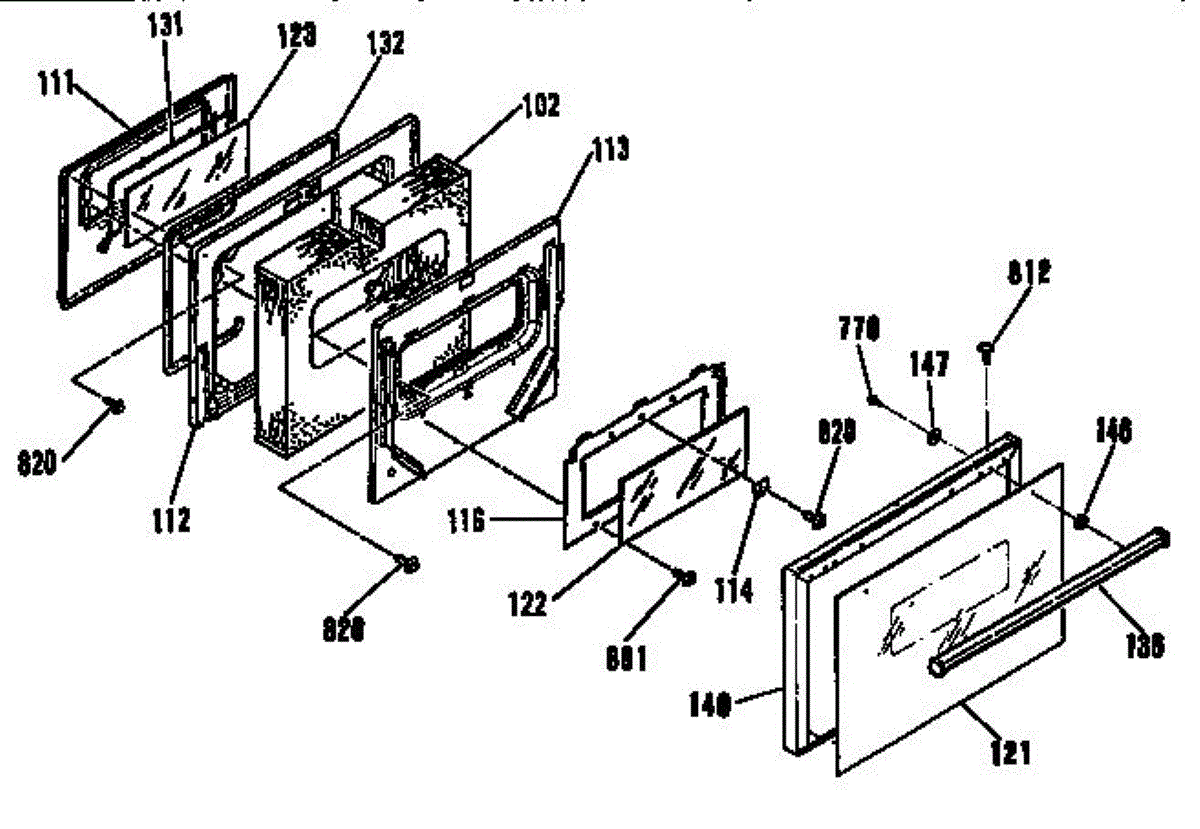

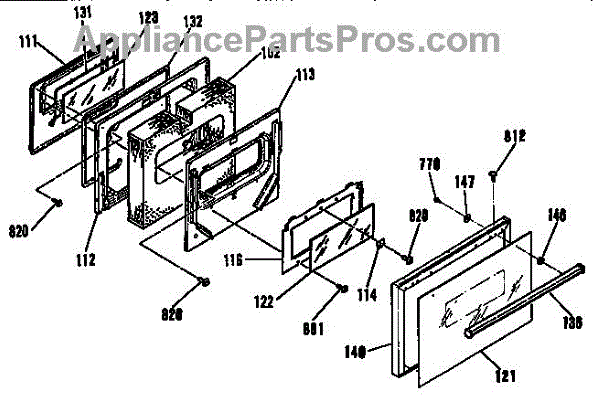

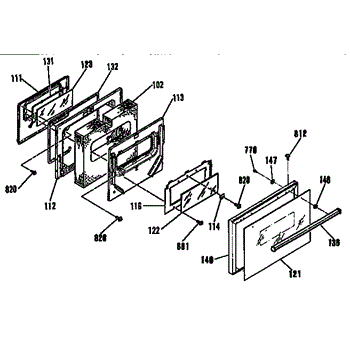

Parts for Kenmore 911.4674590 (9114674590, 911 4674590): Door Section Parts

This inner oven door glass seal cushions and seals the inner glass pane inside the door, helping contain heat and keep the glass stable and quiet. Replace a cracked or flattened seal to maintain safe, consistent oven performance.

• Seats and cushions the inner door glass panel
• Seals the perimeter of the pane to limit heat and air leaks
• Helps prevent debris and moisture between glass layers
• Can reduce rattling or shifting of the inner glass
• When worn, contribute to longer preheat times or temperature inconsistency

• Disconnect power; for gas ranges, also shut off the gas supply. Allow the oven to cool completely.
• Remove the door and separate the inner panel per your service instructions.
• Note the seal's routing and orientation; install the new seal without stretching or twisting.
• Wear cut-resistant gloves and handle glass carefully during reassembly.

This replacement oven door gasket forms the heat-resistant perimeter seal around the door opening. Restores a tight seal to retain heat, support accurate temperatures, and reduce warm-air leakage for better baking performance.

• Creates the compressible seal between the oven cavity and door to keep heat in
• Helps the oven preheat efficiently and maintain even temperatures
• Reduces warm air and odors escaping around the door edge
• Common failure signs include fraying, flattening, gaps, longer preheat, or uneven baking

• Disconnect power and allow the oven to cool completely; wear gloves
• Open the door and remove the old gasket from its retainers/channels, noting clip locations and orientation
• Clean the groove/retainer; starting at the top center, press the new gasket in evenly without stretching and seat corners fully
• Close the door and check for uniform contact around the perimeter

This hex washer-head screw secures sheet-metal panels, brackets, and assemblies in your appliance. Replacing a missing, stripped, or rusted fastener restores a tight, rattle-free fit and helps keep components properly aligned during everyday use.

• Fastens panels, brackets, and assemblies to the chassis
• Helps maintain alignment and stability under normal vibration and heat
• Direct replacement for lost, damaged, or stripped hardware
• Common signs include loose or rattling panels, gaps/misalignment, or a rounded screw head

• Disconnect power; if servicing a gas appliance, also shut off gas and allow surfaces to cool
• Match the new screw to the original location; start threads by hand to avoid cross-threading
• Tighten snugly without overtightening to prevent stripping sheet metal
• Use an appropriate nut driver or socket for the hex head

ST10-16 X 7/16"

A single replacement screw used to secure appliance components and restore proper fit. This OEM-design fastener replaces a missing or damaged screw so panels, brackets, or small assemblies stay properly attached. What it does

• Fastens panels, brackets, or small assemblies to maintain component alignment and stability.
• Replaces stripped, corroded, or lost screws that cause rattling or loose parts.
• Restores secure connections that can prevent vibration noise or component movement.

• One screw.

• Disconnect power and unplug the appliance before starting any work.
• Match screw head type and length to the original before installation; use the correct driver to avoid stripping.
• Tighten snugly but avoid over-torquing, which can damage threads or parts.

Package of 12
