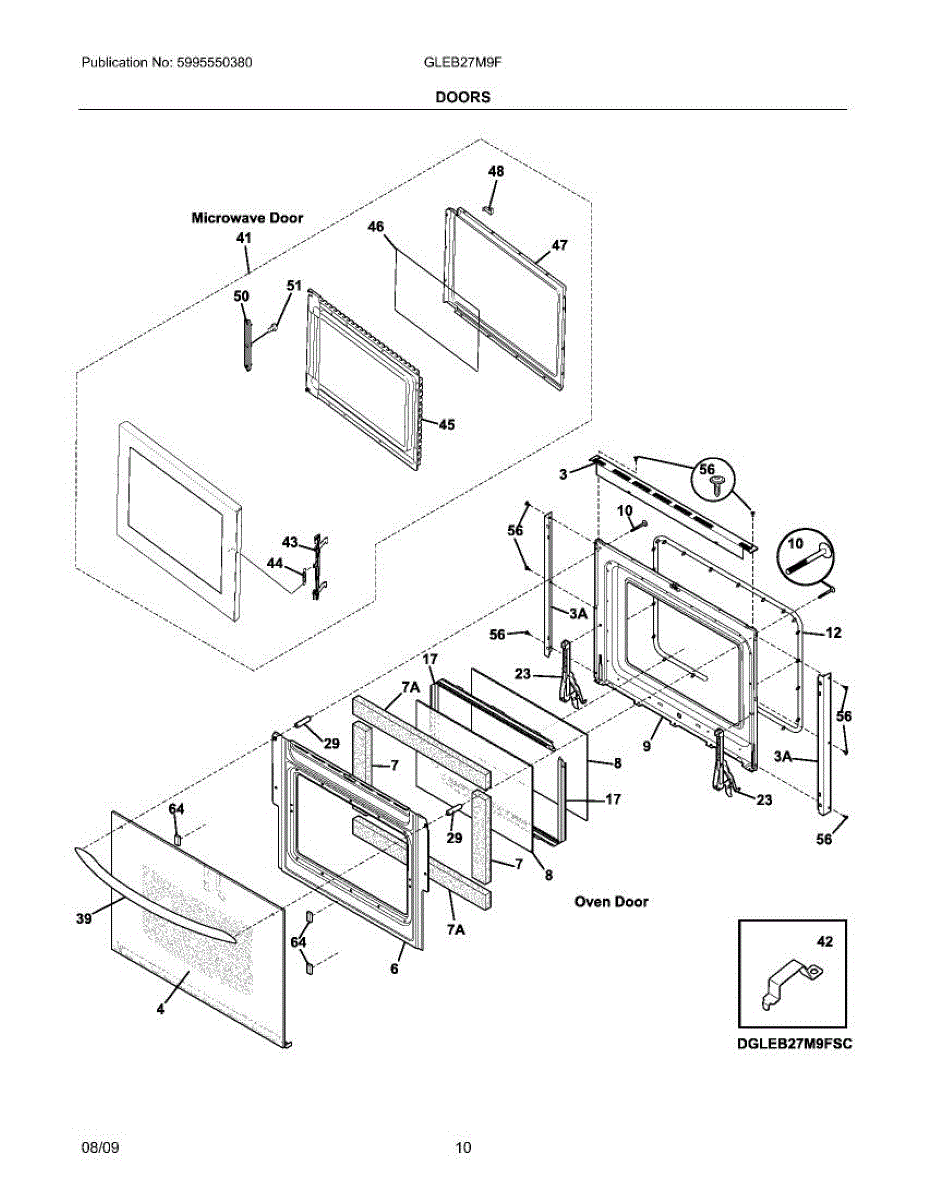

Parts for Frigidaire GLEB27M9FSD: 09 - Doors Parts

Frigidaire manufactures this glass outer door assembly. It is designed to fit on the front of ovens, providing visibility into the interior while preventing heat from escaping. The glass is specially treated to provide strength and resilience, and it should last the life of the appliance.The glass outer door assembly may be damaged through impacts with objects. In some instances, the glass may also crack due to temperature extremes. Cold liquid spilled on the glass while hot can cause it to contract and crack. Over time, micro-cracks can also develop. If the glass is cracked or broken, the door assembly will need to be replaced. Replacing the door will require removing the old door, which should only involve a screwdriver and/or socket and ratchet. This OEM part is a genuine replacement that is sold individually and sourced directly from the manufacturer. This glass outer door assembly is compatible with equipment from Frigidaire.

This high-temperature insulation is used in the oven assembly to contain heat and protect nearby components and cabinetry. Replacing damaged insulation helps the appliance maintain set temperatures and keeps exterior surfaces from getting excessively hot. What it does:

• Helps retain heat for stable baking and roasting temperatures
• Reduces heat transfer to the appliance frame and adjacent cabinets
• Replaces insulation that is torn, charred, or saturated with spills/grease

• One insulation piece

• Disconnect power; for gas models, also shut off the gas supply
• Remove the range or wall oven and access the oven body
• Wear gloves, eye protection, long sleeves, and a dust mask; fibers can irritate skin and lungs
• Reinstall in the same orientation/routing as the original; do not compress insulation or block vents

This #10-32 x 3/4-inch machine screw secures appliance components such as panels, brackets, and handles. Using the correct length and thread helps restore a snug, rattle-free hold wherever this screw is specified by the manufacturer.

• Fastens components with a #10-32 machine thread and 3/4-inch length
• Helps keep panels, trim, brackets, or handles secured and aligned
• Replaces missing, stripped, or corroded hardware
• Common signs include loose or wobbly parts, rattling, missing screws, or damaged screw heads/threads

• Disconnect power before servicing; if working near a water connection, shut off the water supply
• Use the correct driver/bit and start threads by hand to avoid cross-threading
• Tighten snugly; do not overtighten to prevent stripping plastic or threads
• Reuse any model-specific washers or spacers if present

This door latch hook secures the refrigerator door latch so the door closes and seals correctly. Replacing a broken or worn hook restores reliable door latching and helps prevent temperature loss from an improperly closed door. What it does:

• Secures the door latch assembly so the refrigerator door stays closed.
• Restores proper latch engagement to help maintain the door seal and consistent cooling when the door was not closing fully.
• Can address symptoms such as a door that won't latch, door popping open, or visible damage to the hook.
• Direct replacement for the factory latch hook to restore proper fit and function.

• Disconnect power to the appliance before starting any repair.
• Remove door trim or inner liner as needed to access the latch; keep all screws and fasteners for reassembly.
• Verify latch alignment and striker position before tightening; hand-tighten first and avoid over-tightening.

This door latch spring restores the return tension in your microwave's door release mechanism so the latch engages and releases correctly. Replacing a fatigued or broken spring helps ensure safe door operation and reliable interlock switch activation.

• Provides the return force for the latch lever/door release button
• Helps door hooks engage fully and release smoothly
• Supports proper interlock switch actuation so the unit will run only when the door is closed
• Typical failure signs: door won't latch, "open/close door" error, door button sticks, or needing to hold the door shut to start

• Disconnect power. Microwaves can retain dangerous high voltage even when unplugged; discharge the capacitor
• Access the latch assembly behind the control panel; note the spring's orientation and attachment points
• Use needle-nose pliers to install without overstretching; inspect the latch lever and door hooks for wear
• Verify proper door closure and interlock switch operation before reassembly

This replacement frame restores the appliance's front trim and structural support where the cabinet meets the control or door area, improving appearance and panel alignment. It's a direct-fit exterior trim piece designed for a clean, finished look. What it does:

• Replaces cracked, warped, or broken front trim that affects appearance
• Supports and aligns adjacent panels, doors, or control bezels
• Helps prevent gaps where dirt or moisture can collect
• Restores a secure mounting surface for attached components

• One replacement frame piece as pictured

• Disconnect power to the appliance before starting any repair
• Minor disassembly of surrounding panels may be required; keep fasteners organized
• Use appropriate hand tools and avoid overtightening to prevent cracking

This spacer sets the correct gap between mating parts in your appliance's assembly, preventing rubbing and misalignment. Replace a missing or worn spacer to restore a solid fit, reduce noise, and protect surrounding components.

• Maintains proper spacing between components for correct alignment and operation
• Reduces metal-to-metal contact, squeaks, and premature wear
• Helps fasteners and panels seat securely
• Typical symptoms when failed: loose or rattling parts, uneven gaps, or visible wear marks

• Disconnect power; for gas models, shut off the gas. Allow the appliance to cool completely.
• Access the assembly per your model's diagram; note the original orientation/stack-up before removal.
• Reuse original fasteners if serviceable; hand-start threads and tighten snugly to avoid damaging the spacer.
• Verify alignment and clearances before fully reassembling. Quantity and location vary by model.
