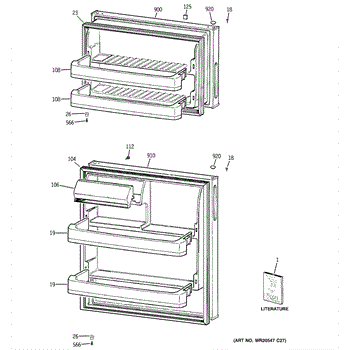

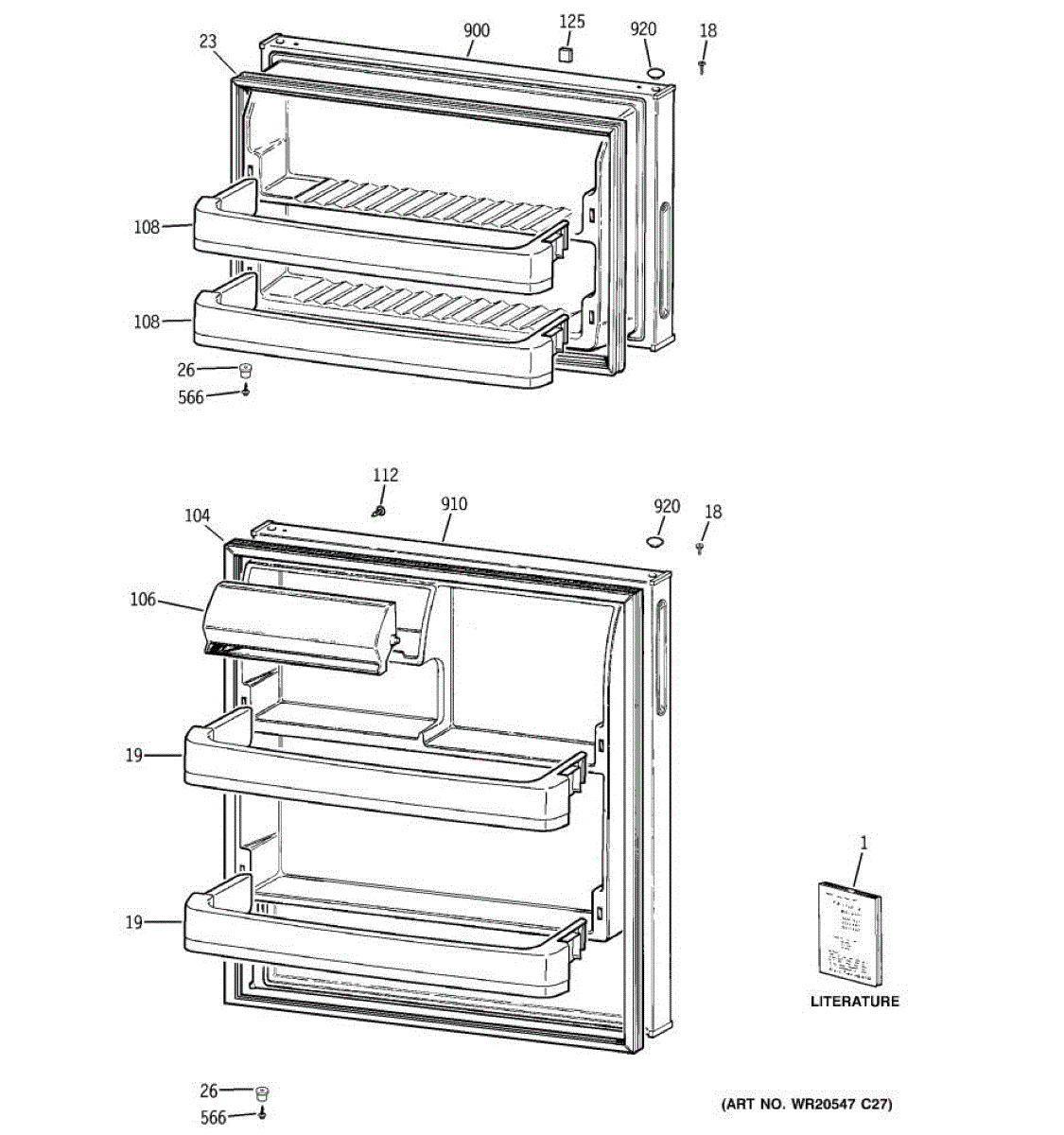

Parts for Ge A3316ABSHRBB: 01 - Doors Parts

This machine screw secures refrigerator brackets, panels, and hardware. Its 12-24 thread and integrated hex-washer head provide a snug, vibration-resistant hold to keep components properly mounted and aligned.

• Fastens mounting brackets, covers, and other hardware to the refrigerator cabinet or frame
• Replaces a missing, stripped, or corroded screw to restore a secure attachment
• Helps reduce rattles, vibration, or shifting caused by loose fasteners
• Supports proper fit and alignment of serviced components

• Disconnect power before servicing; wear cut-resistant gloves
• Match thread and length to the original; do not force mismatched hardware
• Start by hand to avoid cross-threading; tighten snugly without overtightening, especially into plastic
• Retain and transfer any spacers or clips from the original hardware

The Door Shelf Bar is an OEM part for GE refrigerators, designed to securely hold items within the door shelves. This bar is responsible for maximizing storage space and keeping items in place, preventing them from falling out when the door is opened or closed. Made from durable materials, the door shelf bar is designed to withstand the regular opening and closing of the refrigerator, as well as the weight of items typically stored in door shelves, such as condiments, bottles, and jars.

This shelf bar measures 23” wide by 2.5” high and 7” deep.

Symptoms of a failing Door Shelf Bar include:

• The bar becoming loose or detached from the door
• Cracks or breaks in the bar
• Difficulty fitting the bar back into its slots

Causes of a bad Door Shelf Bar can range from normal wear and tear, which weakens the bar over time, to accidental damage, such as placing too much weight on the bar or mishandling. Additionally, exposure to extreme temperatures or cleaning chemicals can degrade the material of the bar, leading to brittleness.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

The Freezer Door Gasket is an OEM replacement part for GE refrigerators. As the main door gasket, it provides an airtight seal between the refrigerator door and body. This prevents cool air from leaking out while keeping external warmth and odors from seeping in. This gasket is dark gray or black in color.

Causes can be normal wear and tear over the lifespan of continuous use, accidental tears or punctures from sharp objects, or premature breakdown if exposed to excessive moisture.

Symptoms of a bad gasket door include:

• Cool air drafts felt around the perimeter when the door is closed
• Frost or condensation building up inside the refrigerator compartment
• Higher energy bills indicating inefficient insulation.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Freezer Door Gasket is an OEM part for GE freezers. This gasket plays a crucial role in ensuring an airtight seal around the freezer door, preventing warm air from entering and cold air from escaping.

Over time, freezer door gaskets can wear out or become damaged due to frequent use, accidental damage, or exposure to extreme temperatures. It is essential to replace the gasket if you notice any of the symptoms mentioned above to ensure your freezer operates efficiently and to avoid unnecessary energy consumption.

Symptoms of a bad Freezer Door Gasket include:

• Visible tears, warps, or gaps in the gasket
• Condensation or frost buildup around the door edges
• Difficulty in maintaining consistent freezer temperatures
• An increase in energy consumption as the freezer works harder to maintain its internal temperature

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

Replacement door gasket for the refrigerator's fresh-food compartment. Restores a tight seal to help keep food cold, reduce frost and condensation, and improve cooling efficiency. What it does:

• Seals the fresh-food door to prevent warm air entering the compartment
• Helps reduce frost build-up and interior condensation
• Can stop frequent compressor cycling caused by a leaking door seal
• Restores proper temperature maintenance and energy performance when the old gasket is damaged

• Disconnect power to the appliance before starting any repair
• Remove the old gasket, clean the door channel, then press the new gasket into the channel beginning at a top corner and working around the door until fully seated
• Check that the magnetic edge seats evenly around the door for a uniform seal
• Avoid using sharp tools that could tear the gasket

The Refrigerator Door Gasket is an OEM part for GE refrigerators. This essential component forms a seal around the perimeter of the refrigerator door, ensuring that cold air stays inside and warm air stays out.

Symptoms of a bad Refrigerator Door Gasket include:

• Noticeable gaps or tears in the gasket that allow air to pass through.
• Condensation or frost buildup around the edge of the door.
• The refrigerator running more frequently than usual, indicating a loss of cooling efficiency.
• Difficulty in keeping the door closed or having it pop open.

Causes of a bad door gasket can include regular wear and tear from opening and closing the door, material degradation over time due to exposure to the elements and cleaning chemicals, or physical damage from accidental pulling or stretching.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Color: white. It measures about 12 inches wide by 6 inches high.

The Freezer Door Shelf Bar is an OEM part compatible with GE refrigerators. This component serves as a support and retaining bar for the shelves located on the inside of the freezer door, ensuring they remain securely in place. This shelf bar measures 23” wide by 2” high and 5” deep

Symptoms that may indicate the need to replace the freezer door shelf bar include:

• Shelves becoming loose or falling out of the freezer door
• The bar itself becoming cracked, bent, or otherwise damaged

Causes of a faulty freezer door shelf bar can include physical impact or mishandling, excessive weight or force applied to the shelves, or general wear and tear over extended use.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore refrigerator models.

A replacement reversible plug door that covers and protects the appliance power inlet while letting the cord exit left or right for tidy cord routing. Restores a clean back panel appearance and helps keep the power connection protected from debris. What it does:

• Covers the power inlet opening to protect the plug and inlet from dust and debris.
• Reversible design lets you route the power cord to either side to fit against the wall.
• Helps keep the cord tucked close to the appliance so the unit can sit flush with cabinetry or walls.
• Replace when the door is cracked, broken, missing, or no longer holds the plug securely.

• Always unplug the appliance before starting any repair or inspection.
• May require access to the rear panel; check your owner's manual for disassembly steps.
• Check orientation before finalizing installation to ensure correct left/right cord routing.

This reversible door plug fills the unused mounting hole when you switch the door swing on your refrigerator. It restores a finished appearance and helps keep air and moisture from entering through the opening.

• Covers the unused door hole created during a door swing reversal
• Helps maintain proper sealing and resists drafts/condensation at the opening
• Restores a clean, finished, factory look to the door
• Common symptoms: missing or cracked plug, exposed hole, cosmetic gap on door edge

• Disconnect power before servicing any door components
• Gently pry out the old plug with a plastic trim tool to avoid scratches
• Align the new plug with the opening and press until fully seated and flush
• Verify the door closes properly and the gasket seals evenly

The Screw is an OEM replacement part for GE refrigerators. Countless screws are used throughout the refrigerator to securely hold parts in place.

Symptoms of a bad or missing screw can include:

• Rattling or vibration noises coming from inside the appliance
• Doors or other parts that are no longer properly aligned
• Increased frost or cold air leaks due to compromised seals

Causes may include normal wear and tear over time, accidental damage or loss of a screw during repairs, or improper assembly leaving crucial screws omitted.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore refrigerators.

This plug button thimble is a small control-panel insert that secures and centers push buttons, helping keep button caps in place and reducing moisture or debris entry. It restores proper button feel and alignment on the control panel. What it does:

• Centers and retains push-button caps so buttons press and release correctly
• Helps prevent dirt and spills from entering the control-panel opening
• Replaces a cracked, worn, or missing thimble that lets buttons wobble or fall inward
• Compatible with the original push-button assembly to restore original fit and function

• Simple, non-electrical replacement—power to the appliance is not required for this exterior part, but unplugging is recommended if removing trim near live components
• Remove the button cap first, press the old thimble out from the front or back as applicable, then press the new thimble into the panel opening until fully seated
• Inspect button cap and surrounding trim for damage; replace any damaged mating parts for best fit
• Use care to avoid scratching the control panel; keep small parts away from children

This plug button is a small snap-in cap used on refrigerators to cover exposed holes on door handles, liners, or trim. It restores a clean, finished look while helping keep dust and moisture out of the cabinet.

• Snaps into a screw or access hole on a handle, liner, or trim panel
• Covers fasteners and gaps for a clean, finished appearance
• Helps block dirt and moisture from open holes
• Typical symptoms: missing cap, broken or loose plug, visible screw hole or cosmetic gap

• Unplug the appliance before servicing and use caution around sharp edges
• Align the plug with the hole and press straight in by hand until fully seated and flush
• For handle screw holes, tighten fasteners first, then install the cap
• Avoid using metal tools on finished surfaces to prevent scratches
