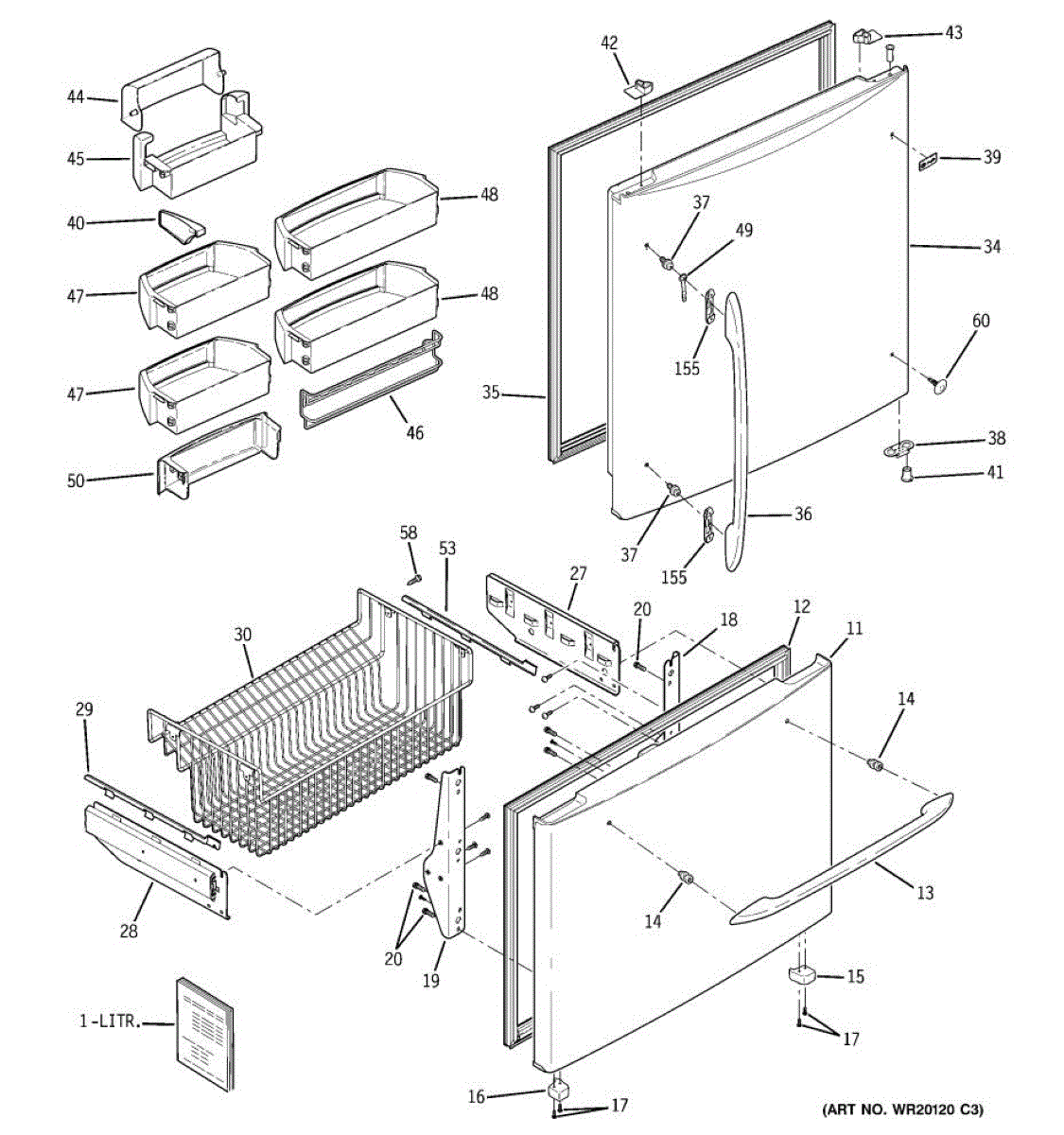

Parts for Ge PDCF1NBXBBB: 01 - Doors Parts

Restore a tight seal and stable temperatures with this refrigerator door gasket. Replacing a worn gasket helps keep cold air in and humid air out to reduce frost, condensation, and unnecessary energy use.

• Forms an airtight seal around the door perimeter
• Helps maintain consistent temperature and humidity
• Reduces frost/ice buildup and interior condensation
• Can address doors that won't close fully or pop open
• Replace if torn, brittle, warped, or not sealing evenly

• Disconnect power before servicing
• Let the gasket warm to room temperature; use warm water or low heat to relax folds
• Remove the old gasket and press the new gasket into the retainer, seating corners first
• Check for even contact all around; adjust door/hinges as needed for a proper seal

The Gasket is an OEM part for GE refrigerators. This part forms an airtight seal around the refrigerator door, ensuring that the cold air stays inside and the warm air remains outside.

Gaskets can deteriorate over time due to normal wear, frequent usage, or environmental factors, leading to issues such as air leaks.

Symptoms that may indicate the need for a new Gasket include:

• Visible gaps or tears in the gasket, allowing cold air to escape.
• The refrigerator seems to run more often or for longer periods, struggling to maintain the set temperature.
• Signs of condensation or frost buildup around the door edges, indicating air leaks.
• The gasket feels stiff, brittle, or has lost its magnetic seal, making the door easy to open or not fully closed.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This OEM fastener secures interior components and trim on compatible appliances to restore proper fit and reduce movement. It's a direct-replacement hardware piece used where the original mounting screw or retainer is lost or worn. What it does

• Secures panels, trim pieces, brackets or small assemblies to the appliance frame
• Restores firm attachment to reduce rattles, gaps or misalignment
• Replaces missing or stripped hardware that prevents proper part installation
• Helps maintain proper operation by keeping service parts seated and stable

• Disconnect power or unplug the appliance before servicing to avoid shock or injury
• Use the correct screwdriver or driver bit to avoid stripping the head
• Hand-start the fastener, then tighten snugly—do not over-torque
• Replace any additional damaged fasteners with the same OEM part for best fit

This right-hand cam closure secures the freezer door, helping the door latch and maintain a tight seal to keep the compartment cold and reduce frost buildup. It's a direct-fit replacement for the freezer closure on compatible units. What it does

• Replaces the right-side cam that engages the door latch mechanism
• Helps the freezer door close securely and hold shut
• Can reduce air leaks that cause frosting or temperature loss
• Commonly replaced when the door feels loose, won't stay closed, or the cam is broken/worn

• One right-hand cam closure

• Disconnect power to the appliance before starting any repair
• Remove contents from the door/freezer area as needed for access
• Typically accessed near the door hinge/latch; basic hand tools required

This cam closure is the left-side closing cam that secures and aligns the freezer door, helping the door latch properly and maintain an even seal to keep the compartment cold. A direct-fit replacement that restores proper door action. What it does:

• Guides and locks the freezer door into the correct closed position
• Helps maintain an even door seal to reduce cold air loss and frost buildup
• Prevents door sagging or misalignment that can keep the door from latching
• Works with the door hinge/latch mechanism to ensure smooth opening and closing

• Disconnect power to the appliance before starting any repair
• Installation may require removing the freezer door or inner door panel; keep fasteners organized
• Handle plastic components carefully to avoid cracking; align cam to hinge before tightening

This cam closure secures the freezer door hinge, helping the door latch properly and maintain a tight seal for consistent cooling. It replaces a worn or broken left-side closure to restore reliable door movement. What it does:

• Acts as the left-side hinge cam that guides and locks the freezer door into position
• Restores proper door alignment and sealing when the closure is worn, cracked, or loose
• Reduces door sag and helps prevent cold air loss and cycling issues
• Works with the freezer hinge assembly to ensure smooth opening and closing

• One left-side cam closure

• Verify left/right orientation before installation; part is specific to the left-side hinge
• Disconnect power to the appliance and remove food from the door area for safe access
• Use basic hand tools; support the door while replacing the cam to avoid damage or injury

This replacement screw fastens refrigerator components securely, restoring a tight, rattle-free fit when original hardware is missing, stripped, or corroded. Use it to secure panels, brackets, or trim and keep parts properly aligned.

• Secures panels, brackets, covers, or trim in place
• Helps maintain correct alignment of components and hardware
• Reduces vibration and rattling caused by loose or missing screws
• Replaces lost, rusted, or stripped screws

• Unplug the refrigerator and turn off water supply if working near water components
• Match thread and length to the removed fastener; hand-start threads to avoid cross-threading
• Tighten snugly; do not overtighten into plastic or thin sheet metal
• Keep track of any spacers or washers reused from the original assembly

This is a 1/4-10 x 3/4 hex washer head screw that secures panels and components on compatible appliances, restoring proper fit and stability. Use when mounting hardware is loose, missing, or a screw is stripped or broken. What it does:

• Fastens panels, brackets, and assemblies with a hex washer head for a secure hold
• Replaces missing or damaged screws that cause rattling or loose parts
• Restores proper alignment and tension where the original screw was used

• Use the correct 1/4-10 driver or socket to avoid cam-out
• Tighten securely but avoid over-tightening to prevent thread damage
• Replace any stripped mating fastener for best results
• Disconnect power before working on electrical components or near wiring

This lower freezer basket provides a sturdy, molded storage bin to organize and contain frozen foods in the freezer compartment. It restores proper storage and prevents items from sliding into lower cavities. What it does:

• Holds and organizes frozen food items in the refrigerator freezer section
• Slides or nests into the freezer cavity so contents are accessible and contained
• Replaces cracked, broken, or warped lower freezer bins that allow items to fall or shift
• Helps maintain proper air circulation around stored items when installed correctly

• Remove all food items from the freezer and work with the compartment empty
• Handle the basket carefully to avoid cracking; align with rails or ledges before seating
• Do not force into place—inspect mounting rails/tracks for ice buildup or damage first

Color: Black

Color: White

This stainless-steel handle fastener secures the appliance door handle to the door assembly, restoring a solid, rattle-free grip and proper handle alignment. Designed to replace a worn, loose, or missing fastener quickly and easily. What it does:

• Secures the door handle to the appliance door so the handle stays firmly attached
• Stops handle wobble, clicking, or partial detachment when opening or closing the door
• Restores proper handle alignment and feel after a stripped or corroded fastener
• Matches OEM finish for a consistent look with stainless-steel handles

• One stainless-steel handle fastener

• Disconnect power to the appliance before beginning any repair
• Access may require removing the handle or inner trim; follow for guidance
• Use appropriate hand tools and tighten the fastener until snug—do not over-torque

This module snugger is a small retaining piece used in the refrigerator to hold its associated module or component securely in place. Replacing a cracked or missing snugger restores a tight fit, reduces vibration and noise, and supports correct operation.

• Secures the related module or assembly to prevent shifting
• Helps maintain proper alignment for reliable performance
• Reduces rattles and wear from vibration or movement
• Typical signs it's needed: part is broken or missing, components feel loose, or you hear rattling

• Disconnect power to the refrigerator before servicing
• Note the original orientation and location; take a photo for reference
• Reuse existing fasteners or clips if applicable; avoid overtightening
• After installation, confirm the part holds the assembly firmly and that movement is smooth where intended

This thimble door is the molded trim piece that surrounds the refrigerator/freezer door opening, restoring proper fit and finish. It replaces damaged or worn trim to reduce drafts and improve door alignment and appearance. What it does

• Covers and protects the door opening edge, providing a finished appearance
• Helps maintain a consistent seal by supporting proper door alignment
• Reduces air leaks and drafts at the door opening when installed correctly
• Replaces cracked, warped, or missing trim that can catch or rub during door use

• One thimble door trim piece as shown

• Disconnect power to the appliance before beginning any repair
• Typically secures with clips or screws; inspect existing fasteners and retainers for reuse
• Handle trim gently to avoid cracking; align carefully to ensure a proper fit

This clear dairy door is the flip-up cover for the door-mounted dairy compartment in your refrigerator. It restores a clean look and keeps butter and other small dairy items contained, protected, and easy to access.

• Covers the dairy/butter compartment on the fresh food door
• Helps contain small items and reduce odor transfer
• Attaches to the door bin and flips up for quick access
• Common symptoms: cracked or missing cover, broken hinge tabs, won't stay closed

• Disconnect power to the refrigerator before servicing
• Open the door, support the bin, and gently flex the bin's end tabs to release the old cover
• Align the new cover's hinge pins with the bin openings and snap into place—do not force
• Verify smooth open/close operation before loading items

Color: white. Measures about 15 inches wide by 4-1/2 inches high by 9 inches deep.

This is a silicon controlled rectifier (SCR) used in appliance control circuits to regulate power to heaters or motors, helping the appliance deliver consistent operation and heat when needed. What it does:

• Acts as a switch in the control circuit to regulate current flow to heating elements or motors
• Can prevent or allow power to the load based on control signals from the appliance module
• Common symptom indicators: intermittent or no heat, unit won't reach operating temperature, or inconsistent operation of the controlled component
• Used where precise control of AC power is required for safe, efficient performance

• One silicon controlled rectifier (SCR) as described

• Disconnect power to the appliance before servicing to avoid shock or injury
• Handle the part carefully; avoid bending terminals and observe anti-static precautions
• Verify wiring and terminal orientation matches the original before reconnecting
