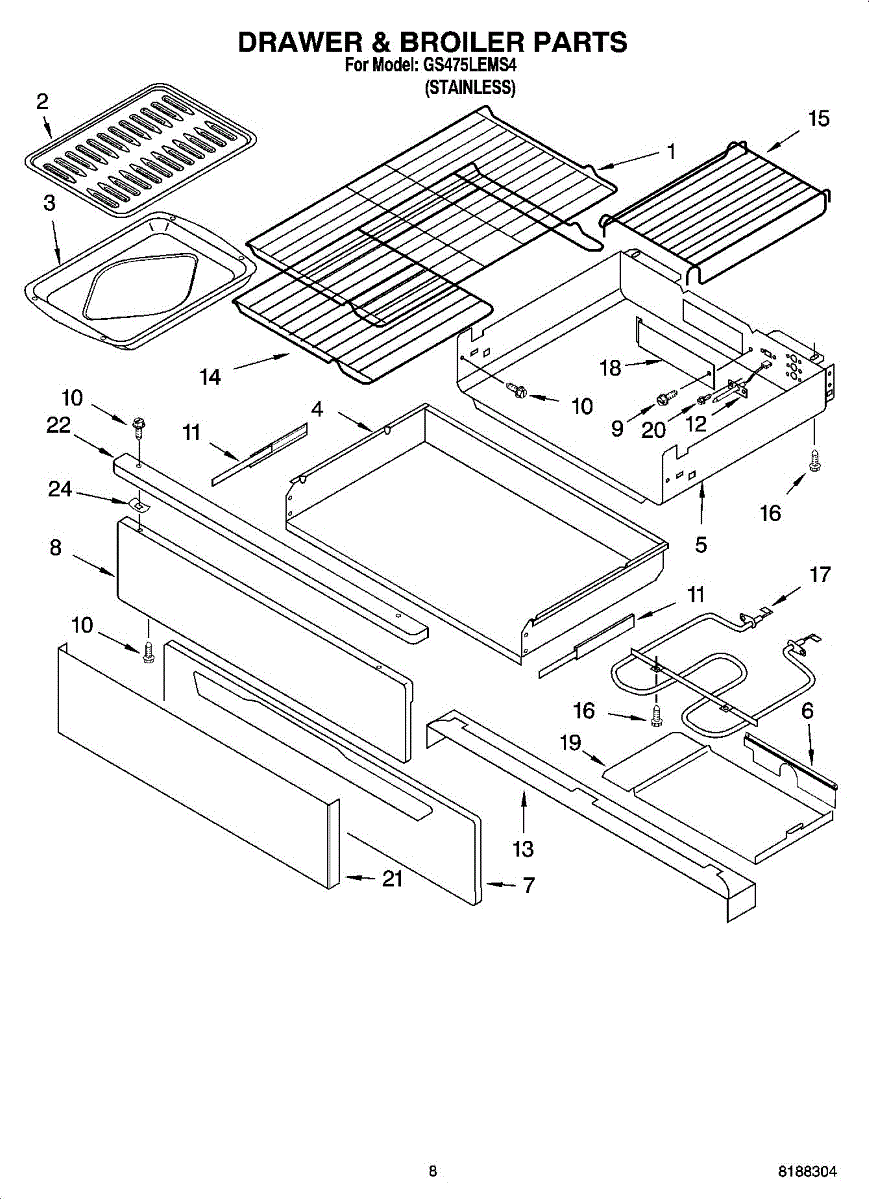

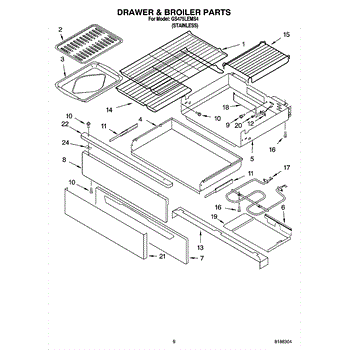

Parts for Whirlpool GS475LEMS4: 06 - Drawer & Broiler Parts, Optional Parts (Not Included) Parts

The Oven Rack is an OEM part for Whirlpool ovens, designed to provide a sturdy and reliable surface for baking and roasting within the appliance. This rack is crafted to fit inside Whirlpool oven models, ensuring optimal airflow around food items for even cooking and browning.

The primary cause for replacing an Oven Rack often relates to wear and tear from regular use.

Symptoms of a needing replacement Oven Rack include:

• Warping or bending of the rack, which can cause uneven cooking or baking
• Rust or corrosion that can contaminate food or deteriorate the rack further
• Difficulty sliding the rack in or out, indicating a potential misfit or damage

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

For broil pan use WP3196076.

For broil pan grid use WP3195996.

This replacement drawer panel restores the finished front of your appliance drawer so it looks and functions like new. It replaces a cracked, dented, or scratched front and helps the drawer seal and slide properly. What it does:

• Replaces a damaged or cosmetically worn drawer front to restore appearance
• Provides a proper mounting surface so the drawer closes and opens smoothly
• Helps maintain drawer alignment and fit against surrounding trim
• Matches original fit and attachment points for an easy swap when hardware is transferred

• Disconnect power or follow the appliance safety shutoff procedure before starting
• Remove the drawer and transfer any original mounting clips, brackets, or screws to the new panel
• Handle edges carefully to avoid damage; use appropriate tools and support the drawer during reassembly
• Refer to your model's service instructions for exact disassembly and reassembly steps

The Screw is an OEM part for Whirlpool appliances. This specific screw is used in various locations within Whirlpool appliances, securing components and ensuring the stability and proper alignment of parts. It is designed to fit precisely and maintain a firm hold, contributing to the overall functionality and safety of the appliance.

Over time, screws can become worn or stripped due to regular use, corrosion, or over-tightening.

Causes of a bad screw include wear and tear, exposure to moisture leading to rust, and over-tightening which can strip the threads.

Symptoms of a bad screw include:

• Loose or wobbly components
• Misalignment of parts
• Noise due to vibrating or loose parts
• Difficulty in securing or removing the screw

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Screw for side trim.

This thermistor is the temperature sensor used by a warm drawer to monitor and regulate internal temperature, helping maintain consistent warming for cooked foods. Replaces a failed or out-of-range sensor to restore correct temperature feedback. What it does:

• Senses warm-drawer temperature and sends a resistance-based signal to the control board
• Allows the control system to maintain desired warming temperature
• Common symptom: warm drawer not holding correct temperature or displaying temperature-related error codes
• Safe, widely accepted fix when diagnostics indicate an open/short or out-of-spec thermistor

• One thermistor temperature sensor

• Disconnect power to the appliance before accessing internal components
• Handle the sensor and connector gently; avoid pulling on wires
• Route and secure the lead per the original routing to prevent pinching or heat exposure

This partial oven rack provides a sturdy, heat-resistant support for cookware when a full rack isn't needed. It restores proper sliding and positioning so pans and bakeware sit level during cooking. What it does:

• Replaces a bent, damaged, or missing partial oven rack to restore stable support for cookware
• Slides into existing oven rack supports for secure, level positioning
• Helps prevent cookware from tipping or sliding during use
• Durable finish resists typical oven heat and wear under normal use

• One partial oven rack

• Allow the oven to cool completely before handling interior parts
• No special tools typically required; slide rack into the oven's existing guides until seated
• If rack resistance or fit seems off, inspect oven supports for damage or debris and clean before installing
• For safety, disconnect power at the breaker if you must access electrical components or perform additional service

This replacement rack insert helps organize and protect dishes and utensils inside the dishwasher, restoring proper spacing and support for safe cleaning. It fits into the rack to prevent items from shifting or knocking during cycles. What it does

• Replaces a worn, broken, or missing rack insert to restore proper item support and spacing
• Holds dishes, glasses, or utensils in place to reduce chipping and clattering during wash cycles
• Keeps small items from tipping or falling through the rack grid
• Compatible with racks designed to accept this style of insert

• One rack insert

• Install by snapping or sliding the insert into the designated rack slots; no special tools generally required
• Inspect rack rails and surrounding clips for damage before installing
• Handle with care to avoid pinching; wear gloves if edges are sharp

This machine-thread screw secures brackets, panels, and trim inside your appliance. Replacing a missing or stripped fastener restores a tight fit, reduces rattles, and keeps assemblies properly aligned. What it does:

• 10-32 machine-thread screw used to fasten metal components
• Maintains alignment and stability of panels, brackets, and trim
• Replace if threads are stripped, head is damaged, corroded, or missing
• Common symptoms: loose panel/handle, vibration noises, gaps or misalignment

• 1 screw

• Disconnect power (and gas, if applicable) before servicing
• Support the component and start threads by hand to avoid cross-threading
• Use the correct driver; do not overtighten to prevent stripping
• Match thread size and length specified for your model

This 6-32 machine screw is a direct-fit fastener used to secure appliance panels and components. It provides a reliable replacement for stripped or missing screws to restore proper fit and reduce vibration or looseness. What it does:

• Secures panels, brackets, and internal components to keep parts aligned and stable
• Restores proper fastening when original screws are missing, stripped, or damaged
• Helps eliminate rattling or movement caused by loose fasteners
• Compatible with metal-to-threaded-hole connections that use 6-32 hardware

• Use the correct driver and avoid over-tightening to prevent stripped threads or damaged components
• Disconnect power and follow appliance safety guidelines before servicing
• If threads are damaged, replace both screw and any damaged insert or nut as needed

Specs: 25ft, 14 Ga. 150 c Blue

Specs: 25ft, 14 Ga. 150 c Brown

Specs: 25 ft, 14 Ga., 150 c Green

Splicing 25 Ft. Black 12 Ga. 150~c (Wire, Orange 14 Ga. 150~c)

Splicing 25 Ft. Black 12 Ga. 150~c (Wire, Red 14 Ga. 150~c)

Splicing 25 Ft. Black 12 Ga. 150~c (Wire, Yellow 14 Ga. 150~c)

Splicing 25 Ft. Black 12 Ga. 150~c (Wire, Red 14 Ga. 200~c)

Touch-up paint. Color: Almond. Size: 1 qt. can. (Uncut)

Color: White. Size: 1/2 oz. Porcelain or evaporator repair kit.

Size: 25ft, 12 Ga. 150 c Black

Color: White. Size: 1 qt. can. Acrylic appliance paint.

Specs: 25ft,14 Ga., 200 c Brown

Made specifically for oven bottoms, this foil helps catch spills in your oven. Perfect for BBQ grills as well.

This cable clamp secures a wiring harness to the appliance frame to prevent chafing and strain on electrical connections. It helps keep wires routed neatly and reduces the risk of abrasion-related faults. What it does:

• Holds wiring harnesses in place to prevent rubbing against sharp edges or moving parts
• Reduces strain on terminal connections and wire leads
• Helps prevent intermittent electrical problems caused by loose or misrouted wires
• Keeps routing tidy for safer, cleaner internal layouts

• One cable clamp

• Disconnect power to the appliance before beginning any repair
• Replace with the same clamp type and orientation as the original; secure without over-tightening
• Route wires so insulation is not pinched; verify clearance from moving parts
• If you see damaged insulation or frayed wires, repair those issues before reassembly

This replacement screw secures appliance panels and components to keep parts aligned and stable. Use it to replace missing or damaged fasteners that cause loose trim, rattling, or unsecured panels for safer, quieter operation. What it does:

• Fastens panels, brackets, trim pieces, or small components in place
• Restores proper alignment and stops vibration or rattling caused by loose hardware
• Replaces stripped, corroded, or missing screws to prevent parts from shifting or falling
• Compatible where the OEM lists part W11244557 as the required fastener

• Disconnect power to the appliance before servicing to avoid shock or injury
• Use the correct screwdriver or bit to avoid stripping the head
• Tighten securely but avoid over-tightening, which can strip threads or crack parts
• Replace like-for-like; length before installing

Color: White. Size: 13 oz. Spray paint primer. can.

The Oven Liner Touch Up Paint is an OEM part for Whirlpool ovens. This 2 oz warm white touch-up paint is designed to cover minor scratches, chips, and blemishes on the oven liner, restoring its appearance and protecting it from further damage.

Causes of a bad oven liner include exposure to high temperatures, accidental impacts, and abrasive cleaning materials, which can lead to scratches, chips, and discoloration. Over time, these imperfections can worsen, making it necessary to use touch-up paint to maintain the oven liner’s integrity.

Symptoms of a bad oven liner include:

• Visible scratches or chips on the oven interior
• Discoloration or fading of the liner
• Increased difficulty in cleaning the oven liner
• Potential rust or corrosion in affected areas

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Color: Black. Size: 12 oz. Acrylic appliance aerosol can spray paint.

Color: White. Size: 2 oz. can. Porcelain touch-up paint.

This grate pad kit replaces the small feet under your cooktop or range burner grates. The heat-resistant pads cushion and stabilize the grate to help prevent wobble, rattling, and scratches on the cooktop surface.

• Provides a protective buffer between the grate and cooktop
• Helps keep grates level and steady to reduce rocking or rattling
• Minimizes metal-on-porcelain or glass contact that can mark the surface
• Common fix when original pads are worn, flattened, missing, or heat-damaged

• Allow appliance and grates to cool completely before servicing
• Lift off the grate; remove old pads and clean the pad recess of residue
• Press new pads firmly into place; ensure each is fully seated before reinstalling the grate
• Replace all pads together for even support and consistent height

Color: Almond

Almond. Size: 13 oz. can. Acrylic appliance paint.

Kit includes 4 pins.

The Anti Tip Bracket is an OEM component specifically designed for Whirlpool ranges. This bracket plays a crucial safety role in preventing the range from accidentally tipping over if excessive weight is applied to the open oven door.

The anti-tip bracket secures tightly to the floor or wall behind the range, linking it securely in place. It allows the oven door to function while ensuring the entire appliance remains stable even under heavy use.

Causes of a bad bracket can include damage, deterioration of mounting hardware over time, or failure to install properly according to manufacturer instructions.

Symptoms of a faulty anti-tip bracket include:

• The range appears unsecured and able to wobble or rock backward
• Looseness between the bracket and mounting surface
• Cracks or breaks in the anti-tip bracket material

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.


The Appliance Touchup Paint is an OEM product for Whirlpool appliances. This touchup paint is used to cover scratches, chips, and minor blemishes on the surface of various appliances, helping to maintain their appearance and protect them from rust and other damage. It is specifically formulated to match the original color and finish of Whirlpool appliances, ensuring a seamless repair.

Causes of needing touchup paint include everyday wear and tear, accidental impacts that cause chipping or scratching, and exposure to harsh cleaning chemicals that can damage the finish. Regular use of touchup paint can help keep appliances looking new and extend their lifespan.

Symptoms indicating the need for Appliance Touchup Paint include:

• Visible scratches or chips on the appliance surface
• Areas of exposed metal prone to rust
• Blemishes that affect the overall aesthetic of the appliance

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Color: White. Size: 13 oz can. Acrylic appliance aerosol can spray paint.

The Appliance Spray Paint is an OEM part for Whirlpool appliances, designed to provide a quick and effective way to touch up or completely refinish the exterior of various appliances. This specialty spray paint is formulated to adhere to metal surfaces, offering a durable and resistant finish that can withstand the routine wear and tear of kitchen environments, including heat, moisture, and everyday use.

The primary reason for using such a specialized paint is to maintain or restore the aesthetic appeal of your appliances while protecting them from further damage.

Symptoms needing for Appliance Spray Paint include:

• Scratches, chips, or rust spots on the appliance's exterior that can lead to further damage or corrosion if left untreated
• A desire to refresh or update the appearance of the appliance without the need for complete replacement
• Discoloration or fading of the original finish due to age, exposure to sunlight, or cleaning agents

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Oven Insulation is an OEM replacement part for Whirlpool ranges. Properly insulated walls are necessary to prevent heat loss through the oven exterior, ensuring consistent and even cooking from the inside out.

Causes of bad insulation include the breakdown of insulating materials over time due to repeated high heat exposure during cooking. Crumbling, compressed, or discolored insulation has lost its ability to hold in heat.

Symptoms of needing new insulation include:

• Inefficient and uneven cooking/baking performance
• Interiors not reaching/maintaining set temperatures
• Overheating or longer than normal cook times
• Hot or warm oven exteriors that were previously cool to the touch

This genuine Whirlpool OEM replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Oven Insulation is an OEM replacement part for Whirlpool ranges. Properly insulated walls are necessary to prevent heat loss through the oven exterior, ensuring consistent and even cooking from the inside out.

Causes of bad insulation include the breakdown of insulating materials over time due to repeated high heat exposure during cooking. Crumbling, compressed, or discolored insulation has lost its ability to hold in heat.

Symptoms of needing new insulation include:

• Inefficient and uneven cooking/baking performance
• Interiors not reaching/maintaining set temperatures
• Overheating or longer than normal cook times
• Hot or warm oven exteriors that were previously cool to the touch

This genuine Whirlpool OEM replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
