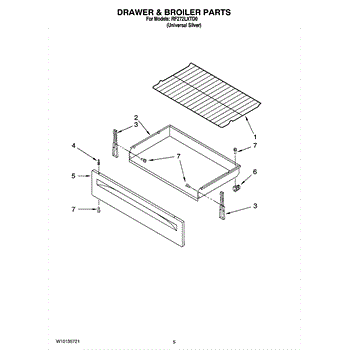

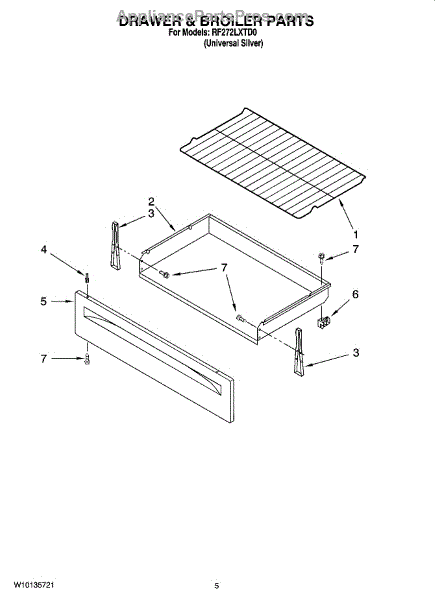

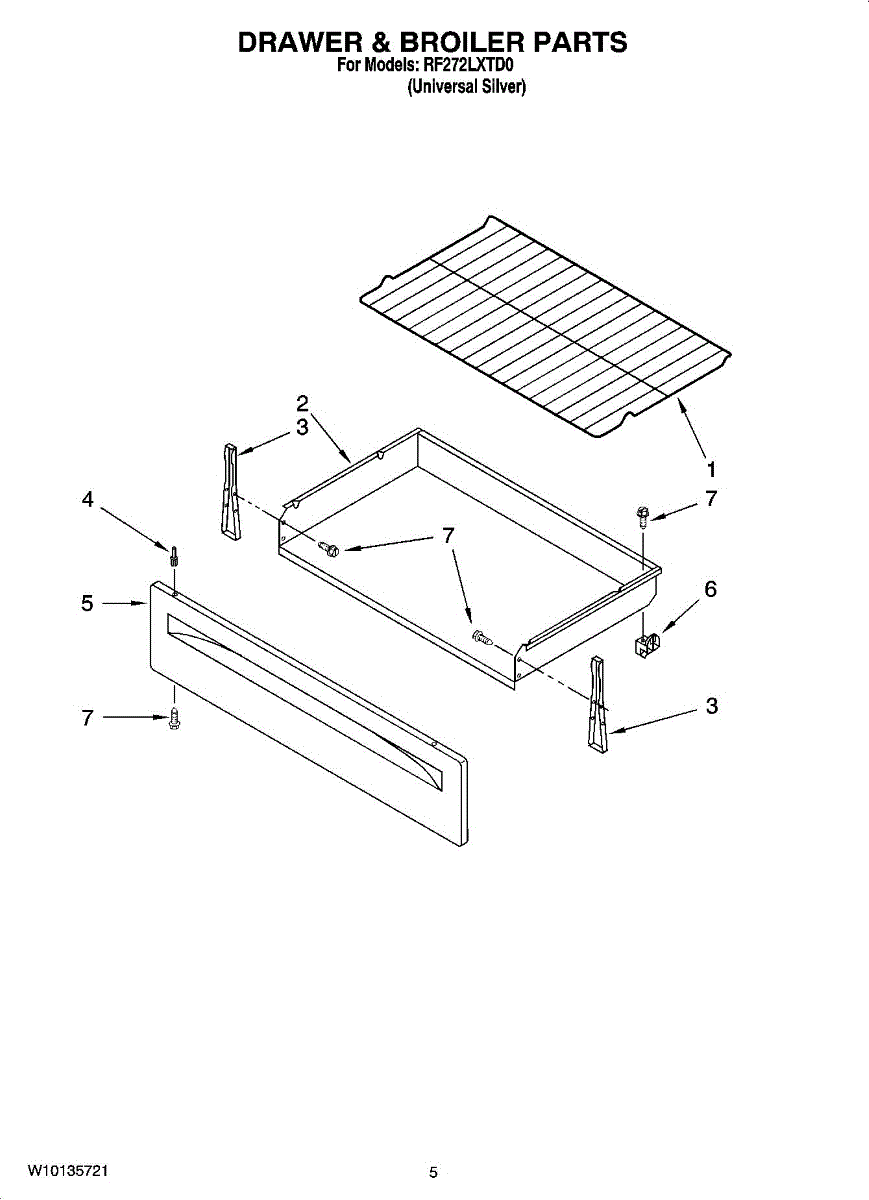

Parts for Whirlpool RF272LXTD0: 04 - Drawer & Broiler Parts

The Oven Rack is an OEM part for Whirlpool ovens, designed to provide a sturdy and reliable surface for baking and roasting within the appliance. This rack is crafted to fit inside Whirlpool oven models, ensuring optimal airflow around food items for even cooking and browning.

The primary cause for replacing an Oven Rack often relates to wear and tear from regular use.

Symptoms of a needing replacement Oven Rack include:

• Warping or bending of the rack, which can cause uneven cooking or baking
• Rust or corrosion that can contaminate food or deteriorate the rack further
• Difficulty sliding the rack in or out, indicating a potential misfit or damage

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This replacement mounting bracket secures panels and internal components to the appliance frame, restoring stable support and reducing vibration. Use it when a broken or missing bracket causes loose panels, rattling, or misalignment. What it does:

• Provides a stable mounting point for panels, trim, or internal assemblies to prevent unwanted movement.
• Helps reduce noise and vibration caused by loose or sagging parts.
• Replaces cracked, bent, or missing brackets that can lead to misaligned panels or rattling.
• Restores proper alignment so doors, panels, or controls sit correctly and operate smoothly.

• One mounting bracket

• Always disconnect power (and gas, if applicable) before servicing the appliance.
• Keep original fasteners and note the bracket orientation before removal for correct reinstallation.
• Use appropriate hand tools; tighten fasteners securely but avoid overtightening or stripping screw holes.
• Replace with the correct-size fasteners before completing the repair.

Color: Black.

This drawer panel replaces a damaged or worn storage-drawer front to restore appearance and proper drawer function. It provides a clean, finished front that secures the drawer and hides the internal cavity. What it does:

• Replaces a cracked, dented, scratched, or broken drawer front for a neater appearance
• Restores proper alignment and secure closure of the storage drawer
• Covers and protects the drawer cavity and internal components from dust and debris
• Helps eliminate rattling or loose-feeling drawer operation caused by a damaged front

• One drawer panel

• Disconnect power to the appliance before beginning any service as a general safety precaution
• Remove the drawer per the appliance service instructions to access mounting clips or screws
• Handle replacement panel carefully to avoid scratching the finish during installation
• Use only the specified mounting clips/screws and replace any broken fasteners for a secure fit

The Drawer Glide is an OEM part for Whirlpool ranges and ovens. This part allows the smooth operation of the appliance's drawer. This part ensures that the drawer beneath the oven or range slides in and out effortlessly, providing convenient access to pans, sheets, and other cooking utensils stored within.

Causes of a bad drawer glide can include accumulated debris or dirt, physical strain from overloading the drawer, or natural wear and tear from frequent use.

Symptoms of a bad Drawer Glide include:

• The drawer sticking or not opening smoothly
• Visible wear or damage to the glide mechanism
• The drawer sagging or not closing properly

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Screw for side trim.
