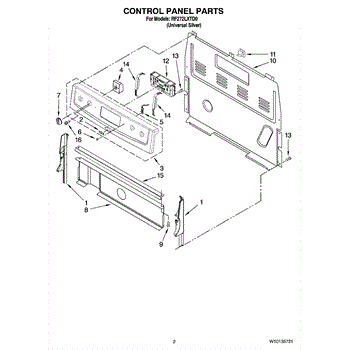

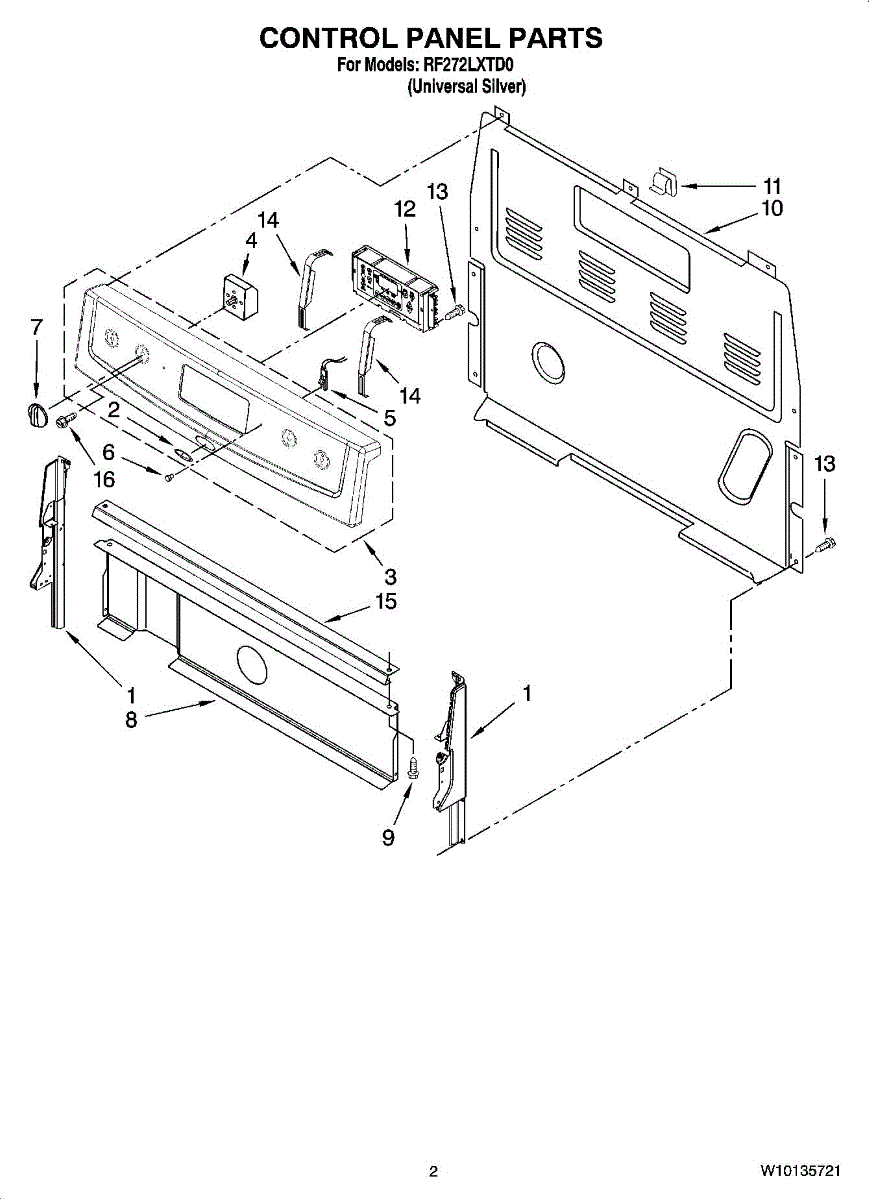

Parts for Whirlpool RF272LXTD0: 02 - Control Panel Parts

Black left side end cap panel for electric and gas ranges. Replaces cracked, broken, or damaged side trim pieces. Installs on left exterior edge.

Right side end cap panel for ranges in black. Replaces cracked, broken, or missing end panel. Covers and protects the exterior side of your range.

Burner stuck on high or won't regulate temperature? This infinite switch controls top burner heat settings. Straightforward DIY fix, 15-30 minutes.

Burner stuck on high or won't heat properly? This surface element switch controls your range burner temperature. Simple 15-minute DIY fix.

Replace your range's surface unit indicator light when it stays on, flickers, or burns out. Signals when burners are hot for safety. Verify fit.

Broken indicator light lens? This red lens covers the control panel light opening, restoring visibility and protection. Easy DIY fix in under an hour.

Black infinite switch knob for range cooktop. Replaces broken, cracked, or missing control knobs. Mounts directly onto the infinite switch stem.

Mounting screw for securing trim, hinges, drawer guides, and interior components. Replace if missing, stripped, or broken during repair or maintenance.

Protective cover that conceals your range's control box and wiring. Replaces cracked, broken, or missing covers to restore a finished look.

Secures the rear cover panel on your electric range. Replace this clip if it's broken, cracked, or missing to properly hold the back cover in place.

Black

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

This machine screw is used across appliances to secure brackets, covers, and internal components. Replacing a missing or stripped fastener helps keep parts aligned and tight, reducing vibration and preventing loose or shifting assemblies.

• Provides machine-thread fastening for panels, brackets, and internal parts
• Helps eliminate rattling, vibration, and loose fits
• Restores proper attachment when the original screw is stripped, missing, or corroded
• Used wherever an 8-32 screw is specified in the service manual or parts list

• Disconnect power to the appliance; turn off gas/water if applicable
• Match the screw to the original location to confirm size and thread
• Start threads by hand to avoid cross-threading; use the correct driver
• Tighten snugly—do not overtighten to prevent stripping or cracking
