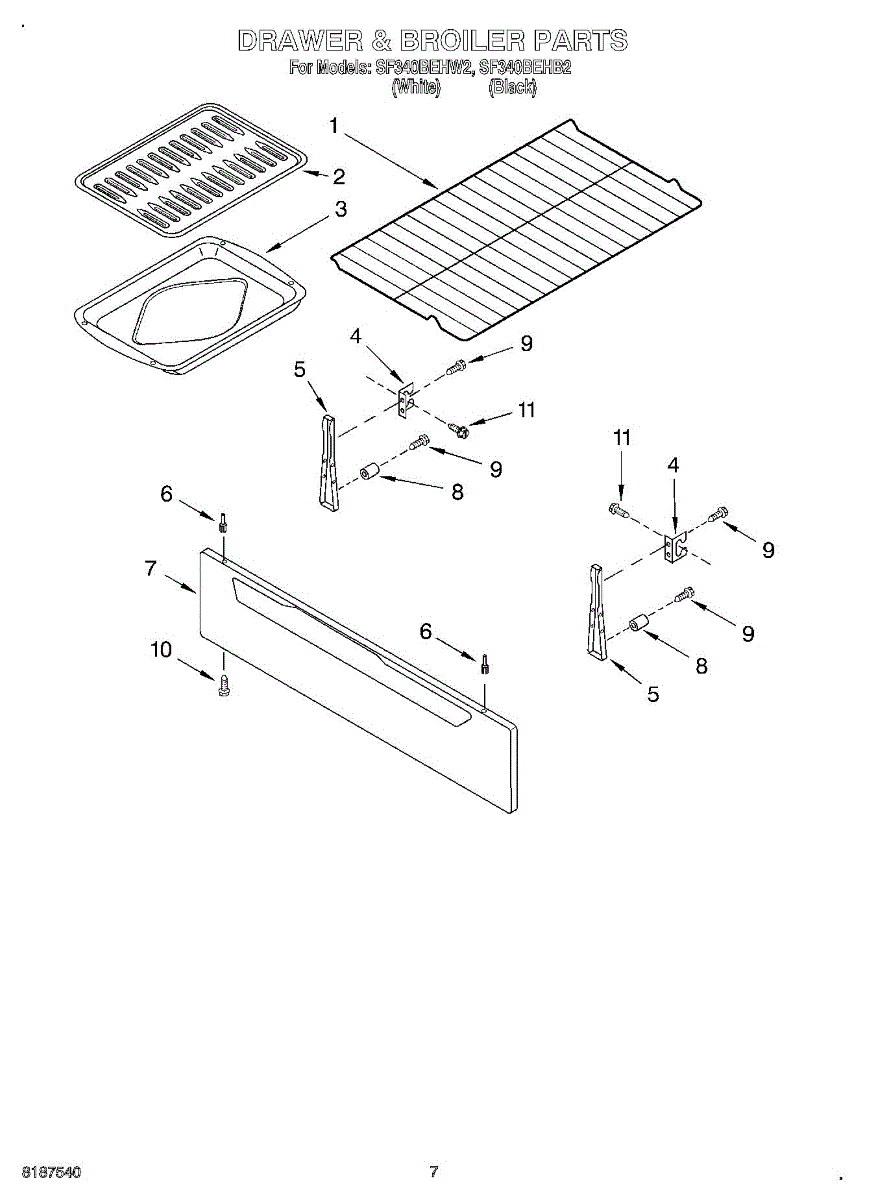

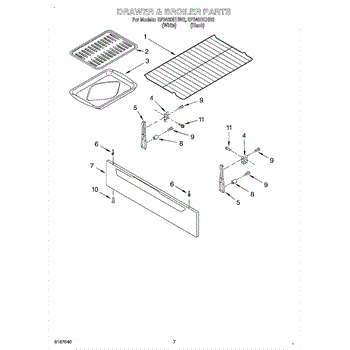

Parts for Whirlpool SF340BEHB2: 05 - Drawer And Broiler Parts

The Oven Rack is an OEM part for Whirlpool ovens, designed to provide a sturdy and reliable surface for baking and roasting within the appliance. This rack is crafted to fit inside Whirlpool oven models, ensuring optimal airflow around food items for even cooking and browning.

The primary cause for replacing an Oven Rack often relates to wear and tear from regular use.

Symptoms of a needing replacement Oven Rack include:

• Warping or bending of the rack, which can cause uneven cooking or baking
• Rust or corrosion that can contaminate food or deteriorate the rack further
• Difficulty sliding the rack in or out, indicating a potential misfit or damage

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

For broil pan use WP3196076.

For broil pan grid use WP3195996.

This mounting bracket secures appliance components to the cabinet or chassis, restoring proper alignment and reducing movement. It's a direct-fit structural support used where panels or assemblies need a stable attachment point. What it does:

• Secures panels, trim or internal assemblies to the appliance cabinet to prevent shifting or sagging
• Restores proper alignment to reduce vibration, rattling or scraping noises
• Helps maintain door and panel fit for correct operation and appearance
• Used when a broken, bent or missing bracket causes loose or misaligned parts

• Disconnect power and water before starting any repair
• Verify bracket orientation and location against the appliance before tightening
• Use original mounting hardware when possible; inspect screws or clips and replace if worn

Color: Black.

Color: White.

Color: White.

This spacer provides a precise gap for proper alignment and clearance between components, helping maintain correct part positioning for reliable operation. It's a simple replacement that restores intended spacing and reduces wear. What it does:

• Positions and separates adjoining parts to maintain correct clearance
• Helps prevent rubbing, misalignment, or binding of moving components
• Restores factory spacing after maintenance or part replacement
• Fits where the original spacer was used to support assembly alignment

• One spacer as shown

• Inspect surrounding components and mounting surfaces for damage before installing
• Remove power to the appliance and follow manufacturer service instructions
• Install in the same orientation as the original spacer and verify proper clearance
• If fasteners or adjacent parts are worn, replace them to ensure a secure fit

Size: 8-18 x 1/2 inch.

Screw for side trim.
