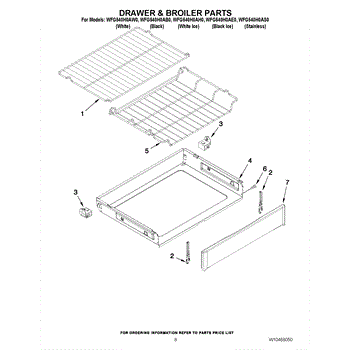

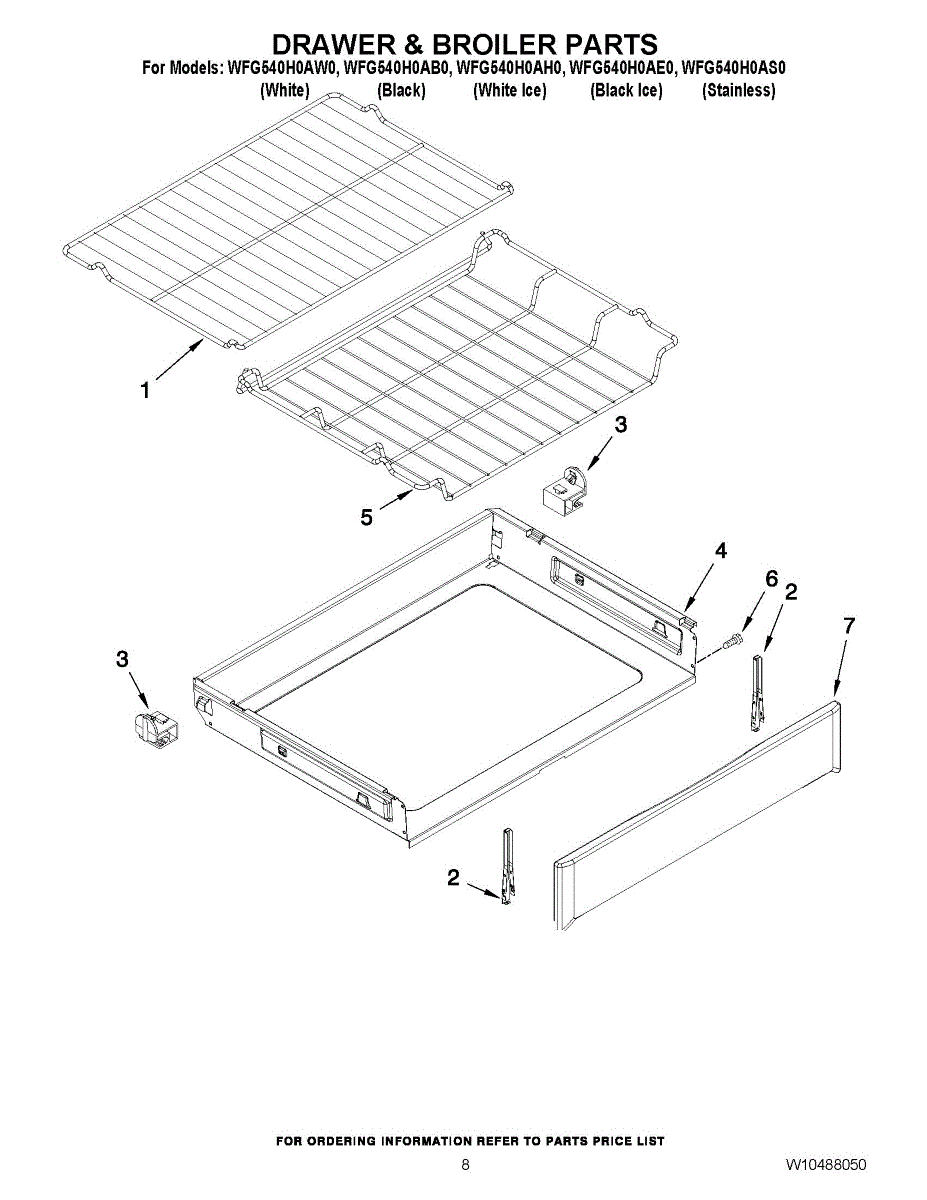

Parts for Whirlpool WFG540H0AE0: 06 - Drawer & Broiler Parts

The Oven Rack is an OEM part for Whirlpool ovens, designed to provide a sturdy and reliable surface for baking and roasting within the appliance. This rack is crafted to fit inside Whirlpool oven models, ensuring optimal airflow around food items for even cooking and browning.

The primary cause for replacing an Oven Rack often relates to wear and tear from regular use.

Symptoms of a needing replacement Oven Rack include:

• Warping or bending of the rack, which can cause uneven cooking or baking
• Rust or corrosion that can contaminate food or deteriorate the rack further
• Difficulty sliding the rack in or out, indicating a potential misfit or damage

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This front mounting bracket secures the appliance's front panel and helps keep the cabinet and components aligned for stable operation. A direct-fit replacement that restores proper panel fit and reduces vibration or rattling. What it does

• Secures the front panel or trim to the cabinet to maintain alignment and prevent gaps.
• Keeps adjacent components from shifting, helping reduce vibration and noise.
• Commonly replaces cracked, bent, or missing brackets that cause loose or misaligned panels.
• Helps restore correct door/panel fit and smooth operation of attached controls or trim.

• One front mounting bracket

• Disconnect power (and water if applicable) before starting any repair.
• Access may require removing the front panel or trim—keep screws and fasteners organized.
• Inspect mating surfaces and existing fasteners; replace any damaged screws or clips.

The Drawer Glide Kit is an OEM part for Whirlpool ovens and ranges. It consists of glides that attach to the sides of the storage drawer, allowing for effortless opening and closing. These glides are made from durable materials to withstand regular use and provide reliable support. The kit also includes any necessary mounting hardware for easy installation.

Causes of a faulty drawer glide kit can include wear and tear over time, damage due to excessive weight or force, or broken or worn-out glides.

Symptoms of a bad drawer glide kit may include:

• Storage drawer sticking or not sliding smoothly
• Uneven movement or misalignment
• The drawer not closing or staying securely in place

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Utility drawer assembly replaces a damaged or missing storage drawer, restoring tidy storage and proper sliding action in the appliance. Durable replacement designed to match the original fit and function. What it does:

• Provides a dedicated storage compartment for small items and accessories inside the appliance
• Restores proper drawer alignment and smooth sliding operation
• Replaces cracked, broken or missing drawers and mounting tabs that allow the drawer to fall out or not seat correctly
• Helps prevent items from shifting or falling into the appliance interior

• Always disconnect power to the appliance before beginning service and follow basic safety precautions
• Removal typically involves sliding out the old drawer and lifting or releasing retention tabs; installation is the reverse
• Inspect mounting rails/tabs for damage during replacement; damaged hardware may require separate parts

This oven rack restores a stable cooking surface inside the oven, letting you slide baking sheets, pans and cookware in and out safely. It replaces bent, rusted or missing racks to help your oven perform as intended. What it does:

• Provides a stable shelf for cookware and bakeware during cooking and baking
• Slides into oven rack guides to allow easy insertion and removal of pans
• Replaces warped, bent or missing racks that cause uneven cooking or instability
• Compatible with models that use part number W11256463

• Allow the oven to cool completely before installing or removing the rack.
• Slide the rack into the oven's existing rack guides until fully seated.
• Wear gloves to protect hands from sharp edges and to avoid pinching.
• Do not modify the rack or force it into incompatible guides.

Size: 8-18 x 1/2 inch.

This replacement drawer front restores the appearance and function of the lower storage drawer on compatible gas ranges. It provides a finished exterior surface and helps the drawer open, close, and align properly. What it does

• Replaces a cracked, dented, scratched or damaged drawer front to improve appearance
• Restores proper drawer alignment so the drawer slides and closes smoothly
• Covers and protects the drawer's front edge and mounting hardware
• Matches the original part form to maintain fit and function

• One drawer front

• Remove the drawer assembly and mounting screws to swap the front; keep original screws and brackets unless replacements are specified
• Align the drawer front before fastening screws to ensure even gaps and smooth operation
• Use basic hand tools; avoid overtightening fasteners which can crack the panel
