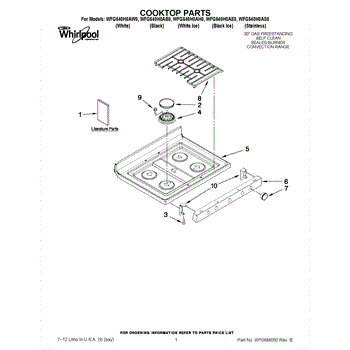

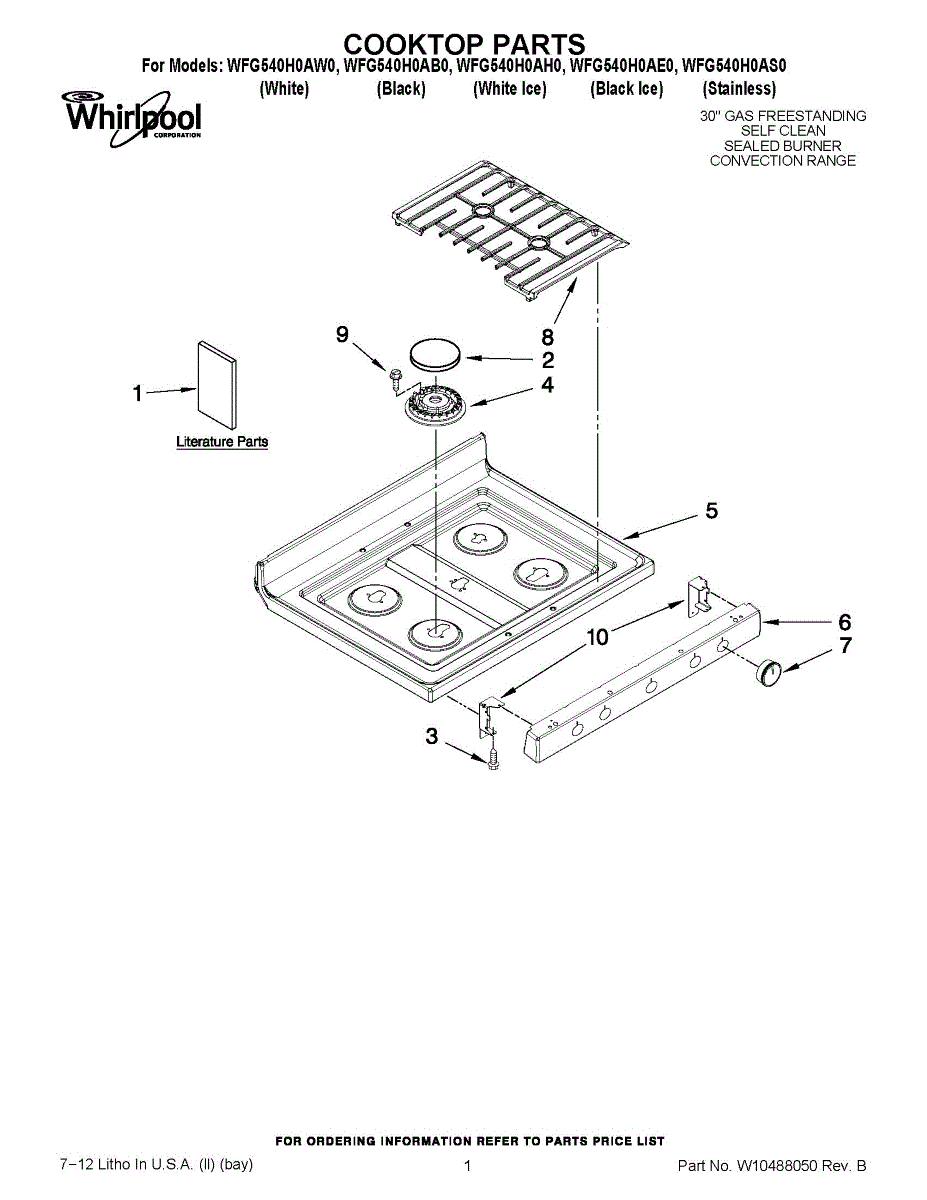

Parts for Whirlpool WFG540H0AE0: 01 - Cooktop Parts

Color: Black. Kit includes five burner caps. For the burner cap kit in grey use part number WPW10183372.

This factory screw secures panels, brackets, or trim within your appliance. Replacing a missing or stripped fastener restores a tight fit, reduces vibration and rattles, and helps keep components aligned for reliable, long-term performance.

• Fastens panels, brackets, or trim to the appliance cabinet/frame
• Replaces damaged, rusted, or missing hardware
• Helps eliminate vibration noises, gaps, and loose-fitting parts
• Supports proper alignment of adjoining components

• Disconnect power; turn off gas/water supplies where applicable.
• Match to the original screw from your model's parts diagram before installation.
• Start threads by hand to avoid cross-threading; use the correct driver bit for the head.
• Tighten snugly—do not overtighten to prevent stripping threads or cracking plastic bosses.

This gas surface burner head sits on the burner base and channels gas through precision ports for quick ignition and an even flame. Replacing a worn or clogged head helps restore reliable lighting and consistent heat.

• Distributes gas from the burner base to the flame ports for even flame patterns
• Interfaces with the spark electrode to enable ignition
• Helps maintain proper flame shape and heat output
• Common symptoms include burner won't light, weak/uneven or yellow flames, delayed ignition, or continuous clicking

• Disconnect power and shut off the gas supply before servicing
• Remove grate and burner cap; lift the old burner head off the base
• Clean the burner base and electrode area; align the new head with locator pins and the electrode opening, then seat fully
• Reinstall cap and grate; restore gas/power and test ignition and flame

This auxiliary surface burner head mounts over the orifice on your gas cooktop/range and distributes gas through precision ports for an even flame. Replacing a clogged or damaged head restores fast ignition and consistent heat on the small burner. What it does:

• Distributes gas through ports to produce a stable, even flame on the auxiliary burner
• Interfaces with the igniter electrode for quick, reliable lighting
• Common symptoms of a worn/clogged head: burner won't ignite or clicks without lighting; weak, uneven, or yellow flame; delayed ignition
• Helps restore proper simmer performance after corrosion, warping, or blocked ports

• 1 auxiliary burner head

• Shut off gas and disconnect power; allow the cooktop/range to cool completely
• Remove grate and burner cap, then lift off the old head; clear debris from the orifice and around the igniter (do not enlarge burner ports)
• Position the new head over the orifice and igniter; align locating features and seat fully; if your model uses screws, tighten them evenly without over-torquing
• Reinstall the cap and grate, restore gas/power, and verify even flame and normal ignition

This burner head mounts on the cooktop and distributes gas evenly to produce a steady flame. Replacing a worn or damaged head restores proper flame pattern and helps your burner light quickly and cook consistently.

• Directs gas through precisely sized ports to create an even flame
• Can resolve issues like uneven flames, yellow/orange flames, or delayed ignition
• Helps when the burner won't light or only lights partially
• Replaces a corroded, clogged, or warped burner head

• Disconnect power and shut off gas supply before servicing
• Allow the cooktop to cool completely
• Lift off the grate and cap; remove the old head and align the new head on the burner base
• Ensure ports are clean and seated correctly; test for proper ignition and flame

Color: Black

Color: Stainless

Color: White

Color: Black

Color: Grey/Chrome - This is a control knob that is used on many stoves, ranges, and ovens. The control knob is the component that controls the heating elements. The control knob is used to turn the elements from off to on and back. They also control the temperature settings. Regular use can start to strip the inside of the knobs so they do not fit properly over the shaft. When this occurs, the heating elements cannot be controlled. The control knob will need to be replaced to safely use the stove or oven. When replacing the control knob, the stove should be powered off and cool to the touch. Use a flathead screwdriver to pry the original knob off of the range so the control shafts can be seen. Use a degreaser to clean the control panel and shafts before placing the new control knob. Make sure the appliance is powered on before use. This control knob is sold as an individual product. It is an authentic OEM replacement component that is sourced directly from the manufacturer. The knob is made to be used with ranges, stoves, and ovens manufactured by Whirlpool.

The Knob (stl) is an OEM part for Whirlpool ranges and ovens. This stainless steel knob is designed for controlling the temperature and settings of your cooking appliance.

Symptoms of a bad Knob include:

• Difficulty in turning or adjusting the settings.
• The knob slipping or failing to engage with the control mechanism.
• Visible wear or damage such as cracks or fading.
• The knob coming loose or detaching completely.

Causes of a bad knob can include continuous use leading to wear and tear, exposure to heat and cleaning chemicals that degrade materials, or mechanical failure within the control mechanism.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Grate-Kit is an OEM component designed specifically for Whirlpool kitchen ranges. This kit contains the replacement grates that sit atop the burner elements. The grates are responsible for providing an even cooking surface while elements are in use.

Causes of bad grates can include warping, discoloration, or pitting due to continuous high heat exposure over time. Thin or warped grates may no longer distribute heat evenly across pans.

Symptoms of bad grates include:

• Uneven or inefficient cooking
• Food burning more easily
• Visible wear like scratches or pits on cooking surface
• Grates that are loose, wiggly, or difficult to remove

 This replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Torx Screw is an OEM replacement part for Whirlpool brand appliances. The Torx Screw is responsible for providing secure and stable connections between different components of washing machines, dryers, dishwashers, and more. These screws are characterized by their star-shaped drive design, which offers better torque transfer and reduces the risk of stripping or cam-out. Sold individually. 7-18 x 3/4"

Causes of a bad Torx screw can include stripping of the screw head, rust or corrosion from prolonged exposure to moisture, or damage from over-tightening or cross-threading. A compromised screw can lead to loose or insecure parts, which can affect the performance and safety of the appliance.

Symptoms of a bad Torx screw include:

• The screw head being stripped and difficult to turn
• Rust or corrosion visible on the screw
• The screw not holding components securely
• Loose or rattling parts within the appliance

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.
