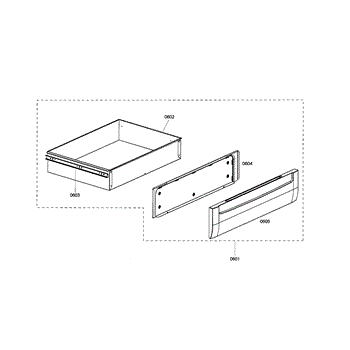

Parts for Bosch HDS7022U/01: Drawer Parts

This is a replacement oven control board manufactured by Bosch. The oven control board is the oven's brain and handles all the functions. It also includes the display and provides users with the ability to control functionality, like bake and broil, setting timers, and more. While the oven control board does not include moving parts, heat and moisture can damage soldered components and lead to failure. Signs that the control board may need to be replaced include lack of information on the display, inability to control specific functions, or complete lack of operability. Note that this part is often misdiagnosed, so make sure to check the old board's operability with a multimeter before replacing it. To replace the oven control board, first remove the exterior cowling. Locate the wiring harness and disconnect it before removing the mounting screws. Install the replacement part following these steps in reverse.This genuine OEM part is sold individually. It only fits Bosch Thermador ovens.

Replace your range's control knob if it's cracked, broken, or missing. This knob installs on the control panel to operate oven settings and functions.

This replacement grill grid restores a flat, stable cooking surface so food cooks evenly and stays off the burner. Designed to fit compatible Bosch countertop grills and grilling modules for reliable performance. What it does:

• Provides a stable, heat-resistant surface for grilling and searing foods
• Keeps food elevated above the burner for even heat distribution
• Replaces bent, warped, or damaged grill surfaces that cause uneven cooking
• Helps prevent food from falling into the burner area during use

• One grill grid

• For safety, disconnect power and allow appliance to cool completely before removing or installing the grid
• Handle with care—edges may be sharp and surfaces hot after recent use
• Slide or position the grid into the existing support rails; no special tools typically required

Gas range burner cap sits atop the burner to distribute flames evenly for cooking. Replace if cracked, warped, or causing uneven flames. Verify fit with your model number before ordering.

Fix wobbly burners or uneven flames with this gas range burner housing. Secures surface burner assembly for stable operation and proper alignment.

Burner cap for gas ranges. Sits atop the burner assembly to control and diffuse the flame. Replace if cracked, chipped, worn, or missing.

Fix a loose or misaligned cooktop burner with this burner housing. Secures the burner head and igniter for stable flames and even heating on your range.

Uneven flames or weak heat? This range burner cap directs gas flames for even cooking and protects the burner from spills. Easy 5-minute replacement.

This is the burner base housing for a gas range cooktop surface burner. It sits beneath the burner cap and distributes gas evenly to produce a consistent flame ring. Replace this part if you notice uneven flames, yellow or irregular burning, or if the base is cracked or corroded from spills and buildup.

Burner cap for gas cooktops and ranges. Sits on top of the burner head to distribute flame. Replace if cracked, chipped, discolored, or missing.

If your range has intermittent power issues or components that won't operate, a damaged cable harness may be the cause. This wiring assembly restores connections.

This panel frame is the front trim piece that restores the exterior appearance and edge finish of the appliance door. It replaces damaged, cracked or loose trim to help the door sit and look right. What it does:

• Covers and protects the outer edge of the appliance door and control area
• Restores a secure, flush fit when the original trim is cracked, bent or warped
• Helps prevent dirt and moisture from getting behind the door front where components sit
• Improves the appliance's appearance when the original panel shows cosmetic damage

• Disconnect power to the appliance before starting any repairs
• Removal typically requires opening the door and removing the inner door panel or retaining screws; handle panels carefully to avoid scratching
• Retain and reuse any original clips or screws unless replacement hardware is specified

This mounting bracket secures appliance components in place to restore proper alignment and stability. It's a simple replacement part that helps reduce rattling and supports correct panel or assembly positioning. What it does:

• Secures a panel or assembly to the appliance frame to prevent movement and vibration
• Restores proper alignment for doors, panels, or internal components
• Helps stop rattling, noises, or loose components that occur when a support bracket fails
• Provides a direct mechanical replacement—no electrical function

• One replacement mounting bracket

• High-level: remove power and water to the appliance before starting repairs
• Use basic hand tools; keep fasteners from the original part for reinstallation unless new ones are supplied
• If the bracket mounts a door or heavy panel, support the panel during removal and reinstallation to avoid damage

Fix range control issues or power problems with this cable harness. Common fix for unresponsive controls or electrical faults. Moderate DIY repair.

The Oven Light Switch is an OEM part for Bosch ranges. It engages convenient interior illumination through a single motion, allowing monitoring of baked goods without compromising temps.

Causes of a bad oven light switch can include failures from the natural stresses of constant clicking associated with opening and closing the oven door.

Symptoms of a bad oven light switch include:

• Dim or unresponsive lights even when the door is opened properly
• Inability to turn lights off, leaving them burning needlessly
• Stuck in either the on or off position without toggle functionality
• Potentially hazardous exposed live terminals under switch housings

This OEM Bosch part can also be used on Thermador and Gaggenau appliances.

Mounting holder that secures burner assemblies to the cooktop. Replace if cracked, rusted, or missing to restore proper burner positioning and stability.

Mounting clip that secures burners to your gas range cooktop. Replace if rusted, broken, or missing to properly position burners and prevent rattling.

Fix weak or uneven burner flames with a new orifice holder assembly. Secures gas flow orifices for proper flame control. DIY-friendly, under 30 minutes.

Uneven flame or poor ignition? This burner orifice meters gas flow to create a stable flame. Replace clogged or damaged orifices to restore performance.

This gas valve controls the flow of gas to an individual surface burner on a range cooktop. It connects to the burner control knob and regulates flame intensity from low to high settings. Replace this valve if a burner won't ignite, the flame is uneven or won't adjust properly, or you detect a gas smell around the cooktop controls.

This is a gas valve that controls the flow of gas to an individual surface burner on a gas range or cooktop. It connects to the burner control knob and regulates the flame from high to low settings. Replace this valve if a burner will not ignite, the flame cannot be adjusted properly, or you detect a gas smell when the knob is in the off position.

Fixes burner flame issues on gas ranges. Controls gas flow for consistent cooking temperatures. Replacing a worn valve restores precise flame control.

Secures flexible hoses to fittings on your range to prevent leaks. Replace if connections are loose or clamp is damaged. Verify fit with your model.

Fixes inconsistent oven temperatures and burner performance. This pressure regulator restores steady fuel flow control for reliable range operation.

Replace your worn oven door gasket to restore a tight seal, prevent heat loss, and maintain consistent baking temperatures. Confirm fit with your model number.

Restore oven visibility with this complete light assembly. Replace when bulb won't light, lens is cracked, or socket is damaged. Verify fit with your model.

This heating element is the direct-replacement heater assembly that provides the heat source for compatible appliances, restoring proper heating so cycles reach the temperatures needed for effective drying or cleaning. What it does:

• Generates heat for the appliance's thermal system (air or water heating depending on model).
• Replaces a failed or damaged heater element to restore normal temperature rise.
• Common symptoms it may fix: no heat, weak/no drying or cleaning performance, or unusually long cycles.
• Works as part of the appliance's safety and temperature-control circuit (thermostats or sensors may also be involved).

• Always disconnect power (and water, if applicable) before replacing the element.
• Allow the appliance to cool fully and wear protective gloves; heating elements can have sharp edges.
• After installation, restore power and run a short test cycle to check for any error codes.

The Sensor is an OEM part for Bosch ovens and ranges. It detects and monitors the actual interior temperature to maintain precise baking and roasting conditions.

Causes of a bad temperature sensor can include wear from prolonged heat exposure within the oven cavity. Physical damage, moisture intrusion or circuitry malfunctions may also lead to sensor failure over time.

Symptoms of a bad oven temperature sensor include:

• Inability to accurately read or achieve set target temperatures
• Fluctuations in readings displayed
• Cooking modes like bake and broil functioning abnormally

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

Catalyzer component for electric ovens and ranges. Installs inside the oven cavity. Order a replacement if your catalyzer is cracked, damaged, or missing.

The Convection Fan Motor is an OEM component specifically designed for Bosch combination and convection steam oven ranges. Located within the oven cavity, it powers the convection fan and circulation of hot air.

Symptoms of a bad convection motor include:

• Failure to achieve even heat distribution within the oven
• Loud grinding noises or vibrations from the fan
• Inability to select convection cooking modes
• Burning smells indicating possible overheating

Causes of failure may involve normal wear over extended use. Blocked ventilation from food debris could overload the motor. Accidental liquid spillage presents corrosion risks.

Replacing with this genuine Bosch motor restores essential airflow. Compatible with 500 series models, it features a permanently lubricated design for durable performance. Backed by Bosch quality, this convection replacement ensures reliable cooking for years to come. It is also compatible with Thermador and Gaggenau ranges.


Restore even baking when your oven heats unevenly. This convection fan blade circulates hot air for consistent cooking. Moderate DIY install.

This Terminal Box is an OEM part for Bosch Built-In Ovens. Integral to the oven's electrical system, this component serves as a secure connection point for various electrical wires within the appliance.

A common issue with a malfunctioning Terminal Box is loose connections or damage to the terminal block due to heat exposure or aging.

Symptoms of a defective Terminal Box may include:

• Inconsistent power supply to the oven
• Non-functional heating elements
• Sparks or electrical arcing within the terminal box area

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

Secures your range door and allows smooth pivoting for proper alignment and seal. Replace if your door won't close fully, sags, or doesn't seat correctly.

The range door hinge plate is the metal bracket that anchors your oven door to the range frame and controls how the door opens and closes. It supports the full weight of the door and keeps it properly aligned. Replace this part if your oven door sags, won't stay open at a set angle, closes unevenly, or feels loose on one side.

This is a temperature sensor used in microwave ovens to monitor internal cooking temperatures. It sends temperature readings to the control board, allowing the appliance to regulate heating accurately. Replace this sensor if the microwave overheats, shuts off prematurely, displays error codes related to temperature, or fails to cook food to the correct temperature.

Leveling foot for electric and gas ranges. Adjustable metal foot installs at base corner. Replace if cracked, broken, or missing to level your range.

Restores smooth rack gliding in your oven. Replace when racks stick, scrape, or don't extend fully. Confirm fit with your model number before ordering.

This rail guides and supports oven racks as they slide in and out of your range. Replace if bent, cracked, or missing to restore smooth rack operation.

This panel frame is the trim piece that surrounds the appliance control area, restoring the finished look and protecting the control assembly from spills and wear. It helps maintain a clean, professional appearance for the front control area. What it does:

• Replaces damaged or cracked control panel trim that exposes internal components
• Protects buttons, knobs, and the control board from spills and everyday wear
• Restores proper alignment and fit of the control surface for normal use
• Helps prevent debris buildup behind the control area that can interfere with operation

• One panel frame

• Designed to mount to the front control area; uses existing fasteners—inspect removed screws/clips for reuse
• Handle panels and trim carefully to avoid scratching painted or plastic finishes
• Disconnect power before beginning any repair that exposes electrical components

Fix an oven door stuck closed after a cleaning cycle or error code 41. This door latch assembly restores normal lock/unlock operation on gas ranges.

Exterior side panel for ranges. Replaces damaged, dented, or discolored panels. Restores appearance and protects internal components.

Secures internal components and panels to restore proper alignment in your range. Replace when bracket is broken, cracked, or missing to fix loose parts.

This grille for pan is a replacement trim piece that restores proper airflow and appearance around the appliance pan. It helps keep the pan area protected and looking finished after repair. What it does:

• Covers and ventilates the pan opening to help direct airflow and prevent debris entry
• Replaces a cracked, warped, or missing grille to restore fit and finish
• Helps eliminate rattling or rubbing caused by a damaged trim piece
• Matches OEM fit so it installs cleanly with the original mounting points

• Install requires removal of the surrounding trim or access panel; follow your appliance manual
• Handle carefully to avoid scratching the finish; use non-marring tools as needed
• Disconnect power to the appliance before working in the service area
• Replace damaged clips or screws with OEM fasteners for secure fit

This inner door is the dishwasher's inner panel that supports the door assembly and helps contain water and steam during cycles, restoring a secure, finished door surface. It replaces damaged or corroded inner door panels to improve sealing and appearance. What it does:

• Serves as the interior face of the dishwasher door and provides structural support for inner components
• Helps maintain a watertight seal and prevents leaks from the door area
• Replaces dented, cracked, or corroded inner panels that can trap moisture or cause cosmetic damage
• Restores proper alignment so the door closes and latches correctly

• 1 inner door panel

• Disconnect power and water supply before starting any repair
• Handle panel edges carefully; use gloves to avoid cuts and protect finish
• Installation typically requires removing the outer door panel and disconnecting inner fasteners—keep hardware organized for reassembly

Replace your range door seal to prevent heat loss and improve cooking efficiency. Install when worn, cracked, or loose. Verify fit with your model number.

This kit includes the inner door hardware and hinge components needed to properly secure and align the oven door. The hinges allow the door to open, close, and stay in position while also maintaining a tight seal when shut. Replace this kit if the oven door is sagging, not closing flush, falling open, or if the hinges are visibly bent or broken.

This glass front panel is the exterior replacement glass that restores the appliance's finished look and protects the underlying door and control area from scratches and wear. It fits into the door assembly to provide a clean, glossy surface. What it does:

• Replaces cracked, chipped, or heavily scratched front/door glass to restore appearance
• Protects internal components and trim from direct contact and debris
• Helps keep the door surface smooth and easy to clean
• Restores a secure fit when broken or loose glass affects the door finish

• One glass front panel

• Disconnect power to the appliance before starting any repair
• Handle glass with gloves and protective eyewear to avoid cuts
• Installation typically requires removing the door trim or bezel—follow the OEM service instructions for your model

This insulating part provides electrical and thermal isolation for internal appliance components, helping prevent shorting and reducing heat transfer where wiring or terminals meet sensitive parts. Use it to restore safe operation after damage or wear. What it does:

• Provides electrical insulation for terminals, connectors, or wiring to prevent shorts and arcing
• Reduces heat transfer between hot components and nearby wiring or plastic parts
• Helps maintain safe clearances and protects against chafing or contact-related failures
• Commonly replaced when cracked, melted, burned, or otherwise compromised

• One insulating part

• Always disconnect power (unplug appliance or switch off breaker) before servicing
• Verify correct orientation and seating; do not force the part into place
• Inspect surrounding wiring and terminals; replace any damaged connectors or wires

Replace a damaged heat shield causing nearby components to overheat or melt. This protective panel restores the heat barrier on your gas range.

This kit includes the inner door hardware and hinge components needed to properly secure and align the oven door. The hinges allow the door to open, close, and stay in position while also maintaining a tight seal when shut. Replace this kit if the oven door is sagging, not closing flush, falling open, or if the hinges are visibly bent or broken.
