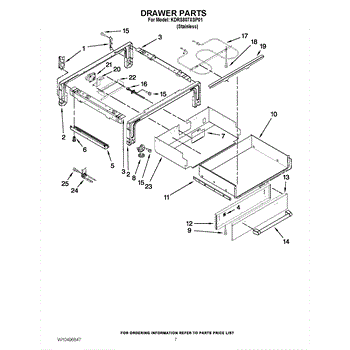

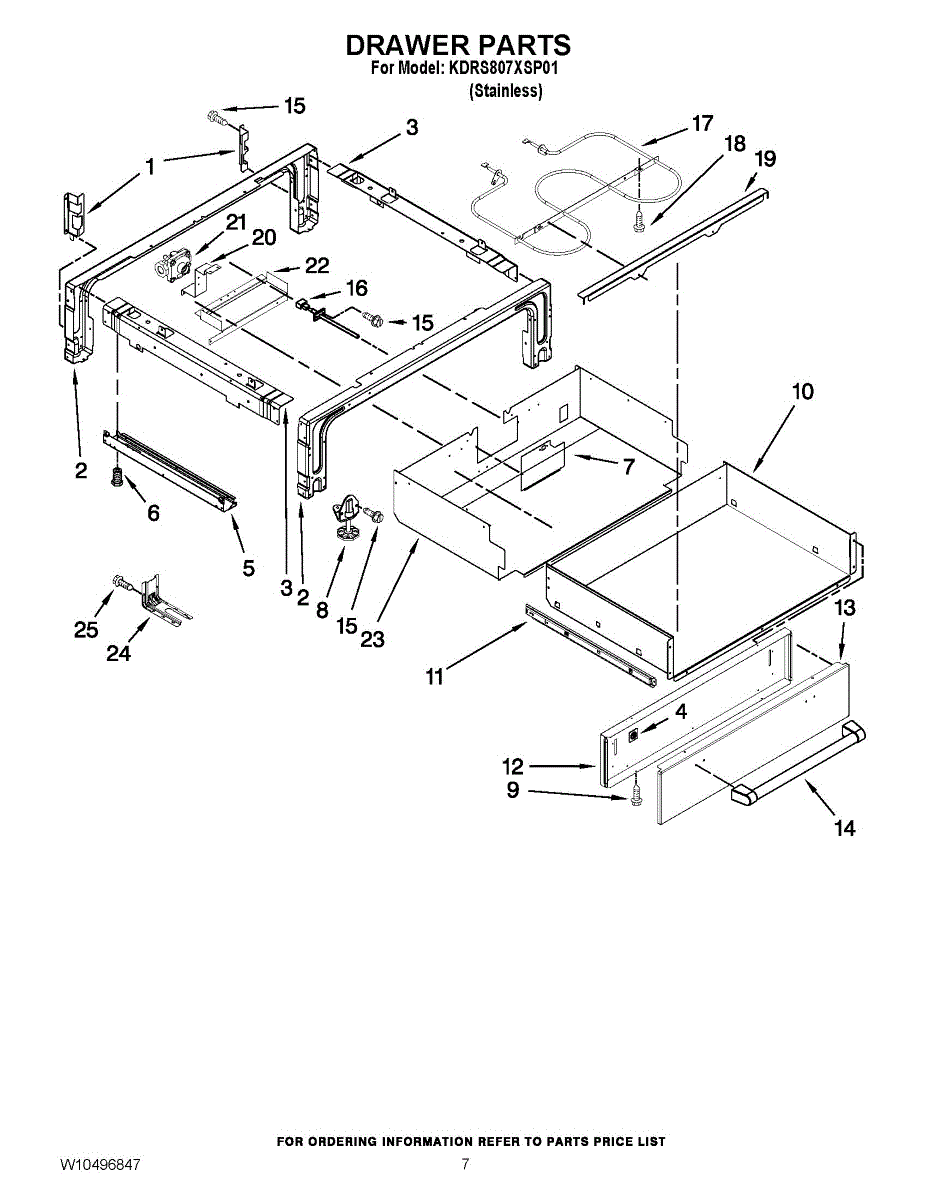

Parts for Kitchenaid KDRS807XSP01: 04 - Drawer Parts

Left hand side

Right hand side

This spacer is a small mounting component that helps keep internal appliance parts correctly positioned for reliable, quiet operation. Use it to restore proper spacing and reduce rubbing or vibration between parts. What it does:

• Provides correct spacing between components to maintain alignment and prevent contact
• Helps reduce noise and vibration caused by misaligned parts
• Supports stable assembly of panels, brackets, or housings where used
• Commonly replaced when worn, cracked, or missing

• Disconnect power (and water, if applicable) before beginning any repair
• Installation typically requires removing an access panel and replacing the old spacer with the new one
• Use basic hand tools; avoid forcing parts into position to prevent damage

The Leveling Leg is an OEM part for Whirlpool ranges. It's designed to ensure your range is perfectly balanced and stable on uneven floors. By adjusting the height of the leveling legs, you can prevent wobbling and ensure that your cooking surface is perfectly horizontal, which is critical for even cooking and baking.

Causes of a malfunctioning Leveling Leg can stem from physical impact damage, corrosion in humid conditions affecting integrity and adjustability, and wear over time, particularly if frequently adjusted or cleaned aggressively.

Symptoms of a bad Leveling Leg include:

• The range tilts or wobbles, making cooking uneven.
• Difficulty sliding pots and pans across the cooking surface due to the appliance not being level.
• Increased strain on other components of the range, which could lead to premature wear or failure.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This front leveling leg adjusts the height at the front of your appliance to keep it level and steady. Replacing a worn or missing foot helps eliminate rocking, protect floors, and make fine leveling adjustments simple.

• Threads into the base at the front corner to raise or lower the unit for accurate leveling
• Stabilizes the appliance to minimize rocking and vibration when opening the door or using the cooktop
• Restores proper adjustment when the original foot is stripped, bent, or missing
• Common signs include a wobbling appliance, difficulty leveling, or metal-to-floor contact/scuffing

• Disconnect power; turn off the gas supply
• Protect the floor and use an assistant to carefully slide and tip the appliance
• Start the new leg by hand to avoid cross-threading; finish adjustment with a wrench
• Level front-to-back and side-to-side, then verify stability before restoring service

This replacement screw secures appliance panels and components so they stay tight and aligned during use. Replacing a missing or damaged screw restores a solid fit and helps eliminate rattles, loose trim, or shifting parts.

• Fastens brackets, panels, trim, or components to the appliance chassis
• Helps correct loose or missing hardware after vibration or service
• Replaces stripped, rusted, or broken screws
• Can reduce rattling noises or misaligned parts caused by missing fasteners

• Disconnect power; for gas appliances, also shut off the gas supply
• Support the part being fastened; start threads by hand to avoid cross-threading
• Use the correct driver size; tighten snugly without overtightening
• Replace hardware with the exact part number to ensure proper fit

This thermistor is the temperature sensor used by a warm drawer to monitor and regulate internal temperature, helping maintain consistent warming for cooked foods. Replaces a failed or out-of-range sensor to restore correct temperature feedback. What it does:

• Senses warm-drawer temperature and sends a resistance-based signal to the control board
• Allows the control system to maintain desired warming temperature
• Common symptom: warm drawer not holding correct temperature or displaying temperature-related error codes
• Safe, widely accepted fix when diagnostics indicate an open/short or out-of-spec thermistor

• One thermistor temperature sensor

• Disconnect power to the appliance before accessing internal components
• Handle the sensor and connector gently; avoid pulling on wires
• Route and secure the lead per the original routing to prevent pinching or heat exposure

The Anti Tip Bracket is an OEM component specifically designed for Whirlpool ranges. This bracket plays a crucial safety role in preventing the range from accidentally tipping over if excessive weight is applied to the open oven door.

The anti-tip bracket secures tightly to the floor or wall behind the range, linking it securely in place. It allows the oven door to function while ensuring the entire appliance remains stable even under heavy use.

Causes of a bad bracket can include damage, deterioration of mounting hardware over time, or failure to install properly according to manufacturer instructions.

Symptoms of a faulty anti-tip bracket include:

• The range appears unsecured and able to wobble or rock backward
• Looseness between the bracket and mounting surface
• Cracks or breaks in the anti-tip bracket material

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.


Screws for range anti tip bracket: WP3801F656-51. Includes 2 screws.
