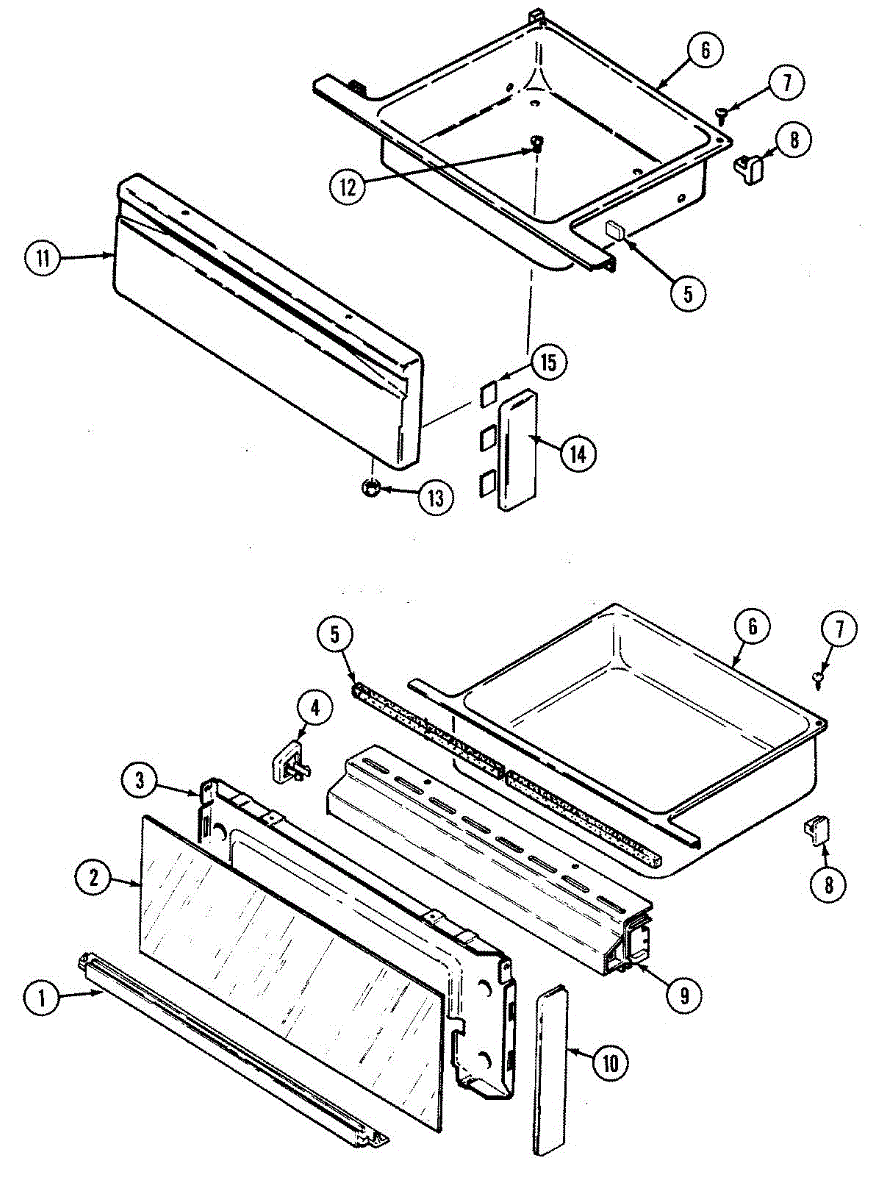

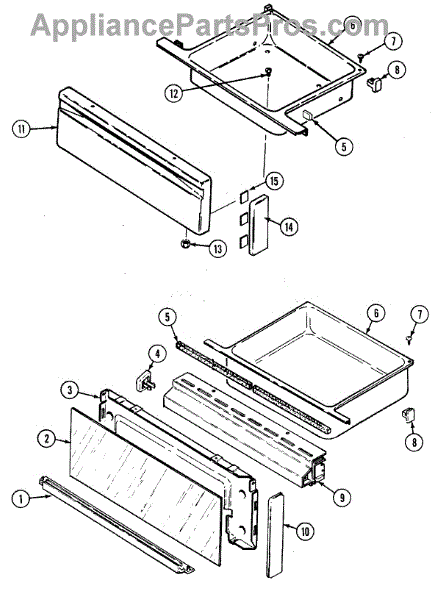

Parts for Magic Chef 3488XRW: 04 - Drawer Parts

This seal strip replaces a worn or damaged door gasket edge to restore a proper seal and help the appliance maintain temperature and operate quietly. It's a direct-fit service part used where a continuous seal is required. What it does:

• Provides a flexible barrier along the door/frame to reduce air leaks and heat/cold loss
• Helps prevent moisture buildup and improves energy efficiency when sealing is restored
• Reduces rattling and vibration caused by a compressed or torn seal edge
• Commonly replaced when the strip is torn, missing, or no longer adheres properly

• One seal strip

• Disconnect power to the appliance before servicing to avoid electrical or burn hazards
• Clean and dry the mounting surface; remove old adhesive or residue for best adhesion
• Align the strip carefully and press firmly; allow any adhesive to cure per manufacturer instructions

Rear broiler drawer support.

Size: 10-24X5/16-NI

A 10-24 lock nut used to secure threaded fasteners and prevent loosening from vibration. Simple, durable replacement that restores proper fastening where the original nut has worn or failed. What it does:

• Secures shafts, studs, or bolts with 10-24 threads and resists loosening under normal appliance vibration.
• Restores proper tension where a stripped or loose nut causes rattling or parts shifting.
• Helps maintain alignment of panels, brackets, or components that rely on a locked fastener.
• Small hardware solution for common fastening failures—no special part modifications required.

• Disconnect appliance power and water before beginning repairs.
• Use the correct 10-24 threaded fastener and a properly sized wrench or socket to avoid rounding the nut.
• Tighten to a snug fit—do not overtighten or force onto damaged threads.
• Inspect mating threads and replace the bolt/stud if threads are stripped or damaged.

This part has been discontinued by the manufacturer and is no longer available.

This part has been discontinued by the manufacturer and is no longer available.
