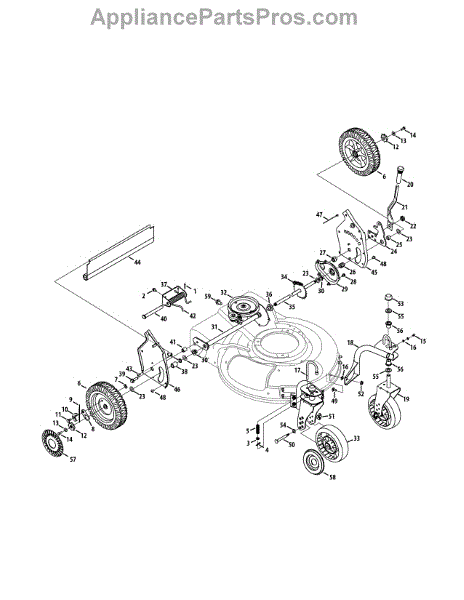

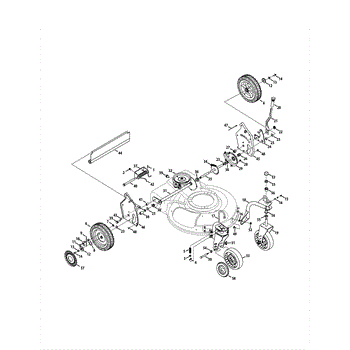

Parts for Craftsman 12AE999P099 / 2011: Drive Assembly Parts

This cotter pin is a genuine MTD replacement part in the small engines of outdoor appliances such as lawn mowers, snowblowers, leaf blowers, and wood-chippers. A cotter pin is a type of fastener that secures nuts and bolts to one another; in order to use the cotter pin, a hole must be drilled into the bolt. A cotter pin is useful for appliances that shake, rattle, and vibrate regularly, as it keeps the nuts and bolts in place, ensuring that all the internal materials are held together.A cotter pin might need to be individually replaced if, despite the extra security it provides against loosening parts, it loosens along with the nuts and bolts, thereby letting internal materials separate from one another. A cotter pin could be subject to damage from cracks, chips, piercings, or erosion over time from general use or overexposure. A replacement cotter pin should be ordered if it can no longer keep nuts and bolts in place. Remember to always wear gloves when handling, repairing, and operating outdoor equipment. This cotter pin is compatible with the following brands: MTD, Columbia, Craftsman, Huskee, and Troy-Bilt. This part sold individually.

This durable metal screw is designed to be used on many types of lawn and garden equipment, such as lawnmowers and snowblowers. The screw can be used to attach different components together so they stay stable and connected to ensure the equipment works correctly. It can be used on a variety of materials including metal, plastic, bricks, and wood. If the screw needs to be replaced, a visual inspection will indicate that. Screws often become damaged over time or can even break. Some screws also become stripped and no longer do what they are intended for. A hex wrench can be used to remove this screw from the machine so the new one can be installed. After installing the replacement screw, it should be tightened to ensure the materials it brings together are kept flush.This screw is made for use with lawnmowers, snowblowers, chipper shredders, and lawn tractors manufactured by MTD, Yard Machines, Yard-Man, and Troy-Bilt. It is sold as an individual part. This is an authentic OEM replacement part that is sourced directly from the manufacturer. A hex wrench may be needed for the replacement.

The cotter pin is a fastener that is commonly used in lawn and garden equipment. The cotter pin helps provide a secure, locking fit that is adjustable and easy to remove. The cotter pin is commonly used on axles and rods, but it can have many applications depending on the machine and model. Cotter pins can become worn or break down over time because they are exposed to constant vibrations. It is important to replace damaged or broken cotter pins immediately as a broken part can render the equipment useless in many cases. This cotter pin is designed to exact OEM standards by MTD, and is designed for use in various equipment from MTD, Troy-Bilt, Craftsman, RYOBI, Yard Machines, Hard Man, Poulan, Husky, Bolens, and Cub Cadet. This is a 5/16 cotter pin that features a #34 diameter, and is made of a durable metal. This part is sold individually and those who require more than one will have to order multiple quantities. No other hardware is included. Always wear gloves when working on lawn and garden equipment.

This wheel is a replacement part that can work for several types of lawn and garden equipment. The rear wheels enable users to maneuver their machines easily. If there is damage to one or more of the wheels, it will be difficult, and in some cases impossible, to use the machine properly and safely.Wheels on lawn and garden machines are constantly exposed to the elements. Despite their durability, they can start to wear down over time. Additionally, there is the chance that the wheel could break if it hits rocks, ice, or other debris. If a wheel is damaged, it should be replaced as soon as possible. The replacement process is simple. It is a good idea to replace both rear wheels at the same time.This wheel is a genuine OEM replacement part and is sold individually. Those who need to replace both wheels will need to buy two. The wheels will work with certain models of snowblower and lawnmowers from Yard Machines, Cub Cadet, MTD, and Craftsman.

This is a pawl that can serve as a replacement for some mower models, as well as chippers and shredders. The pawl attaches to the ratchet pawl plate. The pawl is essential for starting the engine. When the starter turns, the pawl is forced outward and locks onto the flywheel, allowing the engine to start. When the starter rope is let go, the springs pull back the ratchet pawls. If there is damage to the pawl, the engine will not start.The piece is made from durable metal, and it is built to last. However, it can start to wear down over time. Additionally, there is the potential that it could corrode. If there are issues with the pawl, replace them as soon as possible to ensure their machine continues to operate properly.This pawl can work with select models from MTD, Troy-Bilt, Yard-Man, Cub Cadet, and Husky. The piece is a genuine OEM replacement part sourced from the manufacturer. It is sold individually.

This replacement part is a ratchet wheel, and it is intended for use in different types of lawn equipment. This is a genuine replacement part made by MTD. Ratchet wheels are commonly found in many types of machinery. The ridges around the wheel allow for continuous motion in one direction, while completely prevention any kind of motion in the other direction. This is an important part of many type of lawn mowers. A new ratchet wheel might be needed if the current one is visibly worn down or damaged in any way. If the user notices unfamiliar sounds coming from inside the machine, then the ratchet wheel might not be turning in the complete right direction. Be sure to wear work gloves while replacing this part as the wheel itself might be sharp. This replacement part is sold individually. Note that it is a genuine OEM part sourced directly from the manufacturer.

This spring washer has a conical shape with an open center. It has a shape like a traditional washer but is smaller than a typical coiled spring. These washers can handle a larger load than a coiled spring and are used in lawn and garden equipment to cushion heavy loads. Over time, these washers can experience wear and tear which will lead to damage or breakage. When this occurs, the spring washer will need to be replaced.Visually inspect the spring washer for damage like scratches, breaks, and dents. If these occur or the washer is warped, it needs to be replaced. The process involves removing the nut or screw above the washer with a screwdriver or other tool. After accessing the spring washer, it can be removed and a replacement part can be added to the equipment. Reassemble the parts and the equipment should work again.This is a genuine OEM spring washer replacement part that is sold individually. It's sourced directly from the manufacturer. It is compatible with lawnmowers, wood chippers, snowblowers, log splitters, tillers, chainsaws, string trimmers, and edgers by Craftsman, MasterCut, Toro, Turf King, Cub Cadet, Yard-Man, Ryobi, Bolens, Husky, Montgomery Wards, Murray, Huskee, Yard Machines, and MTD.

This part is a hex cap screw that is used on a variety of outdoor power equipment. A hex cap screw is used to fasten components together securely. The head of the screw is shaped like a hexagon, hence the name "hex cap screw."A new hex cap screw may be needed if the current one is stripped, broken, or missing. Since screws are such a small component, it is important to place them in a safe place so that they are not lost. Remember to wear gloves when operating or performing care and maintenance on any outdoor power equipment.This hex cap screw is a genuine Husqvarna part. It is sold individually. This particular hex cap screw is compatible with chippers, shredders, lawnmowers, lawn tractors, snowblowers, and vacuums that are manufactured by the following brands: Husqvarna, Craftsman, Bolens, Husky, Yard Machines, Yard-Man, MTD, and Troy-Bilt.

This spacer is a genuine MTD part. A spacer can be used as a replacement part in a lawn mower or a log splitter. The purpose of this genuine OEM part is to reduce friction between one or more components while also keeping the components apart from one another.The spacer is a small fastening component that can be easily lost or misplaced without notice for a variety of reasons. If the spacer is damaged, it should be immediately removed and replaced.This is a genuine OEM replacement sourced directly from the manufacturer. It is sold individually. This spacer is compatible with equipment manufactured by MTD, Craftsman, Troy-Bilt, Yard Machines, Yard Man, Turf King, and MasterCut.

This sleeve bearing is a genuine MTD part, sold individually. This sleeve bearing can be used as a replacement part in a lawn mower. The purpose of the sleeve bearing in a lawn mower is to allow flexible motion between the two components to which the sleeve bearing affixes, mitigating excessive vibration and friction.If the sleeve bearing suffers enough damage that it can no longer reduce the vibration and friction between the two parts to which it is attached, it should be removed and replaced by this genuine OEM replacement part. It is a simple replacement process that simply requires swapping out the old sleeve bearing for the new one.This OEM part is a genuine replacement that is sold individually and sourced directly from the manufacturer. This sleeve bearing is compatible with the following outdoor appliance brands: MTD, Cub Cadet, Craftsman, Ryobi, Troy-Bilt, Yard Machines, Huskee, Montgomery Wards, Yard Man, and MasterCut.

This replacement part is a screw. It is a genuine replacement part made by MTD. Typically screws are found in many different types of machines. These parts are important in holding different pieces together so that the user is able to operate the appliance effectively. A replacement screw might be needed if some parts of the appliance are loose or missing from place. Screws can become stripped over time with normal equipment use. If this is the case it is recommended that they be replaced as soon as possible. The repair for this screw is simple and will most likely require common household tools as well as pliers if the previous part is lodged in place. This screw is made of durable metal. This part is sold individually and is sourced directly from the manufacturer to ensure proper fit. This is a genuine OEM replacement part.

This part is a replacement flange bearing. This is a genuine OEM part made by MTD and has been sourced directly from the manufacturer. This part's intended use is to replace a broken or defective flange bearing in lawn mowers.Flange bearings enable the equipment to run smoothly and prevent overheating by reducing friction and vibration between components. Flange bearings are subject to significant wear and tear and thus will require replacement if corroded, broken, lost, or ineffective in any way. When working on or near an engine, it's important to make sure the equipment is powered off and completely cool before starting any repairs. For more accurate information on how and where to install this flange bearing, reference the appropriate owner's manual and specific equipment diagrams.This is an authentic OEM replacement part made of high-quality metal. This flange bearing can be used with different models of lawn mowers that have been manufactured by MTD, Craftsman, Troy-Bilt, and other brands. Part sold individually.

This is a replacement lawn mower transmission supplied directly from the manufacturer. The lawnmower transmission rotates the axle, which will move the wheels and propel the mower forward. The transmission may need to be replaced if it locks up, or if the mover won't move forward as it should.A pair of pliers, drill with a bit set, a socket wrench and nut driver set will be needed to replace this part. Start by disconnecting the spark plugs, then remove the drive cover, fuel tank cap, driver's screws, top, and bottom. Now the drive cover will come off. Remove the ground drive belt. Release the drive control cable from the lever. Take off the front wheels, and then the broken transmission can be removed. Install the new transmission assembly and reinstall the parts in reverse order. This lawnmower transmission is a genuine OEM replacement part. It is designed to be used with Craftsman, Troy-Bilt, Cub Cadet, MTD, and Yard-Man.

This endless chain is a genuine MTD part, sold individually. This endless chain can be used as a replacement part in a lawn mower. The purpose of the endless chain in a lawn mower is to facilitate the rotation of the wheels by affixing to the axle sprocket and engaging the mechanism that propels the appliance forward across a variety of surfaces.The endless chain in a lawn mower might have to be replaced at some point within the typical lifespan of the appliance. This could occur if the chain has been punctured, torn, scraped, dented, cracked, warped, or otherwise damaged beyond a basic repair. If the endless chain is no longer serving its critical function, it should be removed and replaced by this genuine OEM replacement part. Always unplug the appliance before performing any kind of repair or replacement.This component is a genuine OEM replacement part sourced directly from the manufacturer. It is sold individually. This endless chain is compatible with the following outdoor appliance brands: MTD, Craftsman, Troy-Bilt, and Cub Cadet.

The spacer is a standard piece of hardware that is used on various lawn mowers. This spacer has multiple applications based on the model and design. It is typically installed on shafts and in places where an additional gap is needed between connections or hardware. These parts are durable, but can become damaged or worn over time and require a replacement. Without functioning spacers, parts may rub together and create friction or simply fail to work properly. Replacing parts with genuine OEM hardware like these standard spacers will get the equipment back in working order. This genuine OEM spacer is designed for use with a number of mowers from MTD, Yard Machines, Troy-Bilt, Husky, Cub Cadet, and Yard Man. This spacer is made of durable metal and sold as a single unit. Those who need more than one will have to order multiple quantities. Always wear gloves when performing lawn mower repairs.

This is a genuine replacement self-tapping hex screw with a blunt nose designed for lawn mowers and lawn tractors. It is used in a variety of locations for the engine assembly of lawn mowers. The self-tapping feature allows the metal screw threads to tightly secure to other metal. The blunt nose requires the use of a pre-drilled pilot hole smaller than the diameter of the screw. These screws do not interchange well. Be sure to check the owner's manual to ensure the correct part number. The hex head needs a socket wrench for the easiest removal and replacement. When removing this type of screw, stripped threads can occur. If this happens, use a screw of the same type in a slightly larger size to accommodate for the damage. Typically, this type of screw would need to be replaced when removed to access another part of the lawn mower for replacement, such as the carburetor. This an OEM part sourced directly from the manufacturer and is sold individually. This screw fits products by Bolens, Brute, Columbia, County Line, Craftsman, Cub Cadet, Huskee, Huskee Supreme, MTD Black, MTD Gold, Mastercut, Murray, Troy Bilt, Yard Man, & Yard Machines.

This clevis pin is a genuine MTD part, sold individually. This clevis pin can be used as a replacement part in a lawn mower or a chipper shredder. The purpose of the clevis pin is to serve as a fastening component in a variety of other components within the internal machinery of the lawn mower or chipper shredder. It is a U-shaped component with holes on either end. It is a three-piece fastening system that is similar to a bolt.The clevis pin in a lawn mower or a chipper shredder might have to be replaced if it is lost, misplaced, or damaged. The clevis pin is a small component that can easily be lost or misplaced without noticing its absence unless it results in parts coming loose from one another. The clevis pin can also be stripped over time from general wear and tear. If any of this occurs, the clevis pin should be removed and replaced by this genuine OEM replacement part.This component is a genuine OEM replacement part sourced directly from the manufacturer. This clevis pin is compatible with the following outdoor appliance brands: MTD, Cub Cadet, Craftsman, Yard Machines, Yard Man, and MasterCut.

This is a genuine replacement truss tap screw that is manufactured for use in select outdoor equipment engines. The truss tap screw has several applications and is generally used to secure various components. Owners will need to consult the parts diagram for exact application. These screws play an integral role, however, and if they are lost or damaged, the machine may not operate until they are replaced. This genuine OEM screw will provide an exact fit for compatible units. This screw is something that some people order in multiple quantities to keep extras on hand in case of emergency. It is sold as an individual part and does not come with any other parts or hardware. The screw is made of durable metal and will require a Phillips screwdriver to replace. Although the truss tap screw doesn't typically require a lot of disassembly to access, it will still be wise to wear gloves for hand protection and work in a well-ventilated area, as well as to allow the machine to cool completely before doing any repairs.

This is a seven-inch cable tie that is used with different types of lawn and garden equipment. It is most commonly used to secure the cable onto the handle of the lawnmower or tiller so it is secure. The cable tie is made of durable plastic but can be damaged or break. When this happens, the tie will need to be replaced to ensure the cable stays on the handle.If the cable tie needs to be replaced, no tools are needed. In the situation where other parts need to be replaced at the same time, a basic set of tools and a pair of work gloves may be required. Turn off the yard equipment and place it on a stable surface before replacing the broken cable tie. The old tie can be removed so the new one can be installed before further use.This cable tie is an authentic OEM replacement part that is directly sourced from the manufacturer. This product is sold individually. The component is designed to be compatible with lawnmowers, lawn tractors, tillers, and snowblowers manufactured by MTD, Troy-Bilt, Yard-Man, and Yard Machines.

This carriage bolt is a self-locking fastener made for use in round or square holes to attach metal to metal in outdoor equipment. These bolts provide an added safety feature because they can only be removed from one side. Carriage bolts can carry a large amount of weight, which makes them ideal for use in outdoor yard equipment. Carriage bolts may be used to attach a lawn mower's arm to the side support and other similar applications. If the bolt needs to be replaced, removal and installation are simple. Use a wrench to loosen the nut holding the washer and bolt in place. Once the nut is loose, the bolt can be unthreaded by hand and pulled out of the hole. To install, push the bolt back through the hole. If the fit is too tight to install by hand, use a hammer to tap it in place. Reinstall the washer and nut and tighten with a wrench.This carriage bolt is designed for use in lawnmowers, snowblowers, and lawn tractors manufactured by Craftsman, Bolens, Yard Machines, Yard-Man, and MTD. This is a genuine OEM product that comes directly from the manufacturer. Note: It does not come with a nut or washer.

This caster axle is a genuine MTD part, sold individually. This caster axle can be used as a replacement part for a lawn mower. The purpose of the caster axle is to provide bolstering and support for the rotation of the wheels of the lawn mower.The caster axle might have to be replaced if it can no longer properly support the wheel of the appliance. If the caster axle is cracked, punctured, scraped, or eroded to the point that the wheel or the caster axle itself comes loose, the component will have to be replaced by this genuine OEM replacement part. It is a simple replacement process that will require only basic tools to perform. Remember to always wear gloves when handling, repairing, and operating outdoor equipment. Always unplug the appliance before performing any kind of repair or replacement.This is an OEM part sourced directly from the manufacturer. It is sold individually. This caster axle is compatible with the following outdoor appliance brands: MTD, Yard-Man, Troy-Bilt, Craftsman, and Cub Cadet.

A flange nut's unique wide flange design distributes the nut's pressure over the part it is securing. In return, it creates an even fastening surface, which reduces part damage and nut loosening. This one-piece all-metal fastener has a lock nut version that features a protruding circular flange. This drastically increases bearing surface, compatibility either for irregular or oversized holes, and surface tension reduction. Flange lock nuts are the preferred type of fastener for many lawnmower models because it can provide better fastening than regular screws, which are known to loosen under extreme vibration. However, it’s important to know that flange lock nuts are susceptible to wear and tear due to constant vibration exposure. It is essential to replace the broken flange lock nut immediately to prevent serious damage to the lawnmower. The MTD 712-04063 Flange Lock Nut OEM replacement can be used with Craftsman, White Outdoor, Yard Machines, MTD, or Columbia lawnmowers. It is a genuine or OEM MTD replacement part that measures 5/16-18. It is threaded and requires the use of a wrench. This replacement flange lock nut is sold individually. An MTD bolt carriage may also be needed and is sold separately.

This OEM replacement push cap can be used in a variety of lawn and garden equipment. The push cap is secured to the end of a shaft, providing protection to the user from the sharp metal edge of the shaft. The push caps that are included with the machines may wear out over time or fall off in some cases, creating an injury risk involving sharp metal edges. These push caps are high-quality and made from durable plastic. They are easy to install. The OEM push cap is a genuine part made by the original manufacturer, to ensure quality and s proper fit. The push caps can be used on lawn tractors, chippers, shredders, log splitters, and other equipment. Some of the brands that this push cap is compatible with include MTD, Husky, Yard-Man, Bolens, Troy-Bilt, Ryobi, Yard Machines, and cub Cadet.

This wave washer is a genuine MTD part. It is manufactured as a replacement part for lawn mowers, push mowers, mulching mowers, and walk-behind mowers. It can also be used with edgers and leaf blowers or vacuums. The washer aids with fasteners as well as making the machine easier to operate.Washers are designed to bear the brunt of some of the wear and tear of the machines. Therefore, it is not uncommon to need to replace them. If making a repair that requires disassembly of the mower, it is recommended to have compatible screws and washers on hand as well. This wave washer is a genuine OEM part that is sourced directly from the manufacturer. It is sold individually, though there are many of them on these machines, so be sure to buy the appropriate amount. It is compatible with equipment manufactured by ACE, Bolens, Cub Cadet, Husky, MTD, Yard-Man, White Outdoor, Columbia, Statesman, MasterCut, Platinum, Yard Machines, Crafstman, and more.

This hub cap is for use with select walk-behind mower models. The hubcap serves the same purpose as those found on automobiles. They serve to protect the wheel and to reduce the amount of dirt, debris, and moisture that collects on the wheel hub. The hub caps are simple parts, but if they are missing or damaged, the owner will want to replace them.The hub caps are made from durable plastic. They can handle the regular use that a mower sees without trouble, but they could still become damaged. They might become loose and need to be replaced, as well. Removing the old hub caps and adding new ones is a fast and simple repair.These hub caps will work with certain mower models from MTD, Ryobi, Yard Machines, Troy-Bilt, Bolens, Yard-Man, and Husky. The hub caps are sold individually. Owners may need to buy more than one. This is a genuine OEM replacement part sourced from the manufacturer.

This replacement part is a hex screw, and it is intended for use in different types of lawn equipment. This is a genuine replacement part made by MTD. This screw can be used in a variety of ways depending on the repair needed. Hex screws are similar to normal screws except they have a six-sided head, like a hexagon. A new hex screw might be needed if the current one is damaged or missing. It is common that screws may become stripped or loose overtime, causing them to fall out. If any parts of the lawn mower are becoming loose or falling off, the hex screw might be missing. This replacement should be fairly easy and should only require a screwdriver and possibly pliers. This part is a genuine OEM replacement part and is sold individually. Be sure to purchase the correct amount as some appliances require more than one hex screw.
