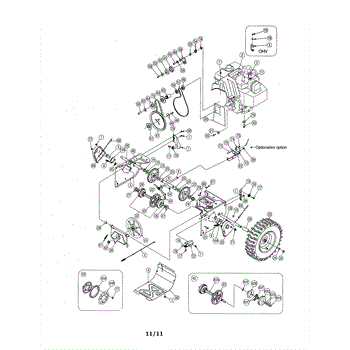

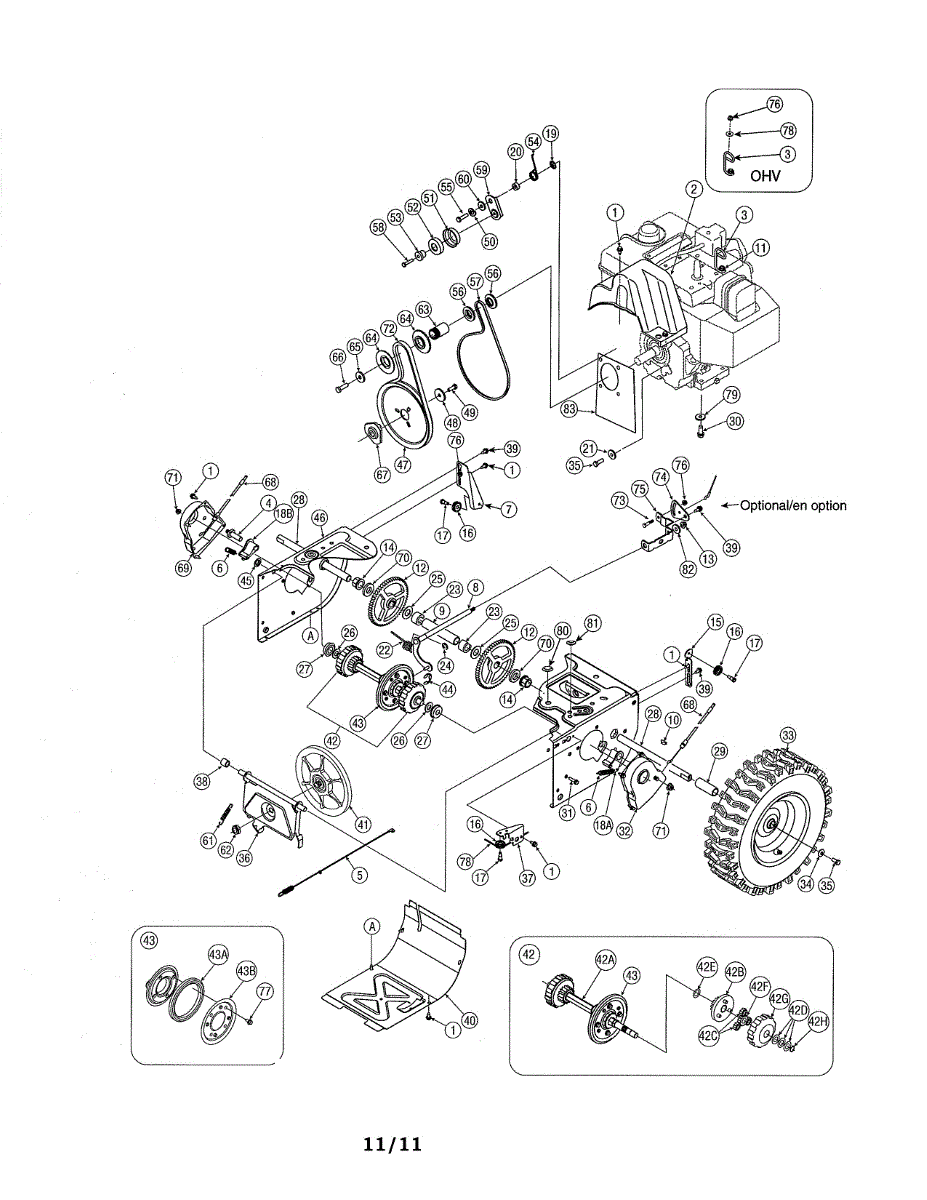

Parts for Yard-Man 31AE5KLG801: Drive Parts

This durable metal screw is designed to be used on many types of lawn and garden equipment, such as lawnmowers and snowblowers. The screw can be used to attach different components together so they stay stable and connected to ensure the equipment works correctly. It can be used on a variety of materials including metal, plastic, bricks, and wood. If the screw needs to be replaced, a visual inspection will indicate that. Screws often become damaged over time or can even break. Some screws also become stripped and no longer do what they are intended for. A hex wrench can be used to remove this screw from the machine so the new one can be installed. After installing the replacement screw, it should be tightened to ensure the materials it brings together are kept flush.This screw is made for use with lawnmowers, snowblowers, chipper shredders, and lawn tractors manufactured by MTD, Yard Machines, Yard-Man, and Troy-Bilt. It is sold as an individual part. This is an authentic OEM replacement part that is sourced directly from the manufacturer. A hex wrench may be needed for the replacement.

Protects your snowblower's drive belt and pulley from debris and damage. Replace if cracked, broken, or missing to prevent belt wear. Verify fit with model.

Drive clutch cable that engages the drive belt to turn snowblower wheels. Replace if cable is frayed, stretched, or won't engage properly.

Extension spring for gas snowblowers. Installs in various mechanical assemblies. Replace if stretched, broken, or missing to restore proper tension.

This replacement clutch drive is a part of the drive system and wheel assembly on snowblowers. The clutch drive engages the transmission when the engine is turned on so that the snowblower auger will rotate as the machine is pushed forward. This part is subject to repetitive motion and constant use so it sometimes just wears down with regular use. If something gets into the snowblower auger or other areas, that could damage the clutch drive, as well. In the event there is damage or the clutch drive no longer works as it should, it will need to be replaced with an OEM part like this one. This is a genuine replacement part made to OEM standards. It can be used in compatible machines from MTD, Craftsman, Troy-Bilt, and Yard-Man. The clutch drive is sold individually. It will not contain any additional parts or components. Disconnect the power supply or disengage the engine before working on outdoor power equipment. Allow the unit to cool and be cautious working around the auger as the blades can be quite sharp.

This axle support tube is a genuine MTD part, sold individually. This axle support tube can be used as a replacement part in a snowblower. The purpose of the axle support tube in a snowblower is to affix to the axle sprockets in order to bolster and secure the axles inside the gearbox, the function of which is to facilitate the smooth rotation of the blades during the typical operation of the snowblower.The axle support tube in a snowblower might need to be replaced if the tube is compromised and cannot facilitate the stable placement of the axles. If the axle support tube is damaged in the form of puncturing, scraping, denting, cracking, warping, or eroding to the point of reduced functionality or no efficacy, the axle support tube should be removed and replaced by this genuine OEM replacement part.Sourced directly from the manufacturer, this component is a genuine replacement part that is sold individually. This axle support tube is compatible with the following outdoor appliance brands: MTD, Craftsman, Cub Cadet, Troy-Bilt, and Yard Man.

Replace a broken, stripped, or missing hex bolt on your lawn mower or outdoor power equipment. Standard hardware for securing components.

Flange lock nut secures components on mowers and outdoor power equipment. Replace if stripped, corroded, or missing to restore proper fastening.

Auger bearing flange connects to the bearing to reduce friction during operation. Replace if worn or damaged to restore smooth auger rotation. Verify fit.

The roller cable guide is designed for use with lawnmowers. It supports and guides cables to the lasher in the mower.This roller cable guide is a genuine OEM part sourced directly from the manufacturer and is sold individually. This roller cable guide is compatible with the following brands: Craftsman, Cub Cadet, Ryobi, Troy-Bilt, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, and Yard-Man.

Shield spacer for lawn tractors and riding mowers. Provides proper spacing and alignment for protective shields. Replace if missing, damaged, or worn.

E-ring retainer for lawn tractors and outdoor power equipment. Secures components on 0.500-inch shafts. Replace if missing, bent, or damaged.

Ball bearing for gas snowblowers. Replace when you hear grinding noise or experience rough auger operation. Verify fit with your model number.

Replacement axle for gas snowblowers. Connects wheels to drive system. Order a new axle if yours is bent, cracked, or damaged from impact or wear.

Wheel spacer for gas snowblowers. Installs between the wheel and axle to maintain proper spacing. Replace if cracked, worn, or missing from assembly.

This hex screw and lock washer are commonly used with lawn mowers and other small engines to secure a motor to the housing of the equipment. It is machined in such a way that it binds the manifold and frame permanently. There are occasions when these bolts have to be removed, typically when major repairs are performed on the engine. In those cases, users often find it advisable to replace the hex bolts and washers with new ones. It happens as well that these screws are so tightly fastened that they cannot be unscrewed and must be cut off. In those cases, it is necessary to replace the original screws. These replacement screws and lock washers are genuine OEM certified replacements that are manufactured to be identical to the hardware they are replacing. In addition to mowers, these hex screws are used to secure engines to devices such as log splitters, edgers, shredders, trimmers, and snowblowers. This screw is compatible with devices made by Husky, Yard-Man, Cub Cadet, Troy-Bilt, Ryobi, Bolens, and Yard Machines.

Fastener spacer for lawn mowers and snow blowers. Creates proper gap between components to reduce friction. Replace if lost, cracked, or worn.

This part is a replacement screw. This is a genuine OEM part made by MTD and has been sourced directly from the manufacturer. This part can be used to replace a broken, stripped, or misplaced screw in outdoor power equipment. Screws are critical for holding together parts of the equipment and can be used in many different areas. They are a standard piece of hardware that will need replaced if stripped, corroded, or otherwise defective. It's important when working on or near to any engine to make sure the equipment is powered off and completely cooled down before starting any repairs. For more accurate information on how and where to install this screw, the appropriate owner's manual and equipment diagrams should be referred to. As an authentic replacement part, this screw is suitable for use on several outdoor power equipment manufactured by MTD, Craftsman, Troy-Bilt, and other brands. Please This is a genuine part made of high-quality, durable metal and is sold individually.

Frame cover for snow throwers. Protects internal components and provides structural housing. Replace if cracked, broken, or missing. Direct fit part.

Friction disc assembly transfers power from engine to wheels on your snowblower. Replace if worn, slipping, or causing poor traction. Confirm fit with your model number.

12-tooth drive gear for snow blower engines. Replace this gear if worn, stripped, or damaged to restore proper power transmission in your snow thrower.

Fix grinding noises or auger drive issues in your snow blower with this 18-tooth gear. Common part for transmission repair. Moderate difficulty repair.

Retaining ring for snowblower assemblies. Secures components in place on shafts and housings. Replace if worn, broken, or missing during repairs.

Snowblower won't move or loses power? This planetary gear assembly restores drive function. Moderate DIY repair for restoring traction control.

This drive shaft is a genuine MTD part, sold individually. This drive shaft can be used as a replacement part in a snowblower. The purpose of the drive shaft in a snowblower is to allow the operator to steer and regulate the motion of the appliance while in use.The drive shaft in a snowblower might have to be replaced if the drive shaft exhibits clear signs of damage or malfunctioning during the typical lifespan of the appliance. If the area in and around the drive shaft is excessively vibrating, generating strange noises, or is not serving its typical function at any point, the drive shaft should be removed and replaced by this genuine OEM replacement part in order to guarantee safe continued use of the snowblower. Always unplug the appliance before performing any kind of repair or replacement.This component is a genuine OEM replacement part sourced directly from the manufacturer. It is sold individually. This drive shaft is compatible with the following outdoor appliance brands: MTD, Cub Cadet, and Yard-Man.

Flat washer for lawn mowers and outdoor power equipment. Replace if washer is missing, damaged, or corroded to ensure proper fastening and fit.

Snowblower won't move forward or backward? The friction wheel assembly works with the friction disc to turn the drive axle and restore self-propulsion.

Retaining ring for gas snowblowers. Secures components on shafts and axles. Replace if ring is damaged, bent, missing, or no longer holds parts firmly.

This part is a replacement push cap. This is a genuine OEM part made by MTD and has been sourced directly from the manufacturer. If the current push cap is broken or has been misplaced, this part can be used as a replacement. It is intended for use with several lawnmower models.The push cap is attached to the wheel hub cap and fits over the end of the axle shaft. This helps to protect the end of the shaft and the attached bolt that holds the wheel into position. When working on or near an engine, always ensure that the equipment is powered off and completely cooled down before attempting to undergo any repairs. For more accurate information on how and where to install this push cap, the appropriate owner's manual and equipment diagrams should be referred to. This push cap is suitable for use on a variety of lawnmower models manufactured by MTD, Yard Machines, Craftsman, Yard Man, and Troy-Bilt. It is a genuine OEM part and thus is made of high-quality, durable materials. This part is sold individually.

Snowblower not throwing snow or auger not spinning? This auger pulley drives the auger rotation to move snow through the chute. Moderate DIY repair.

Hex cap screw for snowblowers and outdoor power equipment. Secures engine, deck, or housing components. Replace if stripped, rusted, or missing.

This lock washer is used frequently for a number of applications on power yard equipment. The size, 5/16, is the default for many small engine housing and manifold applications. Lock washers are used with machined bolts to fasten engine blocks to the housing of the equipment being used. The compressed washer is able to handle the constant vibration of the small gasoline engine without losing the seal between the screw or bolt and the housing. Typically these lock washers only need to be replaced when they are misplaced during repairs or when the screws that attach them have to be chiseled or cut away, meaning the washers are destroyed as well. These OEM certified replacement washers have been manufactured to the same specifications as the originals they are replacing. In addition to lawn mowers, lock washers of this type and size are frequently used on blowers, lawn tractors, cultivators, snowblowers, and trimmers. Brands compatible with this type of washer are Murray, Husky, Poulan, Bolens, Yard-Man, Cub Cadet, Troy-Bilt, Yard Machines, MTD, and Ryobi.

A ball bearing is a common type of rolling-element bearing. It will use balls to keep space between the bearing races and eliminate friction and contact between moving parts. Ball bearings used in lawn and garden equipment ensure that axial loads and radial loads are evenly supported and that there is only a limited amount of rotational friction on the component. It distributes weight evenly, but will undergo constant wear and tear from vibration, heat, and friction and will need replacement regularly. This ball bearing is a genuine OEM part suited to use in Craftsman, Cub Cadet, Ryobi, Troy-Bilt, MTD, Huskee, Yard Machines, Bolens, Mastercut, and Yard-Man equipment. It may be needed for repair work done on a lawnmower, snowblower, tiller, edger, or a log splitter.

Shoulder spacer for gas snowblowers and tillers. Installs between components to maintain proper spacing and alignment. Replace if worn or missing.

Replace a broken or worn torsion spring on your gas snowblower. This spring provides tension for drive mechanisms and control levers. Order today.

This is a genuine replacement belt designed to work with multiple types of snowblowers. It is sometimes called a wheel drive belt or a V-belt. The belt is installed on pulleys that allow the transfer of motive power from the engine to the wheels and the auger, allowing the snowblower to move forward, as well as break up and throw snow. These belts are made from high-quality rubber, but they will suffer from wear and tear over time. Through normal use, exposure to extreme temperatures, and over time, the rubber can crack, and eventually, the belt will break. If the snowblower's wheels will not turn, it is most likely that the belt needs to be replaced. Replacing the belt is simple, but will require accessing the pulleys. Remove the old belt and then install the new one according to the owner's manual. Note that this is an OEM replacement part and is sold individually. It is designed for Craftsman and MTD snowblowers, as well as models from Ryobi, Huskee, Cub Cadet, Yard Machines, Yard-Man, and Troy-Bilt.

This hex screw is a genuine MTD part. A hex screw can be used as a replacement part in refrigerators, humidifiers, lawn mowers, snowblowers, tillers, log splitters, and wood chippers. The purpose of this genuine OEM part is to stabilize and secure the placement of components within the internal or external machinery of one of these appliances.In lawn equipment a screw might easily be lost, misplaced, or damaged; if this occurs, the screw should be removed and replaced by this genuine OEM replacement part so that all components can maintain their placement.This is a genuine OEM replacement part sourced directly from the manufacturer. It is sold individually. This hex screw is compatible with equipment manufactured by MTD, Craftsman, Toro, Cub Cadet, Ryobi, Troy-Bilt, Murray, Sub Zero, Yard Machines, Huskee, Montgomery Wards, Bolens, Yard Man, Turf King, and MasterCut.

Repair snow thrower belt slipping or disengaging with this idler bracket. Restores proper belt tension for drive system. Moderate difficulty repair.

This is a simple extension spring with an outside diameter of 0.38 and a slack length of 2.5. It is primarily used as an extension spring for snowblowers, but may be compatible with other lawn equipment. It’s designed to apply tension as the throttle is applied. The more gas there is, the more resistance will be present. Under most circumstances, replacement is easy. When the spring breaks or gets rusty, look at both points of attachment. Memorize where it’s attached, or take a picture, and remove the old spring using a pair of pliers if necessary. Install the new spring and the tool is ready to use. This is an OEM part sourced directly from MTD, and it is sold individually. It’s black in color and was initially designed for Troy-Bilt lawnmowers. However, because this is a versatile part, it has since been repurposed for a number of MTD and related machines in other brands. These include lawn tractors and snowblowers, as well as lawnmowers, in brands such as Ryobi, Yard Machines, Husky, and Cub Cadet.

Fixes snowblower not moving or losing drive power. This drive pulley half restores proper belt tension and traction. Moderate DIY repair in 30-45 minutes.

Pulley adapter for snowblowers. Connects drive components in the transmission system. Replace if worn, cracked, or damaged to restore proper fit.

Steering control cable for gas snowblowers. Connects steering mechanism to handlebars. Replace if cable is frayed, broken, kinked, or disconnected.

This is a flanged lock nut. It’s designed to apply tension, typically on a joint that needs to have a certain amount of flex. As such, it’s mostly used on snowblower chutes and lawnmower handles. They can remain in place, but with a forgiving connection that can take a beating. The nut size is 3/8, with a thread size of 16. A lock nut will generally last for many years. However, the silicone ring inside will wear down if it’s frequently tightened and loosened. It needs to be replaced when it will no longer reliably remain in place. Generally, this begins as a symptom of slight slippage and worsens as time goes on. Thankfully, whether it’s being used on a snowblower or a lawnmower, this nut is generally straightforward to access. Simply unscrew the old nut, then screw the new nut on until it’s nice and tight. Our flanged lock nuts are genuine OEM MTD nuts, and they are sold individually.

Fix snow thrower auger that won't turn or spins slowly with a new auger belt. This rubber V-belt drives the auger rotation on two-stage models.

Hex cap screw fastener for outdoor power equipment. Secures components with hexagon-shaped head. Replace if stripped, broken, or missing threads.

Replacement pivot bracket for snow thrower frame assembly. Needed when original bracket is cracked, bent, or broken. Restores proper mounting.

A flange lock nut, also known as a flange lock or a lock nut, is created to be used in various types of lawn and garden equipment. This flange lock nut holds other parts in place and, when properly threaded, will resist loosening. Over time, a flange lock nut may begin to weaken and may become loose or break. If it appears to be broken or weak, a replacement is required. Flange locks can be adjusted and uninstalled after use. When replacement is required, you may need a socket set, screwdriver, hacksaw, and butane torch. The socket wrench will loosen the bolt it is connected to, while the torch is used to heat the lock nut. A socket wrench may remove the nut, but sometimes cutting it with a hacksaw is required. This flange lock nut is a genuine OEM component directly from the manufacturer and comes in an individual unit. It is made of metal, a gold color, and can be found in various areas of lawn equipment. It works with lawnmowers, trimmers, snowblowers, cultivators, tillers, and leaf blowers by Poulan, MTD, Toro, Cub Cadet, Murray, Troy-Bilt, Bolens, Yard Machines, Craftsman, and Yard-Man.

Flat washer for lawn mowers and tractors. Replace if missing, corroded, or damaged during maintenance. Ensures secure fastening of components.

Control cable that connects the auger handle to the engagement mechanism. Replace if cable is frayed, stretched, broken, or detached from the handle.
