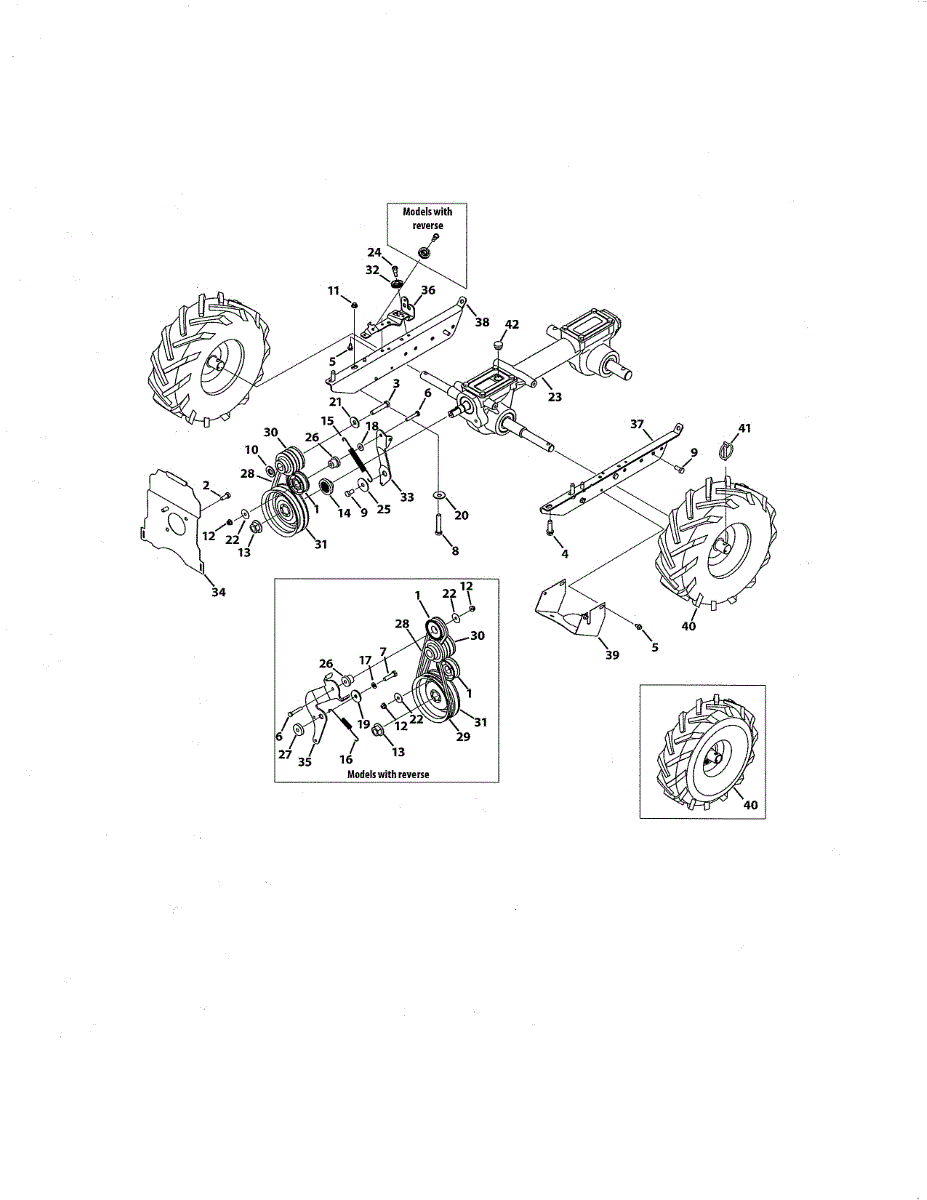

Parts for Ace 7197130: Drive System Parts

This is an idler pulley assembly for a snowblower or tiller. The idler pulley works together with other pulleys to drive the belt system in an engine. It regulates the belts connecting to the crankshaft to produce movement in various engine accessories. This is a genuine OEM part and is sold individually. This part is compatible with Craftsman, Cub Cadet, Huskee, Troy-Bilt, and Yard Machines. Over time, the pulley components wear down and begin to slip. Damaged bearing devices can also cause wear on the pulley, causing the engine to fail. To replace an idler pulley in a snowblower, remove the ignition key and disconnect the spark plug. Using a socket wrench, remove the mounting bolts securing the belt cover. If required, loosen the tension. Use a ?-inch socket to remove the lower bolts. Pull off the cover and use the wrench to remove the bolt from the pulley. Remove the old part and transfer the bushing into the new part. Position the new pulley, thread the bolt, and tighten. Per model, either realign the auger drive linkage on the bolt and slide on the push nut to secure, or realign and reset the tension spring. Then, recover and reattach.

This is a replacement hex screw sourced from the manufacturer. The hex screw is used in numerous machines, including lawnmowers, tractors, and tillers.Hex screws will be subject to normal wear like any other part. They should be inspected every year before using the equipment for rust or to see if any have fallen out or broken off. If any extra motion from the deck or the engine is noticeable, check the screws to ensure they don't need to be tightened. Failure to do so can cause damage to mower and cause other parts to need replacement.Before checking the screws, make sure the mower has cooled off to avoid burns. They can be tightened with a rachet or an adjustable wrench. The hex screw is a genuine OEM replacement part. It is designed to be used with Craftsman, Troy-Bilt, Cub Cadet, MTD, Yard Man, and other brands.

This hex screw is a genuine MTD part, sold individually. A hex screw can be used as a replacement part for outdoor appliances including lawn mowers, snowblowers, tillers, and wood chippers. This genuine OEM part is a small fastening component.The hex screw in a outdoor appliance might need to be replaced if it has been lost or damaged. If the screw has been damaged and cannot serve its typical function, it should be removed and replaced by this genuine OEM replacement part in a timely fashion.This OEM part is a genuine replacement that is sold individually and sourced directly from the manufacturer. This hex screw is compatible with the following outdoor appliance brands: MTD, Craftsman, Cub Cadet, Troy-Bilt, Husky, Yard Machines, Huskee, Montgomery Wards, Yard Man, and MasterCut.

A hex screw fastens and holds two components together. It has a hexagonal head and features threading starting underneath the shoulder down to the tip. Its all-metal construction offers rigidity and longer lifespan. It is also threaded, so you can conveniently loosen or tighten in position. It measures 1/4-20 x 0.5 inch and comes in brass or gold color. Take note that this replacement hex screw may beused in different locations of a machine. Double check the device’s model number for compatibility. To install this hex screw, you will need a hex wrench or a hex socket. This hex screw is a replacement made by MTD. This screw/bolt may be used on lawn mowers, snowblowers, tillers, string trimmers, leaf blowers, edgers, chainsaws, pole pruners, log splitters, or wood chippers made by Craftsman, Toro, Cub Cadet, Ryobi, Troy-Bilt, Husky, Murray, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Yard-Man, Turf King, or MasterCut. This OEM hex screw is sold individually.

Screw hex caps are found on lawn equipment and other small machines. Over time, with the machine's use or following accidental damage, a screw hex cap may break or become loose. In order to continue safely operating the machine, the part must be replaced. A missing or damaged screw hex cap can cause the equipment to move in unpredictable ways. Check for excessive vibration or noise.Always wear gloves for protection when replacing parts on lawn equipment. Tools required may include a socket set, wrench set, and a screwdriver. Screw hex caps are quick and easy to replace. Make sure that the replacement screw hex cap is installed correctly and properly secured for a tight and long-lasting fit.This screw hex cap is an authentic OEM replacement part. It is supplied by the manufacturer. The replacement screw hex cap is made of durable metal and is gold in color. The replacement piece can be used in a variety of machines, including chippers, shredders, cultivators, edgers, lawnmowers, lawn tractors, and snowblowers. The screw hex cap is compatible with Husky, Cub Cadet, Ryobi, Bolens, Yard Machines, Yard-Man, Troy-Bilt, and MTD. It is sold as an individual unit.

A flange nut's unique wide flange design distributes the nut's pressure over the part it is securing. In return, it creates an even fastening surface, which reduces part damage and nut loosening. This one-piece all-metal fastener has a lock nut version that features a protruding circular flange. This drastically increases bearing surface, compatibility either for irregular or oversized holes, and surface tension reduction. Flange lock nuts are the preferred type of fastener for many lawnmower models because it can provide better fastening than regular screws, which are known to loosen under extreme vibration. However, it’s important to know that flange lock nuts are susceptible to wear and tear due to constant vibration exposure. It is essential to replace the broken flange lock nut immediately to prevent serious damage to the lawnmower. The MTD 712-04063 Flange Lock Nut OEM replacement can be used with Craftsman, White Outdoor, Yard Machines, MTD, or Columbia lawnmowers. It is a genuine or OEM MTD replacement part that measures 5/16-18. It is threaded and requires the use of a wrench. This replacement flange lock nut is sold individually. An MTD bolt carriage may also be needed and is sold separately.

A flange lock nut, also known as a flange lock or a lock nut, is created to be used in various types of lawn and garden equipment. This flange lock nut holds other parts in place and, when properly threaded, will resist loosening. Over time, a flange lock nut may begin to weaken and may become loose or break. If it appears to be broken or weak, a replacement is required. Flange locks can be adjusted and uninstalled after use. When replacement is required, you may need a socket set, screwdriver, hacksaw, and butane torch. The socket wrench will loosen the bolt it is connected to, while the torch is used to heat the lock nut. A socket wrench may remove the nut, but sometimes cutting it with a hacksaw is required. This flange lock nut is a genuine OEM component directly from the manufacturer and comes in an individual unit. It is made of metal, a gold color, and can be found in various areas of lawn equipment. It works with lawnmowers, trimmers, snowblowers, cultivators, tillers, and leaf blowers by Poulan, MTD, Toro, Cub Cadet, Murray, Troy-Bilt, Bolens, Yard Machines, Craftsman, and Yard-Man.

This lock washer is used frequently for a number of applications on power yard equipment. The size, 5/16, is the default for many small engine housing and manifold applications. Lock washers are used with machined bolts to fasten engine blocks to the housing of the equipment being used. The compressed washer is able to handle the constant vibration of the small gasoline engine without losing the seal between the screw or bolt and the housing. Typically these lock washers only need to be replaced when they are misplaced during repairs or when the screws that attach them have to be chiseled or cut away, meaning the washers are destroyed as well. These OEM certified replacement washers have been manufactured to the same specifications as the originals they are replacing. In addition to lawn mowers, lock washers of this type and size are frequently used on blowers, lawn tractors, cultivators, snowblowers, and trimmers. Brands compatible with this type of washer are Murray, Husky, Poulan, Bolens, Yard-Man, Cub Cadet, Troy-Bilt, Yard Machines, MTD, and Ryobi.

This replacement part is a washer. This is a genuine replacement part made by MTD. Washers are a very important part of many different types of machinery. These small pieces work together with other small parts to help the pieces of the machine stay in place and secure so that everything operates smoothly.A new washer might be needed if the current one is missing or damaged in any way. Washers can become stripped over time and might not stay in place after a while. If this is the case it is recommended that it be replaced as soon as possible. This repair should be fairly easy and only require a screwdriver and possibly pliers. Be sure to wear work gloves during this repair. This part is a genuine OEM replacement part. This part is sold individually and is sourced directly from the manufacturer to ensure proper fit.

This replacement forward drive v-belt connects to the transmission in certain types of lawn and garden machines and allows the machine to move forward when it is in use. Over time, the belt could start to have issues. In some cases, it may begin to crack and dry out. It could start to flake away and fall apart, which means it will need a replacement. Other times, the belt could simply snap or no longer fit properly. Owners should inspect the forward drive v-belt in their machine regularly to ensure it is in good condition. Before installing a new belt, they should clean the pulleys to ensure the best performance. The genuine OEM forward drive v-belt is sold individually, and it works well for many models of tiller and walk-behind mower. Compatible brands include MTD, Husky, Yard Machines, Troy-Bilt, and Cub Cadet. Buyers in need of a forward belt should always ensure they are getting the right belt for their machine.

This transmission pulley is intended for use with many tiller models from popular brands. The pulley is used to hold the belts that help to drive the transmission and run the machine. Damaged pulleys will often cause a squeaking sound while the engine is operating. If a transmission pulley is damaged, the tiller may not be as efficient or as easy to use as it was before.The pulley is made from quality metal and is durable. However, it could become damaged, or it could start to degrade and corrode over time. When there are issues, the owner should replace the pulley before the problem worsens. If the pulley fails, owners will need to replace it before they use the tiller again.The transmission pulley is compatible with some models from Troy-Bilt, Yard Machines, MTD, Cub Cadet, and Husky. The pulley is sold individually, and it is a genuine OEM replacement part sourced from the manufacturer.

The roller cable guide is designed for use with lawnmowers. It supports and guides cables to the lasher in the mower.This roller cable guide is a genuine OEM part sourced directly from the manufacturer and is sold individually. This roller cable guide is compatible with the following brands: Craftsman, Cub Cadet, Ryobi, Troy-Bilt, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, and Yard-Man.

This part is a replacement wheel assembly. This is a genuine OEM part made by MTD and has been sourced directly from the manufacturer. This part will replace a broken or defective wheel assembly in several tiller models.The wheel assembly ensures that the tiller can be maneuvered efficiently by the equipment operator. Wheels are particularly subject to wear and tear and may require replacement before the standard lifespan of the equipment. A wheel that is punctured, dented, flat, or worn may prevent the tiller from proper operation. It's important when working on or near an engine to make sure the equipment is powered off and completely cooled down before starting any repairs. Access to proper tools is recommended before attempting this part installation. For more accurate information on how and where to install this wheel assembly, reference the appropriate owner's manual and specific equipment diagrams.This is an authentic OEM replacement part made of high-quality materials. This wheel assembly can be used with tiller models that have been manufactured by MTD, Troy-Bilt, Yard Machines, and Husky. Sold individually.

This klik pin is used as a fastener on various lawn equipment such as tillers and lawnmowers. It is often used as a way to hold the wheel onto the assembly so the equipment can easily move over rough terrain. If the tool is having trouble with terrain and movement, it could be related to the klik pin. It may have become bent, damaged, or broken. If those things occur, or the klik pin is missing, it will need to be replaced.Getting access to the klik pin is fairly easy. It will be securing the wheel to the axle and will need to be pulled off. A quick look at the pin will give an idea of whether it is damaged or broken. If it is, the solution is to replace the part with a new klik pin. This klik pin is a genuine OEM replacement part that is directly sourced from the manufacturer. It is sold as an individual component. The pin is made to be used in lawnmowers, edgers, snowblowers, and tillers created by Craftsman, Cub Cadet, Ryobi, Troy-Bilt, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Yard-Man, and MasterCut.
