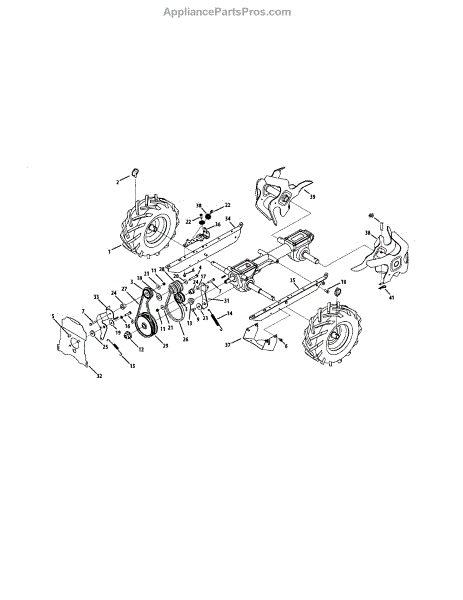

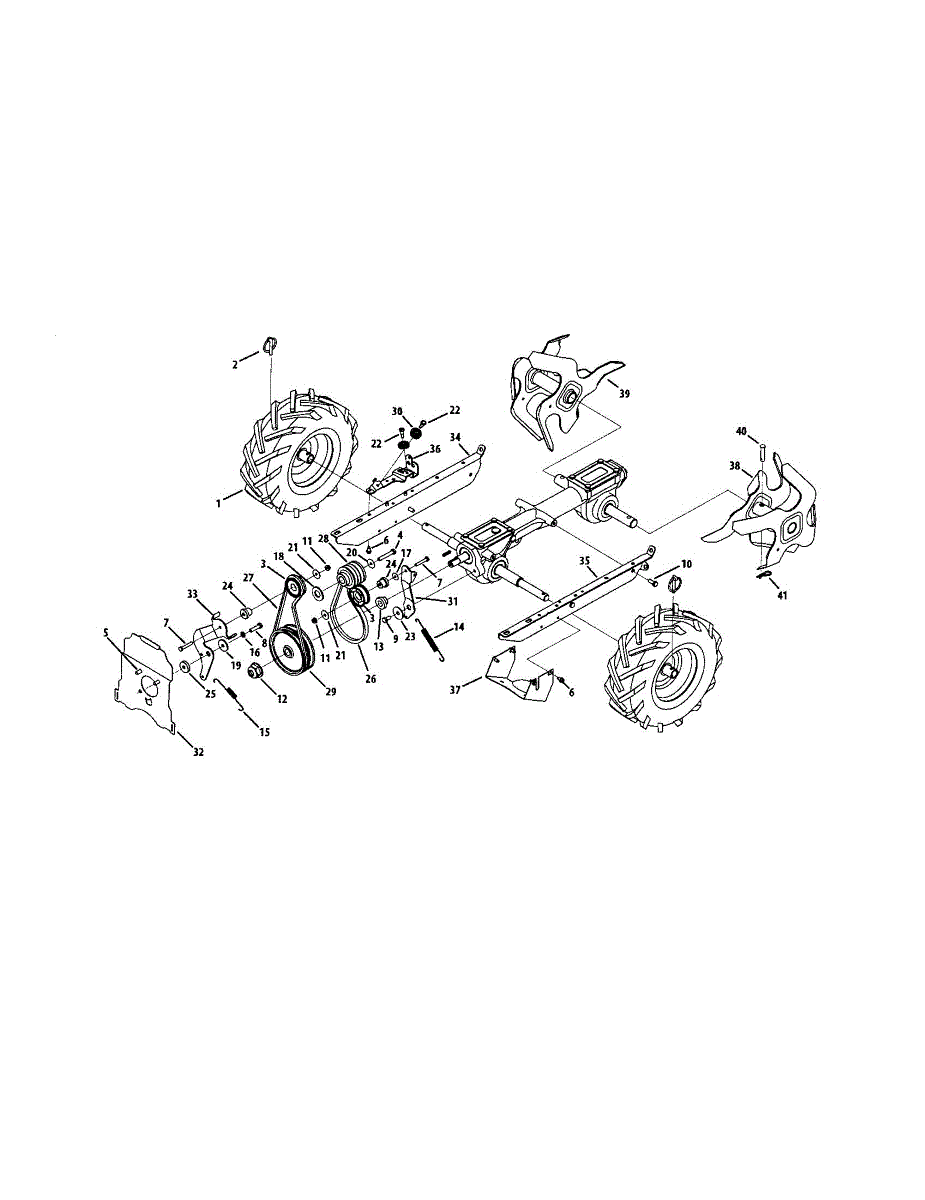

Parts for Mtd 40M: Drive System Parts

Replace your tiller's worn, cracked, or broken wheel assembly. This replacement wheel mounts to the axle and enables smooth maneuvering of your tiller.

Push rod kit for small engines. Installs in the valve train assembly. Replace if rods are bent, damaged, or worn from normal engine operation.

Klik pin fastener secures wheels to tiller and snowblower assemblies. Replace if bent, broken, or missing to restore proper wheel attachment.

This is an idler pulley assembly for a snowblower or tiller. The idler pulley works together with other pulleys to drive the belt system in an engine. It regulates the belts connecting to the crankshaft to produce movement in various engine accessories. This is a genuine OEM part and is sold individually. This part is compatible with Craftsman, Cub Cadet, Huskee, Troy-Bilt, and Yard Machines. Over time, the pulley components wear down and begin to slip. Damaged bearing devices can also cause wear on the pulley, causing the engine to fail. To replace an idler pulley in a snowblower, remove the ignition key and disconnect the spark plug. Using a socket wrench, remove the mounting bolts securing the belt cover. If required, loosen the tension. Use a ?-inch socket to remove the lower bolts. Pull off the cover and use the wrench to remove the bolt from the pulley. Remove the old part and transfer the bushing into the new part. Position the new pulley, thread the bolt, and tighten. Per model, either realign the auger drive linkage on the bolt and slide on the push nut to secure, or realign and reset the tension spring. Then, recover and reattach.

Replace a damaged, stripped, or missing hex screw on lawn mowers, tillers, or snowblowers. This fastener secures panels and components together.

This is a replacement hex screw sourced from the manufacturer. The hex screw is used in numerous machines, including lawnmowers, tractors, and tillers.Hex screws will be subject to normal wear like any other part. They should be inspected every year before using the equipment for rust or to see if any have fallen out or broken off. If any extra motion from the deck or the engine is noticeable, check the screws to ensure they don't need to be tightened. Failure to do so can cause damage to mower and cause other parts to need replacement.Before checking the screws, make sure the mower has cooled off to avoid burns. They can be tightened with a rachet or an adjustable wrench. The hex screw is a genuine OEM replacement part. It is designed to be used with Craftsman, Troy-Bilt, Cub Cadet, MTD, Yard Man, and other brands.

Engine won't start after sudden stop? A sheared flywheel key breaks the connection between crankshaft and flywheel. Simple DIY repair.

Hex screw fastener for securing lawn mower components. Replace if stripped, rusted, or missing to ensure proper assembly and equipment stability.

Hex head screw for lawn mowers and outdoor power equipment. Replaces damaged, stripped, or missing screws. Essential for secure assembly and repairs.

Fix your tiller that won't start, runs rough, or stalls frequently with this carburetor rebuild kit. Restores proper fuel delivery and engine performance.

This is a hex screw used on a variety of types of lawn and garden equipment. On large machinery, it is often used to mount the gas tank. On smaller items, it tends to be used to clamp the housing together. It can secure items like plastic, metal, brick, and wood together. It measures 5/16-18 x .75 inches and is made of durable metal. In some cases, the screw can become damaged, broken, or stripped, which means it needs to be replaced.A visual inspection will indicate whether the screw is damaged. If it needs to be replaced, a hex wrench can be used to remove it from the equipment. Afterward, the replacement hex screw can be installed with the wrench before being tightened to ensure materials hold together well.This hex screw is a genuine OEM part that is sold individually. It is sourced directly from the manufacturer. The hex screw is compatible with lawnmowers, wood chippers, log splitters, snowblowers, chainsaws, edgers, tillers, leaf blowers, and string trimmers by Craftsman, Cub Cadet, Ryobi, Troy-Bilt, Husky, Broan, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Turf King, Yard-Man, and MasterCut.

A flange lock nut, also known as a flange lock or a lock nut, is created to be used in various types of lawn and garden equipment. This flange lock nut holds other parts in place and, when properly threaded, will resist loosening. Over time, a flange lock nut may begin to weaken and may become loose or break. If it appears to be broken or weak, a replacement is required. Flange locks can be adjusted and uninstalled after use. When replacement is required, you may need a socket set, screwdriver, hacksaw, and butane torch. The socket wrench will loosen the bolt it is connected to, while the torch is used to heat the lock nut. A socket wrench may remove the nut, but sometimes cutting it with a hacksaw is required. This flange lock nut is a genuine OEM component directly from the manufacturer and comes in an individual unit. It is made of metal, a gold color, and can be found in various areas of lawn equipment. It works with lawnmowers, trimmers, snowblowers, cultivators, tillers, and leaf blowers by Poulan, MTD, Toro, Cub Cadet, Murray, Troy-Bilt, Bolens, Yard Machines, Craftsman, and Yard-Man.

Flange nut with integrated hub for lawn tractors and riding mowers. Replaces worn, stripped, or missing hardware on mower decks and assemblies.

Drive pulley hub for lawn tractors and riding mowers. Replaces cracked, worn, or broken hubs that connect drive components. Essential structural part.

Return spring for tillers. Installs on the control mechanism to provide tension and automatic return action. Replace if stretched, broken, or missing.

Extension spring for lawn tractors and tillers. Replaces worn, broken, or missing springs. Essential structural component for proper equipment operation.

This lock washer is used frequently for a number of applications on power yard equipment. The size, 5/16, is the default for many small engine housing and manifold applications. Lock washers are used with machined bolts to fasten engine blocks to the housing of the equipment being used. The compressed washer is able to handle the constant vibration of the small gasoline engine without losing the seal between the screw or bolt and the housing. Typically these lock washers only need to be replaced when they are misplaced during repairs or when the screws that attach them have to be chiseled or cut away, meaning the washers are destroyed as well. These OEM certified replacement washers have been manufactured to the same specifications as the originals they are replacing. In addition to lawn mowers, lock washers of this type and size are frequently used on blowers, lawn tractors, cultivators, snowblowers, and trimmers. Brands compatible with this type of washer are Murray, Husky, Poulan, Bolens, Yard-Man, Cub Cadet, Troy-Bilt, Yard Machines, MTD, and Ryobi.

Flat washer for lawn mowers and tractors. Replace if missing, corroded, or damaged during maintenance. Ensures secure fastening of components.

Flat washer for lawn mowers, tractors, tillers, and snow blowers. Replace if worn, damaged, or missing to ensure proper fastener spacing and tension.

Flat washer for lawn tractors and outdoor power equipment. Fits between fasteners and surfaces. Replace if worn, corroded, or missing for proper fit.

Washer for lawn tractors and outdoor power equipment. Replace when worn, damaged, or causing loose connections. Verify fit with your model number.

Spacer for tiller pivot idler assembly. Maintains proper spacing and alignment between idler components. Replace if worn, cracked, or missing.

Shoulder spacer for gas snowblowers and tillers. Installs between components to maintain proper spacing and alignment. Replace if worn or missing.

Forward drive v-belt for rear-tine tillers. Replace when cracked, dried out, or flaking to restore forward motion. Verify fit with your model number.

Reverse drive belt for rear-tine tillers. Replace if worn, cracked, or slipping during reverse operation. Verify compatibility with your tiller model.

Fix squeaking sounds during operation with this tiller transmission pulley. Holds drive belts that power the transmission. Common repair for damaged pulleys.

The roller cable guide is designed for use with lawnmowers. It supports and guides cables to the lasher in the mower.This roller cable guide is a genuine OEM part sourced directly from the manufacturer and is sold individually. This roller cable guide is compatible with the following brands: Craftsman, Cub Cadet, Ryobi, Troy-Bilt, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, and Yard-Man.

Tiller not breaking up soil properly? This left hand tine assembly attaches to your tiller to break clumps into loose dirt. Moderately easy install.

Tiller won't break up soil or leaves clumps? This tine assembly loosens packed soil for proper planting. Sold individually, moderate DIY install.

This is a quality clevis pin that is made for many types of lawn and garden equipment. It secures two components together. A clevis pin has a hole at the end where a cotter pin can be attached to secure it in place. Clevis pins can become damaged or corroded over time, which will require them to be replaced.If a damaged clevis pin is difficult to remove, it can be sprayed with penetrating oil and allowed to sit for several hours. This should make it easier to remove the cotter pin from the clevis pin. If it doesn't budge, use a pry bar to loosen the clevis pin.This is an authentic OEM replacement clevis pin directly sourced from the manufacturer. It is sold as a single pin. The clevis pin is designed to be used with lawnmowers, tillers, and snowblowers manufactured by MasterCut, Yard-Man, Bolens, Montgomery Wards, Huskee, MTD, Yard Machines, Husky, Troy-Bilt, Ryobi, Cub Cadet, and Craftsman.

Secures moving parts and linkages on tractors and outdoor equipment. Replace if bent, broken, or missing to prevent parts from detaching during operation.
