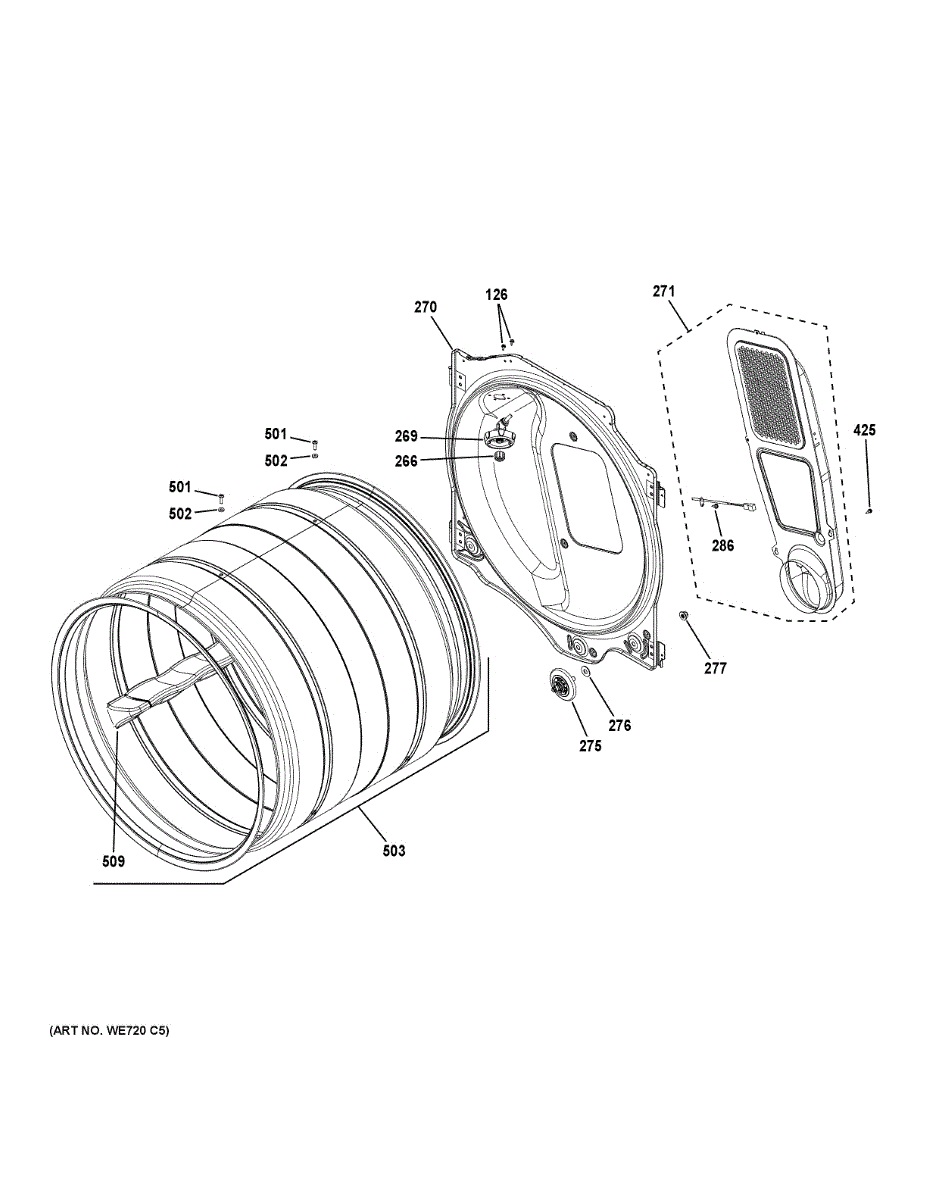

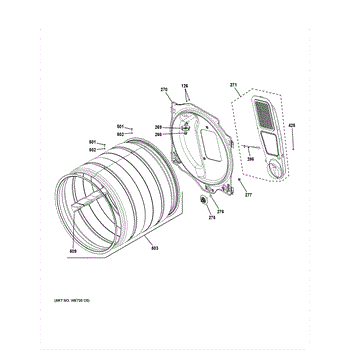

Parts for Ge PFD95ESPT0DS: Drum Parts

8-18 hi/lo 5/8

This rear drum support is the replacement bracket that holds and aligns the dryer drum at the rear, helping the drum turn smoothly and reducing wear. It restores proper drum positioning for quieter, more reliable operation. What it does

• Supports the rear of the dryer drum and keeps the drum centered during rotation
• Helps prevent drum wobble, rubbing, and uneven wear
• Reduces noise caused by a misaligned or unsupported drum
• Works with the drum bearing/retainer and other rear support components to maintain smooth operation

• One rear drum support bracket

• Disconnect power (unplug electric or shut off gas and unplug) before starting repairs
• Access requires removing the dryer cabinet or rear panel; support the drum while removing the old bracket
• Inspect drum bearing, roller(s), and seals when replacing this support and replace any worn components
• Reassemble panels and test dryer on a short cycle to ensure smooth operation

The Roller Assembly Wheel is an OEM part for GE dryers. It supports the drum and allows it to rotate smoothly during drying cycles, ensuring efficient and quiet operation. The assembly includes the roller, roller axle shaft, and two retaining clips. The roller is threaded on one side and hexagon-shaped on the other, with a tri-ring included for secure installation.

You should replace this roller assembly wheel if it becomes worn or damaged. Common causes of a bad roller assembly wheel include wear and tear from regular use, accumulation of lint and debris, or damage due to overloading the dryer.

Symptoms of a bad roller assembly wheel include:

• Thumping or squeaking noises during operation
• The drum not rotating properly or getting stuck
• Uneven drying of clothes
• Excessive vibration or movement of the dryer

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

A flat steel washer that spaces and protects fasteners to keep components aligned and reduce wear. Fits where a thin, durable metal shim is needed to distribute load and prevent screw or bolt damage. What it does:

• Distributes clamping force from a fastener to protect softer surfaces
• Maintains proper spacing and alignment of components
• Reduces wear and abrasion between parts
• Can help reduce loosening from vibration when used with the correct fastener

• Disconnect power and unplug the appliance before servicing.
• Use the correct bolt or screw; do not overtighten—tighten to snug plus a short turn.

This pulley nut secures the washer's drive pulley to the shaft to keep the belt aligned and power transfer reliable. Replacing a worn or missing nut restores stable spin performance and helps prevent belt slippage and noise.

• Locks the drive pulley to the shaft for proper belt alignment and consistent power transfer
• A loose or stripped nut can cause pulley wobble, belt squeal, slippage, or the belt coming off
• Replace if the original nut is damaged, missing, or will not stay tight after adjustment

• Disconnect power and water supply; safely tip or elevate the washer for bottom access
• Remove the drive belt; hold the pulley while loosening the nut (verify thread direction—do not force)
• Hand-start the new nut to avoid cross-threading; tighten securely per service information and confirm pulley runs true
• Reinstall the belt, verify alignment, and rotate by hand before restoring power

Size: 8 - 18 ab.

A replacement baffle screw and flat washer used to secure the baffle or trim piece in ovens and ranges. Restores proper attachment to reduce vibration and keep the baffle aligned for normal operation. What it does

• Secures the baffle or trim to the oven/range body and prevents movement or rattling.
• Replaces missing, stripped, or corroded mounting hardware that can cause loose or misaligned baffles.
• Helps maintain a tight fit so trim and baffle sit flush with surrounding panels.
• Small, direct-replacement fastener for original baffle mounting points.

• Disconnect power and allow the appliance to cool before accessing internal panels.
• Use the matching size screwdriver; start threads by hand to avoid cross-threading.
• Tighten until snug — avoid over-tightening, which can strip threads or deform the washer.
• Repair or replace the mounting bracket before installing this hardware.

The Baffle Washer is an OEM part for GE dryers. It works with the baffle screw to secure the dryer baffle in place on the drum. This washer helps to distribute the pressure and prevent the baffle from loosening or coming off during the drying cycle.

A bad washer can lead to issues with the baffle becoming loose or detached, causing uneven tumbling of the clothes or potential damage to the dryer drum. Causes of a bad part can include wear and tear over time, damage due to excessive vibration or movement, or improper installation.

Symptoms of a bad baffle washer include:

• Baffle becoming loose or detached from the dryer drum
• Clothes not tumbling evenly, resulting in uneven drying
• Unusual noises, such as rattling or banging, during operation
• Visible signs of damage or wear on the baffle screw washer

Replace your worn-out or damaged baffle washer with this genuine OEM GE part to ensure secure and smooth operation of the dryer baffle.

This GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.


The Drum Baffle is an OEM part for GE electric and gas dryers. Located inside the rotating drum, this baffle helps separate and tumble fabrics efficiently during drying cycles.

Symptoms of a damaged or improperly functioning baffle include:

• Excessively long dry times
• Items not fully drying or left damp after a cycle
• Increased tangling or bunching of clothes within the drum

Causes stem from cracking/breaking under repeated impacts from swinging loads, general wear over extended use, or damage upon removal of tightly packed fabrics.

This genuine GE replacement restores balanced tumbling action within the drum.
