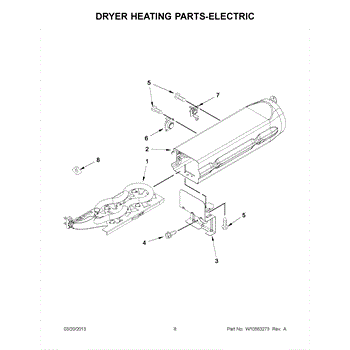

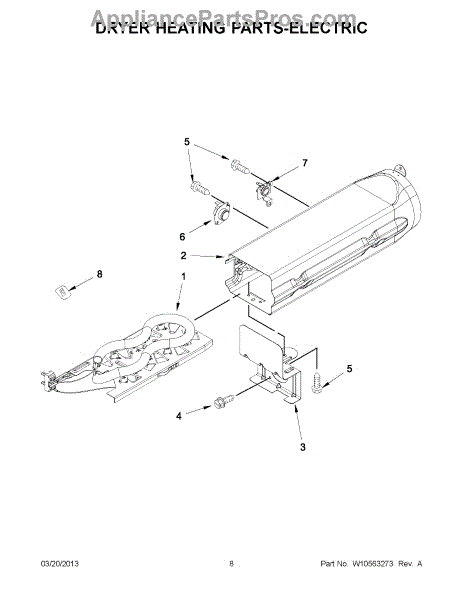

Parts for Maytag MLG20PDBGW2: 04 - Dryer Heating Parts-Electric Parts

The Heating Element is an OEM part for Whirlpool dryers. This part generates the heat necessary to dry clothes during the drying cycle. The element is designed to heat up when electricity passes through it, producing the warmth required to effectively dry laundry.

Causes of a bad heating element include wear and tear over time, electrical issues such as short circuits or power surges, and physical damage from overloading the dryer or mishandling the appliance.

Symptoms of a bad heating element include:

• The dryer not producing heat
• Clothes taking longer to dry than usual
• The dryer overheating or shutting off mid-cycle
• Unusual noises or burning smells during operation

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This heater box is the protective housing that encloses and supports the heating element in your appliance. Replacing a warped or damaged housing helps restore safe, efficient heating and protects nearby components from excessive heat.

• Holds the heater element securely and maintains proper spacing from surrounding parts
• Shields adjacent wiring and components from direct heat
• Helps maintain consistent heating performance when the original housing is heat-damaged or cracked
• Common symptoms include visible melting/warping, loose element fitment, burning odors, or repeated safety shutoffs

• Disconnect power (and gas supply, if applicable) and allow the unit to cool completely before service
• Take photos of the existing layout to aid reassembly and wire routing
• Transfer the heater element and any model-specific hardware to the new housing in the same orientation
• Ensure wiring is clear of sharp edges and heat sources; reassemble and test for proper operation

This Heater Box Bracket secures the dryer's heater housing to the cabinet, keeping the heating assembly firmly mounted and aligned. Replace a bent, cracked, or missing bracket to restore stable support and reduce vibration around the heater area.

• Anchors the heater housing/box to the cabinet frame
• Maintains proper alignment and clearance for the heating element assembly
• Helps prevent rattling or rubbing noises from a loose heater housing
• A damaged bracket may leave the heater housing loose, cause vibration, or contribute to intermittent heating issues

• Disconnect power; if gas, shut off gas supply and allow the unit to cool completely
• Access the heater housing; note bracket orientation and reuse existing fasteners
• Support the heater housing and keep wiring clear while removing/installing the bracket
• After installation, verify the housing sits square and clear of the drum and wiring before restoring power

This 8-18 x 5/8-inch screw secures appliance panels, brackets, and covers. Replacing a missing or stripped fastener restores a tight fit and helps prevent vibration or loosening where this exact size is specified.

• Fastens sheet-metal or plastic components where a #8-18 x 5/8 screw is called for
• Helps maintain alignment and reduce rattling or vibration
• Replaces stripped, corroded, or missing screws of the same size
• Common symptoms: loose panels, gaps/poor fit, rattling noises, or visible missing hardware

• Disconnect power and shut off gas/water (as applicable) before service
• Match thread and length to the original; replace screws one at a time to keep parts aligned
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• If the receiving threads are damaged, additional repair (clip, insert, or new nut) may be needed

This high-limit thermostat helps stop overheating by opening the heater circuit at preset temperatures, protecting the appliance and improving safety. Replace a failed thermostat to restore proper over-temperature shutoff. What it does:

• Opens the heating circuit at its rated temperature to prevent excessive heat buildup
• Stops the heater from running if the appliance overheats
• Common symptoms: appliance overheating, no heating or intermittent heating, or heat cycling off unexpectedly
• Used as a safety cutoff in the appliance's heating system

• Disconnect power before inspecting or replacing the thermostat
• Handle terminals carefully and note wiring locations for correct reassembly
• Verify operation only after proper installation and restoring power

The Thermal Cutoff is an OEM part for Whirlpool dryers. It is a safety component designed to prevent the dryer from overheating by cutting off power to the heating element if the temperature exceeds a safe level.

Causes of a bad thermal cutoff can include overheating due to lint buildup, restricted airflow, or a malfunctioning thermostat. These issues can cause the thermal cutoff to blow, preventing the dryer from heating to avoid potential fire hazards.

Symptoms of a bad thermal cutoff include:

• Dryer not heating
• Dryer shutting off prematurely
• Unusual dryer cycle times
• Error codes related to overheating

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
