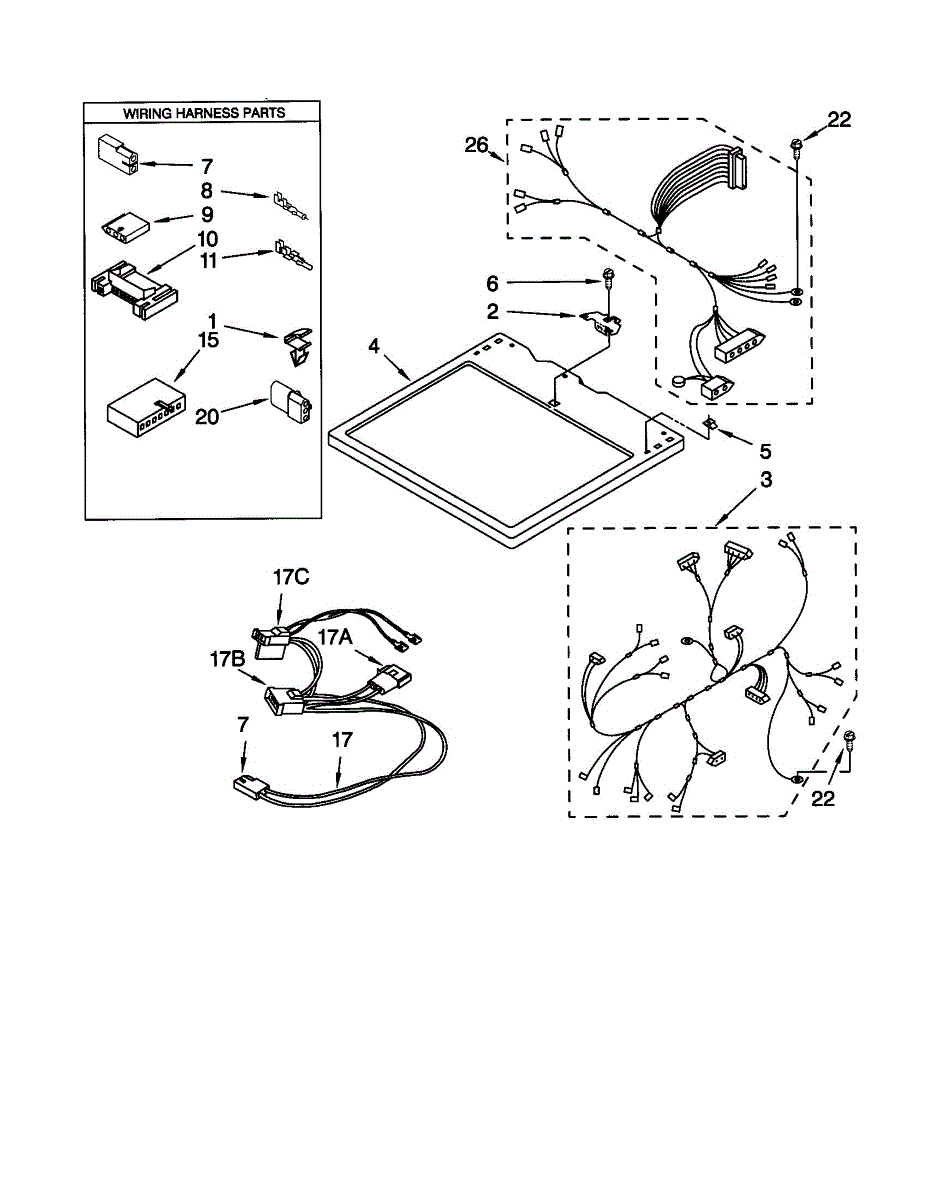

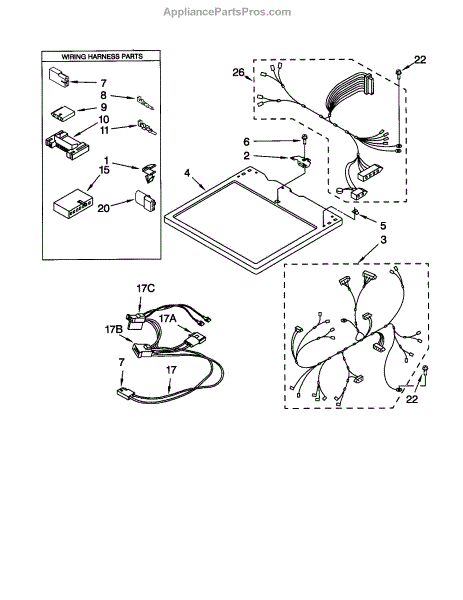

Parts for Kenmore 110.70092991 (11070092991, 110 70092991): Dryer Parts

Secures dryer wiring to the cabinet to prevent rubbing and interference. Replace if your wire retainer clip is broken, missing, or damaged.

Push-in.

This screw-and-washer fastener is a factory-size 8-18 x 5/16 hardware piece used to secure appliance panels and components. Replace stripped, rusty, or missing hardware to restore a tight, rattle-free fit and proper alignment. What it does:

• Fastens sheet-metal panels, brackets, and small components in the appliance cabinet
• Replaces lost, stripped, or corroded screws to maintain secure mounting
• Helps reduce vibration, buzzing, or rattling from loose parts
• Useful when the original hardware is missing or no longer holds securely

• Includes 1 screw-and-washer fastener (8-18 x 5/16)

• Disconnect power; shut off gas and water supplies if applicable
• Match the fastener to the original location; sizes can vary by application
• Start threads by hand to avoid cross-threading; use an appropriately sized driver
• Tighten snugly without overtightening to prevent stripping sheet metal

For mating terminal use [AP31136300].

For mating plug use 691707.

This motor connector housing is the molded body that holds the motor's wire terminals for a secure, insulated connection. Replacing a cracked or heat-damaged housing helps restore reliable motor operation and prevent intermittent power issues.

• Organizes and insulates the motor's wiring terminals
• Locks the harness to the motor for a firm electrical connection
• Helps reduce loose contacts, arcing, and heat damage at the plug
• If the housing is failing, you may see intermittent or no motor operation, the machine stopping mid-cycle, or visible melting/discoloration at the motor connector

• Disconnect power; also shut off gas supply
• Note wire positions; transfer terminals into the new housing one at a time to maintain orientation
• Inspect terminals and wiring; replace any burnt or loose terminals before reassembly
• Ensure the connector seats fully on the motor and the harness is secure; restore power and test

For mating terminal use WP94614.

2-position wire connector for dryers. Replaces damaged, melted, or corroded connectors in electrical wiring harnesses. Essential for restoring connections.

Dryer won't heat or ignites inconsistently? Faulty wire harness between gas valve and igniter disrupts ignition signals. Simple connector replacement.

Dryer won't power on or trips breaker? This terminal block plug connects power to your dryer's electrical system. Common fix for power issues.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

This sensor harness connects the dryer's moisture sensor bars to the main wiring, helping the control or timer read moisture levels so Auto Dry cycles can advance and deliver consistent, reliable drying performance.

• Provides the electrical path between the moisture sensor bars and the control/timer
• Enables the dryer to sense wet fabrics and adjust or advance Auto Dry cycles
• A damaged or open harness can cause Auto Dry to not advance, run too long, or stop early
• Contribute to inconsistent dry times or a "Sensing" indicator that behaves abnormally

• Disconnect power before servicing
• Access the sensor bars at the front bulkhead; note wire routing and clip locations
• Transfer routing/clips from the old harness; connect to both sensor bars and the main harness plug, ensuring snug terminals and clear wire paths
• Restore power and run an Auto Dry test; inspect/clean the sensor bars and check harness continuity

Color: Biscuit. Size: 1 qt. can uncut. Enamel paint.

Graphite spray paint for appliance touch-ups. Covers chips, scratches, and scuffs on dryer drums, washer panels, and exterior surfaces. Restore finish.

Color: Gray. Size: 13 oz. can. Used for coating the dryer drum interior. Acrylic appliance paint.

Touch-up paint for appliances. Covers chips, scratches, and worn areas on range tops, refrigerators, and other appliances. Includes brush applicator.

Color: White. Size: 13 oz can. Acrylic appliance aerosol can spray paint.

The Appliance Spray Paint is an OEM part for Whirlpool appliances, designed to provide a quick and effective way to touch up or completely refinish the exterior of various appliances. This specialty spray paint is formulated to adhere to metal surfaces, offering a durable and resistant finish that can withstand the routine wear and tear of kitchen environments, including heat, moisture, and everyday use.

The primary reason for using such a specialized paint is to maintain or restore the aesthetic appeal of your appliances while protecting them from further damage.

Symptoms needing for Appliance Spray Paint include:

• Scratches, chips, or rust spots on the appliance's exterior that can lead to further damage or corrosion if left untreated
• A desire to refresh or update the appearance of the appliance without the need for complete replacement
• Discoloration or fading of the original finish due to age, exposure to sunlight, or cleaning agents

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Touch-up paint for covering scratches, chips, and minor blemishes on appliance exteriors. Restores appearance and protects surfaces when finish is damaged.
