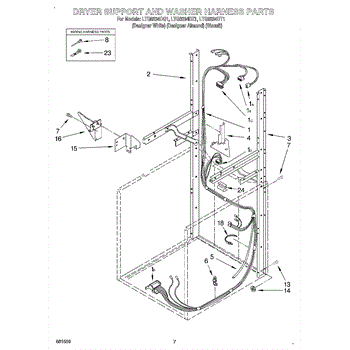

Parts for Whirlpool LTG6234DZ1: 05 - Dryer Support And Washer Harness Parts

Parts for Whirlpool LTG6234DZ1: 05 - Dryer Support And Washer Harness Parts

Location on Diagram
Part Description
Price & Availability
1C
By: Whirlpool
Part Number: 3350211
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

1
Product photo
By: Whirlpool
Part Number: 3396693
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

1
By: Whirlpool
Part Number: 3350130

This is a 3-circuit electrical receptacle connector that provides power connections within the ice machine. It serves as the interface for internal wiring, allowing electrical components to connect securely. Replace this part if internal components are losing power intermittently or if the connector housing is cracked, melted, or shows signs of arcing.

More
$9.95

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
1A
By: Whirlpool
Part Number: 3347243
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

1B
By: Whirlpool
Part Number: W10876590

Wire connector block for washers. Transfers electrical connections between wiring harnesses. Replace if connector housing is cracked or melted.

More
$9.82

IN STOCK
Ships Today Guaranteed
Add to Cart
1D
Product photo
By: Whirlpool
Part Number: WP62505

This 10-circuit connector housing provides a secure plug-style connection for the appliance wiring harness, restoring reliable electrical contact where the original plastic connector is cracked or melted. It helps ensure circuits stay seated and insulated. What it does:

  • Replaces a damaged or cracked 10-circuit plastic connector housing to restore a proper plug connection
  • Secures wiring harness terminals to prevent intermittent power or signal loss
  • Keeps electrical contacts insulated from vibration and moisture
  • Useful when the mating connector body is broken, burned, or otherwise unusable
What's included:
  • One 10-circuit connector housing
Install notes:
  • Disconnect power to the appliance before starting any repairs
  • Verify terminal pin type and wiring orientation before removing the old housing; take a photo for reference
  • This listing is for the housing only; transfer existing terminals/pins or replace pins with exact matches as needed

More
$15.95

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
2
By: Whirlpool
Part Number: 3388851

Left side channel assembly for laundry center handles. Replaces cracked, broken, or damaged handle mounting channels. Structural component for cabinet.

More
$161.26

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
3
By: Whirlpool
Part Number: 3388850
$146.95

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
4
By: Whirlpool
Part Number: 3390609
$25.56

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
5
Product photo
5.0 (1)
By: Whirlpool
Part Number: W10834213

Replaces cracked, worn, or leaking hoses in laundry center units. Ensures proper water flow between internal components. Order now for your repair.

More
$24.30

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
6
By: Whirlpool
Part Number: 8281256
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

7
Product photo
5.0 (2)
By: Frigidaire
Part Number: 636T091P05

Replacement mounting screw for securing panels, brackets, and components to your appliance chassis. Needed when original screws are stripped or missing.

More
$5.83

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
7
Best Seller
Product photo
4.8 (6)
By: Whirlpool
Part Number: WP681414

Specs: 10-16 x 1/2 inch.

More
$7.56

IN STOCK
Ships Today Guaranteed
Add to Cart
8
By: Whirlpool
Part Number: WP3391018

This cable tie secures wiring and the power cord to the appliance chassis to help prevent chafing, pinching, or loose connections. Simple, low-cost part that restores proper wire routing and strain relief. What it does

  • Holds wiring and harnesses in place to prevent rubbing against sharp edges
  • Helps reduce risk of intermittent power or connector strain caused by loose wires
  • Keeps harnesses routed for correct clearance and component access
  • Useful during repairs to restore original wire routing and strain relief
What's included
  • One cable tie (wire harness retainer)
Install notes
  • Safety first: disconnect the appliance from power before inspecting or replacing wiring components
  • Remove the damaged or existing retainer and route harnesses to match original OEM routing before installing the new tie
  • Trim excess tie tail; do not overtighten—secure, but avoid crushing wires
  • Replace any tie that's melted, cracked, or otherwise damaged rather than reusing it

More
$21.77

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
13
By: Whirlpool
Part Number: Y015627
$12.83

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
14
By: Whirlpool
Part Number: 4342911
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

15
By: Whirlpool
Part Number: 3392232
$25.56

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
16
By: Whirlpool
Part Number: 3390336
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

18
Product photo
By: Whirlpool
Part Number: 3391249
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

23
Product photo
By: Whirlpool
Part Number: WP596797

For mating terminal use WP94614.

More
$3.65

IN STOCK
Ships Today Guaranteed
Add to Cart
23
Product photo
By: Whirlpool
Part Number: WP94614

For mating terminal use [AP31136300].

More
$4.95

IN STOCK
Ships Today Guaranteed
Add to Cart
24
By: Whirlpool
Part Number: 63523
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.
