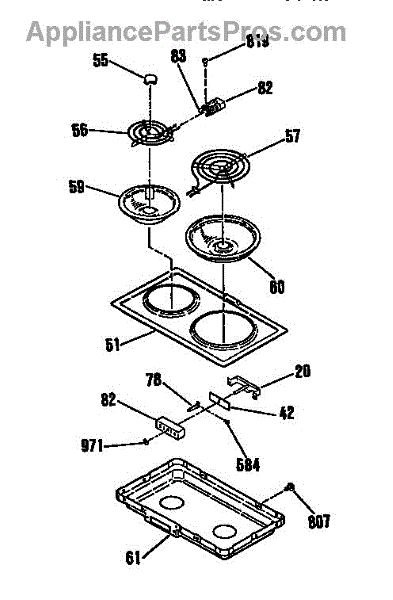

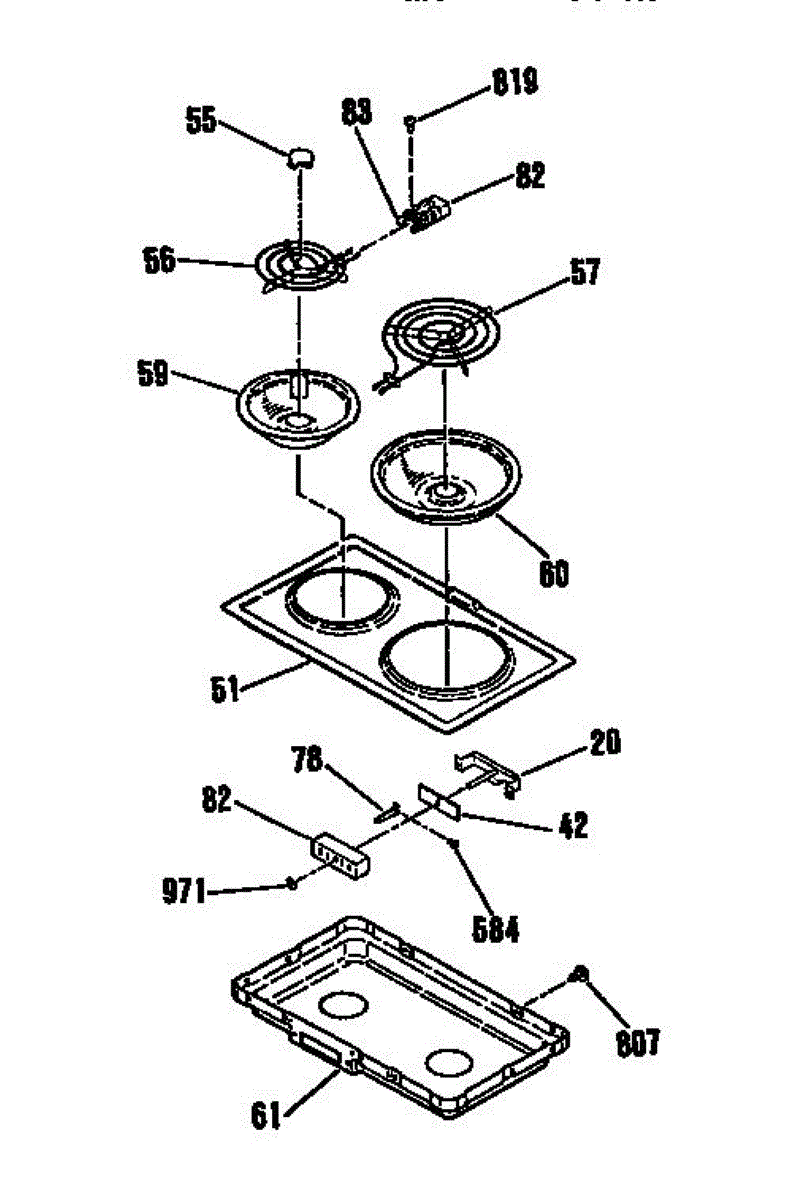

Parts for Kenmore 911.4694590 (9114694590, 911 4694590): Electric Coil Module Kit Parts

Insulation pad that installs inside your range to dampen sound and provide heat protection. Replace if cracked, torn, or missing to restore proper insulation.

Burner not heating or heating unevenly? This 6-inch surface coil element restores consistent heat to your range's small burner. Simple plug-in install.

If your burner won't heat or has stopped working, this 8-inch surface heating element restores cooktop function. Easy plug-in installation in minutes.

Chrome drip bowl that sits under your range's 6-inch surface burner. Replaces cracked, warped, or discolored pans. Measures 8 inches across at top rim.

This 8-inch chrome drip pan sits directly beneath a large surface burner on an electric range, catching spills and food drips before they reach the stovetop cavity below. It reflects heat upward toward your cookware, improving cooking efficiency. Replace it when your existing pan is warped, heavily stained, or so corroded that it can no longer be cleaned.

Fix loose or wobbly burner connections with this terminal block mounting bracket. Secures the element receptacle so coils plug in firmly and heat properly.

This replacement screw fastens panels, brackets, or trim inside your appliance. Swapping in a new screw restores a tight, secure fit and helps stop rattles, looseness, or misalignment caused by missing or damaged hardware.

• Secures panels, brackets, or trim to the appliance chassis
• Helps maintain proper alignment and spacing of components
• Replaces missing, rusted, or stripped hardware
• Helps resolve loose panels/handles, vibration, or rattling noises

• Disconnect power before servicing; for gas appliances, also shut off the gas supply
• Match the screw to the original location; start threads by hand to avoid cross-threading
• Use the appropriate driver and tighten snugly without overtightening
• Inspect the mounting hole or clip for damage and address as needed before reassembly

Nickel
