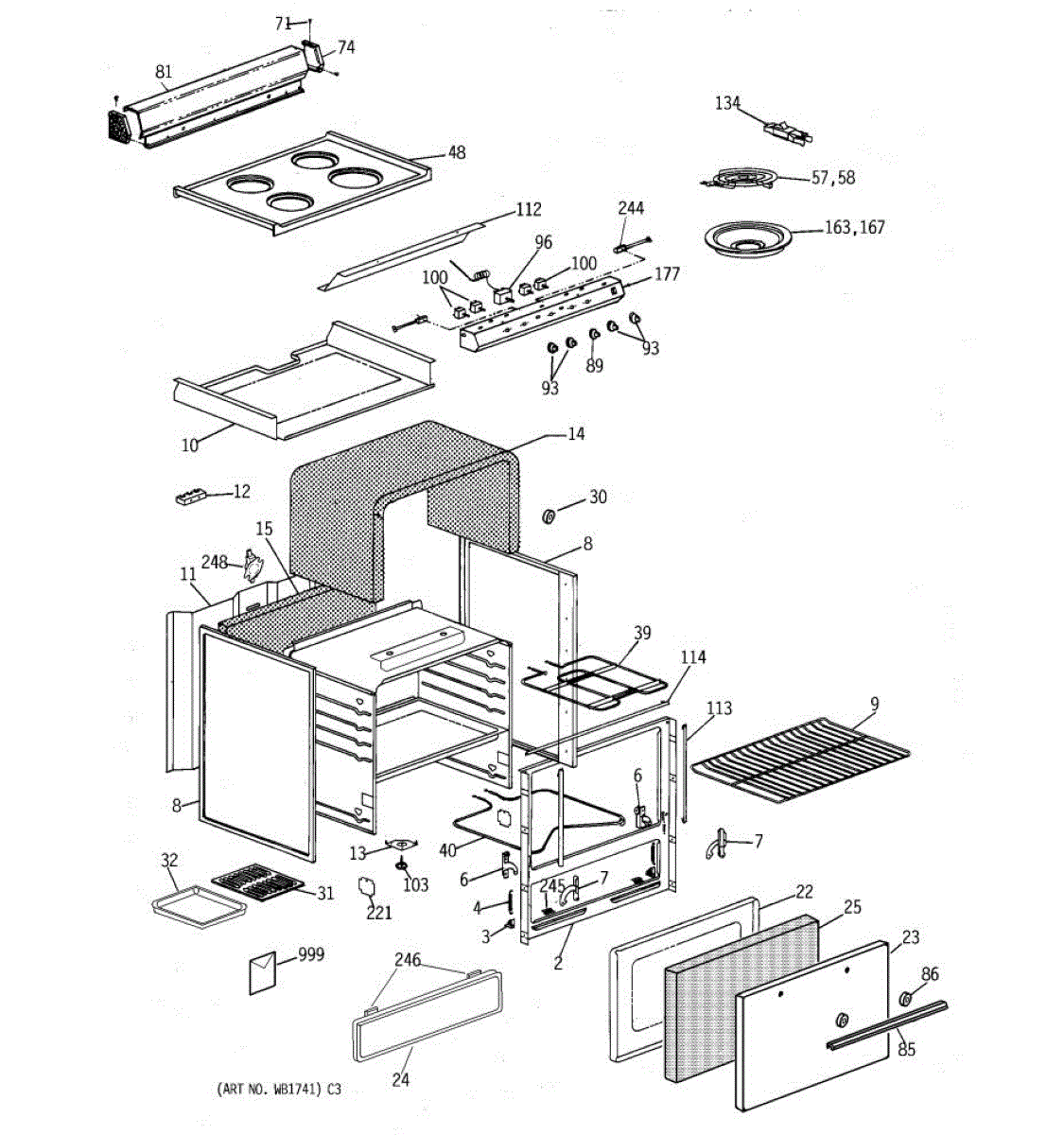

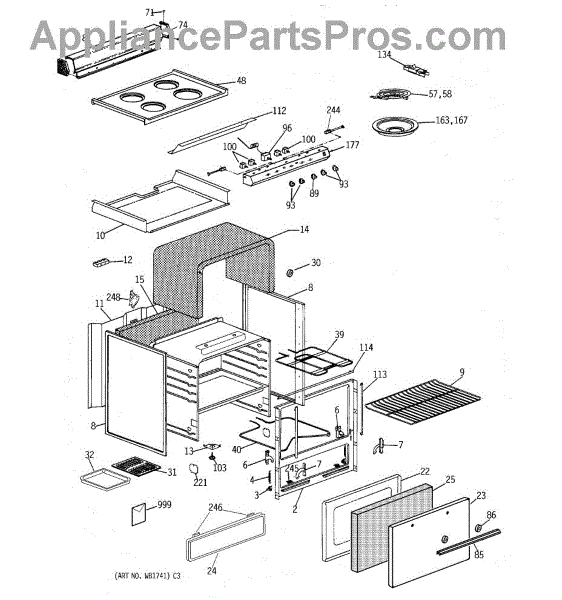

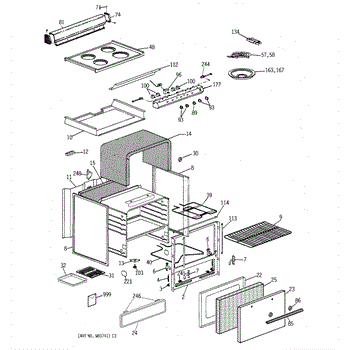

Parts for Ge JAS02Y2: 01 - Section1 Parts

This bake element is the lower heating element inside the oven cavity. It supplies steady bottom heat during Bake cycles, helping the oven preheat properly and cook food evenly when the original element has failed.

• Provides the primary bottom heat during Bake mode
• Cycles with the oven control/thermostat to maintain set temperature
• Common failure symptoms: no heat in bake, very long preheat, uneven or undercooked results
• Visible damage may include blistering, cracks, or burned spots on the element sheath

• Disconnect power at the breaker and allow the oven to cool completely
• Remove racks; take out the element's mounting screws and gently pull the element forward to access the terminals
• Support and label wires; transfer them to the new element one at a time to avoid miswiring and prevent wires from slipping back
• Reinstall securely, restore power, and run a Bake test to verify operation

Restore reliable heat on your range's small burner with this 6-inch surface coil element. Replacing a worn or burned-out coil brings back consistent temperature response and dependable everyday cooking performance.

• Supplies direct electric heat to a 6-inch cooktop burner
• Replaces a coil that is warped, cracked, or has an open/burned-out section
• Common symptoms include: burner won't heat, heats unevenly, or works intermittently
• Visible damage, hot spots, or arcing at the terminals can indicate failure

• Disconnect power by unplugging the range or switching off the circuit breaker
• Lift the old coil and pull straight out from the receptacle to remove
• Inspect the element receptacle/terminal block for discoloration or pitting; replace if damaged
• Align terminals and support, insert fully, and ensure the element sits level in the drip bowl

The 8" Surface Element is an OEM part for GE ranges. It is an 8-inch heating element that fits into the cooktop to provide heat for cooking.

Causes of a bad surface unit include wear and tear from regular use, damage due to heavy cookware, or electrical issues that prevent the element from heating correctly.

Symptoms of a bad surface unit include:

• The burner not heating up
• Uneven heating or hotspots
• Visible damage or burn marks on the element

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Color: White. Includes both end caps that are not sold separate.

A 6" surface unit switch that controls the heat level of a compatible electric cooktop burner, restoring reliable temperature selection and burner response. Direct-fit replacement for ranges that use a 6-inch surface element control. What it does:

• Regulates power to a 6" surface heating element so you can set and change cooking temperature.
• Replaces a worn or failed infinite/surface switch that causes a burner to be stuck on, not heat, or not respond to control settings.
• Works with standard knob-style controls and factory wiring harnesses used on compatible electric ranges.
• Helps restore smooth, graduated temperature changes between settings.

• One 6" surface unit switch (as pictured)

• Disconnect power at the breaker or unplug the range before servicing to avoid electric shock.
• Mounting and panel removal may be required; use proper tools and avoid bending terminals.

This is the range surface unit infinite switch for an 8-inch burner. It regulates power to the large surface element so you can set and maintain the desired heat level during cooking.

• Controls the temperature of an 8-inch surface (cooktop) element
• Replaces a switch that causes an 8-inch burner to be stuck on high, not heat, or only work intermittently
• Helps restore smooth, adjustable heat settings
• Designed for the large surface element circuit on compatible ranges

• Disconnect power before servicing; this is a high-voltage repair
• Note knob orientation and wire positions; take a photo for reference
• Transfer wires one at a time to the new switch to maintain correct connections
• Ensure the switch shaft and knob align properly before reassembly and testing

The Terminal Block Kit is an OEM replacement part for GE electric ranges. This kit replaces the points of connection delivering power to control circuits and surface coil elements atop the cooktop.

Causes of failure are prolonged heat cycling which slowly breaks down solder joints and insulator coating on terminals conducting power. Liquids spilled can seep into connection areas over time promoting electrical faults.

Symptoms of a faulty terminal block include:

• Inability to ignite or regulate specific burners
• Burners that glow intermittently or fail to respond
• Tripped circuit breakers upon use of problematic zones
• Buzzing or cracking noises from under cooktop areas

This genuine GE kit is also compatible with Hotpoint and RCA electric ranges.

The 6 Inch Small Drip Pan is an OEM part for GE ranges and stovetops. It is designed to sit beneath the burner element to catch spills and drips that occur during cooking. This helps keep the stovetop clean and reduces the risk of burns and fire by preventing spills from coming into direct contact with the heating elements. For the 8-inch large drip bowl order WB32X106

Symptoms of a bad Drip Pan include:

• Rust or corrosion that can no longer be cleaned off
• Warping or changes in shape that prevent it from fitting properly under the burner
• Accumulation of stubborn residues that can't be removed, leading to smoke and odors during cooking

Common causes for replacing the drip pan include prolonged exposure to high heat which can cause discoloration and deformation, as well as accidental damage during cleaning or heavy use.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The 8-Inch Large Drip Pan is an OEM part for GE ranges and cooktops. This drip pan is designed to sit beneath the heating element, catching any spills, drips, or overflow that occurs during cooking. It helps to protect the range from food debris and liquids, making cleaning easier and preventing damage to the stove's surface.

Symptoms of a failing Drip Pan include:

• Visible wear, rust, or corrosion on the pan
• Difficulty in fitting the pan securely beneath the heating element
• Accumulation of burnt food or discoloration that cannot be cleaned
• The pan becoming warped or damaged from high heat exposure

Causes of a bad drip pan can include regular wear and tear from frequent use, exposure to high temperatures, and spills from cooking. Over time, these factors can lead to rust, corrosion, and other forms of damage that necessitate replacement.

This OEM GE part is also compatible with some models from Hotpoint, RCA, and Kenmore.
