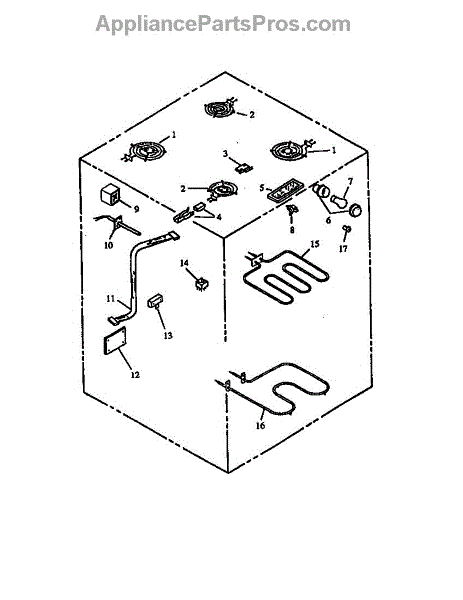

Parts for Amana ARS636E-P1130623NE: Electrical Components Parts

The 8 Inch Large Surface Element is an OEM part for Whirlpool cooktops and ranges, designed to provide reliable and consistent heat for cooking. This large surface element is crucial for performing a wide range of cooking tasks, from boiling water to frying and sautéing.  For matching 6 inch element order WP660532.

The primary reasons for replacing the 8 Inch Large Surface Element often involve wear and tear from regular use, physical damage, or electrical issues within the element itself.

Symptoms indicating the need for a replacement 8 Inch Large Surface Element include:

• The element not heating up, indicating a failure to provide the necessary cooking temperature
• Uneven heating, resulting in inconsistent cooking results
• Visible damage to the element, such as blistering, peeling, or cracking
• The element heating slowly or not maintaining the desired temperature during use

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This 6-inch radiant surface element is the heating source for a small burner beneath a glass-ceramic cooktop. Replacing a failed element restores reliable, controllable heat to that cooking zone. What it does:

• Heats the 6-inch cooking zone under the glass top when the control is turned on
• Cycles to help maintain the selected temperature during cooking
• Common symptoms of failure: small burner won't heat, heats unevenly or intermittently, or shows visible burn spots/damage

• 1 six-inch radiant surface element

• Disconnect power at the breaker and allow the cooktop to cool completely
• Lift the glass top or remove the cooktop to access the elements; support the glass to avoid stress or cracks
• Note wire positions and transfer connections to the new element one at a time
• Ensure the element sits flat in its mounting brackets before reassembly and testing

This terminal block is the insulated connection point where the appliance's incoming power ties into the internal wiring. Replacing a heat-damaged or loose block restores a safe, reliable electrical path and helps prevent arcing and intermittent power loss.

• Connects the supply conductors to the unit's internal wiring
• Provides insulated posts to securely fasten and distribute power
• Helps maintain tight, low-resistance connections
• Common failure signs: melted/discolored plastic, burned or loose terminals, arcing, scorching, or intermittent/no power after confirming the cord and breaker

• Disconnect power at the breaker or unplug the appliance; verify no voltage before servicing
• Photograph or label wire positions to ensure correct reassembly
• Inspect and replace any heat-damaged wire ends or lugs; use appropriate terminals
• Tighten connections securely and ensure wires are fully seated and strain-relieved as originally installed

Restore top-heat performance with this 240V broil element. It provides the intense overhead heat needed for broiling and finishing, replacing a burned-out or damaged element so your oven broiler works reliably and browns evenly again.

• Supplies the oven's top heat source for broiling and quick browning
• Common failure signs: broiler won't heat, uneven browning, visible breaks/blisters, or a breaker trip when broil is selected
• 240V design for standard residential electric ranges and wall ovens
• Replacing an open/weak element restores proper broiler operation

• Disconnect power at the breaker or unplug the appliance before servicing
• Remove oven racks; unfasten the element mounting screws and gently pull the element forward
• Transfer the two wires to the new element one at a time; do not let wires slip back through the liner
• Reinstall and secure; ensure terminals are tight and the element isn't touching oven surfaces before restoring power and testing

The Terminal Block is an OEM part for Whirlpool ranges. It serves as a crucial connection point for the range’s electrical wiring, ensuring a safe and reliable transfer of power to the appliance.

Over time, terminal blocks can deteriorate due to factors such as heat exposure, electrical surges, or wear and tear. When the terminal block becomes damaged or corroded, it can lead to poor electrical connections or potential safety hazards.

Symptoms of a bad terminal block include:

• Burnt or scorched connections
• Intermittent power loss to the range
• Difficulty in the range heating up properly
• Visible damage or corrosion on the terminal block

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
